Views: 0 Author: LIB Team Publish Time: 2026-10-04 Origin: Site
Did a tiny dust particle ruin your product? It happens more often than many manufacturers expect. Field failures caused by dust ingress can lead to costly recalls, warranty claims, and damage to brand reputation. At the same time, the growth of electric vehicles, outdoor IoT devices, telecommunications infrastructure, and ruggedized electronics has increased the need for more reliable particulate testing.
Choosing the right dust testing equipment is therefore an important part of product development and quality control. This guide explains the standards, chamber types, technical specifications, test media, safety features, and supplier capabilities you should evaluate before making a purchasing decision.
For laboratories conducting IP5X, IP6X, MIL-STD-810, automotive, and other particulate testing, LIB Industry provides dust and sand dust test chamber solutions for a wide range of industrial applications.
Define Your Standards First: Equipment selection depends heavily on whether you need basic IP5X/IP6X certification or more demanding military and aerospace testing.
Understand Chamber Types: Standard settling dust chambers and high-velocity sand chambers simulate very different environments.
Size and Capacity Matter: Chamber dimensions should match the largest specimen while leaving enough space for proper airflow and uniform particulate distribution.
Consider Operating Costs: Dust recovery, filtration, maintenance, and calibration affect long-term equipment value.
Vendor Support Matters: Technical support, spare parts, calibration assistance, and customization capability should be considered before purchasing.
Environmental testing requirements continue to evolve. Autonomous vehicles increasingly rely on exterior LiDAR, cameras, radar modules, and sensors that are continuously exposed to road dust and debris. Outdoor 5G equipment may operate for years in dry, windy environments. Solar equipment, industrial electronics, and communication systems must also remain reliable under particulate exposure. As these applications become more demanding, manufacturers need more than simple visual inspection.
Dust testing helps engineers evaluate:
Enclosure sealing
Gasket performance
Optical surface durability
Cooling system reliability
Electrical insulation
Mechanical abrasion
In some applications, basic settling dust evaluation is sufficient. In others, high-velocity particulate exposure is required to simulate severe desert or military conditions.

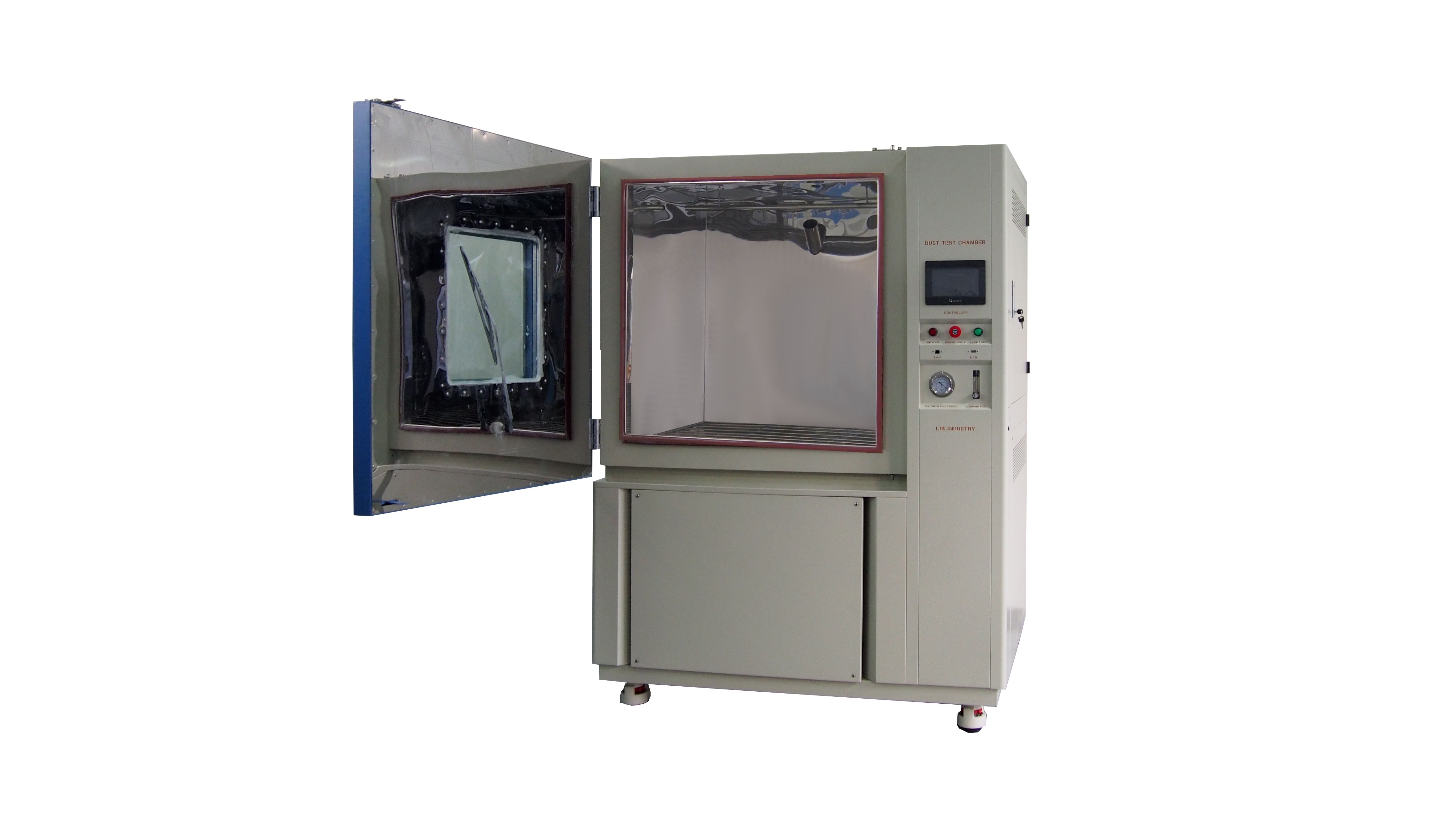

A dust test chamber creates a controlled particulate environment around a product. The purpose is to determine whether airborne dust or sand can penetrate the enclosure or damage external surfaces. The equipment can support product development, certification testing, supplier evaluation, and routine production quality control.
One of the main uses of a dust chamber is conducting a sealing integrity test.
Fine particulate matter is circulated around the Device Under Test to evaluate:
Rubber gaskets
Adhesive joints
Cable entries
Housing interfaces
Sealed connectors
For example, an outdoor telecommunications enclosure installed in a desert region may contain small gaps that are invisible during normal inspection. Dust testing exposes these weaknesses under controlled conditions. If particles enter the enclosure, engineers can identify the sealing failure before the product enters mass production. LIB Industry dust test chambers are designed for applications that require repeatable particulate circulation and controlled test conditions.
Dust ingress testing is used across multiple industries.
Consumer Electronics: Smartphones, smartwatches, rugged laptops, and portable electronics require protection against fine dust and environmental dirt.
Automotive: Headlights, sensors, cameras, control units, and electrical enclosures must withstand road dust.
Aerospace and Defense: Navigation systems, tactical electronics, communication equipment, and avionics may encounter severe desert environments.
Outdoor Telecommunications: Base stations, solar inverters, and communication equipment must operate reliably despite long-term particulate exposure.
Before selecting chamber size or hardware features, buyers should first determine which standards apply to the product.
A chamber that cannot achieve the required airflow, vacuum, particle concentration, temperature, or test duration will not provide valid compliance data.
IEC 60529 defines widely used Ingress Protection classifications.
For dust protection, IP5X and IP6X are the two most commonly referenced ratings.
IP5X – Dust Protected: Limited dust ingress may be permitted as long as it does not interfere with safe product operation.
IP6X – Dust Tight: No dust penetration is allowed under the required test conditions.
IP6X testing may involve applying negative pressure inside the specimen. This encourages air to enter through any weak points in the enclosure and makes sealing defects easier to detect.
If IP6X compliance is required, the chamber should include a suitable vacuum system and accurate pressure monitoring.
Military applications often require more aggressive particulate testing.
The MIL-STD-810 dust test, including Method 510 procedures, may involve:
Elevated temperatures
Low humidity
Controlled dust concentrations
High airflow velocity
Abrasive sand exposure
Some procedures may require temperatures up to approximately 60°C and airflow velocities approaching 18 m/s.
These conditions are very different from standard IP5X or IP6X settling dust tests.
Automotive products may also be evaluated according to ISO 20653.
This standard applies ingress protection requirements specifically to electrical equipment used in road vehicles.
Depending on the target market and customer, additional specifications may include:
IEC standards
ISO standards
DIN standards
JIS standards
OEM-specific procedures
The correct equipment should therefore be selected according to the actual compliance roadmap rather than only the chamber's advertised size.
A common procurement mistake is assuming that every dust test chamber performs the same function.
Standard settling dust testing and high-velocity sand testing use different airflow systems, particle types, and chamber construction.
A standard settling dust chamber is primarily designed for IEC 60529 applications.
Fine talcum powder is circulated using blowers, pumps, or agitation mechanisms.
The particles are suspended inside the chamber and then allowed to settle around the specimen.
These chambers are commonly used for:
Consumer electronics
Industrial controls
Automotive electronics
Electrical enclosures
Indoor and outdoor equipment
Because the particles are fine and airflow velocity is relatively low, the main purpose is usually sealing and ingress evaluation.
Products intended for deserts, military environments, aerospace applications, or construction sites may require a more aggressive test.
A sand dust test chamber can generate high-velocity particulate flow to simulate blowing sand.
This type of test evaluates more than enclosure sealing.
It can also assess:
Surface abrasion
Lens erosion
Coating wear
Mechanical damage
External material durability
Because abrasive sand places greater stress on chamber components, the internal structure must use durable, wear-resistant materials.
| Feature | Standard Settling Dust Chamber | High-Velocity Sand Chamber |
| Primary Standard | IEC 60529 IP5X / IP6X | MIL-STD-810, RTCA DO-160 |
| Airflow Velocity | Low velocity, settling dust | High velocity, up to approx. 18 m/s |
| Test Medium | Fine talcum powder | Silica sand, Arizona Road Dust |
| Interior Material | Stainless steel | Reinforced wear-resistant stainless steel |
| Typical Application | Electronics, IoT, standard automotive parts | Military, aerospace, desert-use equipment |
LIB Industry offers different dust chamber configurations for standard IP ingress testing and more demanding sand-and-dust simulation requirements.
Once the testing standard is confirmed, buyers should compare the chamber's physical and control specifications.
The specimen should not occupy most of the internal workspace.
Adequate free space is required so dust can circulate around the product.
As a general guideline, laboratories often avoid allowing the test specimen to occupy more than approximately 25–30% of the usable test space.
If the product is too large relative to the chamber, airflow may become restricted and dust distribution may become uneven.
Buyers should consider:
Specimen dimensions
Specimen weight
Number of samples
Shelf capacity
Turntable load
Future product sizes
Heavy automotive parts or telecom enclosures may require reinforced shelves or turntables.
The chamber must maintain appropriate particulate concentration and airflow.
For some standard dust tests, concentrations around 2 kg/m³ may be used depending on the specified procedure.
Important equipment components can include:
Adjustable blowers
Airflow controls
Dust circulation systems
Concentration management
Temperature monitoring
Stable environmental conditions improve test repeatability.
For IP6X testing, a vacuum system may be required.
The system typically includes:
Vacuum pump
Pressure gauge
Flow measurement
Connection port to the test specimen
The vacuum creates negative pressure inside the enclosure and helps evaluate whether dust can penetrate through sealing points.
Without accurate vacuum control, laboratories may not be able to perform certain IP6X procedures correctly.
Different test media have different particle sizes, densities, abrasion levels, and flow characteristics.
These properties influence chamber design.
Talcum powder is commonly used for standard IP dust testing. It consists of very fine particles and can agglomerate when exposed to moisture. Dust chambers designed for talcum powder may therefore use:
Vibration systems
Circulating blowers
Dry air management
Dust recovery systems
Arizona Road Dust is coarser and more abrasive. It contains mineral particles that can place greater mechanical stress on chamber walls, fans, and specimen surfaces. Equipment designed for abrasive sand or road dust should therefore use more durable internal materials.
Dust management is important for both chamber performance and laboratory safety.
After testing, particulate material must be recovered or disposed of properly.
Useful chamber features include:
Funnel-shaped chamber bottoms
Vibrating recovery systems
Dust collection trays
Replaceable filters
Sealed disposal points
Fine particulates should not be allowed to escape freely into the laboratory.
Suitable filtration helps reduce operator exposure and prevents dust contamination of surrounding equipment.
Technical performance is important, but laboratories should also consider daily operation. Equipment that is difficult to clean or maintain can increase downtime and operating costs.
Modern chambers typically use PLC control systems and touch-screen interfaces.
Operators can use these systems to set parameters such as:
Test duration
Airflow
Temperature
Vacuum pressure
Dust circulation
For compliance documentation, data recording is also useful. USB or Ethernet export can help laboratories maintain digital records for internal QA and customer audits.
Dust can create maintenance and safety challenges. Chambers should be designed so filters, collection trays, and internal surfaces can be accessed without excessive operator exposure. Features such as sealed disposal ports and automated powder recovery help simplify routine cleaning.
Viewing the specimen during testing can provide useful information. However, during blowing dust testing, suspended particles may quickly cover the viewing window.
Useful design features include:
Tempered viewing glass
Window cleaning systems
Internal illumination
Dust-resistant seals
These features make it easier for technicians to observe the specimen without interrupting the test.
The initial purchase price is only one part of the total equipment cost.
Long-term ownership also includes:
Calibration
Filter replacement
Spare parts
Maintenance
Cleaning
Technical support
Downtime
A lower-priced chamber can become more expensive over time if replacement parts are difficult to obtain or if technical support is limited.
Dust test chambers rely on sensors and instruments that require periodic verification.
Important calibration points may include:
Airflow velocity
Vacuum pressure
Temperature
Timing
Flow measurement
Laboratories should establish calibration intervals according to their quality-management system and applicable standards.
Before purchasing, confirm that the manufacturer can provide technical support, spare parts, and documentation.
LIB Industry provides environmental test chamber solutions along with technical support for equipment selection, operation, maintenance, and application requirements.
Standard chambers are not suitable for every specimen.
Large products such as:
EV battery packs
Aerospace assemblies
Large communication enclosures
Solar equipment
may require customized dimensions or load capacity.
Customization may involve:
Larger workspace
Reinforced shelving
Higher payload capacity
Special cable ports
Live electrical testing interfaces
Modified airflow systems
A customized IP testing equipment configuration can help laboratories accommodate unusual specimens while maintaining suitable particulate circulation.
LIB Industry provides environmental test chambers for automotive, electronics, aerospace, telecommunications, industrial, and product reliability laboratories.
Its dust and sand dust testing solutions can support applications including:
IEC 60529 IP5X
IEC 60529 IP6X
ISO 20653
MIL-STD-810 applications
Automotive component testing
Electronics enclosure testing
Outdoor equipment evaluation
Available configurations can include dust circulation systems, vacuum connections, temperature control, specimen supports, and programmable operation.
Before selecting a system, buyers should confirm the target standard, specimen size, dust type, airflow requirement, and required test duration.
Choosing the right dust testing system starts with understanding the required test standard. A standard settling dust chamber may be suitable for IP5X and IP6X evaluations, while military, aerospace, or desert applications may require high-velocity sand testing.
Buyers should also evaluate:
Chamber volume
Specimen weight
Airflow capability
Vacuum control
Dust recovery
Filtration
Control systems
Maintenance
Supplier support
Matching these factors to actual testing requirements helps laboratories obtain repeatable results while avoiding unnecessary equipment complexity.
For manufacturers and laboratories planning to improve their particulate testing capabilities, LIB Industry provides dust and sand dust test chamber solutions for IP testing, automotive components, electronics, telecommunications, aerospace, and industrial products.
If you are unsure which chamber size, dust type, airflow range, or test configuration is suitable for your application, contact LIB Industry for technical consultation. Share your specimen dimensions, target standard, required IP rating, and test medium, and our team can help you evaluate a suitable dust testing solution.
IP5X means the enclosure is dust protected. Limited dust ingress may be permitted as long as it does not interfere with normal operation or safety. IP6X requires the enclosure to be dust-tight. No dust penetration is permitted under the specified test conditions. Depending on the test procedure, negative pressure may be applied inside the specimen during IP6X evaluation.
Usually not. Talcum powder and abrasive sand have very different physical characteristics. Fine talcum powder requires circulation and suspension systems designed for small cohesive particles. High-velocity sand testing requires stronger airflow and more wear-resistant chamber construction. Using coarse abrasive material in a standard dust chamber may damage fans, filters, and internal surfaces.
Replacement frequency depends on the applicable standard, test frequency, contamination level, and laboratory conditions. If talcum powder becomes contaminated, wet, or heavily agglomerated, it may no longer circulate correctly. The laboratory should follow the test standard and its internal SOP when determining replacement intervals.
For basic IP5X and IP6X testing, ambient laboratory conditions may be sufficient depending on the required procedure.
Military and specialized environmental tests may require additional control over:
Temperature
Humidity
Air velocity
For example, some blowing dust procedures use elevated temperature and low relative humidity to simulate desert conditions.
Calibration should focus on the parameters that directly affect test conditions.
These may include:
Airflow velocity
Vacuum pressure
Temperature
Test duration
Pressure measurement
Calibration intervals should follow the laboratory's quality-management requirements and applicable standards.
There is no single test duration that applies to every product. The duration can depend on specimen volume, extraction rate, vacuum conditions, and the applicable test procedure. Some IP6X tests may run for several hours, with exact conditions determined according to the relevant standard and product configuration.
