It is employed for combined IPX1 X2 X3 X4 X5 X6 test. This chamber combined the conditions of IPX1 ~ X6 in one chamber. LIB's Combined Chamber(IPX1 X2 X3 X4 X5 X6) provide controlled conditions for IPX1–IPX6 testing, allowing manufacturers to verify product performance under vertical drips, angled drips, and simulated rain or splashes. The chambers accommodate diverse sample sizes and rotation options, enabling precise evaluation of real-world scenarios such as showers, accidental spills, or heavy rain exposure.
The Combined Chamber(IPX1 X2 X3 X4 X5 X6) comply with a wide range of international standards, including IEC 60529, ASTM D3451, ASTM D4329, SAE J2020, and ISO 20653, ensuring test results are recognized globally and suitable for applications in electronics, automotive lighting, home appliances, and aerospace equipment.
RD-800C/RD-1200C
LIB Industry
| Quantity: | |
|---|---|

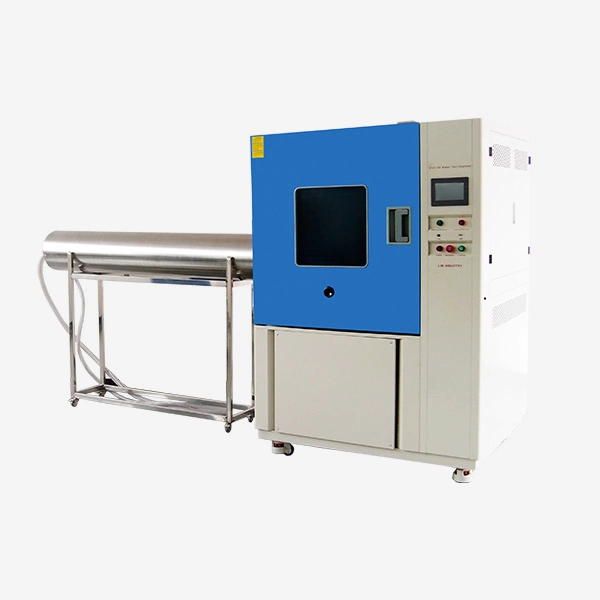

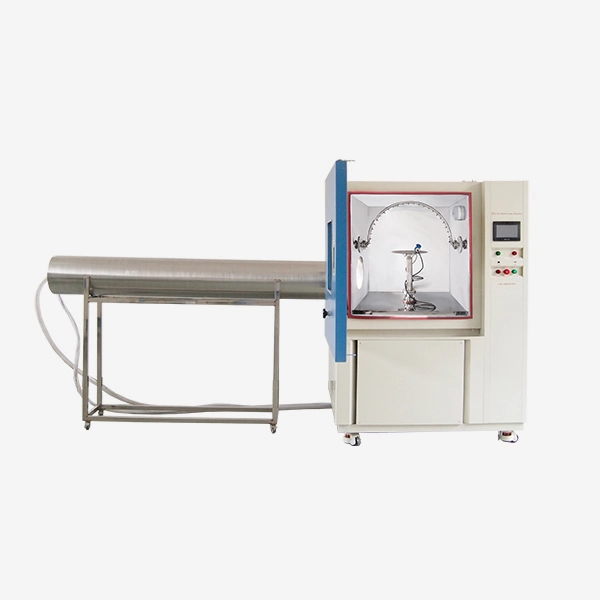

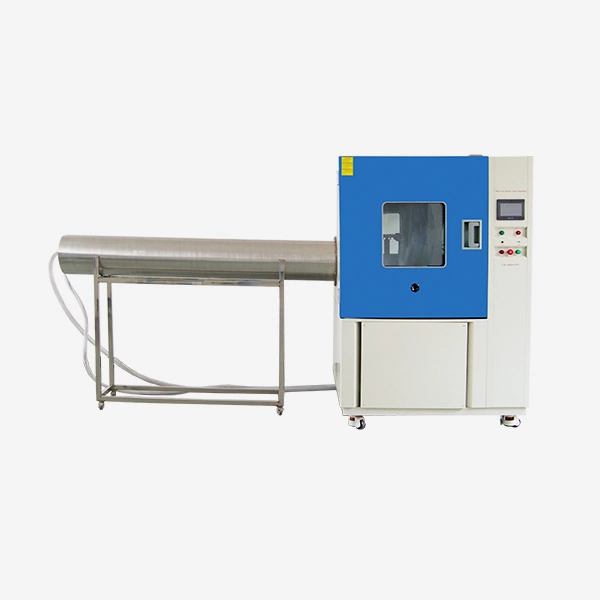

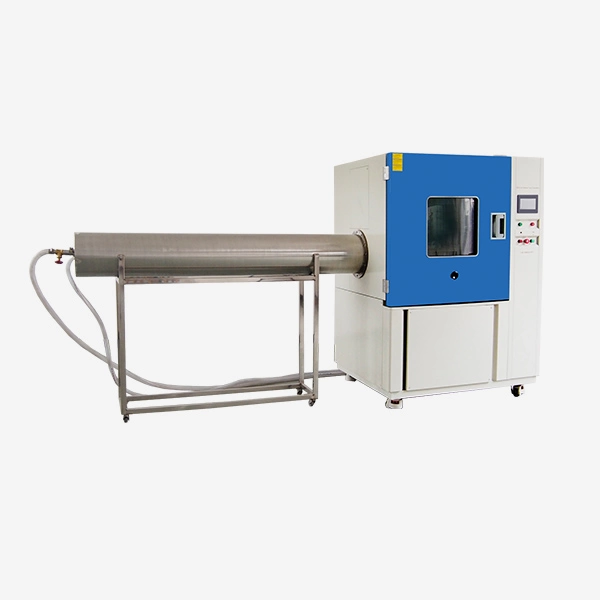

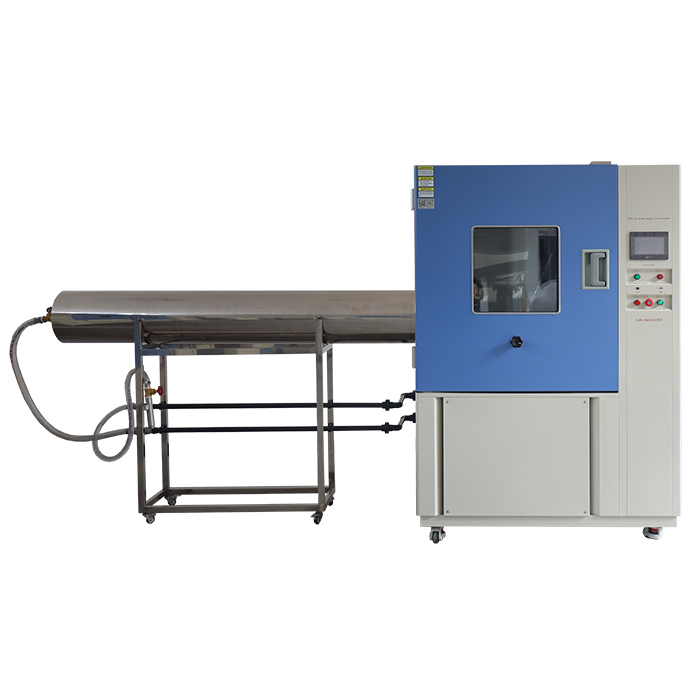

This combined water spray chambe (IPX1 X2 X3 X4 X5 X6) built with water re-circulation system that reduced water use and a series of water pipes. A pump ensures the water is delivered in the proper pressure range.
Advantages
1 . Integrated Multi-Level Testing for Efficient Lab Use: LIB's Combined Chamber(IPX1 X2 X3 X4 X5 X6) unifies a drip box (IPX1/IPX2), oscillating tube (IPX3/IPX4), and high-pressure jet nozzles (IPX5/IPX6) into a single unit, allowing all six water ingress test levels to be conducted without the need for multiple chambers, saving valuable laboratory space.
2 . Automatic Water Filtration and Recirculation: The chamber features a closed-loop water recycling system with automatic refill, reducing water and energy consumption while enabling continuous unattended testing.
3. Standards-Compliant Testing Ensures Reliable Data: The chamber meets IEC 60529 specifications:
①IPX1: Vertical drip at 1 mm/min for 10 minutes on a rotating turntable at 1 rpm.
②IPX2: Same drip rate at 15° tilt, tested in four directions for 2.5 minutes each (total 10 minutes).
③IPX3: Oscillating tube sprays water with ±60° swing, 0.4 mm nozzle diameter, 50 mm spacing, 0.07 L/min per nozzle, minimum 10 minutes.
④IPX4: Swing angle extended to ±180°, same flow parameters as IPX3 for more intense splash simulation.
⑤IPX5: Special nozzle, 6.3 mm orifice, 12.5 ± 0.625 L/min flow, pressure 30–100 kPa, 2.5–3 m spray distance, minimum 3 minutes.
⑥IPX6: 12.5 mm nozzle, 100 ± 5 L/min flow, 100 ± 5 kPa, same spray distance as IPX5, duration at least 3 minutes.
4 . Flexible Sample Handling for Various Products：The internal turntable is height-adjustable and equipped with a 15° inclined plate for IPX2 tests. It supports up to 50 kg and can be customized to accommodate different sample sizes.
5.Durable SUS304 Stainless Steel Construction：The chamber is fully constructed from SUS304 stainless steel, offering excellent resistance to corrosion in high-temperature (~800°C), high-humidity, and continuous spray environments, ensuring long-term durability and environmental compliance.
6.Multi-Angle Spray System：①IPX1/IPX2: Stainless steel drip box with uniform apertures for precise vertical drip simulation. ②IPX3/IPX4: Stainless steel oscillating tube with 0.4 mm nozzles spaced evenly, ±60° swing for oblique rain simulation. ③IPX5/IPX6: High-pressure spray nozzles delivering 12.5 L/min and 100 L/min, adjustable angles, 2.5–3 m spray distance, ensuring accurate, repeatable testing for automotive, outdoor electronics, and industrial products.
7. Transparent Observation Window with Built-In Illumination：Equipped with a clear viewing window, manual wiper, and integrated LED lighting for real-time inspection, supporting accurate logging and quick fault diagnosis during tests.
8. Waterproof Sample Power Supply: The adjustable-height turntable includes tilt support and an integrated power source, allowing live testing of electronic devices under waterproof conditions to simulate real-world use.
Technical Parameters
| Model | RD-800C | RD-1200C |
| Internal Dimensions (mm) | 900*950*950 | 1300*1350*1370 |
| Overall Dimensions (mm) | 1180*1420*1920 (excluding stainless steel tube) | 1540*1820*2200 (excluding stainless steel tube) |
| Useful Volume (L) | 810 | 2400 |
| Drip Tray Size | 600*600 | 1000*1000 |
| Oscillating Tube Radius | 400mm | 600mm |
| Water Jetting Tube | ||
| Spraying Hole Diameter | φ0.4mm | |
| Hole Spacing | 50 mm | |
| Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
| Jet nozzles | IPX5: Dia6.3mm, IPX6: Dia12.5mm | |
| Jet distance | 2.5~3meter | |
| Turntable Rotation Speed | 1r/min (Adjustable speed) | |
| Controller | Programmable color LCD touch screen controller, Ethernet connection, USB port | |
| Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
| Safety Device | Over-temperature Protection; Over-current Protection; | |
| Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | ||
| Exterior Material | Steel Plate with protective coating | |
| Interior Material | SUS304 stainless steel | |
| Observation Window | Double layer insulating glass with wiper | |
Operate Guide of the Combined Chamber(IPX1 X2 X3 X4 X5 X6)
Before testing, ensure the chamber is ready and all connections are secure. Place the sample on the turntable, adjusting height and tilt as needed. IPX1–IPX2 use vertical or angled drip testing, while IPX3–IPX4 simulate swinging rain or splashes. IPX5–IPX6 apply high-pressure water jets to evaluate full waterproof performance. Monitor the sample through the observation window throughout the test and record any observations to ensure reliable evaluation.
Video
Combined Chamber(IPX1 X2 X3 X4 X5 X6) Services
All Combined Chambers(IPX1 X2 X3 X4 X5 X6) come with a 36-month warranty and lifetime technical support. LIB’s experienced service team, backed by regional service centers, provides fast and reliable assistance. With 24/7 availability, any issues can be addressed promptly, minimizing downtime and keeping your testing operations running smoothly.
