LIB provides a large selection of water spray chambers to test the IPX1, X2, IPX3 and IPX4 protection degree against rain and sprays according to IEC 60529, MIL-STD 810 and other international standards.
IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber allow precise control of test conditions, including drip rates of 1 mm/min for IPX1/IPX2, oscillating swings of ±60° to ±180° for IPX3/IPX4, turntable rotation up to 1 rpm, and nozzle flow rates of 0.07 L/min per hole. Such precise settings ensure reliable and repeatable results for electronics, automotive components, and outdoor devices. Customers can simulate real-world water exposure scenarios to verify product durability and waterproof performance under controlled, measurable conditions.
Our IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber meet a wide range of standards beyond IEC 60529, including ASTM D3451, ASTM D4329, ASTM D4587, ASTM D4799, SAE J2020, ISO 20653, and GB/T 4208, providing globally recognized certification for rain and splash testing across multiple industries.

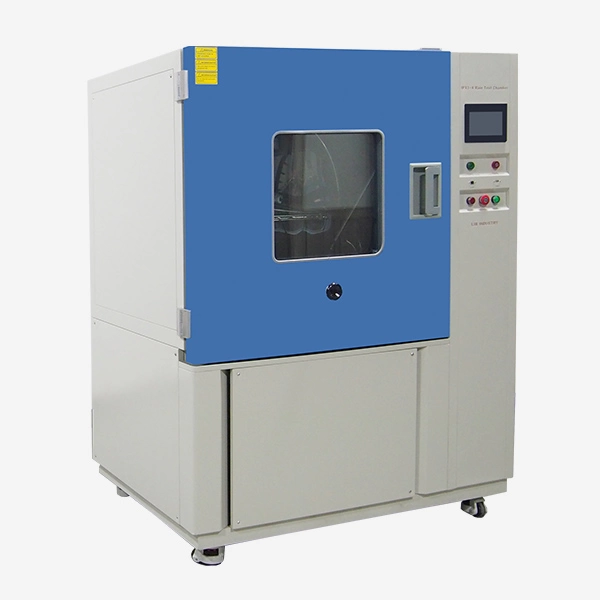

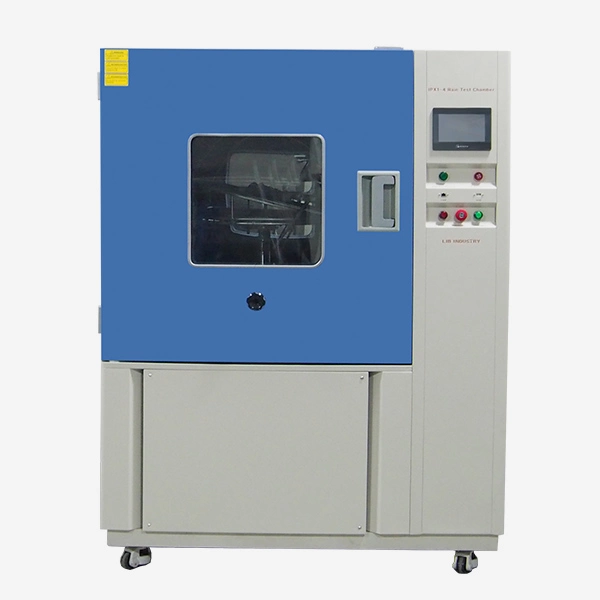

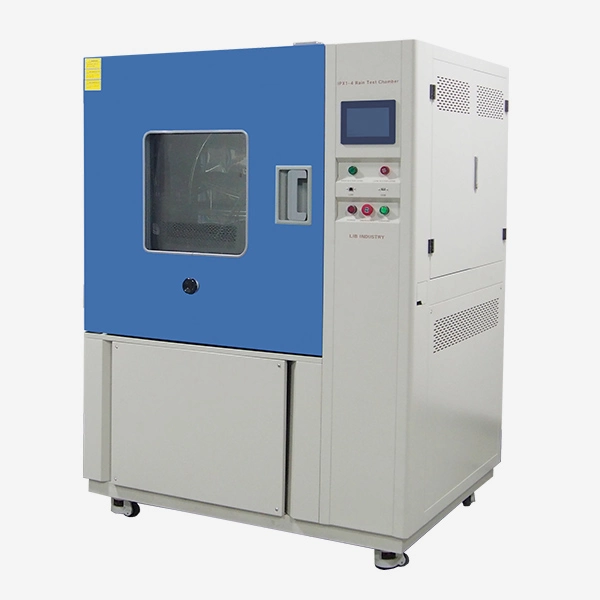

R-800C/ R-1200C
LIB Industry
| Quantity: | |
|---|---|
Advantages
1. Integrated Multi-Level Testing to Save Lab Space: LIB's IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber incorporates both a drip box (IPX1/IPX2) and an oscillating tube (IPX3/IPX4) within a single enclosure. This all-in-one configuration allows for six levels of water ingress testing in one chamber, optimizing lab footprint and improving workflow efficiency.
2. Automatic Water Filtration and Recycling System: A closed-loop water recycling system with automatic refill ensures continuous operation while minimizing water and energy consumption. This system supports unattended testing, reducing labor requirements and operational costs.
3. Compliance with International Standards: The chamber is fully compliant with IEC 60529 and other relatedstandards: ①IPX1: 1 mm/min drip rate for at least 10 minutes on a rotating turntable at 1 rpm. ②IPX2: Same drip rate at
15° tilt, tested in four directions for 2.5 minutes each (total 10 minutes). ③IPX3: Oscillating tube sprays water with ±60° swing, 0.4 mm nozzle diameter, 50 mm spacing, and 0.07 L/min per nozzle for at least 10 minutes. ④IPX4: Swing angle extends to ±180°, simulating more severe splash conditions.
4. Flexible Sample Handling for Diverse Products: Height-adjustable internal turntable with a 15° inclined plate for IPX2 testing. Supports up to 50 kg and can be customized in size to accommodate various sample dimensions.
5. Durable SUS304 Stainless Steel Construction: Entire chamber is fabricated from SUS304 stainless steel, offering excellent corrosion resistance under high temperature (~800°C), high humidity, and continuous spray conditions, while ensuring environmental compliance.

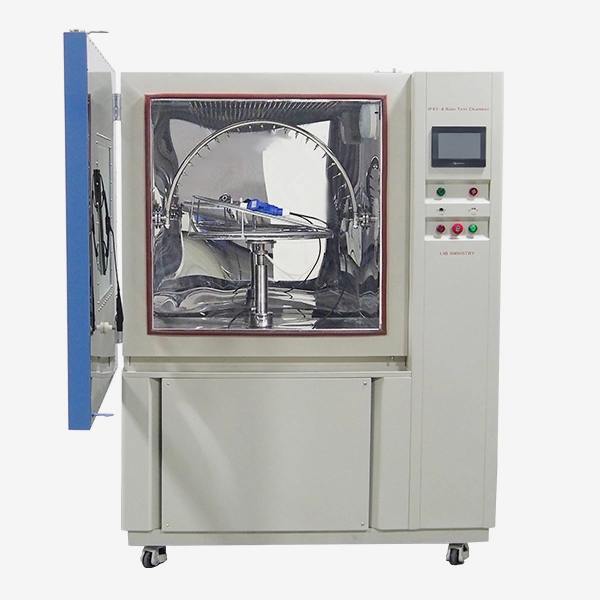

6. Multi-Angle Spray Systems: ①IPX1/IPX2: Stainless steel drip box with uniform apertures, simulating vertical drip at 1 mm/min.②IPX3/IPX4: Stainless steel oscillating tube with φ0.4 mm evenly spaced nozzles, ±60° swing, simulating oblique rain conditions.
7. Transparent Viewing Window with Built-In Illumination: Equipped with a clear observation window, manual wiper, and LED lighting for real-time inspection, facilitating accurate experiment logging and rapid fault diagnosis.
8. Waterproof Sample Power Supply: Adjustable-height turntable with tilt support and integrated power supply, allowing live power-on testing of electronic devices during waterproof testing to replicate real-world conditions.
Technical Parameters
| Model | R-800C | R-1200C |
| Internal Dimensions (mm) | 900*950*950 | 1300*1350*1370 |
| Overall Dimensions (mm) | 1180*1420*1920 | 1540*1820*2200 |
| Useful Volume (L) | 810 | 2400 |
| Oscillating Tube Radius | 400mm | 600mm |
| Drip Tray Size | 600*600 | 1000*1000 |
| Spraying Hole Diameter | φ0.4mm | |
| Hole Spacing | 50 mm | |
| Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
| Turntable Rotation Speed | 1r/min (Adjustable speed) | |
| Water Pressure Control | Flow meter | |
| Controller | Programmable color LCD touch screen controller, Ethernet connection | |
| Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
| Safety Device | Over-temperature Protection; Over-current Protection; | |
| Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | ||
| Exterior Material | Steel Plate with protective coating | |
| Interior Material | SUS304 stainless steel | |
| Observation Window | Double layer insulating glass with wiper | |
Operate Guide of the IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber
To perform IPX1–IPX4 testing, first ensure the chamber is filled with water and all connections are secure. For IPX1, place the sample on the rotating turntable and expose it to a controlled drip rate of 1 mm/min for 10 minutes. For IPX2, tilt the sample at 15° and rotate through four directions, maintaining the same drip rate for a total of 10 minutes. For IPX3, activate the oscillating tube to spray water at a ±60° swing, with 0.4 mm nozzles spaced 50 mm apart, delivering 0.07 L/min per nozzle for at least 10 minutes. IPX4 testing increases the swing angle to ±180°, simulating more severe splash conditions. Throughout the test, monitor the sample through the viewing window and log any observations.
Video of the IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber
Services
Every IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber comes with a 36-month warranty and lifetime technical support. LIB’s experienced service team, supported by regional service networks, provides rapid and efficient assistance to meet customer requirements. Around-the-clock technical guidance ensures that any issues are resolved quickly, reducing operational interruptions and maintaining continuous testing performance.
