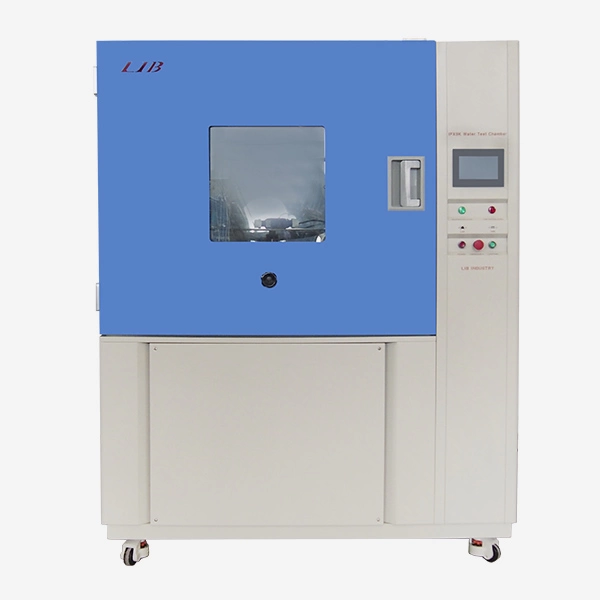

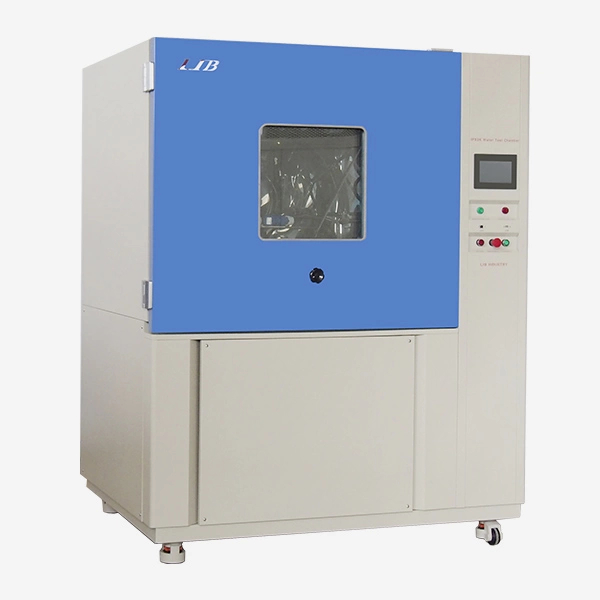

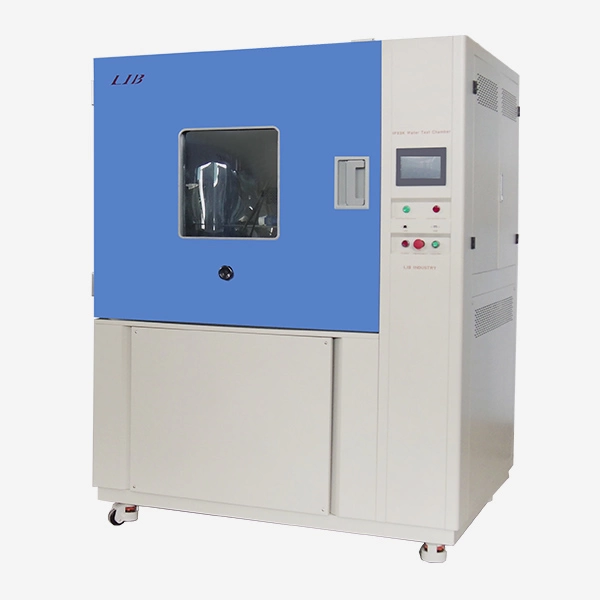

IPX9K high pressure and high temperature water spray test chamber is widely used in the electronics, military and consumer product industries. IPX9K is the highest rating currently available for water ingress protection in accordance with IEC 60529 and ISO 20653.
To meet customer testing needs, the IPX9K High Pressure & Temperature Water Spray Chamberdelivers high-pressure water jets of 8,000–10,000 kPa, with a flow rate of 14–16 L/min, sprayed from multiple angles (0°, 30°, 60°, 90°) at a distance of 10–15 cm. The system supports high-temperature water up to 88 °C, combined with a rotating test platform (5 ±1 rpm) to ensure full-angle exposure. These parameters accurately replicate extreme cleaning, rainstorm, and high-pressure wash scenarios required for product validation.
The IPX9K High Pressure & Temperature Water Spray Chambercomplies with multiple international standards, including IEC 60529 (IPX9K), ISO 20653 (IPX9K/IP69K), DIN 40050-9, GB/T 4208, GB/T 4942, and relevant automotive and industrial protection specifications. This ensures test results are globally recognized and accepted across automotive, electronics, defense, and industrial manufacturing sectors.
R9K-1200
LIB Industry
| Quantity: | |
|---|---|
Products under test is subjected to high pressure (8000 – 10000 Kpa), high temperature (+80°C) and water jets at a flow rate of 14 – 16L/min. All models are upgrade to programmable controller and Ethernet access that provides simple operation and control.
Advantages
1. Extreme High-Temperature & High-Pressure Spray Performance: The chamber produces water heated to +88 °C and applies spray pressure ranging from 8,000 to 10,000 kPa. Four precision nozzles are positioned at 0°, 30°, 60°, and 90°, each operating for 30 seconds, ensuring thorough verification of enclosure sealing under the most demanding spray conditions.
2. Efficient Water Recirculation System: An integrated circulation system continuously delivers water to the spray nozzles while filtering impurities to maintain stable pressure and uniform flow. Built-in water tanks and heating elements ensure consistent temperature control throughout the entire test process while reducing overall water consumption.
3. Intelligent Control & Safety Management: Equipped with an intuitive control interface, the test chamber allows precise setting of spray pressure, water temperature, and test duration. Real-time monitoring and multiple safety protections help prevent equipment malfunction and protect test specimens during operation.
4. Full SUS304 Stainless Steel Construction: The entire chamber is fabricated from SUS304 stainless steel, providing excellent resistance to corrosion in high-temperature, high-humidity, and intensive spray environments. This robust construction ensures long-term reliability and compliance with environmental and durability requirements.

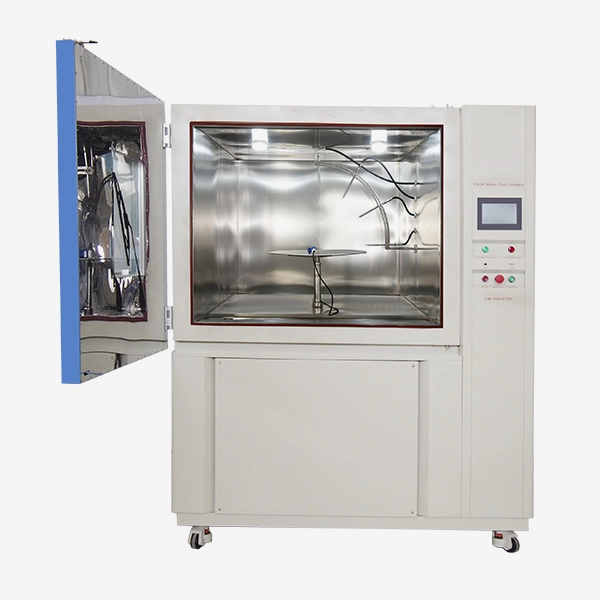

5. Waterproof Power Supply for Live Testing: The chamber features an adjustable-height rotating table with tilt capability, integrated with a waterproof power outlet. This design supports power-on testing of electronic products during water exposure, enabling realistic simulation of actual operating conditions.
Technical Parameters
| Model | R9K-1200 |
| Internal Dimensions (mm) | 1000*1200*1000 |
| Overall Dimensions (mm) | 1250*1700*2050 |
| Interior Volume (L) | 1200 |
| Water Spray Angle | 0°, 30°, 60°, 90° |
| Water Spray Temperature | Ambient ~ +88℃ (Adjustable) |
| Spray Nozzle | Four, 30 Seconds each position |
| Distance from Water Spraying to Specimens | 10~15cm |
| Water Pressure | 8000-10000 Kpa (Adjustable) |
| Water Flow Rate | 14L-16L/min |
| Testing Platform Speed | 5±1 r.p.m |
| Testing Platform Height | 200-400 nm (Adjustable) |
| Testing Platform Diameters | 600mm |
| Heater Elements | Nichrome heater |
| Controller | Programmable color LCD touch screen controller, Ethernet connection |
| Door Lock | Electromagnetic lock |
| Water supply system | Storage water tank; Booster pump; Automatic water supply; Water purification system; |
| Safety Device | Over-temperature Protection; Over-current Protection; |
| Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Observation Window | Double layer insulating glass with wiper |
Operate Guide of the IPX9K High Pressure & Temperature Water Spray Chamber
Before starting the test, ensure the chamber is properly connected to the water supply and power source. Set the desired water pressure, temperature, spray angle, and duration on the control panel according to your test requirements. Place the specimens securely on the rotating platform, keeping them at least 10–15 cm away from the spray nozzles for uniform exposure. During testing, monitor the pressure, temperature, and rotation speed to ensure they remain within set parameters. After the test, use the drainage system to safely remove water and clean the chamber for the next cycle.
Video
IPX9K High Pressure & Temperature Water Spray Chamber Services
We offer a 36-month warranty along with lifetime support for our IPX9K High Pressure & Temperature Water Spray Chamber. Our professional after-sales team, supported by local service centers, is available to respond quickly and effectively. Customer inquiries and support requests are handled around the clock, ensuring timely assistance whenever needed.
