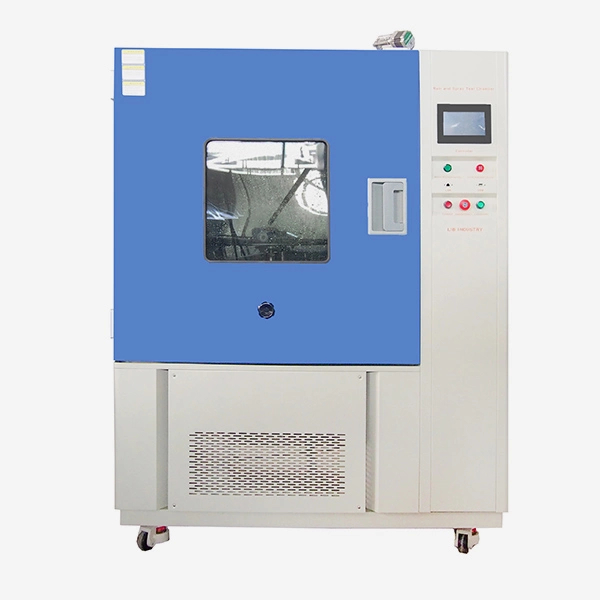

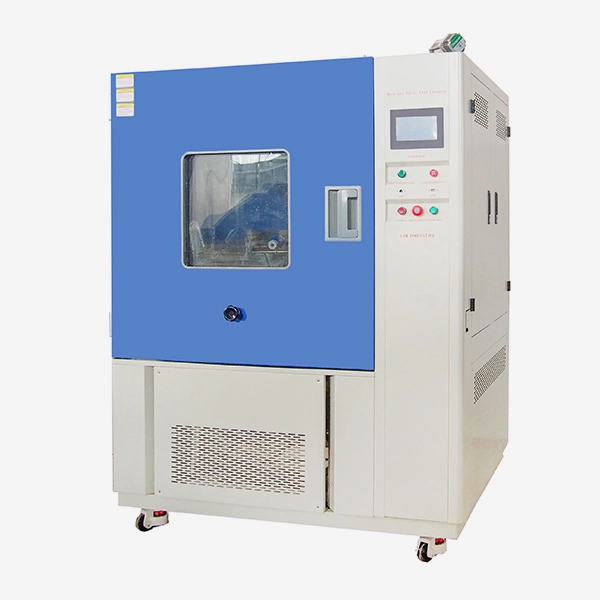

LIB rain and spray test chamber is formulated in accordance with JIS D 0203 standard to test the waterproof performance of the product. The scope of this code testing specifies the methods of moisture resistance and waterproofness for automotive parts.
R-1000JIS
LIB Industry
| Quantity: | |
|---|---|

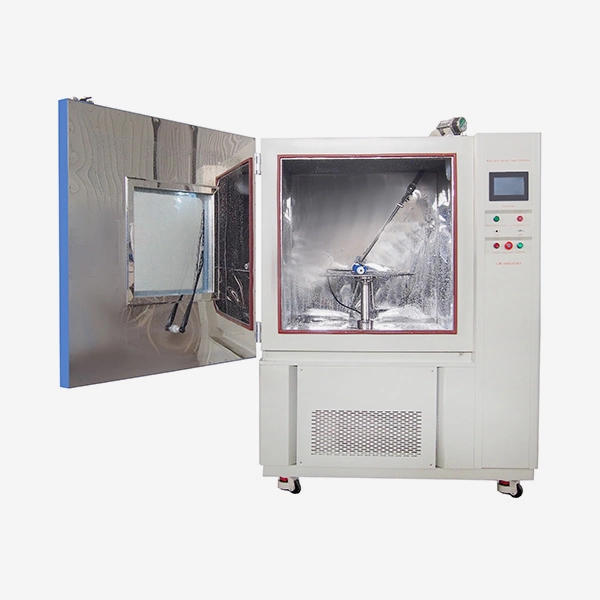

The workroom of the JIS D 0203 Rain and Spray Test Chamber is equipped with 40 spray nozzles and 2 rain nozzles, and the spray room is equipped with water circulation system to reduce water consumption and effectively save water resources.
Advantages
1. High-Fidelity Water Simulation: Equipped with 2 rainfall nozzles and 40 spray nozzles, the chamber can accurately replicate natural rain, wind-driven rain, and heavy spray conditions. Adjustable flow rates from 1.9 L/min to 39.2 L/min and pressures up to 0.30 MPa ensure testing closely mirrors real-world exposure, providing dependable waterproof performance data for automotive components and electronic devices.
2. 360° Rotational Coverage: The sturdy stainless-steel turntable rotates at 17 rpm, delivering uniform water exposure across all surfaces of the test specimens. This comprehensive coverage eliminates blind spots, helping engineers identify potential weak points and improve product durability.
3. Efficient Water Management: The closed-loop circulation and filtration system reduces water consumption while maintaining consistent test conditions. This eco-friendly design not only lowers operational costs but also ensures repeatable and stable performance during long testing cycles.
4. User-Friendly Intelligent Control: The touchscreen PID controller allows precise adjustment of water flow, pressure, test duration, and turntable rotation. Real-time monitoring and alerts via Ethernet simplify operation and enhance testing accuracy.
5. Durable and Safe Construction: Constructed with corrosion-resistant SUS304 stainless steel and featuring a large observation window with wiper, the chamber is built for prolonged water exposure and easy monitoring. Safety mechanisms, including over-pressure, low-water, and electrical leakage protections, ensure reliable and secure operation for both personnel and equipment.
Technical Parameters
| Model | R-1000JIS |
| Internal Dimensions (mm) | 1000*1000*1000 D*W*H |
| Overall Dimensions (mm) | 1100*1460*1900 D*W*H |
| Interior Volume (L) | 1000 |
| Distance from Specimen to Nozzle | Approx.400mm |
| Rain Nozzle | 2 holes |
| Rain Nozzle Hole | Φ0.5mm |
| R1 Water Flow Rate | 1.9L/min. |
| R2 Water Flow Rate | 3.3L/min. |
| Spray Nozzle | 40 holes |
| Spray Nozzle Hole | Φ1.2mm |
| S1 Water Flow Rate | 24.5L/min |
| S2 Water Flow Rate | 39.2L/min |
| Water Pressure at Nozzle | 0.03 ~ 0.30MPA |
| Turntable Rotation Speed | 17r/min |
| Water Pressure Control | Flow meter |
| Controller | Programmable color LCD touch screen controller, Ethernet connection |
| Water supply system | Water tank, booster pump, Automatic water supply, Water purification system |
| Safety Device | Over-temperature Protection; Over-current Protection; |
| Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Observation Window | Double layer insulating glass with wiper |
Operating Guide
Before starting the JIS D0203 Rain Test Chamber, ensure the water supply and circulation system are filled and functioning properly. Securely place the test specimens on the stainless-steel turntable and close the chamber door. Use the touchscreen PID controller to select the desired test settings, including rain or spray type, water flow rate, pressure, turntable speed, and test duration. Start the program and monitor the test through the observation window or via remote Ethernet connection. After completion, allow the chamber to drain and dry before removing the specimens. Regular maintenance of nozzles, filters, and water quality ensures consistent performance and accurate results.
Video
Worldwide Technical Assistance
LIB guarantees worry-free operation with a 3-year warranty and lifetime technical support. If a problem cannot be resolved remotely, a replacement chamber will be provided free of charge. Our experienced English-speaking support team is available around the clock to assist customers worldwide. Critical spare parts are stocked at international hubs, allowing delivery within 7–15 days, and detailed instructions ensure safe transportation, installation, and operation of your equipment.
