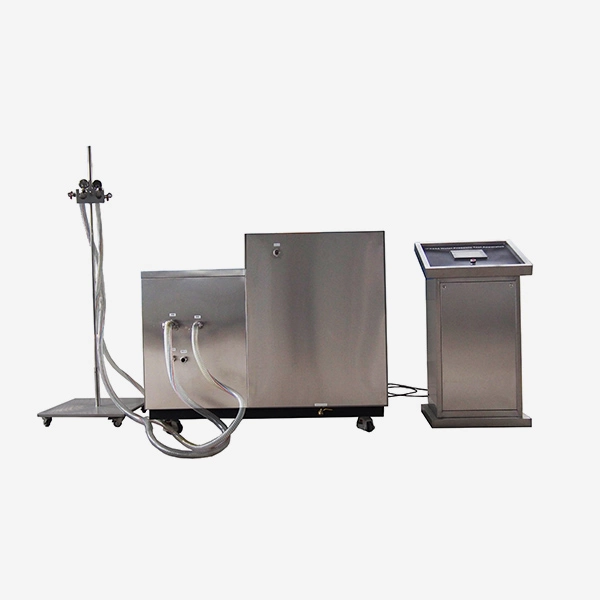

This Whole Set of IP Test Equipment -No Housing Type is mainly suitable for water ingress testing of various specimens in the laboratory. A complete set of equipment can perform all tests from IPX1 to IPX6. Adjustable turntables support up to 50 kg and rotate at 1 r/min, while the 15° inclined tray accommodates various workpiece shapes and sizes. Built-in water circulation and filtration maintain consistent flow rates and water quality, ensuring reliable testing results with minimal manual intervention.
This Whole Set of IP Test Equipment -No Housing Type fully meets international standards, including IEC 60529, ISO 20653, and DIN 40050-9, while also supporting JIS D0203 and other rainfall and immersion testing. Optional modules enable IPX7/8 water immersion and high-pressure IPX9K testing, providing a flexible, one-stop solution for automotive, electronics, and industrial waterproof validation.
RNH-12 / RNH-34/ RNH-56
LIB Industry
| Quantity: | |
|---|---|
Advantages
1. IPX1-X6 Multi-Level Testing: This chamber integrates IPX1–IPX6 testing in a single enclosure, eliminating the need for multiple devices. Users can seamlessly switch between levels without reconfiguring equipment, saving lab space and reducing operational costs.
2. Precision Water Control: Equipped with independent drip trays, swing pipes, and PID-controlled nozzles, the chamber delivers highly consistent water flow and spray patterns. Adjustable parameters ensure repeatable testing across all IPX levels for reliable certification results.
3. Flexible Sample Accommodation: The turntable supports up to 50 kg and features adjustable height and a 15° incline. This flexibility allows testing of various product sizes and shapes, ensuring full coverage and accurate evaluation of waterproof performance from multiple angles.
4. Efficient Water Recycling System: A built-in circulation and filtration system continuously purifies and reuses water. This eco-friendly design reduces consumption, lowers operational costs, and maintains stable water quality throughout testing.
5. Robust Safety and Durability: Constructed with SUS304 stainless steel interiors and high-quality aluminum for key components, the chamber resists corrosion and long-term wear. Integrated safety features include water-level indicators, electromagnetic locks, and flow monitoring to protect both personnel and equipment.
Technical Parameters

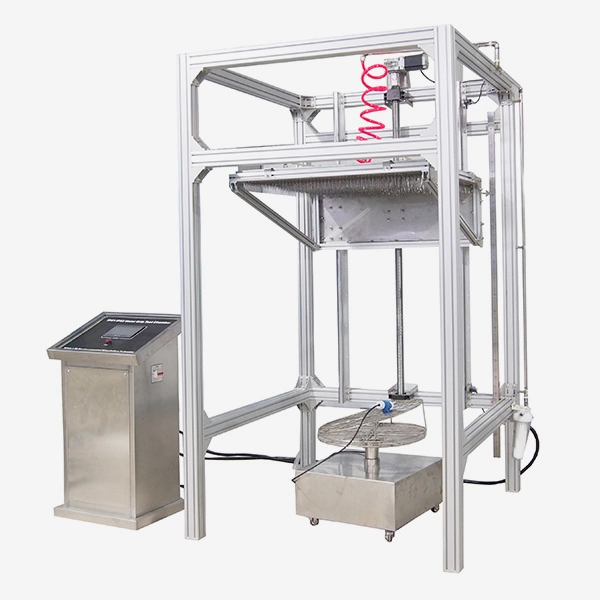

| Model | RNH-12 （IPX1X2 Test Equipment） |
| IPX1X2 Drip Tray(mm) | 1400(D)*1400(W) |
| IPX1X2 External Shelf | 1600(D)*1600(W)*2500(H) |
| Water flow rate | 1+/-0.5mm/min for IPX1; |
| 3+/-0.5mm/min for IPX2 | |
| IPX1X2 hole diameters | φ0.4mm |
| IPX1X2 hole spacing | 20mm |
| Turntable dimensions (mm) | 600mm |
| Turntable loads | 50KG |
| Water supply system | Booster pump, Water purification system |

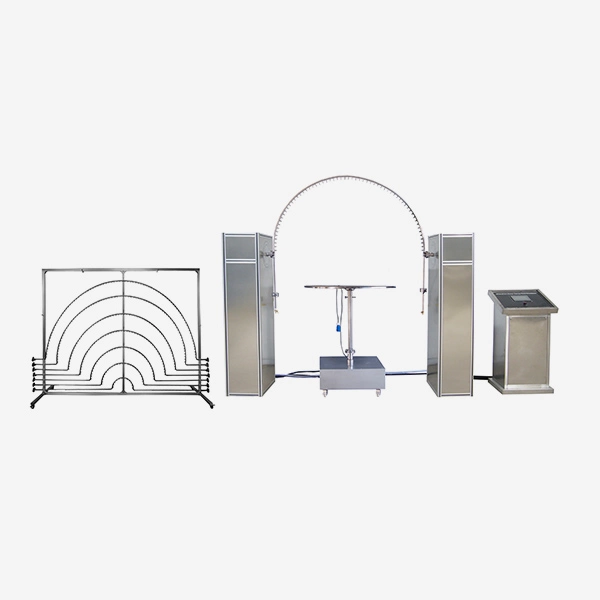

| Model | RNH34 (IPX3X4 Test Equipment) |
| Controller | Programmable color touch screen controller, Ethernet for PC link |
| Standard | IEC60529 |
| Material | SUS304 stainless steel |
| IPX3X4 oscillating tube radius | 8pcs. (200mm, 400mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm) |
| IPX3X4 flow rate per hole | 0.07L/min |
| IPX3X4 spraying hole diameters | φ0.4mm |
| Hole spacing | 50mm |
| Turntable dimensions (mm) | 600mm |
| Turntable loads | 50KG |
| Water supply | Water purification system |
Operate Guide of the Whole Set of IP Test Equipment -No Housing Type
Before starting, ensure the chamber is properly connected to the power and water supply. Load the test specimens evenly on the turntable, adjusting height and angle as needed. Use the touchscreen controller to select the desired IPX level (IPX1–IPX6) and configure parameters such as drip/spray rate, angle, and test duration. During testing, monitor water flow and turntable rotation through the display. After the cycle, allow the chamber to drain completely, and clean the water circulation system to maintain stable performance and extend service life.
Video of the Whole Set of IP Test Equipment -No Housing Type
Reliable Global Assistance
LIB provides full confidence with a 3-year warranty and lifetime technical support. In the rare event that a problem cannot be fixed, we will replace the test chamber at no cost. Our professional English-speaking support team is available 24/7 to respond promptly to inquiries anywhere in the world. Essential spare parts are stocked in international warehouses for delivery within 7–15 days, with detailed guidance offered to ensure safe shipping, setup, and operation.
