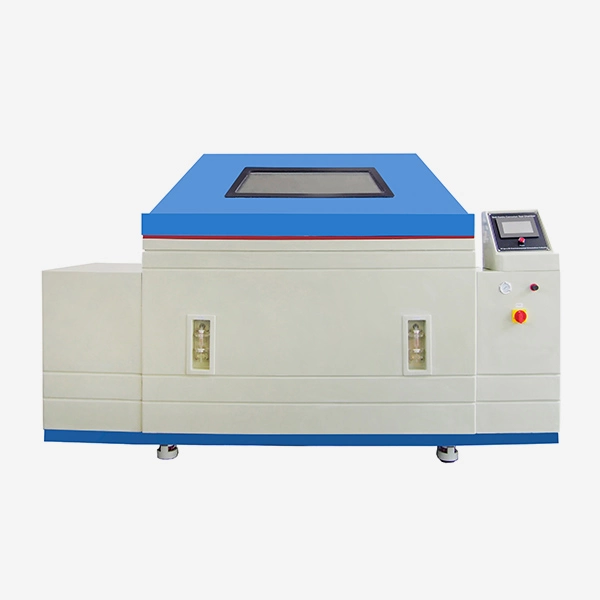

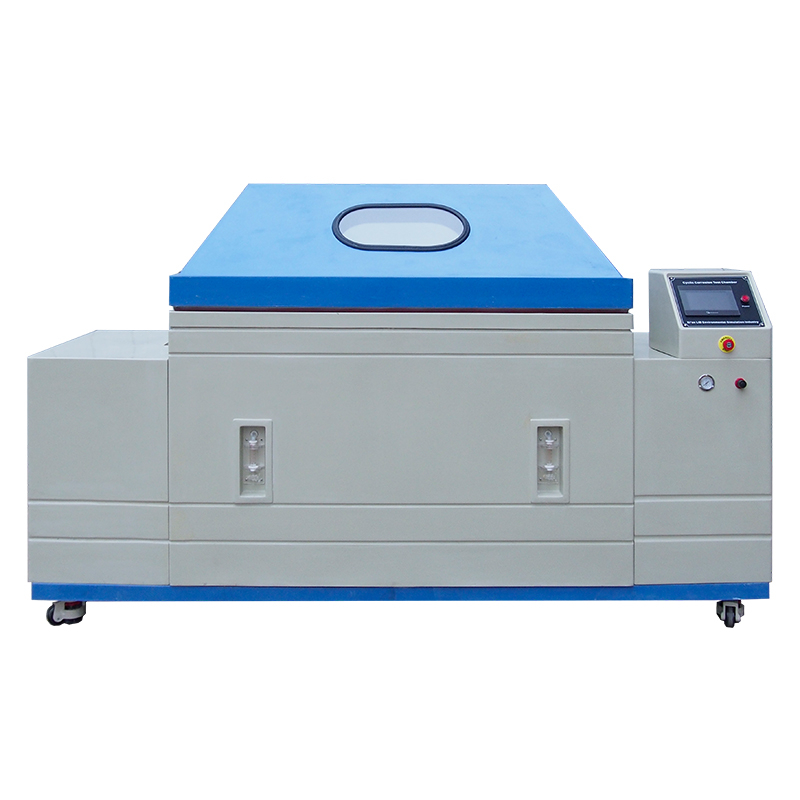

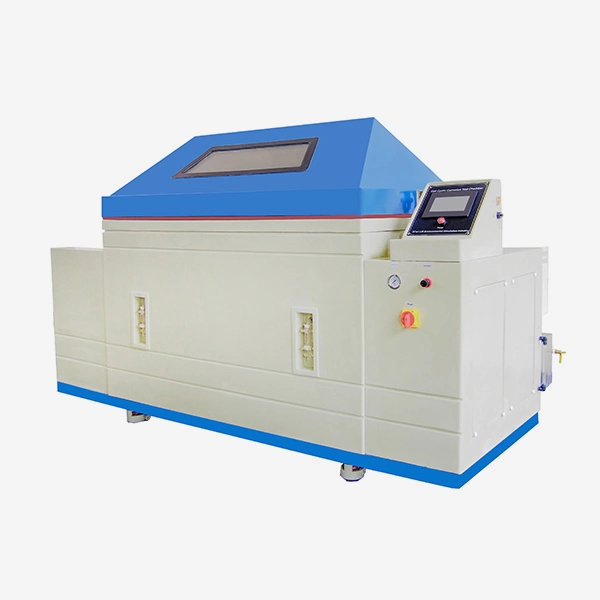

Cyclic salt spray corrosion chamber exposes sample to a series of different environments in repetitive cycles that incorporate temperature, humidity and salt spray. Accelerated corrosion test methods included ASTM B117, ASTM G85, ISO9227, IEC60068-2-52, ISO7253 and many others.
Accelerated corrosion test methods included ASTM B117, ASTM D5894, ASTM G85, ISO 9227, IEC 60068-2-52, ISO 11997, BS 5466, DIN 50021, VG 95332/4, SAE J2334, NFX 41002, NFA 91 101, JIS Z 2371, and many OEM protocols such as VW, Ford, Jaguar, Toyota, Honda, Nissan, Renault, Peugeot, Volvo, Audi, and BMW.
SC-010/ SC-016/ SC-020
LIB Industry
| Quantity: | |
|---|---|
Cyclic Salt Spray Corrosion Chambers are upgraded to programmable controller and Ethernet access. All models are automated, and can working continuously. various models can meet different test requirements.
Advantages
1. Multi-Phase Corrosion Simulation: The chamber integrates salt fog, high humidity, temperature cycling, and drying phases in a single automated system. This realistic combination replicates field conditions, helping researchers identify weaknesses in coatings, metals, plastics, and electronic components more accurately than traditional single-mode tests.
2. Precise Environmental Control: Equipped with PT100 Class A sensors and advanced PID control, the chamber maintains temperature within ±0.5 °C, humidity within ±2 % RH, and salt deposition at 1–2 mL/80 cm²·h. Such accuracy ensures reproducible test results and reliable evaluation of corrosion resistance.
3. Flexible Test Programming: The intuitive touchscreen controller allows up to 120 program profiles with 100 steps each, supporting complex cycles for multiple materials. Users can predefine testing routines for NSS, AASS, or CASS procedures, saving time and reducing setup errors.
4. Durable, Corrosion-Resistant Construction: The workroom uses glass fiber reinforced plastics resistant to acid gases and salt fog, while the exterior A3 steel frame with electrostatic coating ensures longevity. Components withstand continuous exposure, minimizing maintenance and downtime.
5. Safe, Efficient, and Eco-Friendly: Safety interlocks, automated SO₂ exhaust, and door protections prevent leaks and accidents, while closed-loop water recovery saves up to 80 % of condensate. Energy-efficient refrigeration and optimized airflow maintain performance with reduced operational costs.
Technical Parameters
| Model | SC-010 | SC-016 | SC-020 |
| Internal dimensions (mm) | 1300*1000*600 | 1600*900*720 | 2000*1000*800 |
| Overall dimensions (mm) | 2000*1300*1600 | 2300*1300*1700 | 2700*1300*1900 |
| Interior Volume (L) | 780 | 1280 | 1800 |
| Temperature Range | +10 ℃ ～ +90 ℃ | ||
| Temperature Fluctuation | ± 0.5 ℃ | ||
| Temperature Deviation | ± 2.0 ℃ | ||
| Humidity Range | 30% ~ 98% RH | ||
| Humidity Deviation | + 2%, - 3% | ||
| Salt Fog Deposition | 1～2ml / 80cm2 · h | ||
| Cooling system | Mechanical compression refrigeration system | ||
| Humidifier | External isolation, stainless steel surface evaporation humidifier | ||
| Water supply system | Water purification system | ||
| Air Preheating | Saturated air barrel (31Liter) | ||
| Spraying System | Atomizer tower and Spray nozzles | ||
| Salt Fog Collected | Fog collector and fog measure cylinder | ||
| Controller | Programmable color LCD touch screen controller, Ethernet connection | ||
| Air Circulation | Centrifugal wind fan | ||
| Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; | ||
| Water Shortage Protection; Earth leakage Protection | |||
| Material | Glass fiber reinforced plastics | ||
| Standard Configuration | 8 round bars | ||
Operate Guide of the Cyclic Salt Spray Corrosion Chamber
Before starting, ensure the chamber is properly connected to power and that the water, salt solution, and SO₂ gas supply are prepared. Use the PID touchscreen controller to select or program your test cycle, including salt spray, temperature, humidity, and drying phases. Load samples on the racks without touching the chamber walls or sensors for uniform exposure. During testing, monitor temperature, humidity, and salt deposition in real time. After the cycle, safely discharge SO₂ gas using the exhaust system, clean the chamber as instructed, and document test results. Always follow safety protocols and maintenance schedules to ensure accurate, reliable operation.
Video of the Cyclic Salt Spray Corrosion Chamber
Worldwide Support You Can Trust
LIB provides peace of mind with a 3-year warranty and lifetime technical assistance. In the rare case that an issue cannot be repaired, the test chamber will be replaced free of charge. Our professional English-speaking team is available around the clock to support customers globally. Key spare parts are stored in international hubs for rapid delivery within 7–15 days, and comprehensive guidance ensures safe transportation, setup, and operation of the equipment.
