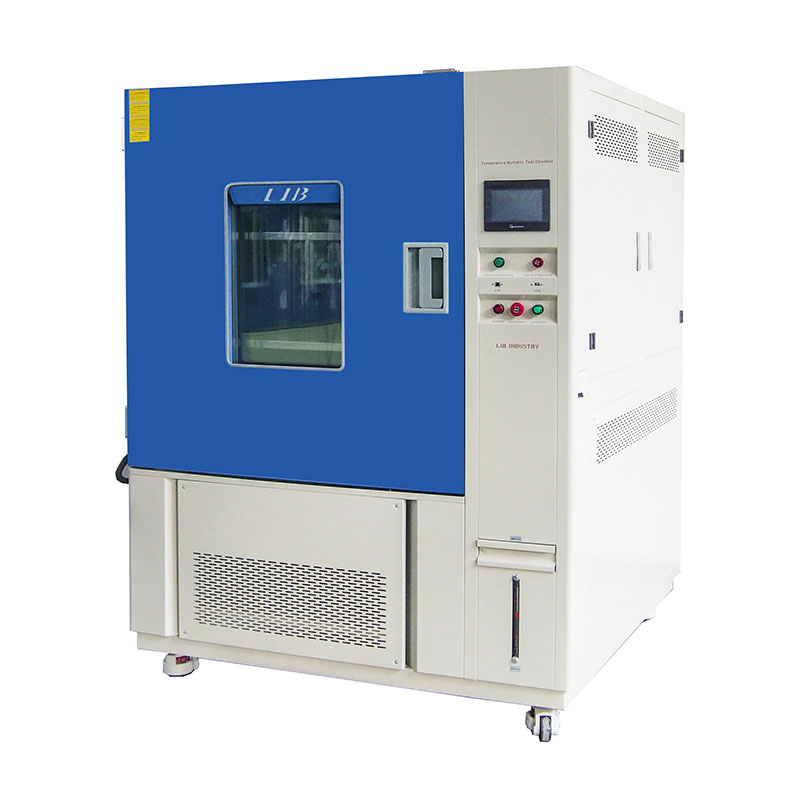

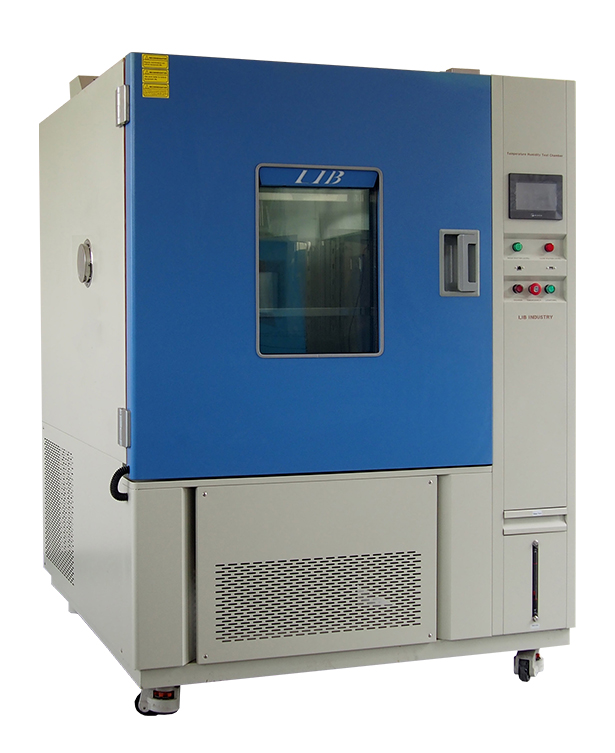

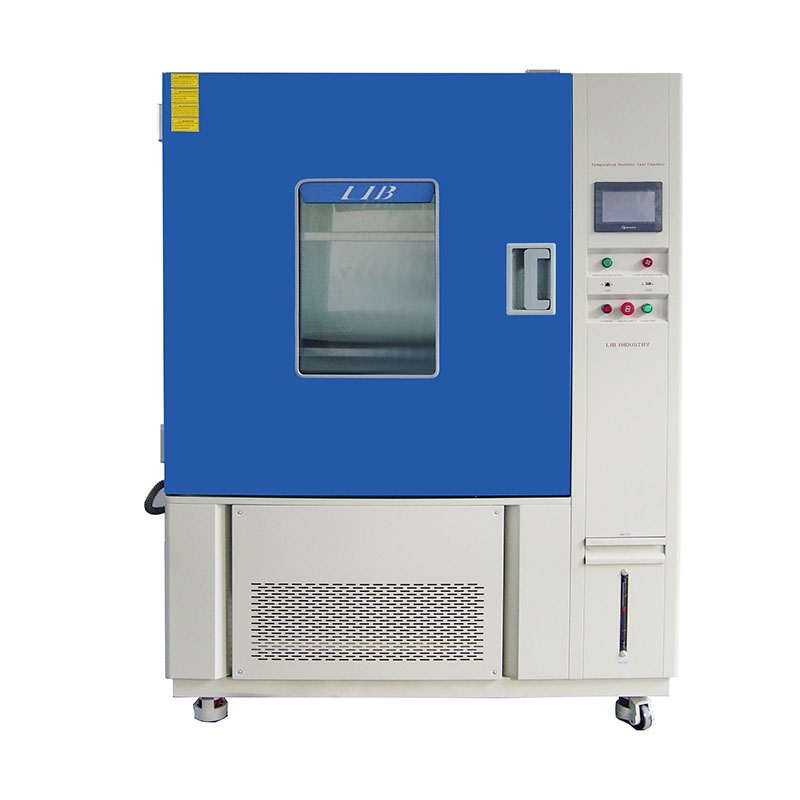

LIB's Constant Climate Environmental Test Chamber is designed for laboratories that demand precision, reliability, and efficient use of space. Covering a wide environmental range from –86 °C to +150 °C with humidity control from 20 % to 98 % RH, it supports accelerated testing of electronics, materials, and pharmaceutical products. High-precision PT100 Class A sensors ensure temperature stability within ±0.5 °C and humidity control within ±2.5 % RH, while fast ramp rates of 3 °C/min for heating and 1 °C/min for cooling reduce test cycle times. Its compact, low-noise design allows placement directly beside workstations, making it ideal for R&D, quality assurance, and laboratory validation applications.
This Constant Climate Environmental Test Chamber complies with a broad range of international standards, including IEC 60068 (temperature and damp heat),JESD22 (semiconductor stress testing), ISO 16750 (automotive electronics), ASTM D4332 (packaging and material conditioning)and so on. Such compliance ensures confidence in testing across electronics, automotive, aerospace, and life sciences sectors.
TH-100/ TH-225/TH-500/TH-800/TH-1000
LIB Industry
| Quantity: | |
|---|---|
The Constant Climate Environmental Test Chamber is designed to support a wide range of laboratory testing applications with internal capacities ranging from 100 L to 1000 L, accommodating various types of samples and components. Operating noise is controlled at ≤65 dBA, allowing continuous testing in shared laboratories without disrupting daily work. The interior is constructed from corrosion-resistant SUS304 stainless steel, while the exterior frame uses reinforced A3 steel with a protective coating, ensuring long-term durability even in high-humidity environments. The chamber supports programmable control with up to 120 test programs and 100 steps per program, enabling long-term cyclic testing and stable unattended operation.
Functional Advantages
1. Flexible Capacity and Workroom Design: Offered in capacities from 100 L to 1000 L, the chamber accommodates a wide range of sample sizes and testing requirements. Its spacious interior ensures easy placement of components, materials, or assemblies while maintaining uniform temperature and humidity throughout the workroom.
2. Broad Environmental Simulation Range: Temperature ranges from –40 °C to +150 °C (optional –86 °C) with humidity control from 20 % to 98 % RH, enabling simulation of extreme environmental conditions for reliability and durability testing.

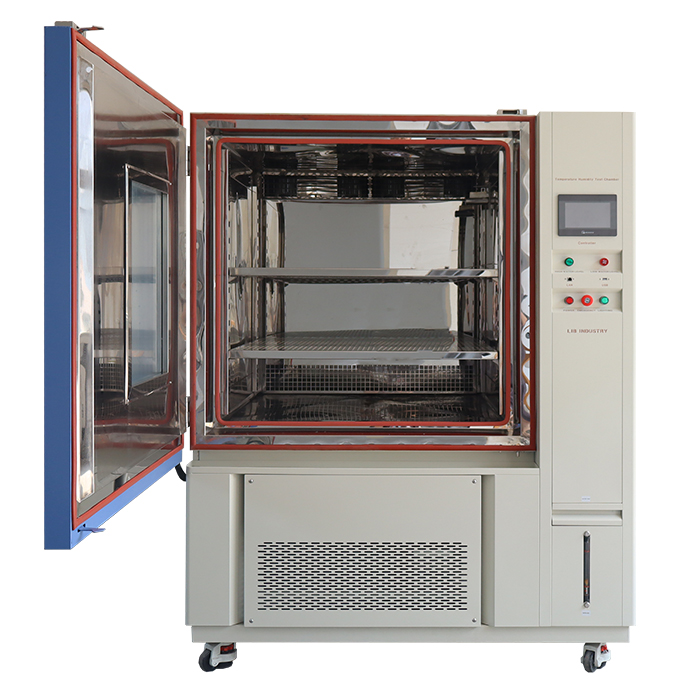

3. High Accuracy and Uniformity: Optimized airflow generated by centrifugal fans, combined with perforated sample shelves, ensures uniform temperature and humidity distribution throughout the workroom. High-precision PT100 Class A temperature sensors deliver ±0.5 °C temperature stability, while wet-bulb humidity sensors maintain ±2 % RH accuracy, guaranteeing repeatable and reliable results for all samples during extended testing cycles.
4. Rapid Heating and Cooling Performance: Heating rates of up to 3 °C/min and cooling rates of 1 °C/min reduce test cycle time and support accelerated environmental testing.
5. Durable Construction and Comprehensive Safety: The interior is made of SUS304 stainless steel for corrosion resistance, while the reinforced A3 steel exterior ensures structural durability. Multiple safety protections—including over-temperature protection, leakage protection, and phase monitoring—ensure safe and reliable operation.

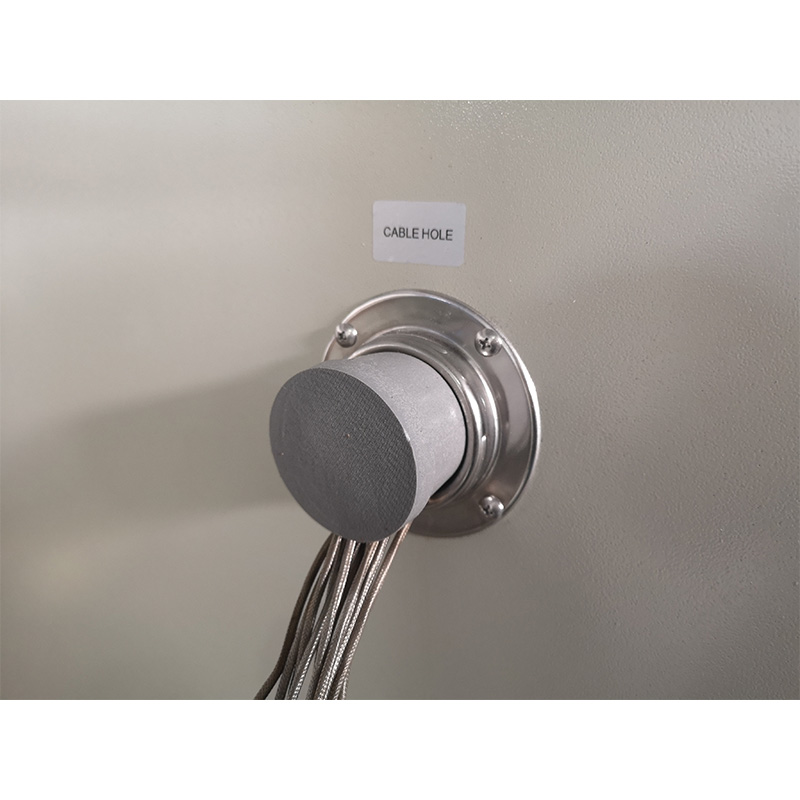

6. Customizable Cable Holes for Functional Testing: Equipped with sealed cable holes (standard φ50 mm, customizable in size, quantity, and position), the chamber allows powering and monitoring of samples during testing. This feature enables real-world operational simulations, including voltage monitoring, sensor operation, and remote data acquisition, without compromising temperature and humidity stability inside the workroom.
Operating Parameters
| Name | Constant Climate Environmental Test Chamber | ||||
| Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
| Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
| Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
| Interior Volume | 100L | 225L | 500L | 800L | 1000L |
| Heat load | 1000W | ||||
| Temperature Range | A : -20℃ ～ +150 ℃ | ||||
| B : -40℃ ～ +150 ℃ | |||||
| C: -70℃ ～ +150 ℃ | |||||
| Temperature Fluctuation | ± 0.5 ℃ | ||||
| Temperature Deviation | ± 2.0 ℃ | ||||
| Humidity Range | 20% ~ 98% RH | ||||
| Humidity Deviation | ± 2.5% RH | ||||
| Cooling Rate | 1 ℃ / min | ||||
| Heating Rate | 3 ℃ / min | ||||
| Cooling system | Mechanical compression refrigeration system | ||||
| Refrigerating unit | French TECUMSEH compressor | ||||
| Heating Element | Nichrome heater | ||||

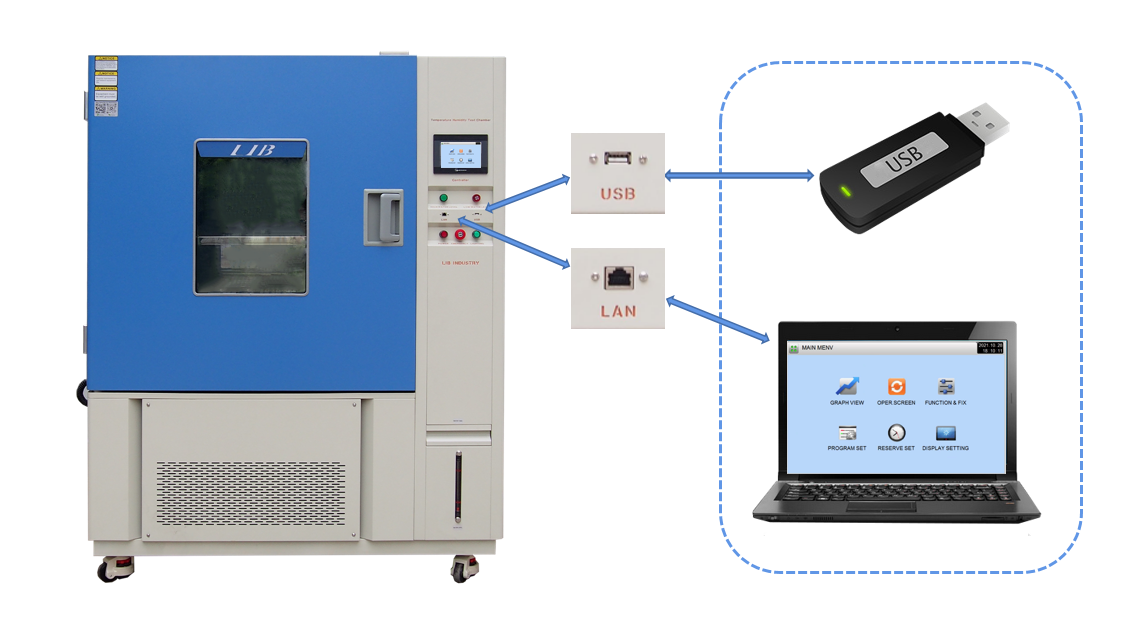

| Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
| Water supply system | Automatic water supply, Water purification system | ||||
| Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
| Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
| Exterior Material | Steel Plate with protective coating | ||||
| Interior Material | SUS304 stainless steel | ||||
| Thermal Insulation | Polyurethane foam and insulation cotton | ||||
| Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
| Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
| Standard | UL 2580、UL 2271、IEC 62660-2、UL 1642、UL 1973、SAE J2929、SAE J2464、IEC 60068-2-30、IEC 61960、IEC 62133、UL 2054、IEC 61215、IEC60068、SAE J2334、VW 80000、IEC 62717 | ||||
Typical Tests of the Constant Climate Environmental Test Chamber
The chamber performs diverse tests such as thermal shock cycles from –40 °C to 85 °C, high- and low-temperature aging, humidity and damp heat conditioning up to 95 % RH, shelf-life evaluations at moderate temperatures, and hydrolysis aging at elevated humidity. Sample environments are continuously monitored, ensuring reliable, repeatable, and globally compliant results. For example, a 1000-hour damp heat aging test or rapid thermal cycling can be completed with minimal intervention while maintaining precise environmental parameters.
Video of the Constant Climate Environmental Test Chamber
FAQs on the Constant Climate Environmental Test Chamber
Q1: What is the maximum ramp rate achievable?
A: Standard chambers support 5–10 °C/min. Custom configurations can reach 20 °C/min or higher to meet specialized testing needs.
Q2: Are audible and visual alarms included?
A: An audible alarm is standard, with optional visual alarms for fully customized notification setups.
Q3: Will custom ports or viewing windows delay delivery?
A: Standard modifications do not affect delivery. Fully custom designs may extend production by 5–10 days, but schedules are closely managed to minimize delays.
