DI-800/DI-1000/DI-1500/DI-2000
LIB Industry
| Quantity: | |
|---|---|

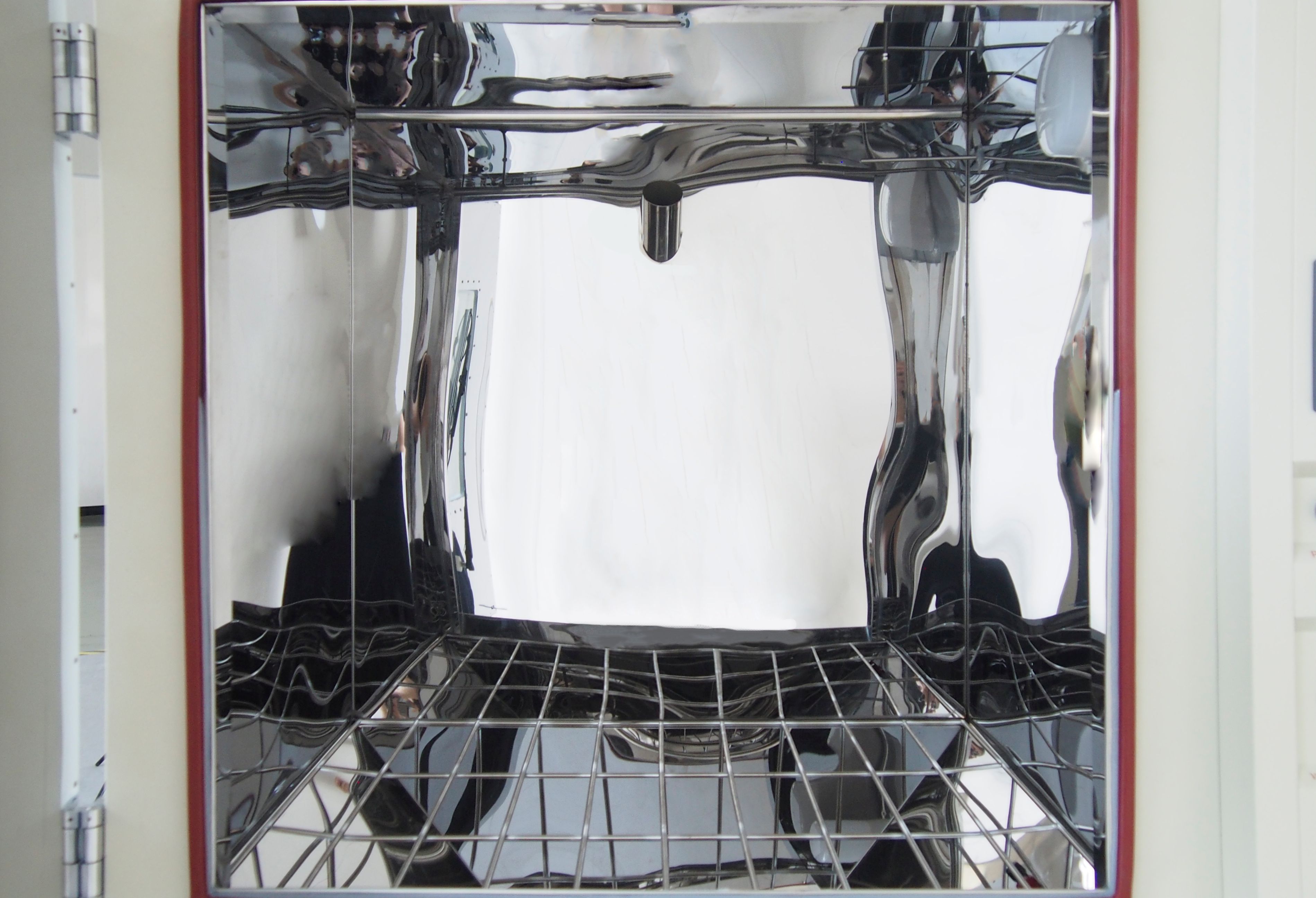

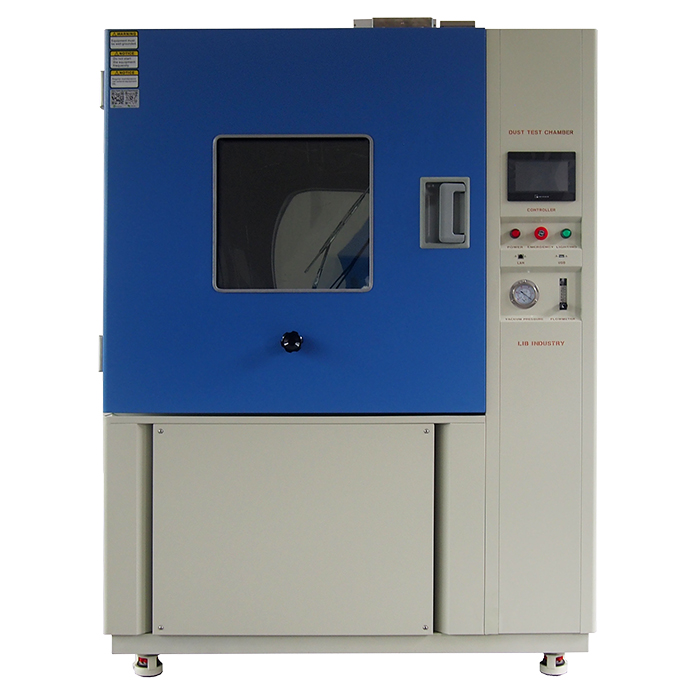

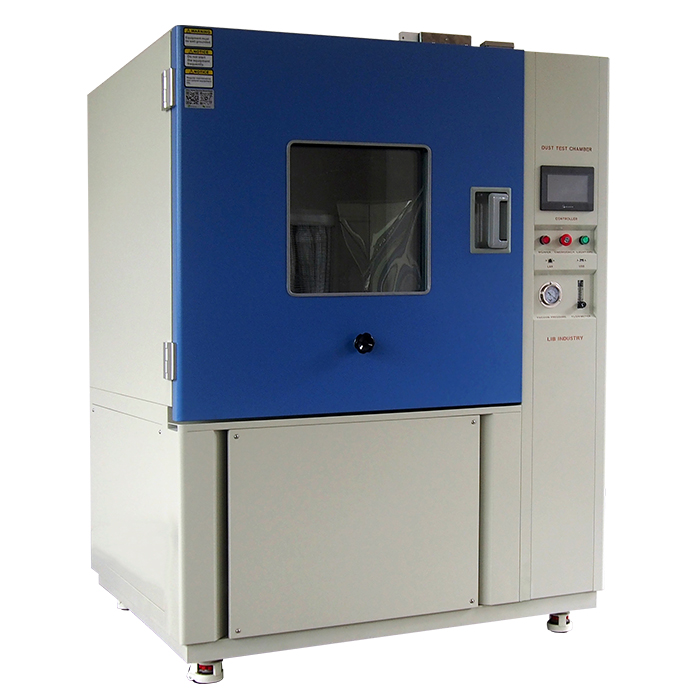

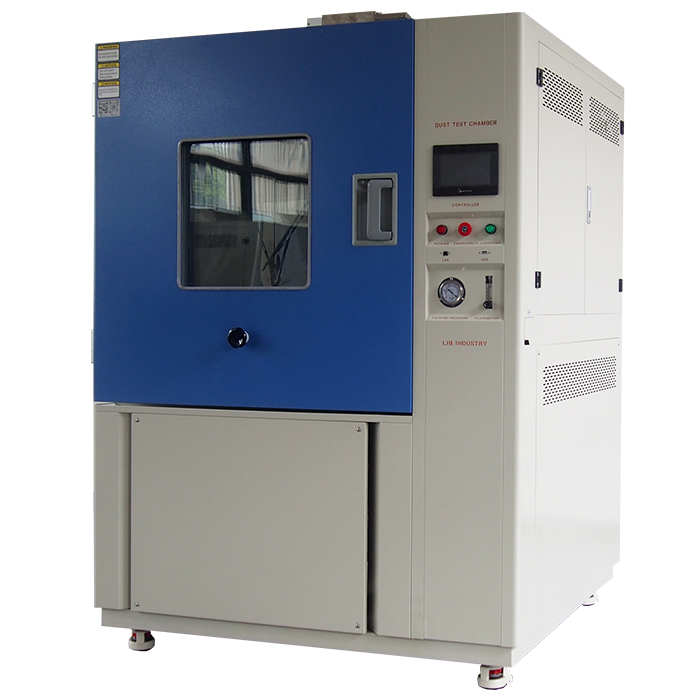

The LIB IP66 IP68 dustproof chamber features a durable construction with a SUS304 stainless steel interior and a reinforced A3 steel exterior finished with a protective coating. The stainless steel interior ensures excellent corrosion resistance and easy cleaning after repeated dust tests, while the outer A3 steel shell provides long-term mechanical strength and stability. A vertical circulating airflow system ensures uniform dust distribution throughout the workroom, and an integrated heating tube prevents dust clumping, maintaining a consistent test environment. The chamber includes a mesh sieve with a nominal particle diameter of 50 μm to filter out oversized particles, ensuring controlled and stable dust conditions. Additionally, the dust recycling system minimizes waste and operational costs by collecting and reusing dust efficiently.
Core Strengths
1. AcPerformance Parameterscurate Dust Simulation for IP Testing: the equipment reproduces controlled dust concentrations of 2–4 kg/m³ under a vertical airflow system, guaranteeing stable and repeatable testing conditions. This precise simulation of dust ingress ensures that manufacturers can evaluate sealing performance, abrasion resistance, and long-term product durability, closely mirroring real-world conditions.

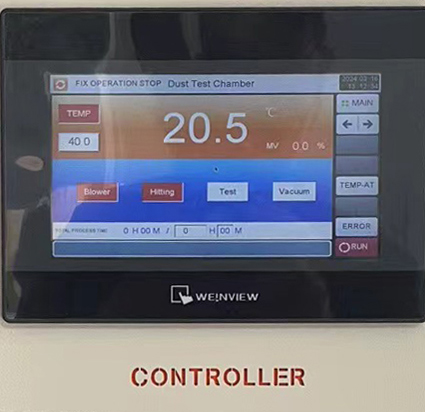

2. Advanced Programmable Control System: equipped with a PID color touchscreen controller, the chamber allows intuitive operation and programming of up to 120 test programs with 99 segments each. Real-time display of dust concentration, airflow, and test duration ensures precise monitoring, while Ethernet and USB connectivity allow remote control and data export. Multi-language support makes the chamber accessible for international operations.

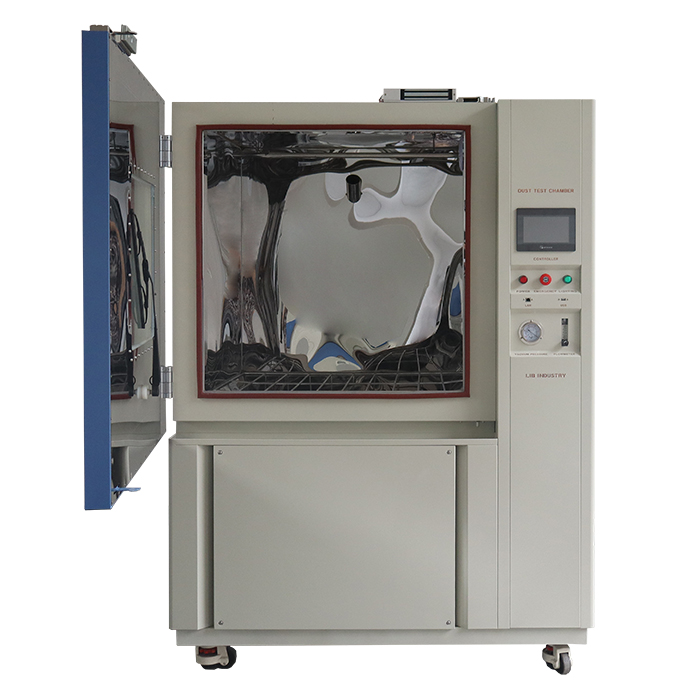

3. Enhanced Observation and Lighting: a viewing window with a wiper and built-in illumination enables operators to monitor specimens in real-time, providing clear visibility even in long-duration dust tests. This feature supports accurate evaluation of product behavior under dust exposure without interrupting the test process.
4. Secure and Safe Operation: an electromagnetic door lock ensures that the chamber remains sealed during testing, maintaining environmental integrity and protecting operators from accidental dust exposure. The concave–convex door design with double sealing strips prevents leakage, while integrated safety devices such as over-temperature protection, leakage monitoring, and grounding protection enhance operator and equipment safety.
5. Flexible Sample Handling: the chamber includes a sample holder with a standard 50 kg load capacity, customizable to accommodate various product sizes and shapes. Internal castors with adjustable height and brakes facilitate easy positioning, allowing diverse samples to be tested under consistent dust conditions.
6. Durable Construction for Long-Term Testing: SUS304 stainless steel and reinforced A3 steel materials provide high resistance to wear, corrosion, and mechanical stress, supporting continuous operation in demanding laboratory and industrial settings. The chamber's robust design minimizes maintenance and downtime while delivering reliable, repeatable test results.
Performance Parameters
| Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
| Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
| Overall Dimension (mm) | 1040*1450*1960 | 1330*1450*1960 | 1330*1950*1990 | 1330*2450*1990 |
| Useful Volume (L) | 800 | 1000 | 1500 | 2000 |
| Temperature Range | Ambient ~ +50℃ | |||
| Humidity Range | < 30% RH | |||
| Normal Wire Diameter | 50um | |||
| Nominal Width of a Gap Between wires | 75um | |||
| Fight Time | 0 ~ 99H59M | |||
| Blowing Time | 0 ~ 99H59M | |||
| Specimen Power Outlet | Dust-proof socket 16A | |||
| Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |||
| Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
| Door Lock | Electromagnetic lock | |||
| Safety Device | Over-temperature Protection; Over-current Protection; | |||
| Earth Leakage Protection；Phase Sequence Protection | ||||
| Exterior Material | A3 Steel Plate with protective coating | |||
| Interior Material | SUS304 stainless steel | |||
| Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||
| Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) | |||
Typical Tests Performed
The LIB Sand and Dust Test Chamber can perform a wide range of dust and sand-related tests, including IP5X and IP6X ingress protection testing, dust resistance evaluation, enclosure integrity testing, and blowing sand and dust simulations. For example, dust concentrations are typically maintained at 2–4 kg/m³ with particle sizes around 50 μm, and test durations usually range from 8 to 24 hours, with longer cycles of 16–99 hours for comprehensive IP testing. Small or lightweight components, such as headphones or sensors, can be placed naturally on the chamber floor or suspended using the top crossbeam to ensure even dust exposure. The chamber allows functional testing of powered devices through the internal 16 A dust-proof outlet, ensuring real-time monitoring of product performance under dust-laden conditions. During testing, temperatures can generally reach 45–55 °C in operating mode and may approach 80 °C in static conditions, while the chamber wall thickness of approximately 1 cm provides effective heat retention to maintain consistent test conditions.
Video Showcase
FAQs on IP66 IP68 Dust Tight Dustproof IP Test Equipment
Q 1: Can the Sand and Dust Test Chamber reach 80 °C during operation?
During dust-blowing operations, the chamber typically stabilizes at around 55 °C. IEC 60529 specifies dust tests under ambient laboratory conditions without strict temperature requirements. In stationary or non-operating states, temperatures may approach 80 °C. Effective temperature stability is achieved through the combination of wall insulation and the internal heating tube.
Q 2: How should small test items, such as headphones, be placed during testing?
Small or lightweight items can either rest naturally on the chamber floor or be suspended from the top crossbeam. This placement ensures uniform dust exposure, accommodates different product sizes and shapes, and improves operational convenience during testing.
Q 3: Does the chamber have an insulation layer?
The chamber does not feature a separate insulation layer. Temperature stability is primarily maintained through the wall thickness of approximately 1 cm and the internal heating system, which effectively reduces heat loss during operation.
