LIB Xenon Accelerated Weathering Test Chamber can simulate the damage caused by full-spectrum sunlight, temperature, humidity and rain. All models are automatic operation and running. Xenon chambers are easy to operate and install. With a variety of models and options, you can customize your xenon chamber to fit your testing needs.
Xenon Accelerated Weathering Test Chambers are designed with precise airflow and sample rotation systems to guarantee uniform exposure across all specimens, minimizing variability and improving test reliability. Integrated sensors continuously monitor environmental parameters, including irradiance, which can be set according to ASTM standards (e.g., 0.35 W/m²·nm at 340 nm for daylight filter or 1.10 W/m²·nm at 420 nm for window glass filter) as well as customer-specific testing points, and black panel temperature (±1 °C). This intelligent PID control ensures even complex weathering cycles are accurately reproduced, providing consistent and reproducible results across long-term tests.
With a wide range of models and optional configurations, LIB chambers can be customized to meet specific testing requirements. They are engineered to comply with multiple internationally recognized standards, including ASTM G155, ASTM D6695, ASTM D7869, ISO 11341, and ISO 16474, providing professional, precise, and globally comparable weathering test results.
XL-S-500
LIB Industry
| Quantity: | |
|---|---|

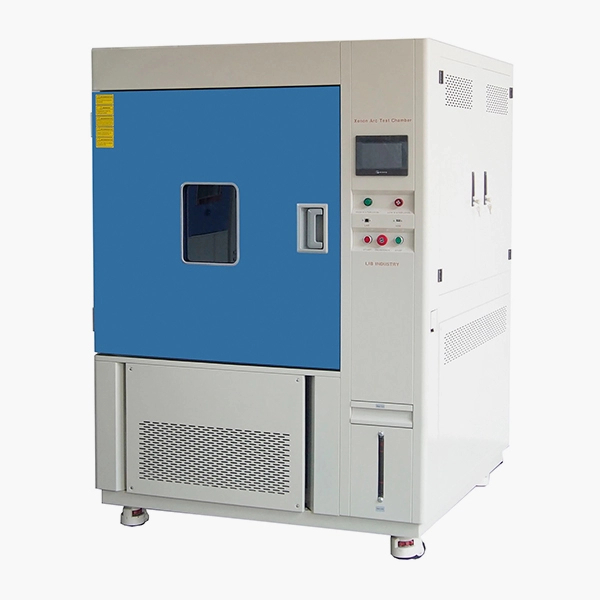

The Xenon Accelerated Weathering Test Chamber uses a xenon arc lamp as a light source to emulate true environmental conditions. The chambers control, monitor and display temperature, humidity and black panel temperature. Easy to mount the specimen with specially designed specimen holders. A rotating sample holder ensures uniform exposure, while automated logging via Ethernet delivers fast, reliable, and comparable paint aging results.
Product Advantage
1. Comprehensive Sunlight Simulation: Equipped with a 4500 W water-cooled xenon lamp lasting up to 1600 hours and interchangeable filters (daylight, window glass, extended UV), the chamber reproduces the full 280–800 nm light spectrum, meeting ASTM G155 and other relevant international standards.
2. Accurate Climate Control: The system precisely regulates black panel temperature between 35–85 °C (±2 °C) and humidity from 30–98 % RH (±2.5 %), with flexible dry/wet and water spray cycles to emulate real environmentalconditions.

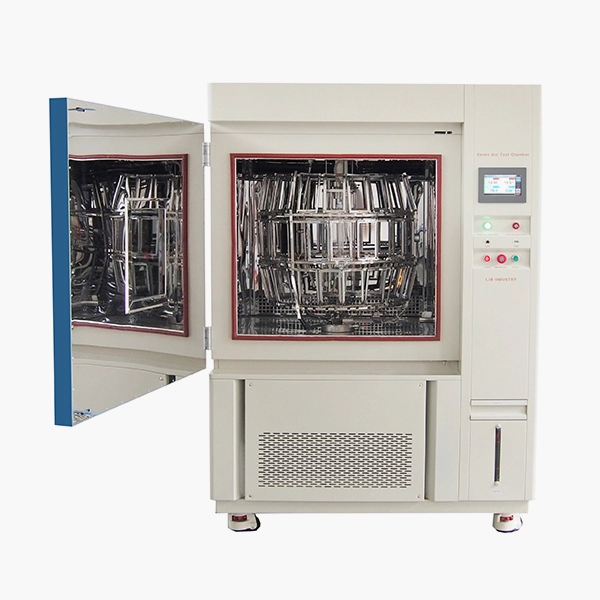

3. Consistent Sample Exposure: A rotating rack accommodates up to 42 specimens, ensuring uniformillumination and moisture distribution across all surfaces for reliable and representative test outcomes.
4. Smart Automation and Data Management: Advanced PID control continuously monitors light intensity and temperature, automatically logs test data, and offers remote monitoring and centralized management through a multilingual interface with Ethernet/Wi-Fi connectivity.
5. Eco-Friendly Water System: The chamber uses closed-loop water circulation with multi-stage filtration and partial recycling, minimizing water consumption while maintaining clean, consistent spray for efficient and sustainable operation.
6. Reliable Quality Certification: We firmly believe that quality comes first. Quality control is implemented at every stage—from raw material selection and manufacturing to final inspection. Our chambers are CE and RoHS compliant, covering both standard and customized models, with in-stock units available for immediate shipment.
7. Service Advantages: Comprehensive support from purchase to operation, 36-month warranty, lifelong technical service, 20-year design life, turn-key delivery, and flexible customization for reliable, long-term performance.
8. Customization: Our chambers can be fully customized in size, volume, workroom structure, performance, configuration, language, optical filters, specimen holders (including 3-D holders), and calibration units, ensuring compliance with ISO, ASTM, SAE, AATCC, IEC, and other standards. Please contact us for further information.
Technical Parameters
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |
Specimen Holder Size(mm) | 95*180 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 Stainless steel |
Product Video
FAQs
Q1: What is the maximum sample thickness for the standard rotating xenon lamp rack? What about for customized racks?
A1: The standard rotating xenon lamp rack supports samples up to 3 cm thick. For special requirements, customized racks can accommodate samples up to 11 cm thick. LIB also provides fully non-standard custom designs to meet unique testing scenarios and specific client needs.
Q2: If a xenon lamp tube turns black, can it be cleaned and reused? How?
A2: A xenon lamp tube that becomes discolored or blackened can be carefully cleaned to extend its service life. LIB provides detailed cleaning instruction videos for reference. However, to ensure testing accuracy and safety, it is generally recommended to replace the lamp when it is heavily blackened or significantly aged.
Q3: Can LIB xenon chambers be customized for different test requirements?
A3: Yes, LIB xenon chambers are highly customizable. Customers can request variations in sample holders, lamp types, and testing cycles to suit specific materials, thicknesses, or environmental simulation needs. Every custom solution is designed to maintain full compliance with international standards such as ASTM G155, ASTM D6695, ISO 11341, and ASTM D7869.
