THV-1000
LIB Industry
| Quantity: | |
|---|---|

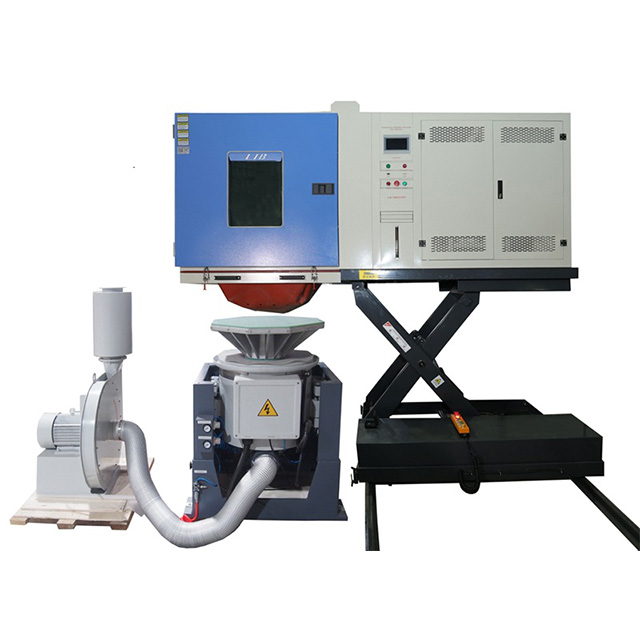

1. Comprehensive Multi-Environment Simulation: The combined climate and vibration chamber integrates temperature, humidity, and vibration testing into one system, supporting a temperature range of −50 °C to +150 °C and humidity from 30% to 98% RH. Both vertical and horizontal vibration modes are supported, accommodating loads up to 500 kg. This allows manufacturers to replicate real-world conditions, conduct combined stress screening, and assess product reliability across multiple industries, including aerospace, automotive, and electronics.
2. Precision Control and Repeatability: Equipped with a high-precision PID touchscreen controller, the chamber enables programmable multi-stage test profiles with real-time monitoring. Temperature stability is maintained within ±0.5 °C, and humidity within ±2.5 % RH. Fast heating and cooling rates (up to 5 °C/min) combined with closed-loop accelerometer feedback for vibration ensure accurate, repeatable results. This guarantees reliable evaluation of product performance and durability under complex environmental stresses.
3.Robust Construction and Safety: The interior of vibration chamber is made of SUS304 stainless steel, providing corrosion resistance and structural stability under high humidity, while the exterior uses coated A3 steel for industrial durability. Integrated safety features—including over-temperature protection, humidity system dry-combustion protection, water shortage alarms, and leakage current safeguards—ensure operator and equipment safety, supporting long-term reliable operation in demanding test environments.
4.Flexible and User-Friendly Design: Quick-change vertical/horizontal vibration tables and adjustable sample fixtures allow easy setup and rapid switching between test configurations. Large observation windows and internal lighting enable real-time monitoring of samples. USB and Ethernet connectivity supports data logging, remote monitoring, and integration with external systems, streamlining operations and improving overall testing efficiency.
5. Standards Compliance and Industry Versatility: The climate and vibration chamber meets key standards including IEC 60068, MIL-STD 781/883, DO-160, ISO 16750-3, and ISO 26262. It is suitable for testing electronic components, automotive parts, aerospace materials, and other critical products. Compliance with international standards ensures that testing results are credible, reproducible, and widely accepted for regulatory and certification purposes.
Technical Parameters
Temperature Range | -50℃ ～ +150 ℃ |
Temperature Fluctuation | ± 0.5 ℃ |
Temperature Deviation | ± 2.0 ℃ |
Humidity Range | 30% ~ 98% RH |
Humidity Deviation | ± 2.5% RH |
Cooling Rate | 5 ℃ / min |
Heating Rate | 5 ℃ / min |
Rated Force of Vibration | 1000kgf |
Frequency Range of Vibration | 2 to 4000 Hz |
Armature Diameter of shaker | φ240mm |
horizontal sliding table | 600*600 mm |
Power Amplifier | Digital power amplifier |
Head Expander | 600*600 mm |
Blower | 4Kw blower, including muffler. |
Cooling system | Mechanical compression refrigeration system |
Safety Protection | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Product Video
FAQ
Q1: What language options are available for the Climate and Vibration Chamber controller interface? Will it increase cost?
A: LIB controllers come standard with Chinese and English interfaces for immediate use. Optional languages include French, Polish, Russian, and German, enabling smooth operation worldwide. Each additional language costs only USD 500, helping your team communicate efficiently and operate the chamber without language barriers.
Q2: Will the refrigerant in the Climate and Vibration Chamber leak?
A: The refrigerant circulates in a fully sealed system and can operate reliably for up to 20 years under normal conditions. Strict pressure testing ensures long-term sealing and durability. Minor leaks may occur during extreme transport, especially air shipping, but reinforced packaging and shock absorption greatly reduce this risk.
Q3: What material and type is used for the observation window glass?
A: The chamber observation window is made of double-layer tempered glass with an electroconductive coating for anti-frost functionality. It is strong, safe, and allows clear observation of tests without fogging or condensation interfering with visibility.
Q4: Can an embedded glass door be installed separately?
A: Yes, LIB accepts all non-standard customizations. Whether it is an embedded glass door or other special designs, the chamber can be tailored to meet your specific requirements, combining functionality with aesthetic appeal.
Q5: Is there an audible and visual alarm function?
A: The chamber comes standard with an audible alarm to notify operators of critical anomalies. A visual alarm is available as an optional feature, allowing flexible configuration based on your operational needs.
