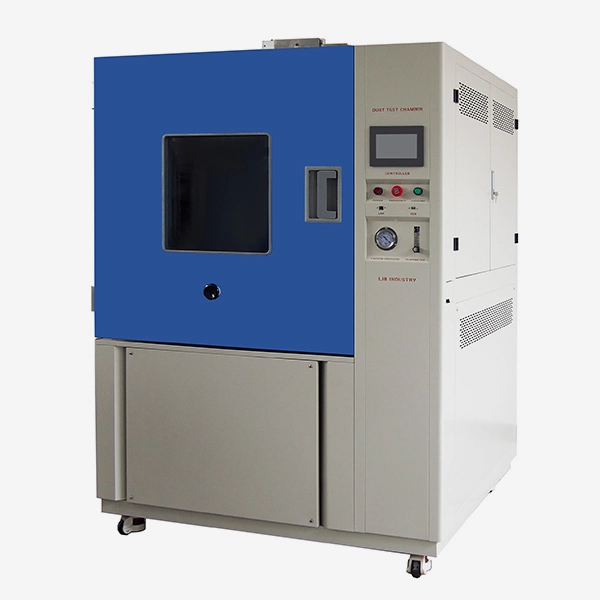

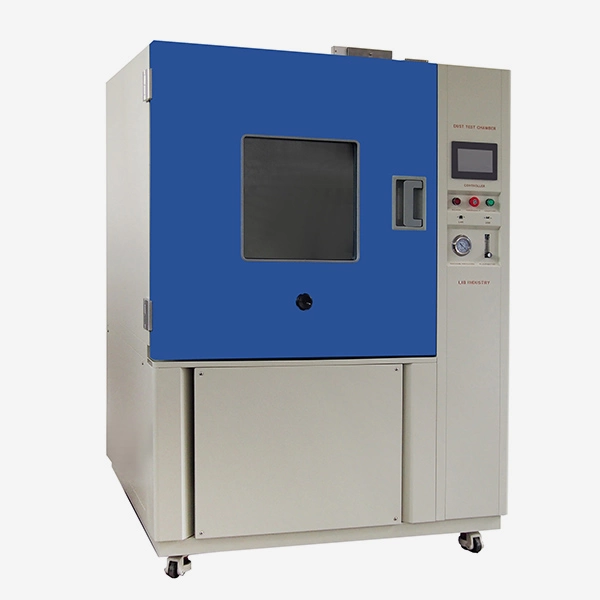

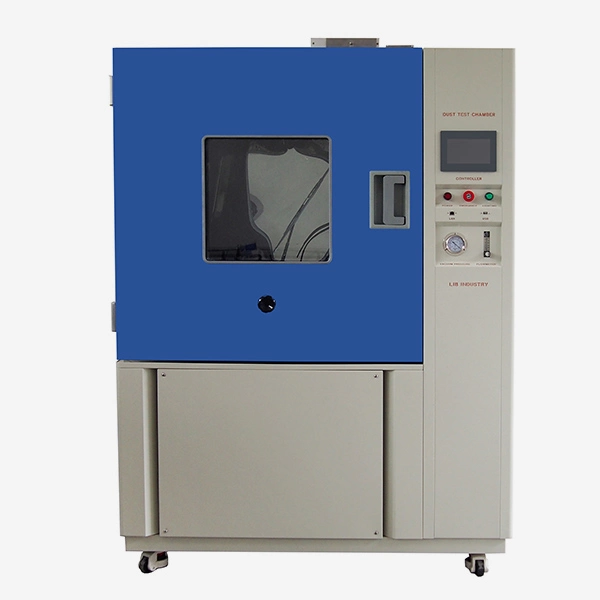

LIB dust test chamber can be used to perform ingress protection tests in accordance with the test standards IEC60529 60529 (IP5X / IP6X) and ISO 20653 (IP5KX / IP6KX). With additional equipment, further standards can be fulfilled, such as MIL STD 810 and other standards.
LIB Sand and Dust Test Chambers meet a wide range of international and military standards, including IEC 60529,ISO 20653,DIN 40050-9,IEC 60598-1,IEC 60068-2-68, JIS DO207, MIL-STD-810H, ISO 16750-4, LV 124, SAE J575,and JSS 55555. Optional customization allow users to adapt the system to various product sizes and complex testing protocols, making it suitable for electronics, automotive, and heavy industrial applications.
DI-800/DI-1000/DI-1500/DI-2000
LIB Industry
| Quantity: | |
|---|---|
Considering that the components are small and large, LIB manufactures different size and configuration of Sand and Dust Test Chambers, ranging in size from 400Ltier to 3000Liter, included standard and custom chambers. Its dustproof power connector in the test room can easily supply electricity to the specimen.
Advantages
1. Accurate Dust Simulation: The chamber delivers a controlled dust concentration of 2–4 kg/m³ with a nominal particle size of 50 μm and a wire gap width of 75 μm, precisely reproducing real-world sand and dust intrusion scenarios.
2. Versatile Specimen Capacity: Available in 800 L and 1000 L models (internal dimensions 800×1000×1000 mm and 1000×1000×1000 mm), the chamber can accommodate both small electronic devices and larger industrial components, with a 16 A dust-proof power outlet for live testing.

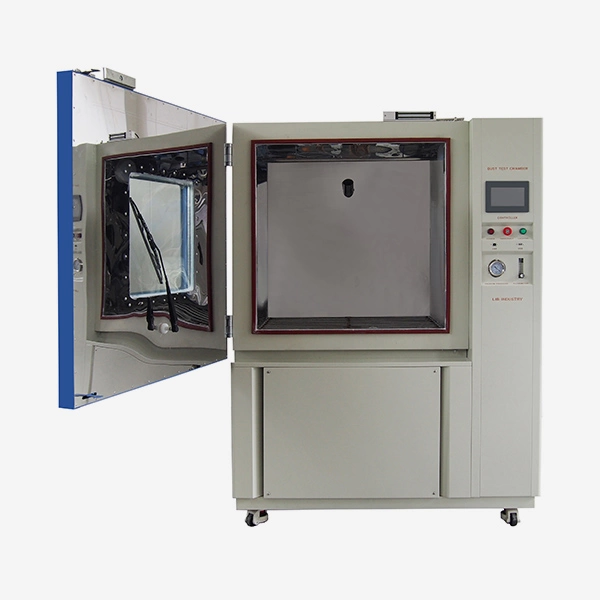

3. Safe & Observant Operation: Features include a view window with wiper, built-in lighting, electromagnetic door lock, and integrated wiring port. The vertical dust circulation system maintains a nominal particle diameter of 50–55 μm, preventing caking and providing a stable, uniform test environment.
4. Durable & Safe Construction: Equipped with SUS304 stainless steel interior and an electromagnetic door lock, the chamber ensures long-term corrosion resistance and operator safety. The chamber’s maximum noise level is ≤65 dBA for a quiet work environment.
5. Advanced Programmable Control: The color LCD touchscreen controller supports Ethernet and PC Link connections, allowing full programming of test durations up to 99 h 59 min, remote monitoring, and precise control over dust circulation, vacuum system, and heating elements.
Technical Parameters
| Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
| Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
| Overall Dimension (mm) | 1040*1450*1960 | 1330*1450*1960 | 1330*1950*1990 | 1330*2450*1990 |
| Useful Volume (L) | 800 | 1000 | 1500 | 2000 |
| Temperature Range | Ambient ~ +50℃ | |||
| Humidity Range | < 30% RH | |||
| Normal Wire Diameter | 50um | |||
| Nominal Width of a Gap Between wires | 75um | |||
| Fight Time | 0 ~ 99H59M | |||
| Blowing Time | 0 ~ 99H59M | |||
| Specimen Power Outlet | Dust-proof socket 16A | |||
| Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |||
| Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
| Door Lock | Electromagnetic lock | |||
| Safety Device | Over-temperature Protection; Over-current Protection; | |||
| Earth Leakage Protection；Phase Sequence Protection | ||||
| Exterior Material | A3 Steel Plate with protective coating | |||
| Interior Material | SUS304 stainless steel | |||
| Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||
| Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) | |||
Operate Guide of the Sand and Dust Test Chamber
The LIB Sand Test Chamber should be installed on a level surface in an environment of 5 °C–35 °C and ≤85 % RH. Before operation, ensure the chamber is properly connected to the power supply and the dust-proof socket is functional. Set the desired dust concentration (2–4 kg/m³), test duration (up to 99 h 59 min), and temperature range (ambient to +50 °C) via the programmable color LCD touchscreen controller. Place the test specimens securely on the turntable or sample holder, close and lock the electromagnetic door, and start the test. The built-in lighting and observation window allow real-time monitoring, while the vacuum and circulation systems maintain uniform dust distribution throughout the chamber. After testing, power down the chamber, remove specimens safely, and perform routine cleaning and maintenance according to the user manual to ensure optimal performance and longevity.
Video of the Sand and Dust Test Chamber
Worldwide Support
LIB provides peace of mind with a 3-year warranty and lifetime technical support. In the rare event that a malfunction cannot be repaired, the test chamber will be replaced free of charge. Our dedicated English-speaking support team is available around the clock to assist clients anywhere in the world. Essential spare parts are stocked in international warehouses, ensuring delivery within 7–15 days, while comprehensive instructions guide safe transport, installation, and operation of the equipment.
