DI-800/DI-1000/DI-1500/DI-2000
LIB Industry
| Quantity: | |
|---|---|

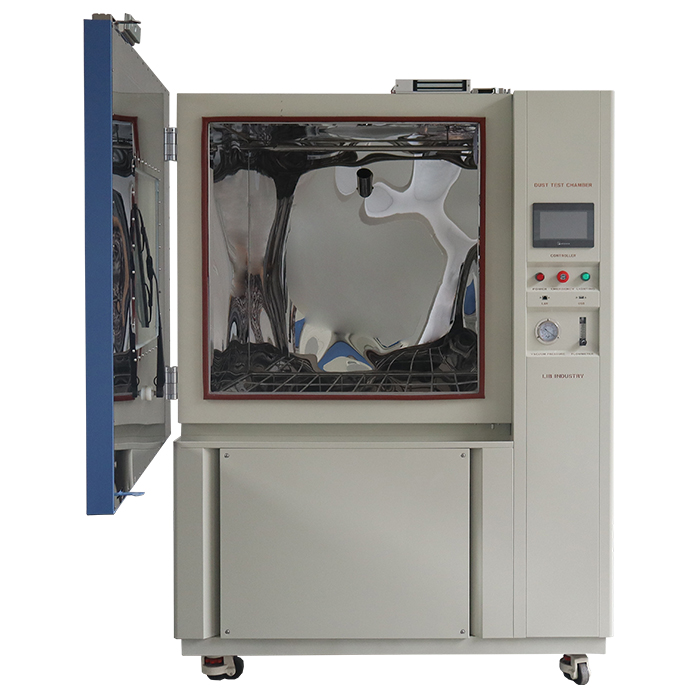

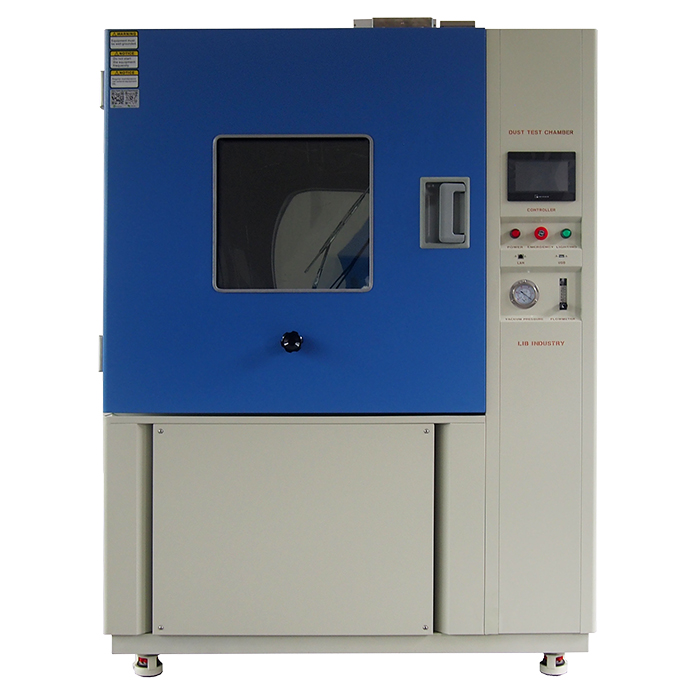

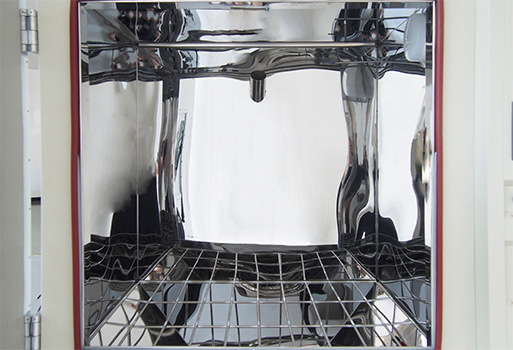

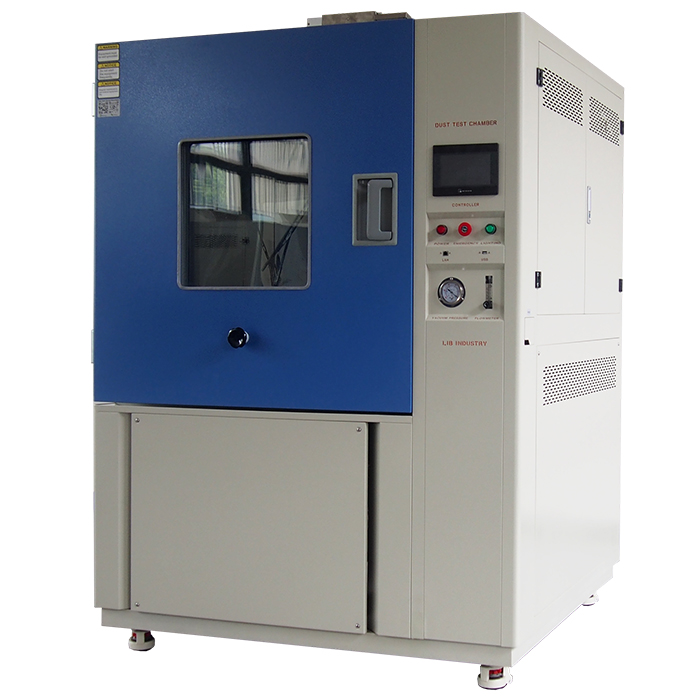

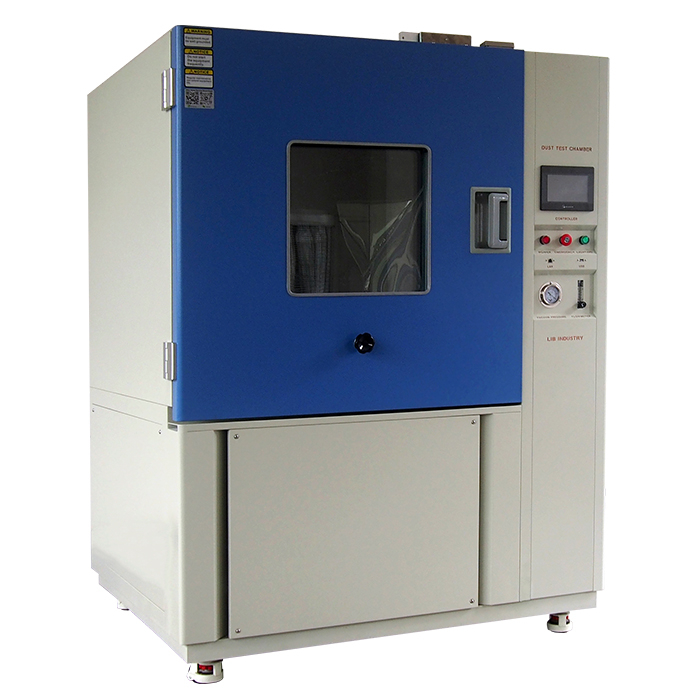

The IP6X IP5X Ingress Test Chamber Dust Test Machine features a robust and user-friendly mechanical design to support long-term and repeatable testing. The inner chamber is manufactured from SUS304 stainless steel, offering excellent corrosion resistance and easy cleaning after dust tests. The outer shell is constructed from reinforced A3 steel with a protective coating, ensuring mechanical strength and durability in laboratory and industrial environments.
Core Strengths of the IP6X IP5X Ingress Test Chamber Dust Test Machine
1. Accurate Dust Simulation for IP5X and IP6X Testing：The dust test chamber delivers controlled dust concentrations of 2–4 kg/m³ using standardized test dust with a nominal particle size of 50 μm. This ensures accurate and repeatable simulation of dust intrusion conditions required for IP5X and IP6X ingress protection tests.
2. Stable and Uniform Dust Circulation System：A vertical dust circulation airflow design ensures even dust distribution throughout the test chamber. Integrated heating elements prevent dust clumping, maintaining stable test conditions during long-duration exposure and improving result reliability.
3. Excellent Sealing and Safety Design：The concave–convex door structure with double sealing strips effectively prevents dust leakage. The electromagnetic door lock ensures test integrity and protects operators by preventing accidental door opening during testing.
4. Durable Construction for Continuous Operation：The SUS304 stainless steel interior resists corrosion and wear, while the reinforced A3 steel exterior provides long-term mechanical stability. This robust construction supports continuous tsting with minimal maintenance.

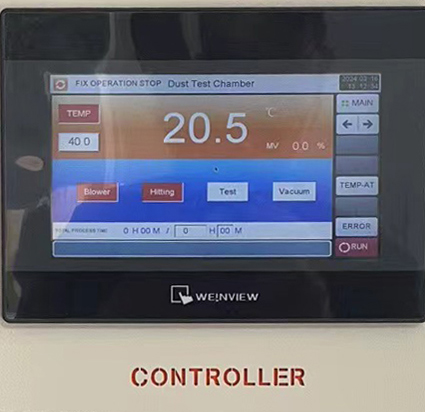

5. Advanced Programmable Control System：The PID touchscreen controller allows precise adjustment of dust circulation, blowing time, vacuum pressure, and test duration. Multiple test programs can be stored and reused, improving efficiency and reducing manual operation.
6. Flexible Capacity and Customization Options：Standard chamber volumes range from 800 L to 2000 L, with walk-in and customized configurations available. This flexibility allows testing of a wide variety of products, from compact electronics to large industrial equipment.
Core Parameters of the IP6X IP5X Ingress Test Chamber Dust Test Machine
| Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
| Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
| Overall Dimension (mm) | 1040*1450*1960 | 1330*1450*1960 | 1330*1950*1990 | 1330*2450*1990 |
| Useful Volume (L) | 800 | 1000 | 1500 | 2000 |
| Temperature Range | Ambient ~ +50℃ | |||
| Humidity Range | < 30% RH | |||
| Normal Wire Diameter | 50um | |||
| Nominal Width of a Gap Between wires | 75um | |||
| Fight Time | 0 ~ 99H59M | |||
| Blowing Time | 0 ~ 99H59M | |||
| Specimen Power Outlet | Dust-proof socket 16A | |||
| Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |||
| Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
| Door Lock | Electromagnetic lock | |||
| Safety Device | Over-temperature Protection; Over-current Protection; | |||
| Earth Leakage Protection；Phase Sequence Protection | ||||
| Exterior Material | A3 Steel Plate with protective coating | |||
| Interior Material | SUS304 stainless steel | |||
| Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||
| Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) | |||
Typical Tests
The IP6X IP5X Ingress Test Chamber Dust Test Machine can perform a variety of dust and sand-related tests, including sand and dust exposure testing, sealing integrity evaluation, enclosure integrity testing, dust resistance protection testing, dust ingress protection testing, and blowing sand and dust tests. During typical dust resistance and enclosure tests, the chamber operates with a controlled dust concentration of 2–4 kg/m³ using standardized test dust with a nominal particle size of about 50 μm, while exposure durations commonly range from 8 to 24 hours. For IP5X and IP6X ingress protection testing, longer test cycles of 16 to 99 hours are applied, with optional vacuum levels generally set between –2 kPa and –5 kPa to simulate pressure differentials that may draw dust into enclosures. Blowing sand and dust tests are carried out under controlled airflow conditions at temperatures from ambient up to +50 °C, reproducing harsh outdoor environments such as deserts and industrial sites. Powered sample testing can also be conducted through an internal 16 A dust-proof power outlet, allowing functional performance to be monitored throughout the test. All test conditions are continuously controlled and monitored to ensure stable, repeatable, and reliable results in accordance with IEC, ISO, and automotive standards.
Video of IP6X IP5X Ingress Test Chamber Dust Test Machine
FAQs on the IP6X IP5X Ingress Test Chamber Dust Test Machine
Q 1: Can the chamber support both IP5X and IP6X testing in one system?
Yes. The chamber is designed to support both IP5X and IP6X tests by adjusting dust concentration, airflow, exposure time, and vacuum conditions. One system can fully meet both test requirements.
Q 2: Is live testing of powered samples supported during dust exposure?
Yes. The chamber is equipped with a dust-proof 16 A power outlet inside the test room, allowing samples to be energized and functionally monitored during the test.
Q 3: Will customization affect delivery time?
Standard configurations follow normal production schedules with no delay. For customized sizes or special requirements, delivery time is adjusted accordingly. Most custom features can be completed within a controlled timeframe to ensure timely delivery.
