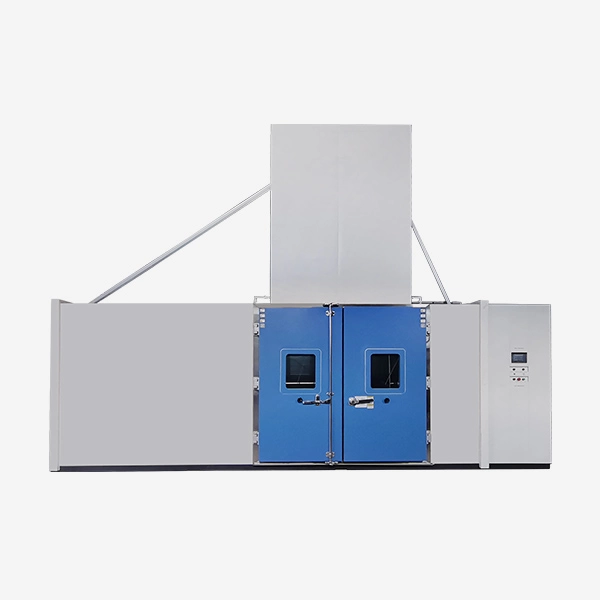

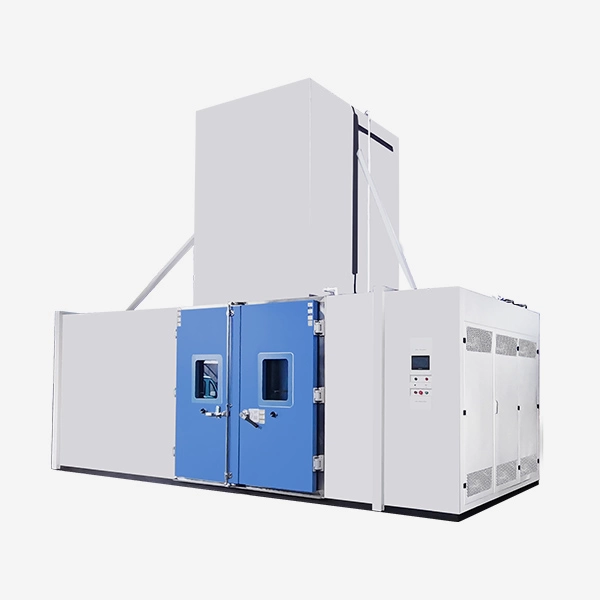

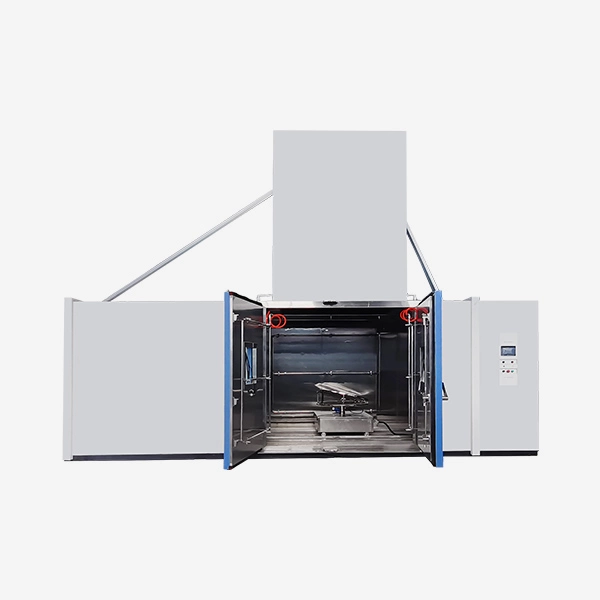

LIB MIL-STD 810 rain test chamber is used for evaluating the resistance of a system to water and rain in accordance with MIL-STD-810h. This standard is specially prepared for military applications, but it is also often used for commercial products.
The chamber delivers precise rainfall and wind conditions to replicate extreme outdoor scenarios. With adjustable rain rates from 10 to 20 cm/hour, wind speeds of 5–18 m/s, and droplet sizes between 0.5–4.5 mm, it ensures all-around exposure for products up to 100 kg on a 800 mm turntable rotating at 1–7 r/min. The liftable drip tray and 360° nozzle array allow testing from varying heights (1–4.2 m), enabling accurate simulation of dripping, blowing, and pressurized rain conditions for military and commercial equipment.
RIM-1000
LIB Industry
| Quantity: | |
|---|---|
Advantages
1. Extreme Weather Simulation: The chamber replicates heavy rain, wind-driven showers, and pressurized water sprays with adjustable rain rates (10–20 cm/hour) and wind speeds (5–18 m/s). This ensures products experience realistic storm conditions, helping engineers identify vulnerabilities before field deployment.
2. Full 360° Exposure: Equipped with a liftable drip tray and a 360-degree nozzle array, the chamber delivers uniform water coverage from all angles. Coupled with a rotating turntable (1–7 r/min), every surface of the test sample is consistently exposed for accurate and repeatable results.
3. Customizable Test Profiles: Programmable PID control allows precise adjustment of rain intensity, droplet size (0.5–4.5 mm), wind speed, and test duration. Users can create complex sequences to simulate multiple storm scenarios, increasing test flexibility and efficiency.
4. Durable and Corrosion-Resistant Construction: The interior is crafted from SUS304 stainless steel to withstand high-humidity exposure, while the A3 steel exterior with protective coating ensures long-term durability. This robust build supports repeated testing without degradation of chamber performance.
5. Safe and Reliable Operation: Integrated water-electricity separation, electromagnetic door lock, and over-pressure protections safeguard both the operator and the equipment. These features minimize risk during high-intensity water tests, ensuring safe and uninterrupted testing cycles.
Technical Parameters
| Model | RIM-1000 |
| Internal Dimension | 1000*1000*1000 mm D*W*H |
| Overall Dimension | 2600*5400*4100 D*W*H |
| Interior Volume | 1000L |
| The load Turntable | 50kg |
| The diameter of Turntable | 800mm |
| Rain and Blowing Rain | |
| Final rain droplet velocity | 9m/s on test item |
| Rainfall rate | ≥ 1.7 mm/min |
| Droplet size | 0.5mm ~ 4.5mm |
| Test specimen heating range | Water temperature +10°C (max +55°C) |
| Test time | 0 ~ 999min. adjustable |
| Exaggerated | |
| Nozzle pressure | 276kpa |
| Rainfall rate | 20.8L/min |
| Nozzle amount | One nozzle for each 0.56m2 of surface area and position each about 48cm from in the test surface |
| Droplet size | 0.5mm ~ 4.5mm |
| Test time | 0 ~ 999min. adjustable |
| Drip | |
| Drip area dimensions | 1600*1000mm , height can be adjustable |
| Drip holes | 20 to 25.4mm |
| Distance between hole | 25mm |
| Volume of water | ≥280L/m2/h |
| Test specimen heating range | Water temperature +10°C (max +55°C) |
| Door Lock | Electromagnetic lock |
| Exterior Material | A3 Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Standard | MIL-STD- 810H |
Operate Guide of the MIL-STD- 810H Rain Chamber
Before starting, ensure the chamber is properly connected to power and water supply. Load test samples securely on the rotating turntable, keeping them within the specified weight limit. Set the desired rain rate, wind speed, droplet size, and test duration using the touchscreen PID controller. During testing, monitor real-time parameters on the display or via remote Ethernet connection. After the test, drain and purify the water system, and allow the chamber to dry before removing samples. Always follow safety precautions, including keeping the door closed and observing water-electricity separation guidelines to prevent hazards.
Video of the MIL-STD- 810H Rain Chamber
Dependable Worldwide Support
LIB ensures peace of mind with a 3-year warranty and ongoing lifetime technical service. If a malfunction cannot be resolved, the test chamber will be replaced free of charge. Our dedicated English-speaking support team is available around the clock to assist customers worldwide. Critical spare parts are maintained in global warehouses for delivery within 7–15 days, and comprehensive instructions are provided for secure transport, installation, and operation.
