TH-100/ TH-225/TH-500/TH-800/TH-1000
LIB Industry
| Quantity: | |
|---|---|
Endurance Test Temperature Humidity Environmental Chamber volumes range from 50L to 1500L, with fast delivery options available. Customized chambers can also be built to meet special requirements for size, performance, or features. Temperature ramp rates of 1K/min, 2K/min, and 5K/min allow you to perform tests efficiently.
Engineering Benefits
1. Efficient and Easy Operation: The chamber uses an intuitive PID touchscreen controller for creating multi-step test profiles. Ethernet and USB connections enable real-time monitoring, data recording, and report generation. Quiet operation ensures minimal disruption in laboratories or production spaces.

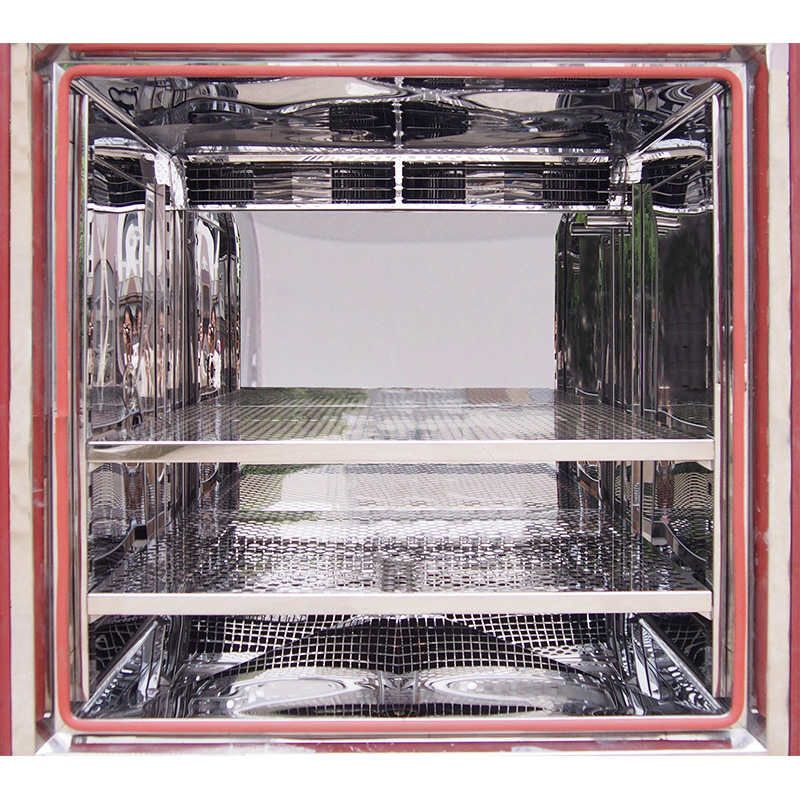

2. Strong, Safe Construction: The interior is made of SUS304 stainless steel for corrosion resistance, capable of withstanding high temperatures and humidity. The 4 mm A3 steel exterior with protective coating guarantees durability. Safety mechanisms include over-temperature protection, grounding monitoring, and leakage prevention, protecting both users and test samples.

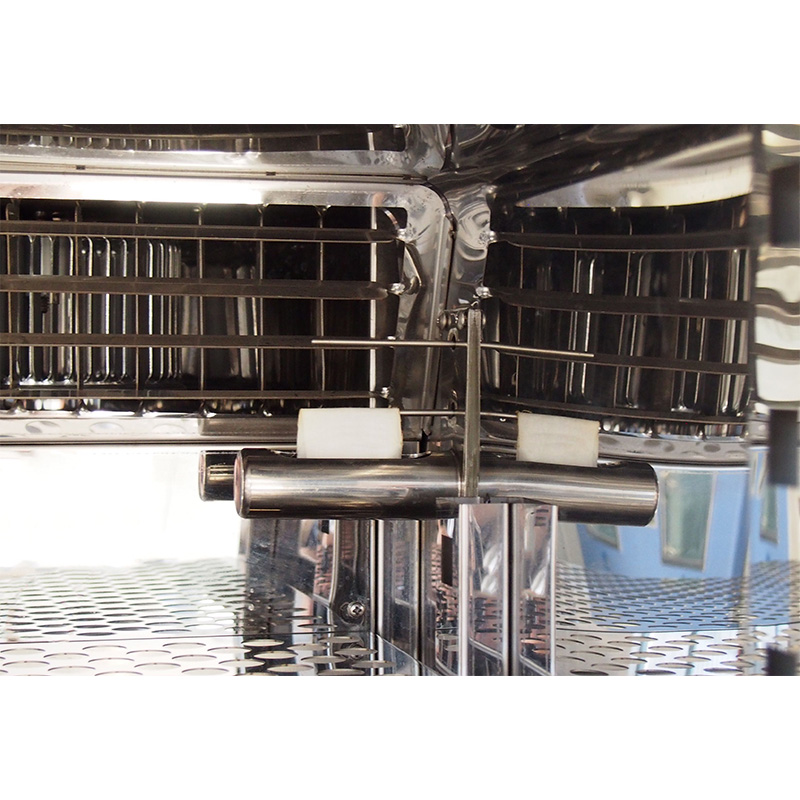

3. Accurate and Stable Testing: PT100 Class A sensors combined with advanced control algorithms maintain temperature accuracy within ±0.5°C. Uniform airflow ensures consistent conditions throughout the chamber, providing reliable, repeatable results for materials, electronics, and automotive components.
4. Rapid and Flexible Temperature Cycling: Supports fast heating and cooling rates with customizable ramp speeds up to 20°C/min. Preloaded test programs save setup time and allow high-throughput testing for laboratories needing to simulate extreme temperature changes.
5. User-Friendly and Low Maintenance: Designed for long-term use, the chamber is easy to clean and maintain. Corrosion protection, efficient defrosting, and durable materials help extend the chamber’s lifespan while keeping operations safe and controlled.
Core Parameters
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Controller | Programmable color LCD touch screen controller,Ethernet connection, PC Link | ||||
Water supply system | Automatic water supply,Water purification system | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 Stainless Steel | ||||
Customization Options
LIB's Endurance Test Temperature Humidity Environmental Chambers can be fully tailored to meet your specific testing needs. You can choose double doors for easier sample access, advanced airflow control for more uniform temperature and humidity distribution, and integrated spray or condensation prevention systems to simulate extreme conditions. The chamber size can be customized in height, width, and depth, while the number, size, and position of cable ports can be adjusted to allow powered testing of multiple samples. Additionally, you can specify the number and arrangement of sample shelves, and other features such as observation windows, lighting, or specialized insulation can be added to match your laboratory requirements. These flexible options ensure that your chamber is perfectly suited to your endurance testing applications.
Video Showcase
FAQs
Q1: What material and type is the observation window glass?
A: The observation window is made of tempered glass with a double-layer insulated design. It also features a conductive coating for anti-frost functionality, ensuring both durability and clear visibility of the test process without being affected by condensation or frost.
Q2: Can an embedded glass door be installed separately?
A: Yes! LIB supports all custom designs. Whether you need an embedded glass door or other special configurations, we can tailor the chamber to your requirements, combining aesthetics with practical functionality.
Q3: Does the chamber have audible and visual alarms?
A: The standard configuration includes an audible alarm to alert operators to critical issues. If needed, visual alarm functionality can be added as an optional feature, allowing flexible customization according to your operational requirements.
