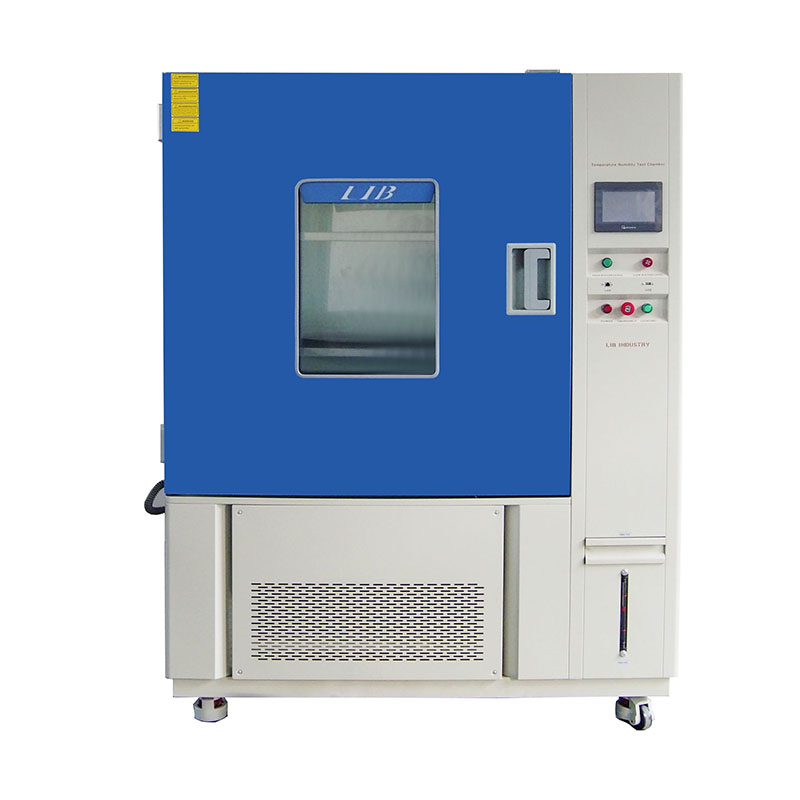

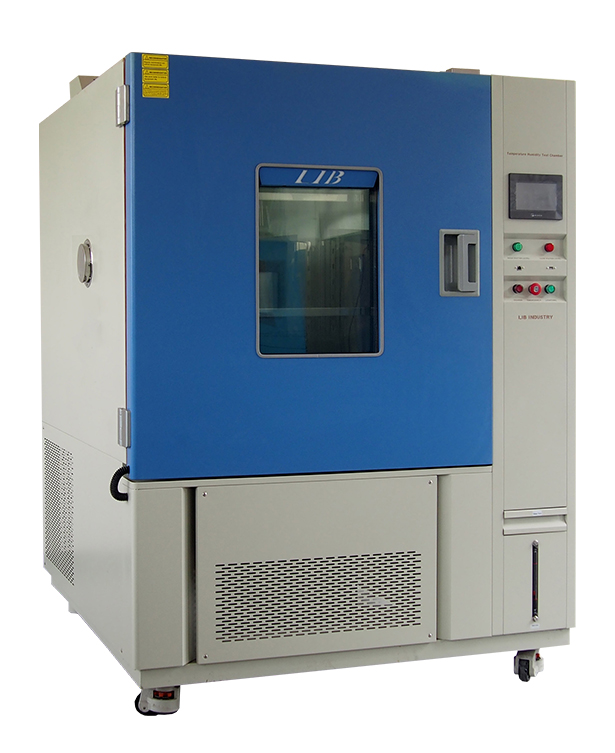

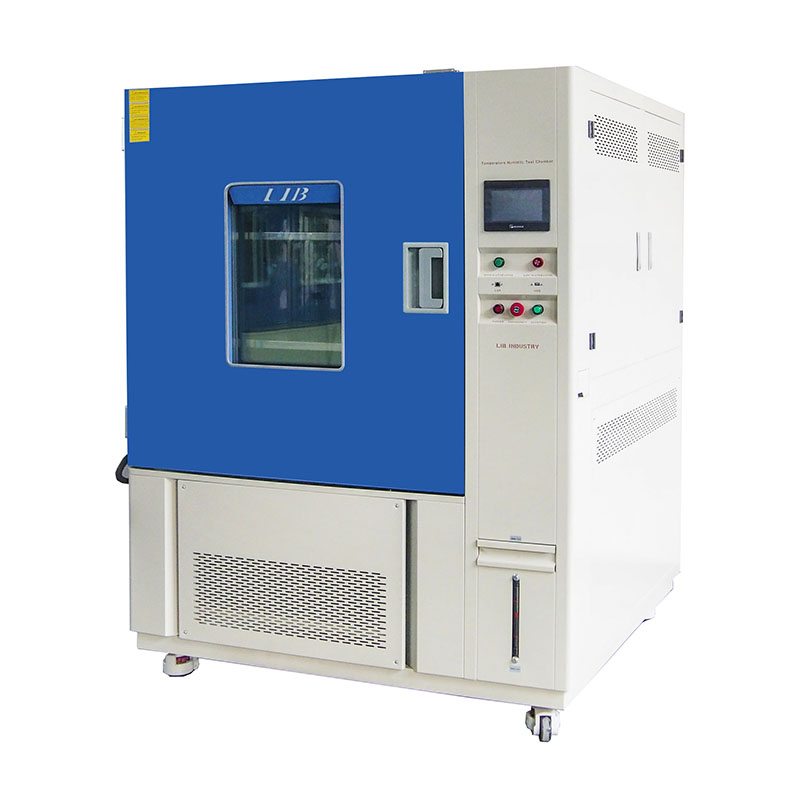

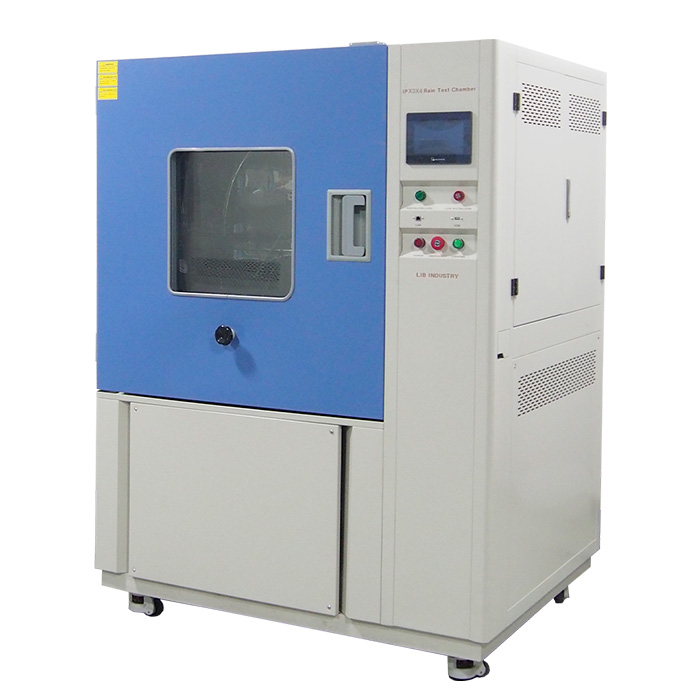

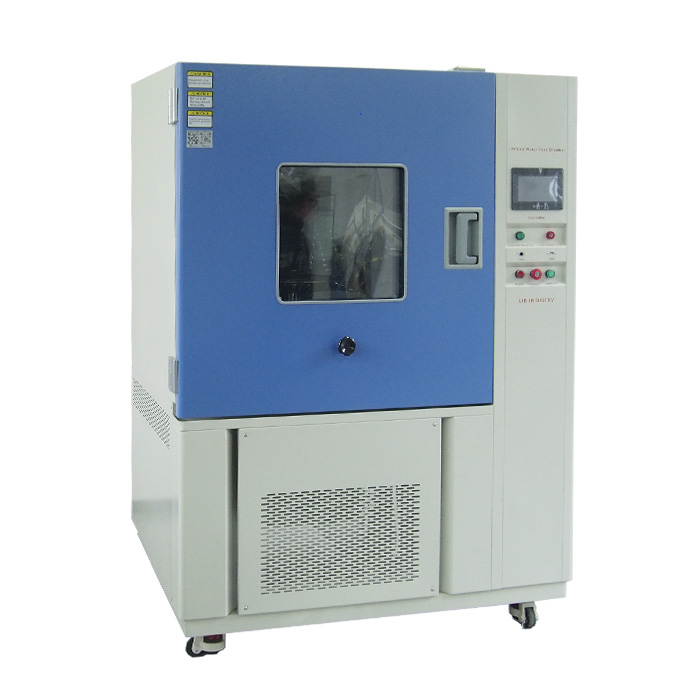

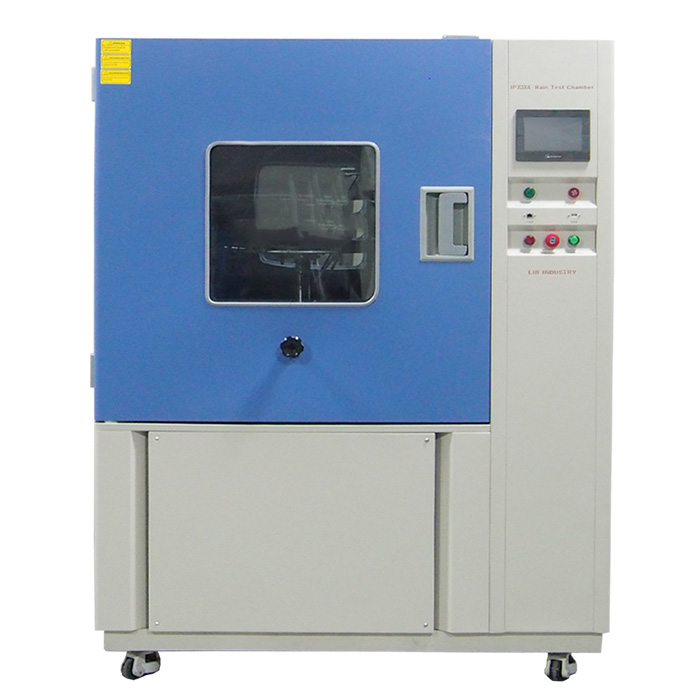

With an accurately controlled nozzle-to-sample distance of 300–350 mm and a programmable 30-minute test cycle, the LV124 K-12 Temperature Shock and Splash Water Test Chamber ensures consistent and repeatable thermal shock conditions over 100 or more cycles. It is widely used for validating ECUs, sensors, power modules, connectors, and other vehicle-mounted electronic devices that must meet LV124 K-12 automotive qualification standards.
Performance advantages
1. Fully Compliant with LV124 K-12 Splash Water Temperature Shock Test: the test chamber is designed strictly according to LV124 Section 9.12, with all key parameters accurately controlled. The splash water temperature is maintained between 0 °C and +4 °C, with a 3-second splash duration and a controlled water volume of 3–4 liters per splash. The distance between the splash nozzle and the DUT is set at 300–350 mm, and the test runs in 30-minute cycles for up to 100 cycles. By keeping all these conditions stable and repeatable, the chamber delivers reliable test results that meet the validation expectations of automotive OEMs and Tier-1 suppliers.
2. Integrated Low-Temperature Splash Water Control with Water Circulation and Filtration: unlike standard temperature chambers that rely on external water supply, this chamber features an integrated cold splash water system. The built-in water tank keeps the splash water consistently at 0–4 °C throughout long test programs. A closed-loop water circulation and filtration system, combined with copper piping and a high-efficiency mechanical refrigeration unit, ensures stable cooling performance and reliable operation during continuous LV124 K-12 testing.

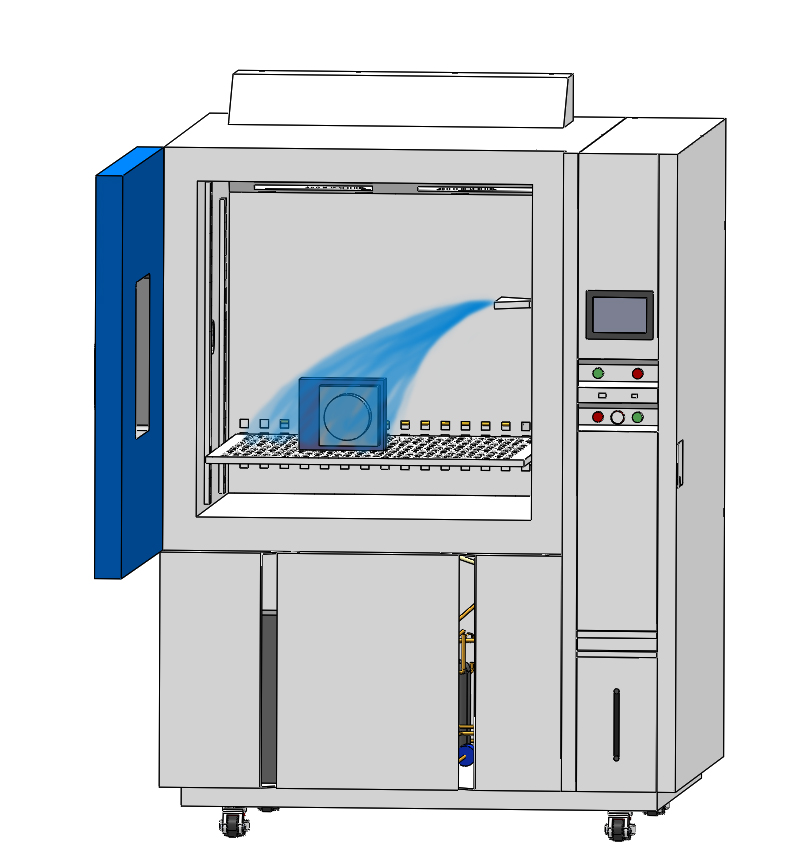

3. Realistic Temperature Shock Simulation with +150 °C Heating and 0–4 °C Cold Water Splash: the chamber supports heating the DUT from ambient temperature up to +150 °C before splash exposure. When cold water at 0–4 °C is applied for 3 seconds, the surface of the component experiences an immediate temperature drop. This rapid change creates a true thermal shock effect, helping to identify sealing weaknesses, material stress, and potential functional issues that cannot be detected by slow cooling or standard temperature cycling tests.
4. Centrifugal Fan Air Circulation for Stable Sample Temperature: A centrifugal air circulation fan ensures steady airflow inside the 1000-liter test chamber during heating and between splash cycles. The optimized airflow design helps maintain stable and even temperature conditions around the testing sample, reducing temperature fluctuations and improving test repeatability. This stable temperature cycling performance is especially important when testing multiple samples at the same time or running long-duration LV124 K-12 test programs.

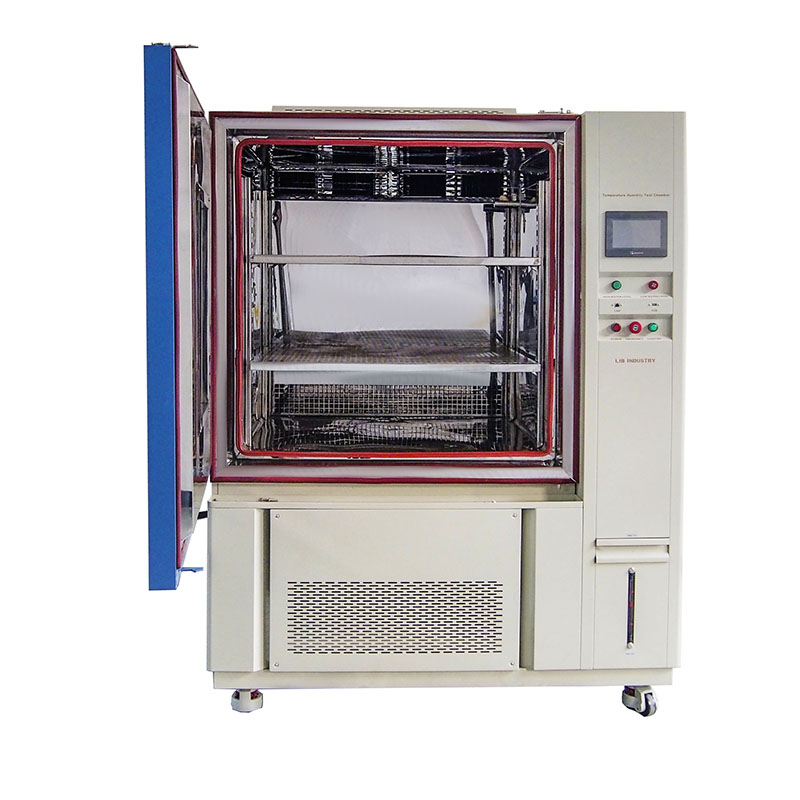

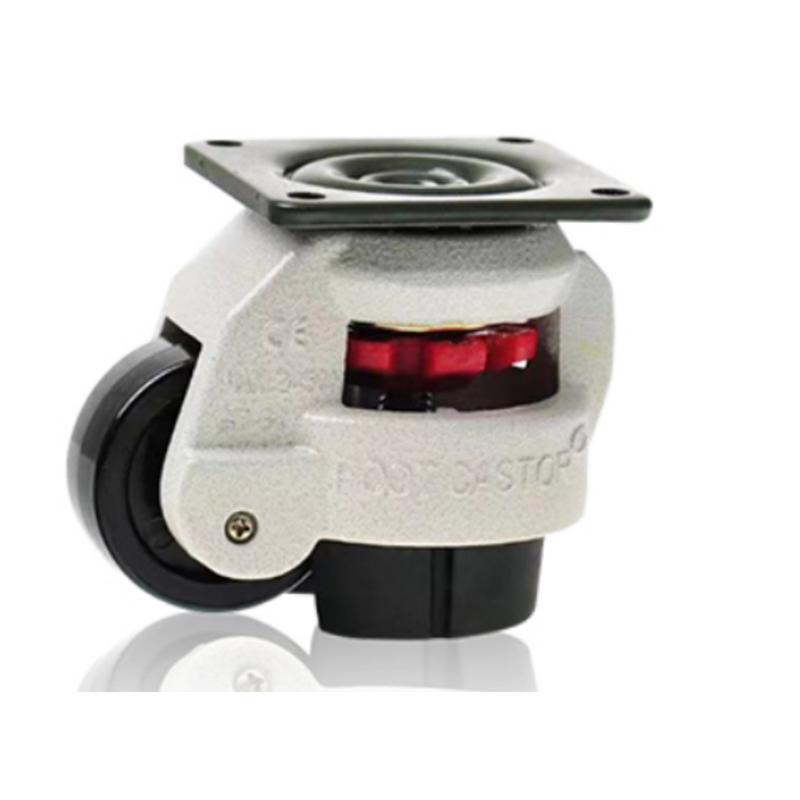

5. Robust Construction for Wet Testing:the chamber interior is constructed from SUS304 stainless steel, offering excellent corrosion resistance under repeated water exposure and high-humidity conditions. Separation of water and electrical systems, combined with multiple safety protections, ensures long-term operational safety and durability.
6. Intelligent Control and Data Management: a programmable color touch-screen controller supports multi-step test programs, intermittent DUT operation, and precise timing of splash events. Continuous parameter monitoring and data storage allow engineers to verify component performance before, during, and after testing, fully supporting LV124 functional verification requirements.
Key Parameters

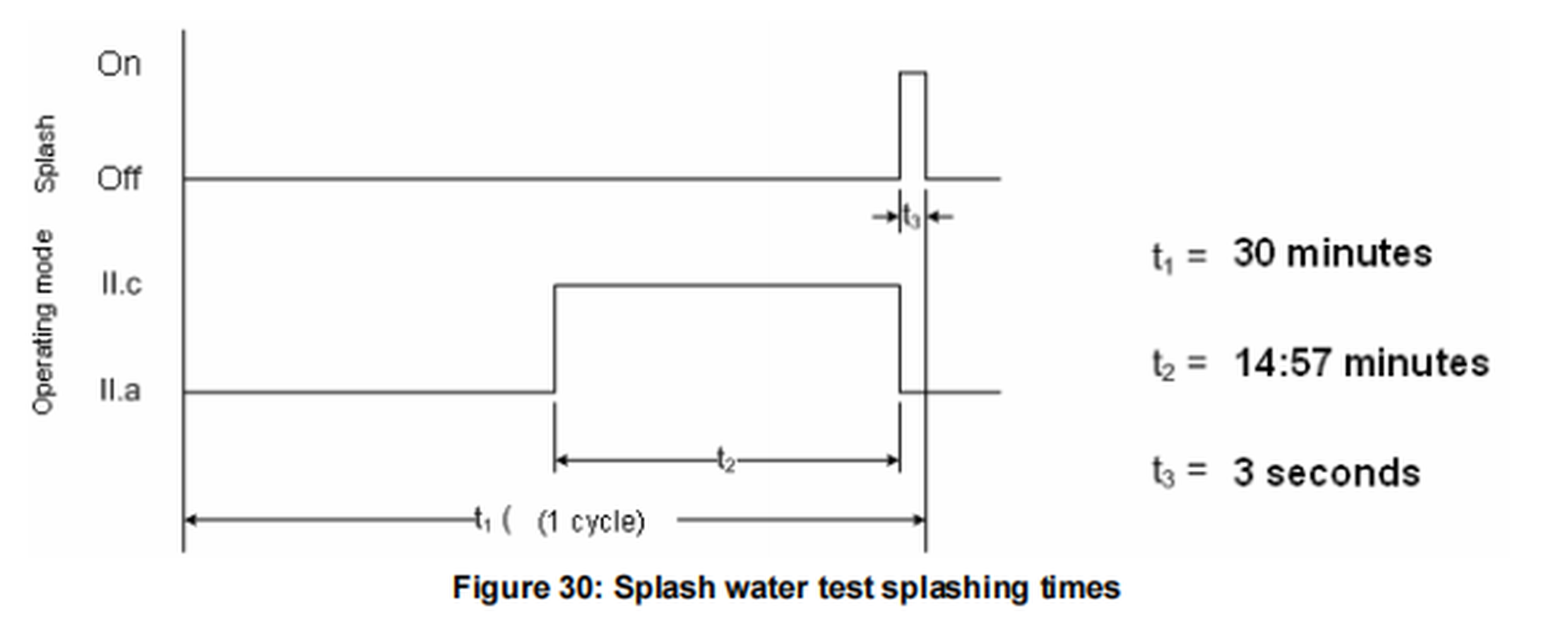

Name | LV124 K-12 Temperature Shock and Splash Water Test Chamber |
Model | T-1000A |
Internal Dimension (mm) | 1000 [D] × 1000 [W] × 1000 [H] |
Exterior Dimension (mm) | 2000 [D] × 1200 [W] × 2200 [H] |
Interior Volume (L) | 1000 |
Temperature Range | Ambient ~ +150 °C |
Splash Water Temperature | 0 ~ 4 °C |
Splash Water Time | 3 seconds, adjustable |
Water Flow Rate | 3–4 L per splash/nozzle |
Distance from Nozzle to DUT | 300–350 mm |
Number of Cycles | 100 |
Number of DUTs | 6 |
DUT Operating Mode | Intermitting (per Figure 30) |
Test Cycle Duration | 30 minutes |
Heating Element | Nichrome heater |
Temperature Sensor | PT-100 Class A |
Cooling System | Mechanical compression refrigeration, French TECUMSEH compressor |
Air Circulation | Centrifugal wind fan |
Controller | Programmable color LCD touch screen, Ethernet, USB |
Safety Devices | Over-temperature; Over-current; Refrigerant high-pressure; Earth leakage protection |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Standard Configuration | 1 cable hole (Φ100 mm) with plug |
Environmental Conditions | +5 °C ~ +35 °C, ≤85% RH |
Power Supply | AC380V, 50Hz, 3P |
Automotive Component Test Steps

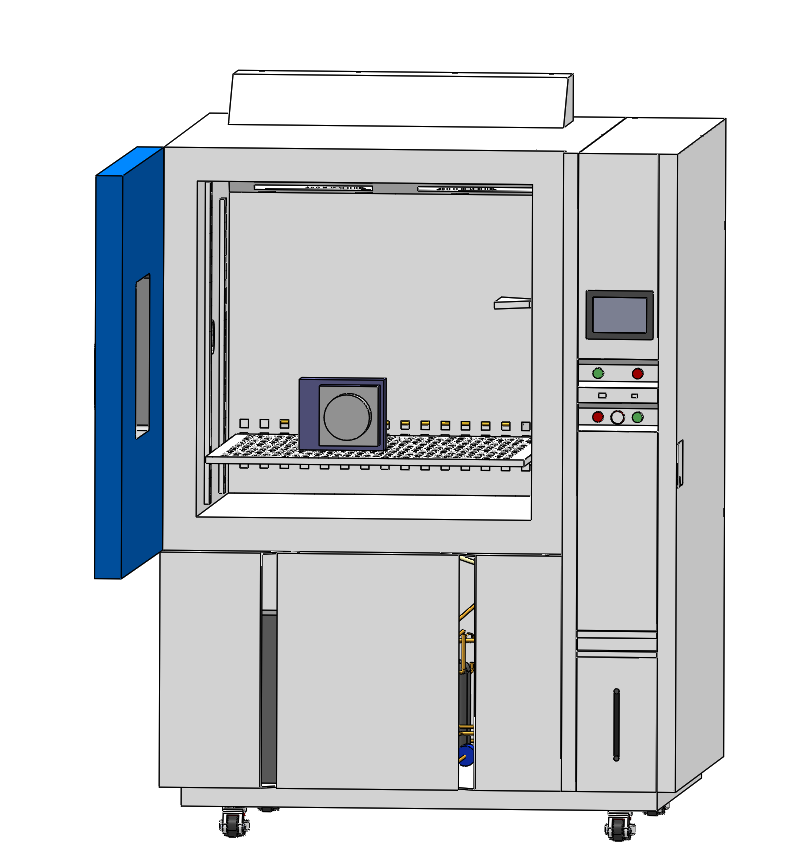

Step 1: Prepare the DUT – Place the automotive component in the chamber in its normal vehicle orientation and secure it properly, simulating its installed position.
Step 2:Heat the DUT – Raise the DUT to the required test temperature, up to +150 °C, over approximately 14 minutes 57 seconds before starting the splash water sequence.
Step 3:Cyclic Splash Water Testing – Expose the entire width of the DUT to cold water (0–4 °C) for 3 seconds per splash, with a flow rate of 3–4 L and nozzle distance 300–350 mm. Repeat this cycle for a total test duration of 30 minutes, continuously monitoring the DUT and verifying functionality after completion.
Flexible Customization and Reliable Support
LIB provides fully customizable environmental test chambers to meet your specific testing needs. Each unit comes with a three-year warranty and lifetime technical support. In the rare event that an issue cannot be resolved during the warranty period, the chamber will be replaced at no additional cost. Our English-speaking after-sales team is available 24/7 to provide prompt assistance, and standard units can be shipped quickly, typically within 7–15 days.
