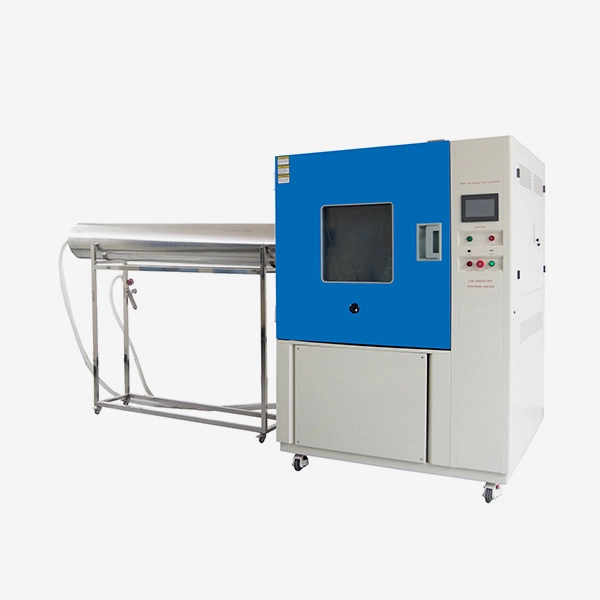

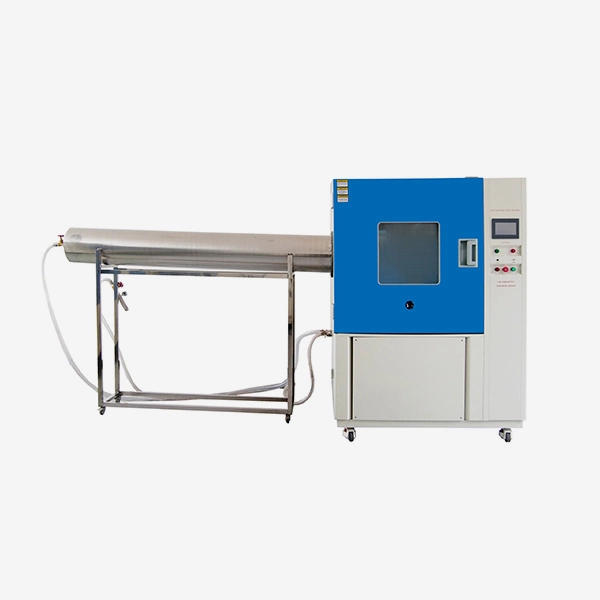

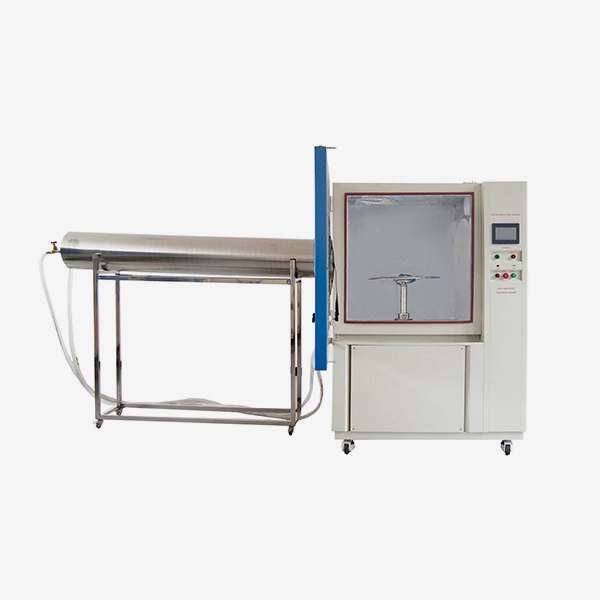

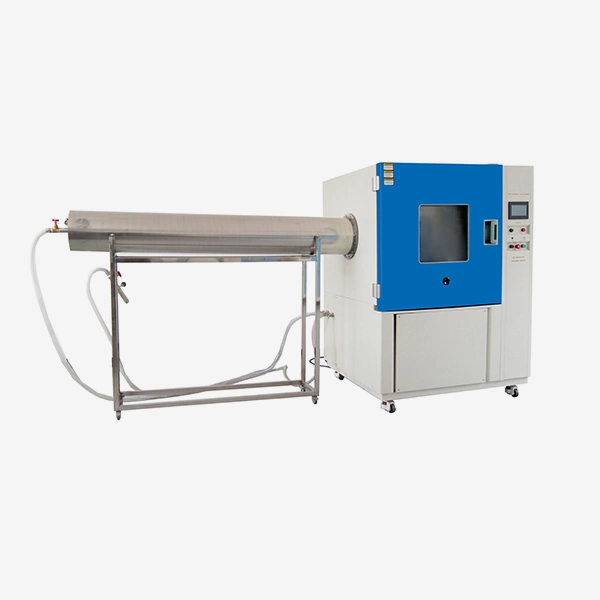

LIB IPX5 IPX6 Water Jetting Test Chamber is applied to test the IPX5 and IPX6 protection degree against water jetting according to IEC 60529. The chamber delivers controlled water jet parameters including 6.3 mm and 12.5 mm nozzles, flow rates of 12.5 L/min (IPX5) and 100 L/min (IPX6), adjustable spray distance of 2.5–3 m, and programmable test duration. A rotating turntable with adjustable speed ensures uniform exposure, while optional power-on testing supports functional verification during water jetting.
The IPX5/IPX6 Water Jet Test Chamber is designed to support waterproof testing in accordance with IEC 60529 and ISO 20653, and can be configured to meet relevant requirements of DIN 40050-9, UL 50E, SAE J1455, JIS D 0207, MIL-STD-810H, ISO 16750, LV 124, SAE J575, JIS D 0203, JSS 55555, and GMW16001.
RD-800C/ RD-1200C
LIB Industry
| Quantity: | |
|---|---|
The IPX5 IPX6 Water Jetting Test Chamber built with water re-circulation system that reduced water use and a series of water pipes. Incorporated rotating turntable can promote even spray of water over the surface of the products under testing. Automatic water supply ensures adequate supply of water and automatic testing. Its waterproof power connector in the test room can easily supply electricity to the specimen.
Advantages
1. Precision Water-Jet Nozzle Assembly: LIB's IPX5 IPX6 Water Jetting Test Chamber integrates a dual-nozzle spray system manufactured from high-grade stainless steel. The system includes a 6.3 mm nozzle for IPX5 testing and a 12.5 mm nozzle for IPX6 applications, both engineered with strict dimensional accuracy. At a spray distance of 2.5 m, each nozzle delivers a stable, well-defined 40 mm water-jet core, ensuring repeatable and reliable test conditions across multiple cycles.
2. Closed-Loop Flow Regulation with Continuous Monitoring: A built-in electromagnetic flow sensor tracks real-time water output and transmits feedback to the PID control unit. The controller automatically modulates pump
performance to maintain precise flow rates of 12.5 L/min for IPX5 and 100 L/min for IPX6 testing. This intelligent regulation system eliminates manual calibration, enhances operational safety, and ensures full conformity with IEC60529 requirements.
3. Corrosion-Resistant Chamber & Adaptive Test Fixtures: The test chamber interior is fabricated from 304 stainless steel, offering excellent resistance to corrosion under prolonged water-jet exposure. High-intensity LED illumination provides unobstructed visual inspection of the test sample during operation. The height-adjustable rotating platform (350–500 mm) with a constant 1 r/min rotation speed ensures uniform water impact from all directions.
4. Automated Water Filtration and Recycling System: The chamber features an integrated water circulation system with automatic filtration and refill functions. This closed-loop design significantly reduces water consumption while supporting long-duration and unattended testing, improving overall efficiency and sustainability.
5. Integrated Power Supply for Live Waterproof Testing: An internal power interface is incorporated into the adjustable turntable, allowing test specimens to remain energized during water-jet exposure. Combined with tilt-angle support, this configuration enables functional testing under realistic operating conditions, making it ideal for evaluating electronic enclosures and assemblies in real-world waterproof scenarios.
Technical Parameters
| Model | R56-800 |
| Workroom dimension (mm) | 800*800*800 |
| External dimension (mm) | 950*3150*1800 |
| Interior Volume (L) | 510 |
| Diameter of Turntable (mm) | 600 |
| Turntable Rotation Speed | 0~7r/min (Adjustable) |
| Internal Diameter of IPX5 Nozzle | 6.3mm |
| Internal Diameter of IPX6 Nozzle | 12.5mm |
| Water Flow Rate IPX5/ IPX6 | 12.5L/min ±5% / 100L/min ±5% |
| Controller | Programmable color LCD touch screen controller, Ethernet connection |
| Water Supply System | Water tank, booster pump, Automatic water supply, Water purification system |
| Safety Device | Over-temperature Protection; Over-current Protection; |
| Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Observation Window | Double layer insulating glass with wiper |
Operate Guide of the IPX5 IPX6 Water Jetting Test Chamber
Before testing, mount the specimen securely on the turntable and adjust its height and angle as required by the test standard. Select IPX5 or IPX6 mode via the touch-screen controller; the system will automatically configure the corresponding nozzle and flow rate. Confirm water supply, filtration, and drainage systems are operating normally, then start the test cycle. During operation, the chamber maintains the specified flow rate and spray distance through closed-loop control, while the turntable rotates to ensure uniform water exposure. Upon completion of the minimum test duration, stop the system, disconnect power to the specimen if applicable, and visually inspect the sample for water ingress or functional abnormalities in accordance with IEC 60529 criteria.
Video of the IPX5 IPX6 Water Jetting Test Chamber
Services
Each IPX5 IPX6 Water Jetting Test Chamber is backed by a 36-month warranty and long-term technical support throughout its service life. LIB's dedicated service engineers, together with regional support resources, ensure fast and efficient response to customer needs. Technical assistance is available 24/7, allowing issues to be addressed promptly and minimizing downtime during operation.
The IPX5 IPX6 Water Jetting Test Chamber built with water re-circulation system that reduced water use and a series of water pipes. Incorporated rotating turntable can promote even spray of water over the surface of the products under testing. Automatic water supply ensures adequate supply of water and automatic testing. Its waterproof power connector in the test room can easily supply electricity to the specimen.
Advantages
1. Precision Water-Jet Nozzle Assembly: LIB's IPX5 IPX6 Water Jetting Test Chamber integrates a dual-nozzle spray system manufactured from high-grade stainless steel. The system includes a 6.3 mm nozzle for IPX5 testing and a 12.5 mm nozzle for IPX6 applications, both engineered with strict dimensional accuracy. At a spray distance of 2.5 m, each nozzle delivers a stable, well-defined 40 mm water-jet core, ensuring repeatable and reliable test conditions across multiple cycles.
2. Closed-Loop Flow Regulation with Continuous Monitoring: A built-in electromagnetic flow sensor tracks real-time water output and transmits feedback to the PID control unit. The controller automatically modulates pump
performance to maintain precise flow rates of 12.5 L/min for IPX5 and 100 L/min for IPX6 testing. This intelligent regulation system eliminates manual calibration, enhances operational safety, and ensures full conformity with IEC60529 requirements.
3. Corrosion-Resistant Chamber & Adaptive Test Fixtures: The test chamber interior is fabricated from 304 stainless steel, offering excellent resistance to corrosion under prolonged water-jet exposure. High-intensity LED illumination provides unobstructed visual inspection of the test sample during operation. The height-adjustable rotating platform (350–500 mm) with a constant 1 r/min rotation speed ensures uniform water impact from all directions.
4. Automated Water Filtration and Recycling System: The chamber features an integrated water circulation system with automatic filtration and refill functions. This closed-loop design significantly reduces water consumption while supporting long-duration and unattended testing, improving overall efficiency and sustainability.
5. Integrated Power Supply for Live Waterproof Testing: An internal power interface is incorporated into the adjustable turntable, allowing test specimens to remain energized during water-jet exposure. Combined with tilt-angle support, this configuration enables functional testing under realistic operating conditions, making it ideal for evaluating electronic enclosures and assemblies in real-world waterproof scenarios.
Technical Parameters
| Model | R56-800 |
| Workroom dimension (mm) | 800*800*800 |
| External dimension (mm) | 950*3150*1800 |
| Interior Volume (L) | 510 |
| Diameter of Turntable (mm) | 600 |
| Turntable Rotation Speed | 0~7r/min (Adjustable) |
| Internal Diameter of IPX5 Nozzle | 6.3mm |
| Internal Diameter of IPX6 Nozzle | 12.5mm |
| Water Flow Rate IPX5/ IPX6 | 12.5L/min ±5% / 100L/min ±5% |
| Controller | Programmable color LCD touch screen controller, Ethernet connection |
| Water Supply System | Water tank, booster pump, Automatic water supply, Water purification system |
| Safety Device | Over-temperature Protection; Over-current Protection; |
| Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Observation Window | Double layer insulating glass with wiper |
Operate Guide of the IPX5 IPX6 Water Jetting Test Chamber
Before testing, mount the specimen securely on the turntable and adjust its height and angle as required by the test standard. Select IPX5 or IPX6 mode via the touch-screen controller; the system will automatically configure the corresponding nozzle and flow rate. Confirm water supply, filtration, and drainage systems are operating normally, then start the test cycle. During operation, the chamber maintains the specified flow rate and spray distance through closed-loop control, while the turntable rotates to ensure uniform water exposure. Upon completion of the minimum test duration, stop the system, disconnect power to the specimen if applicable, and visually inspect the sample for water ingress or functional abnormalities in accordance with IEC 60529 criteria.
Video of the IPX5 IPX6 Water Jetting Test Chamber
Services
Each IPX5 IPX6 Water Jetting Test Chamber is backed by a 36-month warranty and long-term technical support throughout its service life. LIB's dedicated service engineers, together with regional support resources, ensure fast and efficient response to customer needs. Technical assistance is available 24/7, allowing issues to be addressed promptly and minimizing downtime during operation.
