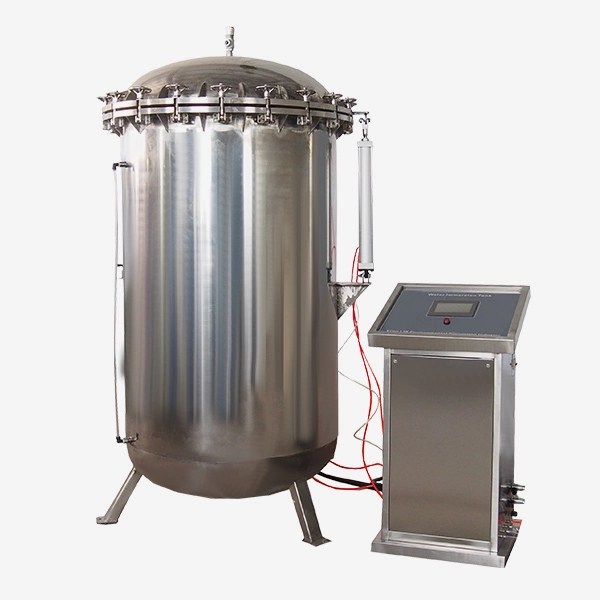

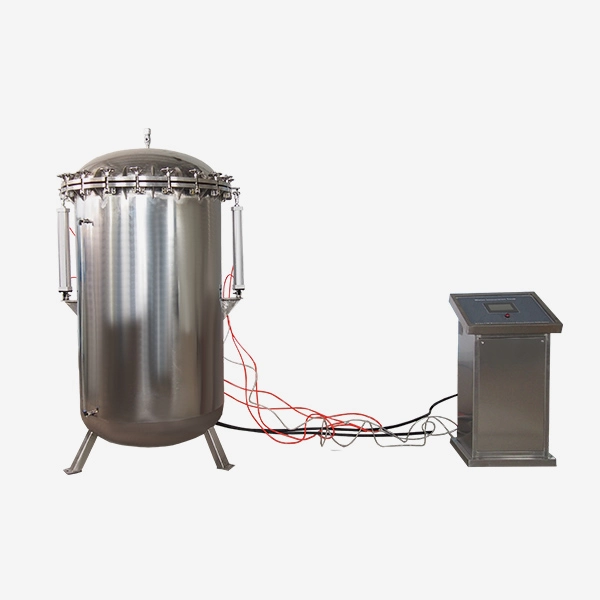

LIB IPX7 IPX8 Water Immersion Tank is used for water immersion testing of specimens under IPX7 and IPX8 ratings, ensuring reliable waterproof performance for automotive, electronic, and industrial components.
The chamber allows continuous testing with immersion up to 1 m for 30 minutes for IPX7 and simulates 50 m water depth with 5 MPa pressure for IPX8. Adjustable racks support samples up to 50 kg, ensuring full submersion and consistent exposure. Pneumatic lid operation, real-time water-level monitoring, and intelligent PID control make testing precise, repeatable, and safe.
The IPX7 IPX8 Water Immersion Tank meets multiple international standards, including IEC 60529, ISO 20653, IPX5, IPX6, IPX6K, IPX9K, and IP6X/IP5X ingress protection requirements. Its robust construction, corrosion-resistant materials, and intelligent control system ensure compliance while providing high safety, reliability, and durability across a wide range of testing scenarios.
R78-600
LIB Industry
| Quantity: | |
|---|---|
IPX7 IPX8 Water Immersion Tank built with a water re-circulation system that reduced water use and a series of water pipes. Automatic water supply ensures adequate supply of water and automatic testing.
Advantages
1. Dual-Layer Silicone Seal: LIB utilizes a dual-layer silicone sealing system combining soft and hard materials. The soft layer ensures flexible, uniform contact on uneven surfaces, while the hard layer preserves structural stability under high-pressure conditions. This configuration guarantees dependable waterproof performance for both IPX7 (1 m, 30 minutes) and IPX8 (simulated 50 m depth) tests, preventing leaks even after repeated cycles.
2. Reinforced A3 Steel Structure: The chamber walls are made of 15 mm thick A3 steel plates, designed to endure water pressures equivalent to 50 m depth. This sturdy construction resists deformation, extends service life, and ensures operator safety during high-pressure testing. The exterior surface also offers corrosion and impact resistance, maintaining reliable performance in demanding laboratory environments.
3. Adjustable Sample Rack: The internal sample holder supports up to 50 kg and allows both height and rotational adjustments. It accommodates a wide range of components, from small connectors to large actuator modules. Adjustable positioning keeps samples level and fully immersed, ensuring consistent water pressure exposure and accurate, repeatable test results.
4. Comprehensive Safety Measures: Safety is a core feature of LIB chambers. External water-level indicators allow real-time monitoring of immersion, leak detection sensors provide early warnings, and overpressure relief valves prevent excessive pressure from damaging the chamber or specimens. Heavy-duty, floor-mountable feet reduce vibration and tipping risks, while safety interlocks prevent accidental lid opening during testing.
5 . Advanced Control System: The chamber features a programmable color touchscreen and an intelligent PID control system, allowing precise management of pressure, timing, and test sequences. Multiple testing profiles can be saved for repeated use, ensuring consistent results, improved lab efficiency, and compliance with IEC 60529 and ISO 20653 standards.
6. Customizable Test Tanks: The chambers support IPX7 and IPX8 testing requirements. IPX7 tests products under immersion at 1 m depth for 30 minutes, while IPX8 simulates water pressures equivalent to 50 m depth, verifying the highest levels of water ingress protection.
Technical Parameters
| Model | R78-600 |
| Internal Dimension (mm) | Diameter 600mm * Height 1500 mm |
| Overall Dimension (mm) | Diameter 800mm * Height 1800 mm |
| Pressure | 50m water depth pressure |
| Open mode | Pneumatic lid |
| Material | A3 steel plate, wall thickness 15mm |
| Controller | Programmable color LCD touch screen controller, Ethernet connection |
| Water Supply System | Storage water tank, Automatic water supply |
Operate Guide of the IPX7 IPX8 Water Immersion Tank
Before starting the test, ensure the chamber is placed on a stable surface and properly fixed. Fill the tank with water manually or via an external source, and adjust the sample rack to securely hold the specimen at the correct immersion depth. Close the pneumatic lid and set the test parameters on the touchscreen controller, including duration, pressure (for IPX8), and cycle sequences. During testing, monitor water levels, pressure, and alarms in real time. After the cycle completes, allow the chamber to drain and carefully remove the samples, then perform routine inspection and cleaning to maintain chamber performance and ensure accurate future testing.
Video
IPX7 IPX8 Water Immersion Tank Services
We provide a 36-month warranty and lifetime technical support for all IPX7 IPX8 Water Immersion Tanks. Our dedicated after-sales team, backed by local service centers, is ready to respond promptly and efficiently. Support and inquiries are available 24/7, guaranteeing that customers receive timely help whenever required.
