What is a UVA 340 Fluorescent Lamp Light Fastness Test Instrument?

When materials are exposed to sunlight over time, they experience continuous UV radiation, temperature changes, moisture, and condensation cycles. These environmental factors can cause fading, cracking, chalking, and loss of mechanical properties. Traditional outdoor exposure testing may take months or even years, making it inefficient for modern product development cycles.

A customer from Australia recently shared feedback after using the LIB UVA 340 Fluorescent Lamp Light Fastness Test Instrument: “The chamber works perfectly fine now. Thank you for your kind support!” This simple but direct response reflects the chamber's stable performance, ease of operation, and reliability in real laboratory conditions—helping users quickly move from installation to consistent testing.

That's why laboratories rely on accelerated UV aging equipment. A UVA 340 Fluorescent Lamp Light Fastness Test Instrument simulates the most damaging portion of sunlight—UV radiation between 290 nm and 400 nm—within a controlled environment.  This article explains what a UVA 340 Fluorescent Lamp Light Fastness Test Instrument is, how it controls UV exposure and humidity, and how it supports standardized coating aging tests.

UV Irradiance Control Range of UVA 340 Fluorescent Lamp Light Fastness Test Instrument

1.UV Spectral and Irradiance Range

The UVA-340 fluorescent lamp is designed to closely match the solar UV spectrum in the critical short-wave region from 295 nm to 365 nm, with peak emission at 340 nm.

Typical irradiance control range:

① 0.3 W/m²/nm to 1.55 W/m²/nm at 340 nm

② Bandwidth: 290–400 nm

This range allows accurate simulation of natural sunlight exposure responsible for material degradation, especially for polymers, coatings, and textiles.

2.  Application-Specific Test Conditions

Different industries apply specific UV exposure conditions based on international standards:

① Coatings and paints (ASTM D4329 / ISO 16474-3)
UV exposure at 0.68–0.89 W/m²/nm (340 nm)

② Plastics (ASTM G154 / ISO 4892-3)
UV irradiance typically set at 0.76 W/m²/nm

③ Textiles (ISO 105-B02 equivalent UV simulation)
Focus on color fading under controlled UV and humidity cycles

These controlled ranges allow reproducible comparison of material durability under standardized conditions.

3. Accuracy of UV and Environmental Control

High-performance UVA 340 test instruments must meet strict precision requirements:

The irradiance is continuously monitored by a radiometer and adjusted via a PID control system, ensuring stable UV exposure throughout long test cycles.

Working Principle of LIB UVA 340 Fluorescent Lamp Light Fastness Test Instrument

The LIB UVA 340 Fluorescent Lamp Test Instrument operates based on a controlled UV exposure and condensation cycle system.

First, UVA-340 fluorescent lamps emit a stable UV spectrum concentrated in the 290–400 nm range. These lamps simulate the most aggressive portion of sunlight responsible for material aging.

Second, the system uses a closed-loop PID controller to regulate irradiance intensity. The built-in radiometer continuously measures UV output and adjusts lamp power to maintain set values within ±0.02 W/m²/nm.

Third, temperature is controlled through electric heating and black panel temperature (BPT) sensors, ensuring accurate simulation of surface heating effects caused by sunlight.

Fourth, moisture is introduced through a condensation system, where water is heated to produce vapor that condenses on the sample surface. This simulates dew and nighttime humidity conditions, reaching ≥95% RH.

Finally, the chamber alternates between UV exposure and condensation cycles, replicating real outdoor day-night environmental changes in an accelerated manner.

Coating Aging Test Based on ASTM G154 Standard Using LIB Equipment

1.  ASTM G154 Standard Test Cycle

ASTM G154 is one of the most widely used standards for UV accelerated weathering using fluorescent lamps. A typical cycle includes:

This cycle simulates daytime UV exposure followed by nighttime moisture, evaluating coating durability such as fading, cracking, and adhesion loss.

2. LIB Model Application Example

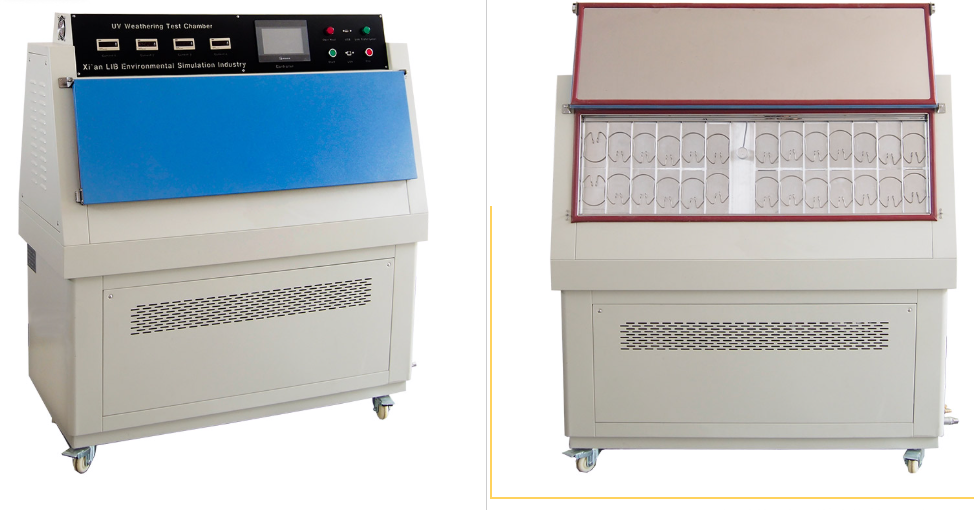

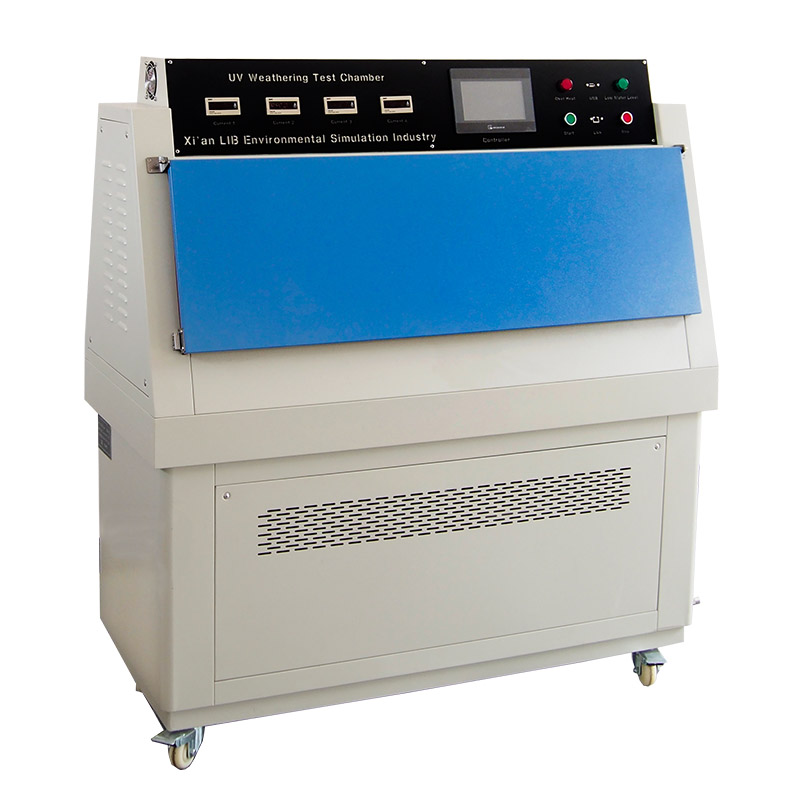

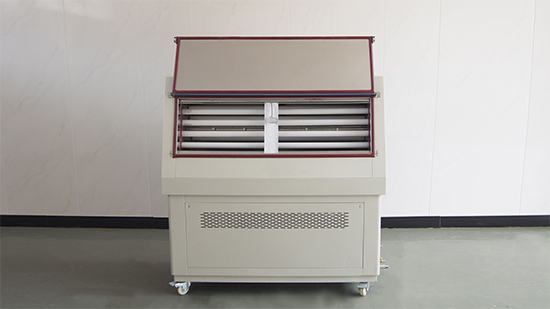

The LIB UV-SI-260 UVA 340 Fluorescent Lamp Test Chamber is designed to meet ASTM G154 requirements.

Key specifications:

3. Advantages of LIB UVA 340 Test Chamber

① High Irradiance Stability – Maintains UV output within ±0.02 W/m²/nm for consistent results.

② Standard Compliance – Fully meets ASTM G154, ISO 4892-3, and ASTM D4329 requirements.

③ Uniform Exposure Design – A-frame lamp layout ensures equal irradiation on all samples.

④ Smart Control System – PID touchscreen with real-time data logging and USB/Ethernet export.

FAQs on the LIB UVA 340 Fluorescent Lamp Light Fastness Test Instrument

Q1: How is the UV irradiance calibrated?

The system uses a built-in radiometer calibrated according to ASTM standards. Periodic external calibration ensures traceability and compliance.

Q2: How long does it take to simulate real outdoor aging?

Typically, 500–1000 hours of UV testing can simulate several months to years of outdoor exposure, depending on material type and test conditions.

Q3: What is the difference between UVA-340 and xenon lamps?

UVA-340 focuses on short-wave UV (290–400 nm), while xenon lamps simulate the full spectrum (280–800 nm), including visible and infrared light.

Q4: How is the equipment transported and installed?

The chamber is packed in reinforced wooden crates with vibration protection. Installation is simple and usually completed within 2–3 hours with remote guidance.

Q5: What after-sales service does LIB provide?

① 3-year warranty

② Lifetime technical support

③ 24/7 English-speaking service team

④ Spare parts delivery within 48–72 hours

A UVA 340 Fluorescent Lamp Light Fastness Test Instrument is essential for evaluating material durability under UV exposure. By combining controlled irradiance, temperature, and humidity cycles, it enables fast, accurate, and repeatable aging simulations.

LIB's solution delivers precise UV control (±0.02 W/m²/nm), stable temperature (±2°C), and full ASTM G154 compliance, helping manufacturers in coatings, plastics, textiles, and automotive industries ensure long-term product performance.

Contact LIB Industry for professional consultation, customized solutions, or a live demonstration of UVA 340 fluorescent lamp test instruments.
