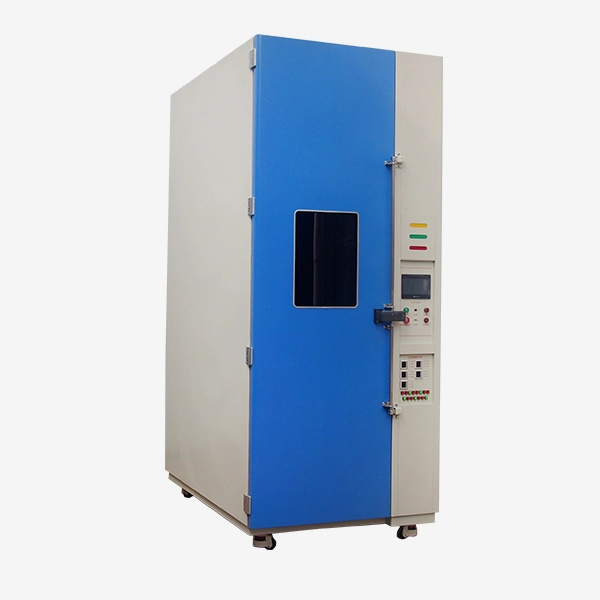

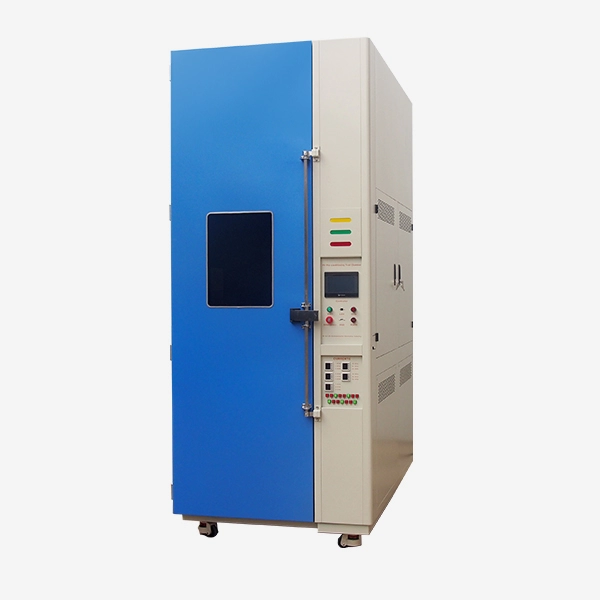

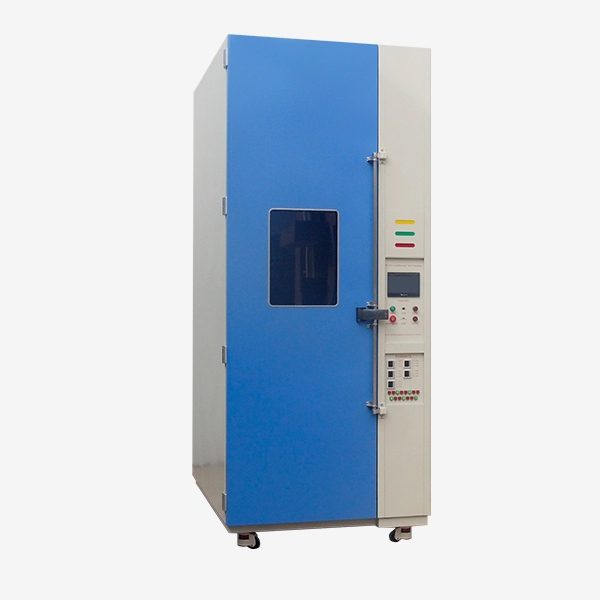

LIB UV preconditioning chamber offers UV(Ultra violet) light exposure for accelerated testing of photovoltaic (PV) modules and for UV pre-conditioning required by IEC 61215 and 61646 for PV module testing.
This UV Preconditioning Chamber For PV Solar Panel meets key industry standards including IEC 61215 (MQT 10) for PV module UV pretreatment. Its design complies with UV safety, environmental simulation, and material testing requirements, ensuring reliable, reproducible results that support material optimization, R&D, and quality assurance across solar panel manufacturing and testing laboratories.
UVP-02
LIB Industry
| Quantity: | |
|---|---|
the wavelength of 280 nm - 320 nm：7.5 k Wh/m2
the wavelength of 320 nm - 400 nm：15 k Wh/m2
Advantages
1. High-Intensity UV Irradiation: Equipped with 20 UVA and 10 UVB fluorescent lamps, the chamber delivers uniform UV exposure across the test plane. Adjustable lamp positioning ensures each PV panel receives consistent irradiance, accurately simulating real sunlight conditions to identify UV-sensitive materials.
2. Precise Temperature Control: The chamber maintains ambient to 90 °C ±2 °C, with black panel temperature (BPT) adjustable between 35 °C and 80 °C. High-accuracy sensors guarantee stable thermal conditions for reliable preconditioning, reducing variability in subsequent thermal cycling or humidity-freeze tests.

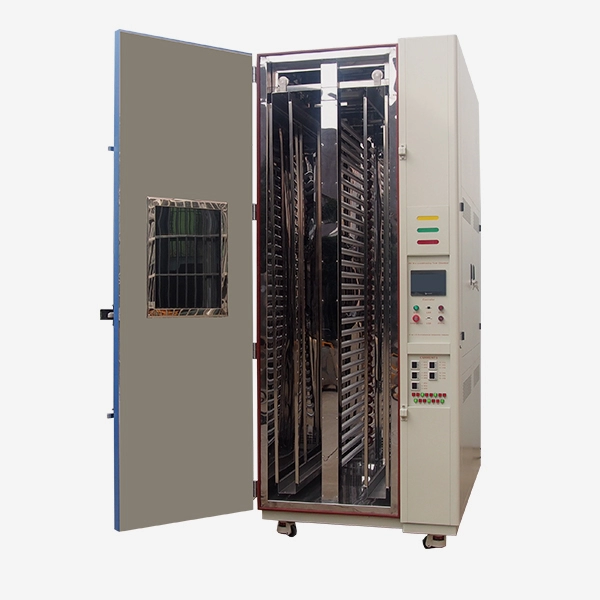

3. Flexible Sample Accommodation: Adjustable holders can securely fit panels of different sizes and orientations, supporting up to 2 PV modules simultaneously. The spacing can be tailored to optimize UV exposure and facilitate easy loading and unloading, improving testing efficiency.
4. Durable, Corrosion-Resistant Construction: The interior is made of SUS304 stainless steel with mirror finish, resistant to corrosion from UV, heat, and moisture. Coupled with a robust exterior steel frame, the chamber is built for long-term reliability and low maintenance.
5. Intelligent and User-Friendly Operation: A programmable color LCD touchscreen allows custom UV cycles, automated timing, and real-time monitoring. Safety features such as over-temperature protection and alerts ensure operator safety while maintaining test accuracy and reproducibility.
Technical Parameters
| Model | UVP-02 |
| Internal Dimension (mm) | 1450*745*2500 D*W*H |
| Overall Dimension (mm) | 1875*1210*2800 D*W*H |
| Specimen Holder Size(mm) | 1400*2400 W*H |
| Specimen Capacity | 2 Pieces |
| Irradiation Source | Fluorescent UVA and UVB lamps and UVB lamps |
| Temperature Range | Ambient ～ 90 ℃ ±2℃ |
| Black Panel Temperature (BPT) | 35 ～ 80 ℃ |
| Temperature Accuracy | ±2℃ |
| Temperature Precision | ±0.5℃ |
| Bandwidth | UVC: (< 0.1%) |
| UVB: (3% to 10% of total UV) | |
| UVA: (90% to 97% of total UV) | |
| Irradiance Control | The wavelength of 280 nm - 320 nm：7.5 k Wh/m2 |
| The wavelength of 320 nm - 400 nm：15 k Wh/m2 | |
| Maximum Irradiance in the UV range: < 250 W/m2 | |
| Water Spray Cycle | 1~9999H59M (Adjustable) |
| Controller | Programmable color LCD touch screen controller, Ethernet connection, PC Link, USB |
| Safety Device | Over-temperature Protection; Over-current Protection; |
| Earth leakage Protection; Phase Sequence Protection | |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Power Supply | AC380V 50Hz 3Phase |
| Standard | IEC 61215 (MQT 10)， IEC61730 |
Operate Guide of the UV Preconditioning Chamber For PV Solar Panel
To operate the UV Preconditioning Test Chamber, first ensure the chamber is properly connected to the AC380V 50Hz three-phase power supply and all safety interlocks are engaged. Place the PV panels securely on the adjustable sample holders, positioning them at an appropriate distance from the UV lamps. Power on the programmable color LCD touchscreen controller to set the desired UV irradiation cycle, temperature range, and black panel temperature. The chamber will automatically regulate lamp irradiance, monitor temperatures, and maintain stable conditions throughout the test. After completion, allow the chamber to cool, then safely remove the samples. Always follow the built-in safety prompts and maintenance guidelines to ensure accurate testing and long-term operation.
Video of the UV Preconditioning Chamber For PV Solar Panel
Global Support You Can Rely On
LIB ensures seamless operation with a 3-year warranty and lifelong technical guidance. If a problem arises that cannot be resolved remotely, a replacement chamber will be provided at no cost. Our experienced English-speaking support team is available 24/7 to assist clients worldwide. Key spare parts are stored in international distribution centers for fast delivery within 7–15 days, and detailed instructions are supplied to guarantee safe shipping, installation, and operation of your chamber.
