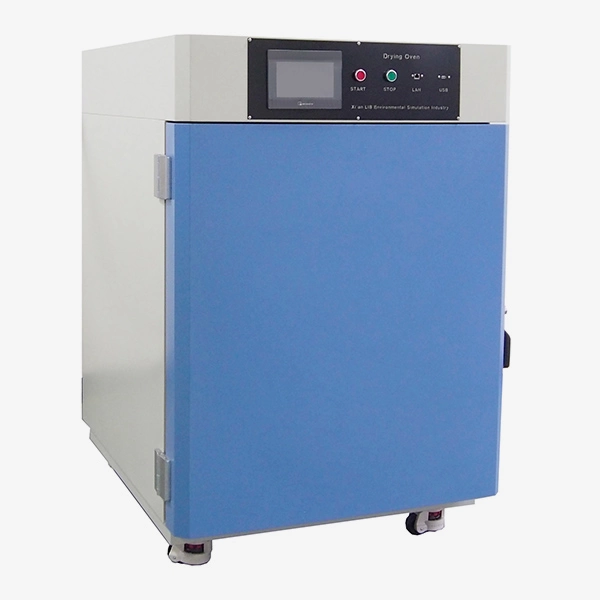

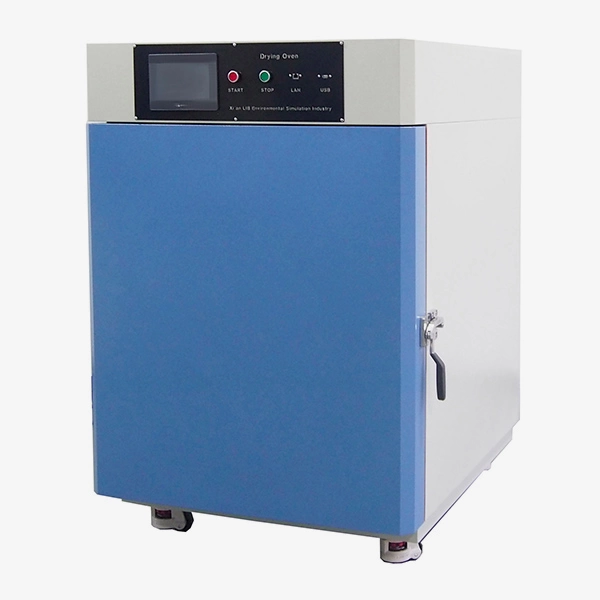

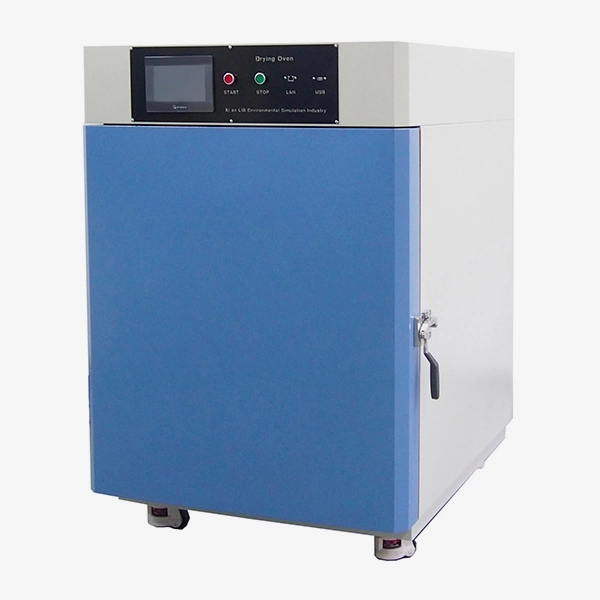

LIB designed and produced high temperature Industrial Ovens at temperatures up to +250℃, +500℃, +800℃, + 1000℃, + 1200℃ with small, medium and large volumes.Ovens are used for high temperature drying, paint drying, drying glass and plastics, ink, and removing moisture, wood drying and high temperature tests. Applied to aerospace, automotive, electronics, metalworking.
LIB Industrial Ovens are designed to meet and support major international and industrial standards, including IEC 60068-2-2, IEC 60068-2-1, ISO 16750, ASTM D5423, ASTM D3045, MIL-STD-810, JEDEC JESD22, GB/T 2423 series, and relevant aerospace, automotive, and electronics thermal testing specifications, ensuring reliable and globally accepted test results.
O-100/O-225/O-500/0-800/O-1000
LIB Industry
| Quantity: | |
|---|---|
Advantages
1. High-Temperature Performance with Stable Control: Designed for continuous high-temperature operation up to 1200 ℃, the oven delivers precise thermal control with ±0.5 ℃ accuracy and ±2 ℃ uniformity. This stability ensures repeatable results for drying, curing, aging, and heat-treatment processes, even during long-duration tests.
2. Efficient Heating for Faster Processing: With heating rates of up to 6 ℃/min, the oven significantly shortens heat-up time compared with conventional drying ovens. Faster ramping and reliable temperature holding reduce overall process cycles, helping laboratories and production lines improve throughput.
3. Uniform Air Circulation for Consistent Results: Optimized forced-air circulation with dual-fan design minimizes temperature gradients throughout the chamber. Whether processing small samples or heavy metal components, all specimens experience a consistent thermal environment, eliminating localized overheating or under-processing.
4. Robust Industrial Construction and Safety Protection: The chamber interior is built from SUS304 stainless steel for corrosion resistance and easy cleaning, while the reinforced A3 steel exterior ensures long-term durability under harsh operating conditions. Integrated safety features such as over-temperature protection and electrical safeguards protect both operators and test samples.
5. Flexible Configuration for Diverse Applications: Available in small, medium, and large volumes, the oven supports customizable chamber sizes, shelf configurations (up to 50 kg per shelf), and optional cable holes or fixtures. This flexibility allows seamless adaptation to aerospace, automotive, electronics, and metal-processing applications.
Technical Parameters
| Model | O-100 | O-225 | O-500 | O-800 | O-1000 |
| Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
| Overall Dimension (mm) | 750*880*850 | 800*950*1000 | 1100*1100*1300 | 1100*1450*1400 | 1300*1400*1400 |
| Interior Volume | 100L | 225L | 500L | 800L | 1000L |
| Temperature Range | A: Ambient ～+250 ℃ | ||||
| B: Ambient ～+400 ℃ | |||||
| C: Ambient ～+900 ℃ | |||||
| Temperature Fluctuation | ± 0.5 ℃ | ||||
| Temperature Deviation | ± 2.0 ℃ | ||||
| Heating Rate | 6 ℃ / min | ||||
| Heating Element | Nichrome heater | ||||
| Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
| Safety Device | Over-temperature Protection; Over-current Protection; | ||||
| Phase Sequence Protection; Earth leakage Protection | |||||
| Exterior Material | Steel Plate with protective coating | ||||
| Interior Material | SUS304 stainless steel | ||||
| Thermal Insulation | Polyurethane foam （Refractory brick） | ||||
| Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
| Standard Configuration | 2 shelves | ||||
Operate Guide of the Industrial Oven
Before starting, ensure the chamber is correctly installed, powered, and grounded. Place test specimens securely inside the chamber with sufficient spacing for airflow. Program the target temperatures, transfer mode, dwell time, and number of cycles on the controller, then start the test sequence. During operation, monitor system status and temperature data on the display. After completion, allow the chamber to return to ambient temperature before unloading samples and shutting down the system.
Video of the Industrial Oven
Reliable Support and Flexible Customization
All configurations can be tailored to your specific requirements. LIB provides a comprehensive 3-year warranty along with lifetime technical support. If any problem cannot be resolved during the warranty period, the affected components will be replaced at no cost. Our dedicated English-speaking service team is available 24/7, and standard models can be delivered quickly within 7–15 days.
