T-100/T-225/T-500/T-800/T-1000
LIB Industry
| Quantity: | |
|---|---|

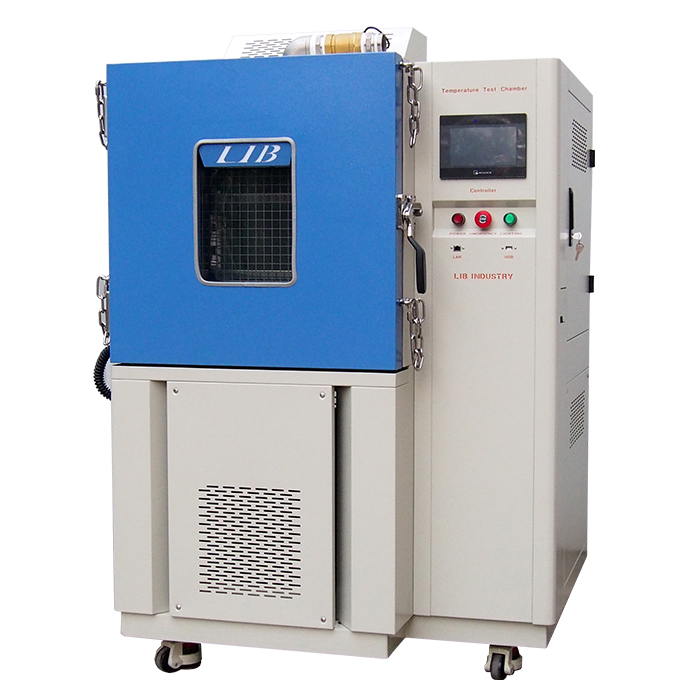

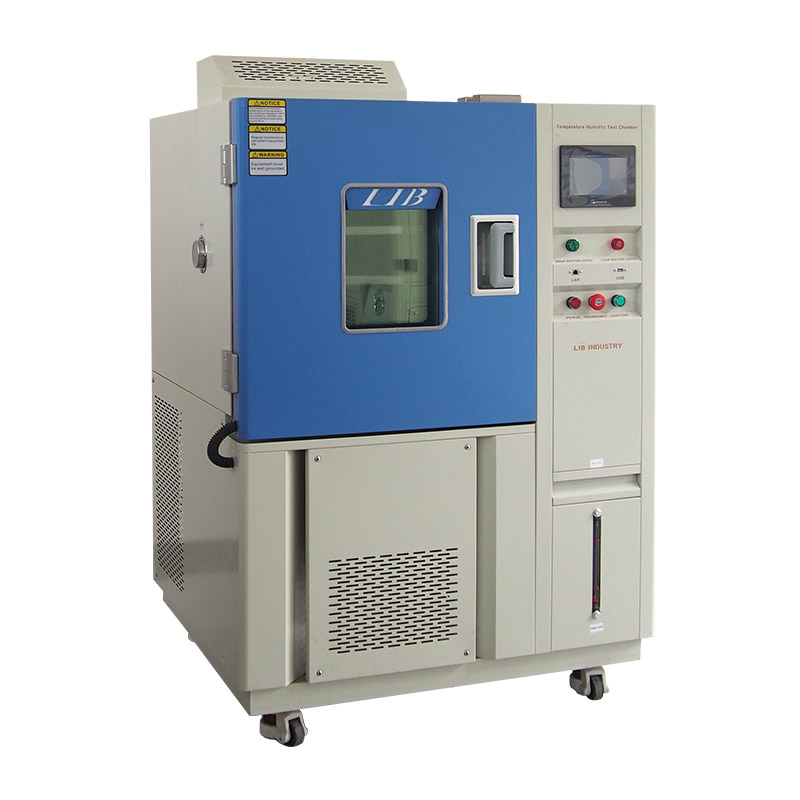

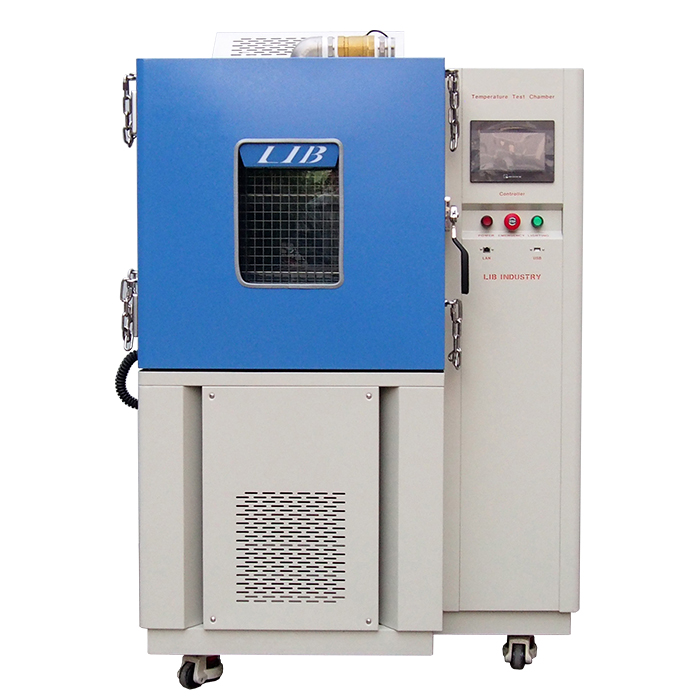

The Aging Thermal Cycling Environmental Battery Test Chamber offers benchtop and floor-standing models with capacities from 225 L to 1000 L, suitable for cells, modules, and full battery packs. Its SUS304 stainless-steel interior resists corrosion, while the reinforced steel exterior ensures stability under extreme conditions. The chamber supports rapid temperature changes up to 20 °C/min. Optimized airflow provides uniform temperature distribution, ensuring accurate and repeatable results across all samples.
Technical Advantages

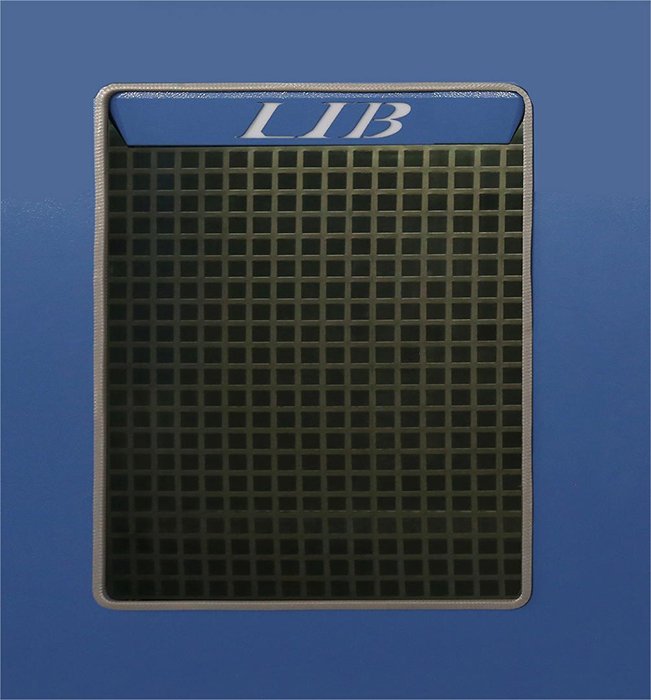

1. Explosion-Proof Safety: Reinforced door locks, observation windows, terminal blocks, and an integrated fire suppression sprinkler system provide maximum protection during high-temperature abuse testing, ensuring operator and laboratory safety even under thermal runaway conditions.
2. Rapid Thermal Cycling: The chamber supports multiple heating and cooling rates—5 °C/min, 10 °C/min, 15 °C/min, and customizable up to 20 °C/min—allowing accelerated testing that simulates real-world rapid temperature changes while significantly reducing test duration.
3. Precision and Uniformity: High-accuracy PT100 Class A sensors combined with intelligent PID control maintain temperature stability within ±0.5 °C. Optimized airflow ensures uniform temperature distribution throughout the workspace, delivering reliable and repeatable results for all battery types.
4. Customizable Testing: Supports up to 120 programs with 100 steps each, enabling complex multi-stage thermal tests tailored to industry standards or specific R&D requirements. Test sequences can simulate repeated aging cycles, thermal abuse, and rapid environmental transitions without operator intervention.

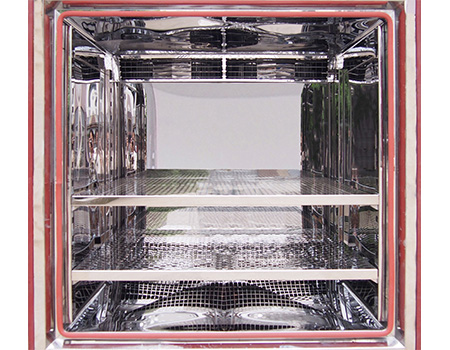

5. Robust Construction: The SUS304 stainless-steel interior resists corrosion and simplifies maintenance, while the reinforced steel exterior ensures structural stability under extreme conditions, providing long-term durability for continuous testing programs.
6. High Throughput: With large internal volumes ranging from 225 L to 1000 L and rapid temperature cycling, the chamber increases laboratory efficiency, supporting simultaneous testing of single cells, battery modules, or full packs for R&D, quality assurance, and safety validation.
Chamber Specifications
| Name | Fast Change Rate Thermal Cycle Chamber | ||||
Model | T-100 | T-225 | T-500 | T-800 | T-1000 |
400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 | |
860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 | |
Capacity | 100L | 225L | 500L | 800L | 1000L |
Temperature range | -20℃ ～+150 ℃ | ||||
Low type | A: -40℃ B:-70℃ C -86℃ | ||||
Temperature fluctuations | ± 0.5 ℃ | ||||
Temperature deviation | ± 2.0 ℃ | ||||
Heating rate | 3 ℃ / min | ||||
Cooling rate | 1 ℃ / min | ||||
Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB | ||||
Refrigerant | R404A, R23 | ||||
Exterior material | Steel Plate with protective coating | ||||
Standard configuration | 1 Cable hole (Φ 50) with plug; 2 shelves | ||||
Timing Function | 0.1~999.9 (S、M、H) settable | ||||
Explosion-Proof Safety | Reinforced door locks, observation windows, terminal blocks, and an integrated fire suppression sprinkler system | ||||
Typical Tests
The Aging Thermal Cycling Environmental Battery Test Chamber can simulate a wide range of temperature conditions, such as repeated thermal cycling from –40 °C to +85 °C, accelerated aging at high temperatures, cold stress tests, and thermal abuse testing under extreme conditions. Typical test conditions include high temperature at +85 °C, low temperature at –40 °C, and fast ramps of 5, 10, 15, or even 20 °C/min, ensuring reliable safety validation and performance assessment for battery cells, modules, and packs.
Video Show
Customization, Warranty & Global Support
LIB offers tailored customization to suit unique testing requirements and specialized applications. Every chamber comes with a 3-year full warranty and lifetime technical assistance. If any issue occurs during the warranty period that cannot be resolved through on-site service or remote support, a replacement unit will be provided free of charge. Our skilled English-speaking support team is available 24/7 to address questions or provide guidance, while streamlined logistics ensure most orders are delivered within 7 to 15 days worldwide.
