What Is IP66 IP68 Dust Tight Dustproof IP Test Equipment Used For?

Imagine a sealed electrical enclosure that looks perfectly fine on the shelf, but fails within six months once it's installed near a highway, a quarry, or a coastal plant where fine sand and grit are always in the air. That single failure can cost a manufacturer far more than the price of a proper test.

This article explains what IP66 IP68 Dust Tight Dustproof IP Test Equipmentis used for, which standards it satisfies, how it works, and what test methods it applies — so you can judge whether your enclosure design is really ready for the field.

What Is IP66 IP68 Dust Tight Dustproof IP Test Equipment?

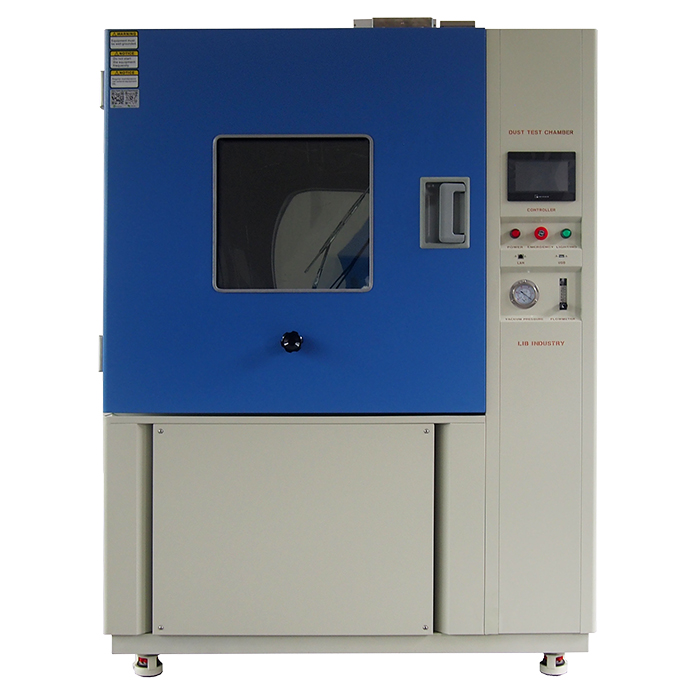

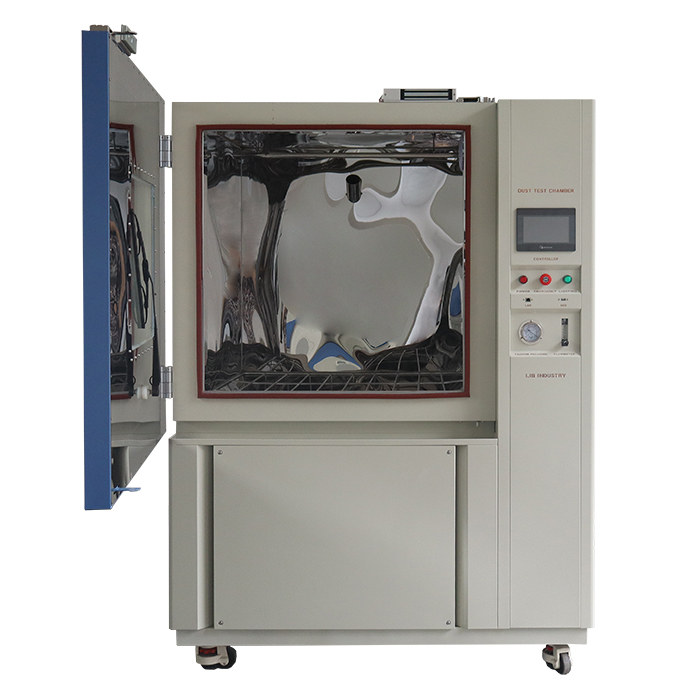

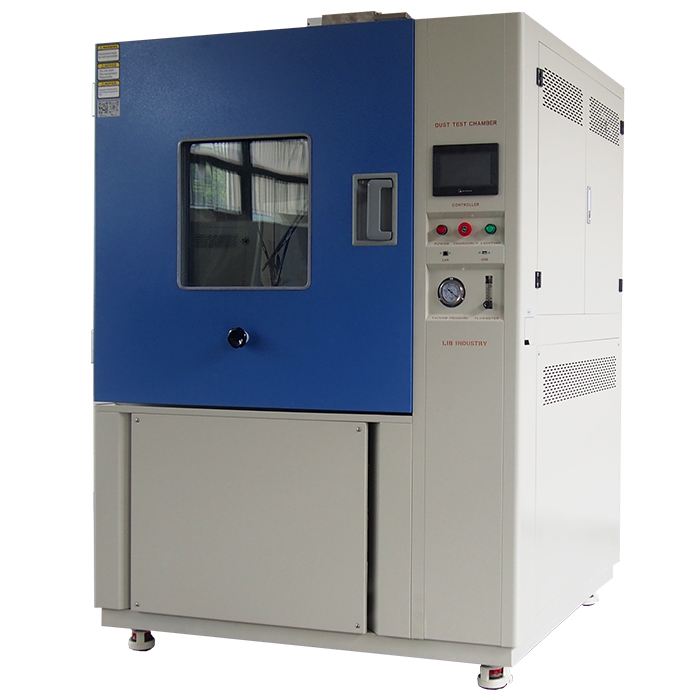

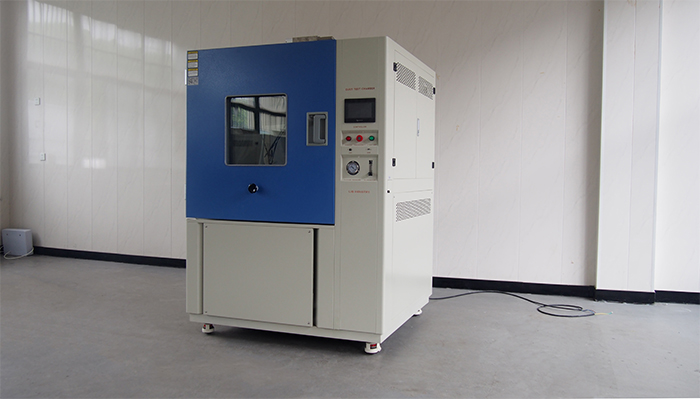

This equipment is a sealed chamber built to prove whether an enclosure keeps dust and fine particles out under continuous airflow. The interior is normally SUS304 stainless steel and the exterior is coated A3 steel, giving the chamber the strength to run repeated cycles without corrosion or wear. Talcum powder around 50 μm in size is circulated at a controlled concentration of 2–4 kg/m³, reproducing the kind of airborne dust found in real factories, roadsides, and outdoor installations. Common test volumes range from 800 L to 2000 L, so both small sensors and large housings can be accommodated.

Standards It Satisfies and Working Principle

The equipment is built to meet IEC 60529, ISO 20653, DIN 40050-9, IEC 60598-1, IEC 60068-2-68, JIS D0207, MIL-STD-810H, ISO 16750-4, LV 124, SAE J575, and JSS 55555. In the IP rating system, the first digit "6" confirms complete protection against dust ingress, and the second digit "6" or "8" confirms resistance to powerful water jets or long-term water immersion. Inside the chamber, a vertical circulation system pushes dust evenly around the specimen, while a 50 μm mesh sieve filters out oversized particles before they reach the airflow. A built-in heating tube keeps moisture from causing the dust to clump, and a dust recovery system collects and reuses the powder after each cycle, cutting material waste.

Test Methods Used in the Chamber

During testing, samples are placed on a reinforced rack rated for up to 50 kg, either resting naturally or suspended from the top crossbeam depending on their size. A 16 A dust-proof outlet lets the specimen stay powered on, so engineers can watch its real-time function while dust is circulating. Test duration is programmable, and the touchscreen controller can store up to 120 programs with 99 steps each, so labs can run IP5X and IP6X sequences back-to-back without manual resets. An observation window with interior lighting and an automatic wiper allows continuous visual monitoring, meaning no test has to be paused just to check on the sample.

Thai Customers Are Highly Satisfied with the Stability of the IP 6X Sand and Dust Test Chamber

A group of Thai electronics manufacturers recently used LIB Industry's IP 6X Sand and Dust Test Chamberto verify sealing performance on their outdoor sensor housings, and the feedback has been strongly positive. Several points stood out to them:

1. Compliance confidence: the chamber meets IEC 60529 and CE, CSA safety requirements, so certification results are accepted internationally without extra testing.

2. High test precision: dust concentration stays steady at 2 kg/m³ throughout the full run, giving consistent results test after test.

3. Strong safety design: electromagnetic door lock, over-temperature protection, and earth leakage protection reduce operator risk during long unattended cycles.

4. Cost-effective operation: every unit ships with 5 kg of talcum powder free, and 2 kg of that supply is enough to complete an initial verification run at no added material cost.

5. Full customization: chamber volume can be built up to 2000 L to match large enclosures or multiple samples at once.

6. Long-term assurance: a 3-year warranty backed by lifetime maintenance support gave the Thai team confidence to run the chamber continuously without worrying about downtime.

These advantages together made the decision straightforward for a facility that needed dependable, repeatable dust testing without constant recalibration.

IP66 vs IP68 IP Test Equipment: Comparison and How to Choose

If your product only faces rain, spray, or pressure washing, IP66 testing is usually sufficient and more economical. If your product may be submerged, such as underwater cameras or subsea connectors, IP68 testing is necessary to confirm long-term sealing under sustained water pressure. Many manufacturers choose to validate both ratings on the same platform, since a single chamber configured for IP66/IP68 dual testing avoids the cost of maintaining two separate systems.

LIB Popular Dust and Water Test Equipment

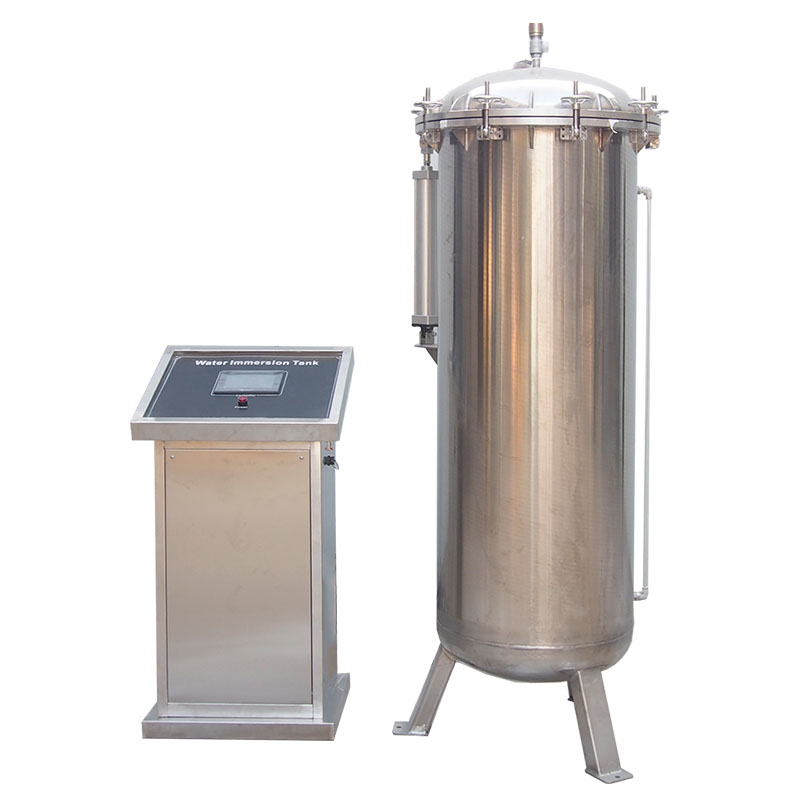

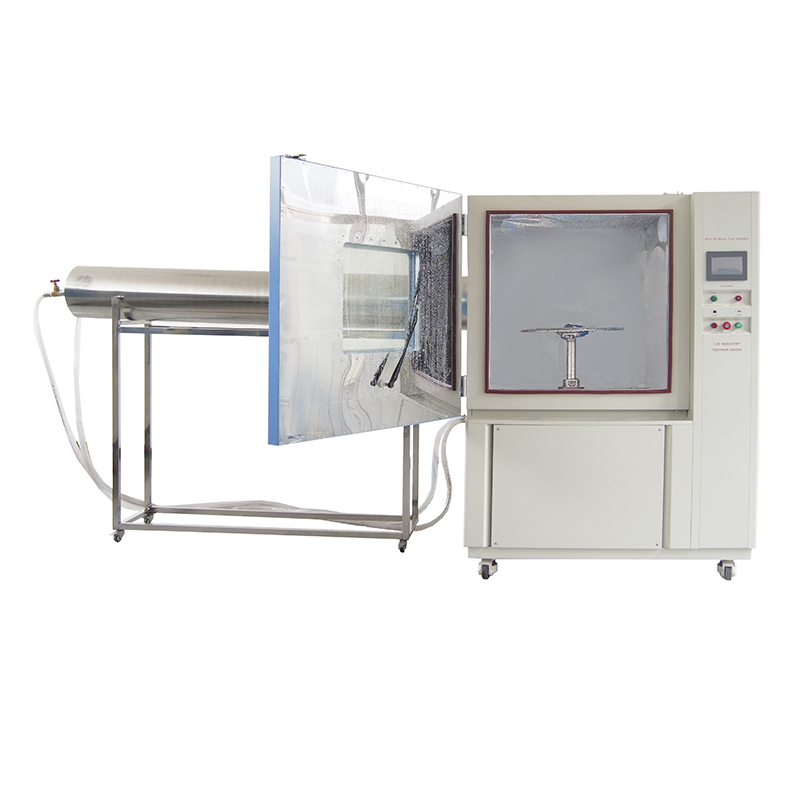

Combined Chamber(IPX1 X2 X3 X4 X5 X6) Multi-level IP testing, Space-saving design	IPX7 IPX8 Water Immersion Test Equipment Deep water simulation,Long-duration immersion	IPX9K High Pressure Water Spray Test Chamber 88°C hot water jets, High-pressure spray testing	Whole Set of IP Test Equipment-No Housing Type Easy sample loading, flexable
IP5X/6X Sand and Dust Test Chamber Controlled dust circulation, IEC 60529 compliance	MIL-STD-810  Sand and Dust Test Chamber Harsh dust simulation, Defense and aerospace testing	MIL-STD-810 Rain Test Chamber Harsh water simulation, Defense and aerospace testing

FAQs on the IP66 IP68 Dust Tight Dustproof IP Test Equipment

Q1: What kind of after-sales service comes with the equipment?
LIB Industry provides a 3-year warranty, lifetime maintenance support, and a 24/7 English-speaking technical team with a 2-hour response window. If an issue cannot be resolved remotely, spare parts are delivered on-site within 7–15 days.

Q2: How is the equipment shipped, and how long does delivery take?
Chambers are shipped by sea or air freight depending on destination and urgency, with standard sea shipments typically arriving within 30–45 days. Units are securely packed in reinforced crates to prevent damage to the stainless steel interior and touchscreen controller during transit.

Q3: Can the chamber size be customized for our production needs?
Yes. Beyond the standard DI-800 to DI-2000 models, LIB Industry can build customized volumes up to 2000 L, along with tailored sample racks and fixtures for specific product shapes.

Q4: Is installation support provided after delivery?
Yes. LIB Industry's technical team offers remote setup guidance, and on-site installation assistance can be arranged for larger orders upon request.

Contact LIB Industry today to discuss how our IP66/IP68 Dust Tight Dustproof IP Test Equipment can validate your product's sealing performance and protect your brand's reliability in the field.
