Finding a manufacturer you can trust with your waterproof certification budget is not a small decision. A single test chamber can run into tens of thousands of dollars, and if the equipment can't reproduce IEC 60529 conditions accurately, every certification report built on it becomes questionable — that risk keeps procurement teams up at night.
This article breaks down who actually builds a reliable IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber, what standards the equipment must satisfy, which industries rely on it daily, and how to compare it against a full IPX1–IPX6 system so you can choose with confidence.
No two labs test the same products, so LIB doesn't sell a single fixed configuration. Chamber dimensions, turntable load capacity (up to 50 kg standard, higher on request), tilt angles for the drip box, and even control language can all be adjusted before the unit ships. If your samples range from a small wearable to a full automotive dashboard, the internal layout is built to fit rather than forcing your product to fit the chamber.
A equipment is only valuable when it delivers reliable performance throughout its service life. LIB provides3-year warranty coverage and lifetime technical support for every testing chamber, including installation guidance, operation training, troubleshooting assistance, and long-term maintenance support. If a new chamber experiences a problem that cannot be resolved through technical support, LIB will provide a replacement solution to ensure customers’ testing schedules are not affected. With responsive service and professional support, LIB helps customers maintain stable, continuous, and reliable waterproof testing operations.

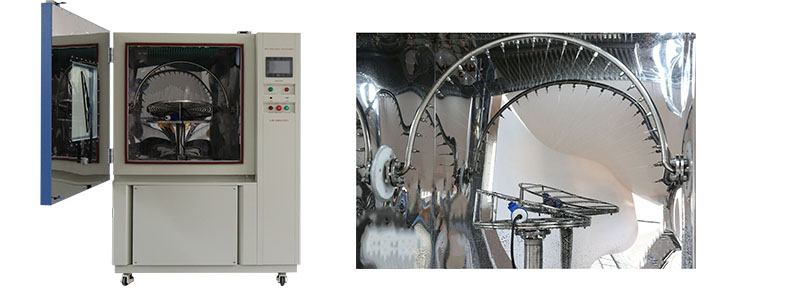

Every IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber from LIB is engineered to IEC 60529 requirements. IPX1 applies a 1 mm/min drip rate for at least 10 minutes onto a specimen rotating at 1 rpm. IPX2 uses the same drip rate but tilts the specimen 15° in four directions, 2.5 minutes per direction, for a 10-minute total. IPX3 switches to an oscillating tube with 0.4 mm holes spaced 50 mm apart, a ±60° swing, and a 0.07 L/min flow rate per hole for a minimum of 10 minutes. IPX4 keeps the same nozzle spacing and flow rate but widens the swing to ±180°, simulating harsher splash exposure from every direction. This range of testing serves automotive component manufacturers, home appliance producers, consumer electronics brands, and outdoor equipment makers — essentially any industry where a product needs documented proof it survives dripping water or splashing rain before it reaches the market.

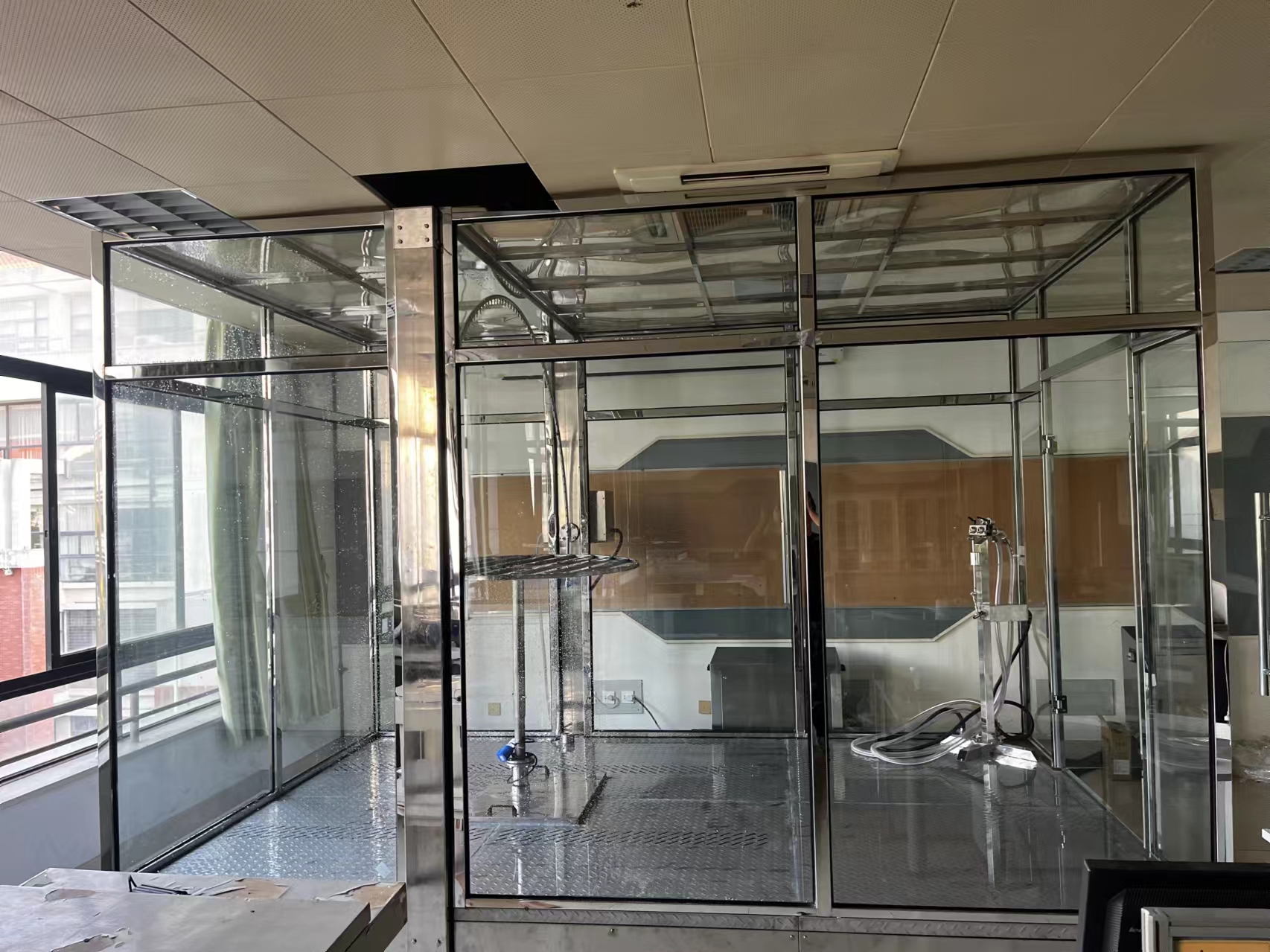

One manufacturer recently installed an LIB-customized IPX1 IPX2 IPX3 IPX4 IPX5 IPX6 Water Spray Test Chamber inside a
glass observation room specifically to run live product performance testing. Their engineering team highlighted several advantages after months of use:
Full standards compliance — the chamber operates in line with CE, IEC 60529, and CSA requirements, so results transfer directly into export certification paperwork without additional retesting.
Flexible sizing — from small connectors to large enclosures, the internal turntable and mounting layout were customized to their exact product dimensions, no matter how small the parts were.
High testing accuracy and repeatability — the built-in power source beneath the turntable lets them power on electronics mid-test, so results reflect real operating conditions rather than a static, powered-off sample.
Strong safety performance — over-temperature protection, low-water shutoff, and interlocked doors mean the chamber runs unattended without putting samples or staff at risk.
Water efficiency and cost control — the closed-loop recycling system cut their water consumption noticeably, which showed up directly in lower monthly utility costs.
| Model | R-800C | R-1200C |
| Internal Dimensions (mm) | 900*950*950 | 1300*1350*1370 | |
| Overall Dimensions (mm) | 1180*1420*1920 | 1540*1820*2200 | |
| Useful Volume (L) | 810 | 2400 | |
| Oscillating Tube Radius | 400mm | 600mm | |
| Drip Tray Size | 600*600 | 1000*1000 | |
| Spraying Hole Diameter | φ0.4mm | ||
| Hole Spacing | 50 mm | ||
| Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | ||
| Turntable Rotation Speed | 1r/min (Adjustable speed) | ||
| Water Pressure Control | Flow meter | ||
| Controller | Programmable color LCD touch screen controller, Ethernet connection | ||
| Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | ||
| Safety Device | Over-temperature Protection; Over-current Protection; | ||
| Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |||
| Exterior Material | Steel Plate with protective coating | ||
| Interior Material | SUS304 stainless steel | ||
| Observation Window | Double layer insulating glass with wiper | ||
Their conclusion was straightforward: the combination of precision, safety, and cost-per-test made the investment pay for itself faster than they expected.

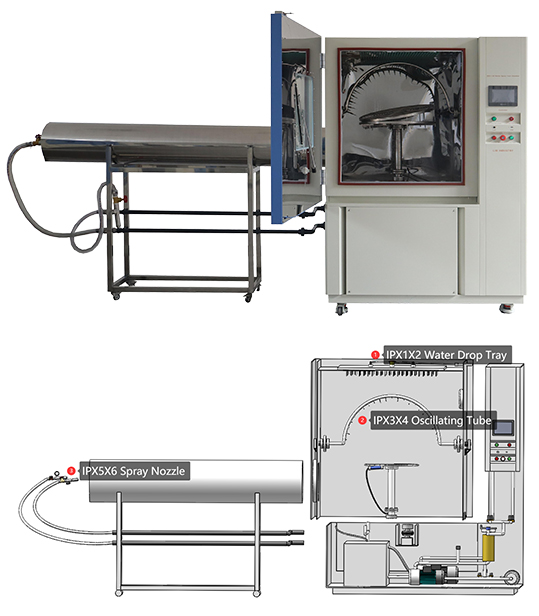

Both chamber types share the same drip-box and oscillating-tube mechanisms for IPX1 through IPX4. The difference comes down to whether you also need high-pressure jet testing.
| Feature |
|
|
|---|---|---|
| Test levels covered | Drip (IPX1/IPX2), oscillating spray (IPX3/IPX4) | Adds jet nozzles for IPX5 (12.5 L/min, 30–100 kPa) and IPX6 (100 L/min, 100 kPa) |
| Typical footprint | Smaller, lower cost | Larger, requires more lab space |
| Best suited for | Products only rated for light rain/splash exposure | Products needing full water-jet resistance certification |
| Industries | Small electronics, indoor appliances | Automotive parts, outdoor/industrial equipment |
| Investment level | Lower upfront cost | Higher, but covers a full IP rating range in one unit |
If your product line will never require jet-level certification, the IPX1–IPX4 configuration saves both floor space and budget. If you're certifying components exposed to hose-level or high-pressure spray — automotive parts, outdoor housings, industrial connectors — the combined IPX1–IPX6 chamber avoids the need to purchase a second machine later.
| LIB Best-Selling Dust and Water Test Equipment | |||
|  |  |  |
Combined Chamber(IPX1 X2 X3 X4 X5 X6) Multi-level IP testing, Space-saving design | IPX7 IPX8 Water Immersion Test Equipment Deep water simulation,Long-duration immersion | IPX9K High Pressure Water Spray Test Chamber 88°C hot water jets, High-pressure spray testing | Whole Set of IP Test Equipment-No Housing Type Easy sample loading, flexable |
 |  |  | |
IP5X/6X Sand and Dust Test Chamber Controlled dust circulation, IEC 60529 compliance | MIL-STD-810 Sand and Dust Test Chamber Harsh dust simulation, Defense and aerospace testing | Harsh water simulation, Defense and aerospace testing | |
Q1: Does LIB offer installation service, or do we set up the chamber ourselves?
LIB provides installation guidance and can arrange on-site setup support depending on your location and contract terms.
Q2: How is the chamber shipped, and what's included?
Units are shipped fully assembled where possible, or in sections for larger custom builds, with all standard accessories (turntable, drip box, oscillating tube, power supply fittings) packed and documented for straightforward reassembly.
Q3: What if a part is damaged in transit?
LIB's after-sales team handles replacement parts for transit damage under the standard warranty terms, minimizing delays to your test schedule.
Q4: Can the chamber be upgraded from IPX1–IPX4 to include IPX5/IPX6 later?
In many cases, yes — this depends on the original chamber design, so it's worth discussing upgrade paths at the time of purchase if future jet-testing needs are possible.
Q5: How long does a full test cycle take?
Each level has its own minimum duration per IEC 60529 — 10 minutes for IPX1 through IPX4 — though full qualification cycles across multiple levels take longer depending on your test protocol.
