Which Manufacturers Supply an IEC60529 IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber?

Buyers searching for reliable water ingress test equipment often face the same problem: too many suppliers, but too little proof of real performance. When a product fails a waterproof test after mass production, the cost of rework and delayed shipment can reach tens of thousands of dollars, which is why choosing the right manufacturer matters from day one.

Real-world performance matters just as much as specifications. A customer from a testing center in Norway shared his experience with LIB's IPX3/IPX4 spray unit: "The spray unit for IPX3/4 was working fine, the flow control was very good." His feedback reflects the importance of stable water flow and reliable spray performance in practical IPX3 and IPX4 testing.

This article introduces LIB Industry as a trusted manufacturer of the IEC60529 IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber, explains how the equipment works, compares different configurations, and answers common questions from global buyers.

LIB Industry: A Leading and High-Quality Manufacturer of IEC60529 IPX1 IPX2 IPX3 IPX4 Water Spray Test Chambers

Company Strength Backed by Real Numbers

LIB Industry was established in 2012 and has since built 15 years of experience in environmental test equipment manufacturing. The company now works with 29 global agents, operates 4 overseas service centers, and serves customers in more than 60 countries and regions. LIB Industry holds ISO 9001 quality certification, and every unit of equipment goes through continuous operation testing before delivery. This scale of service network allows customers in Europe, North America, Southeast Asia, and the Middle East to get local support instead of waiting weeks for a reply.

How the Equipment Works

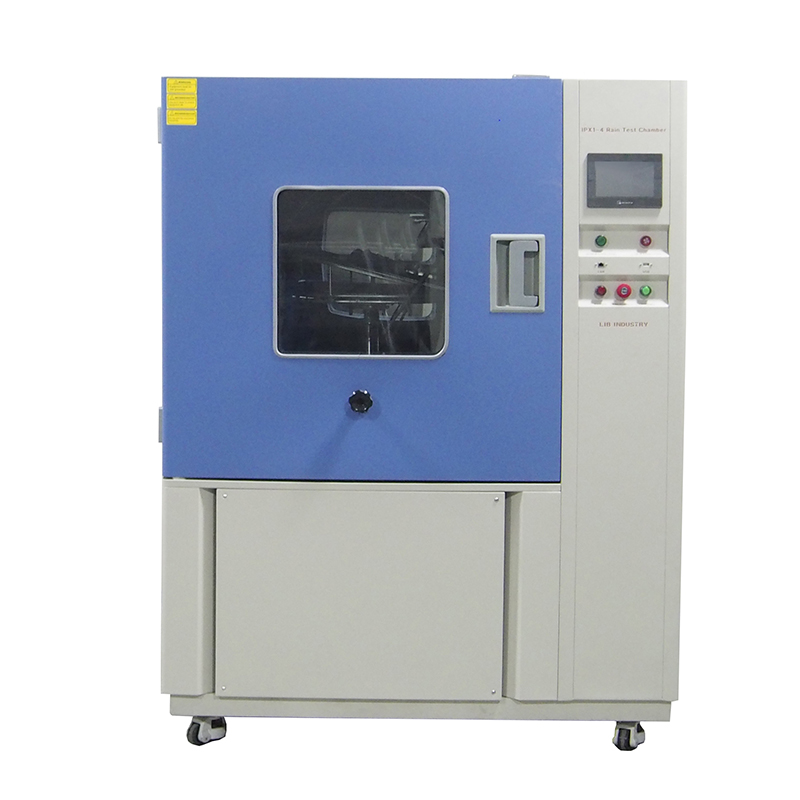

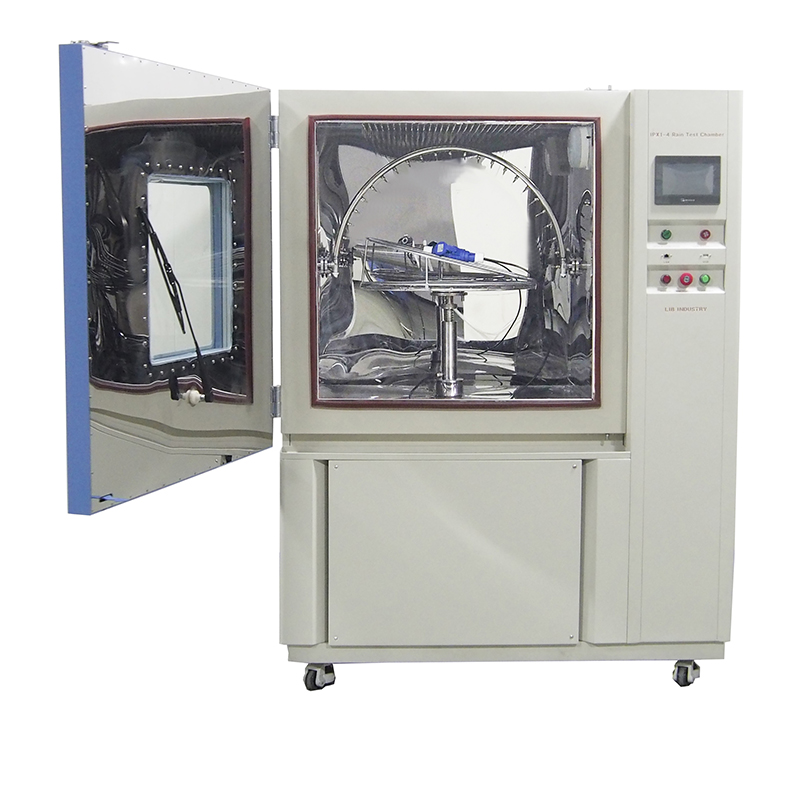

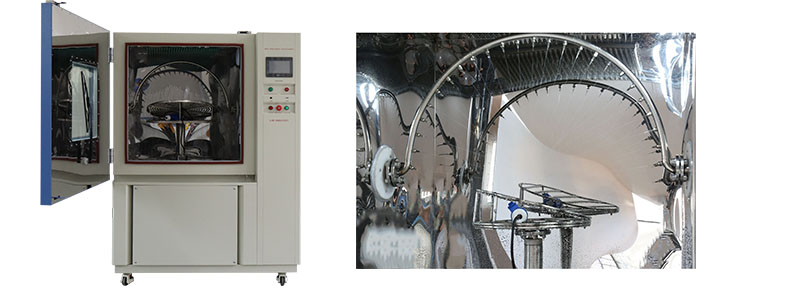

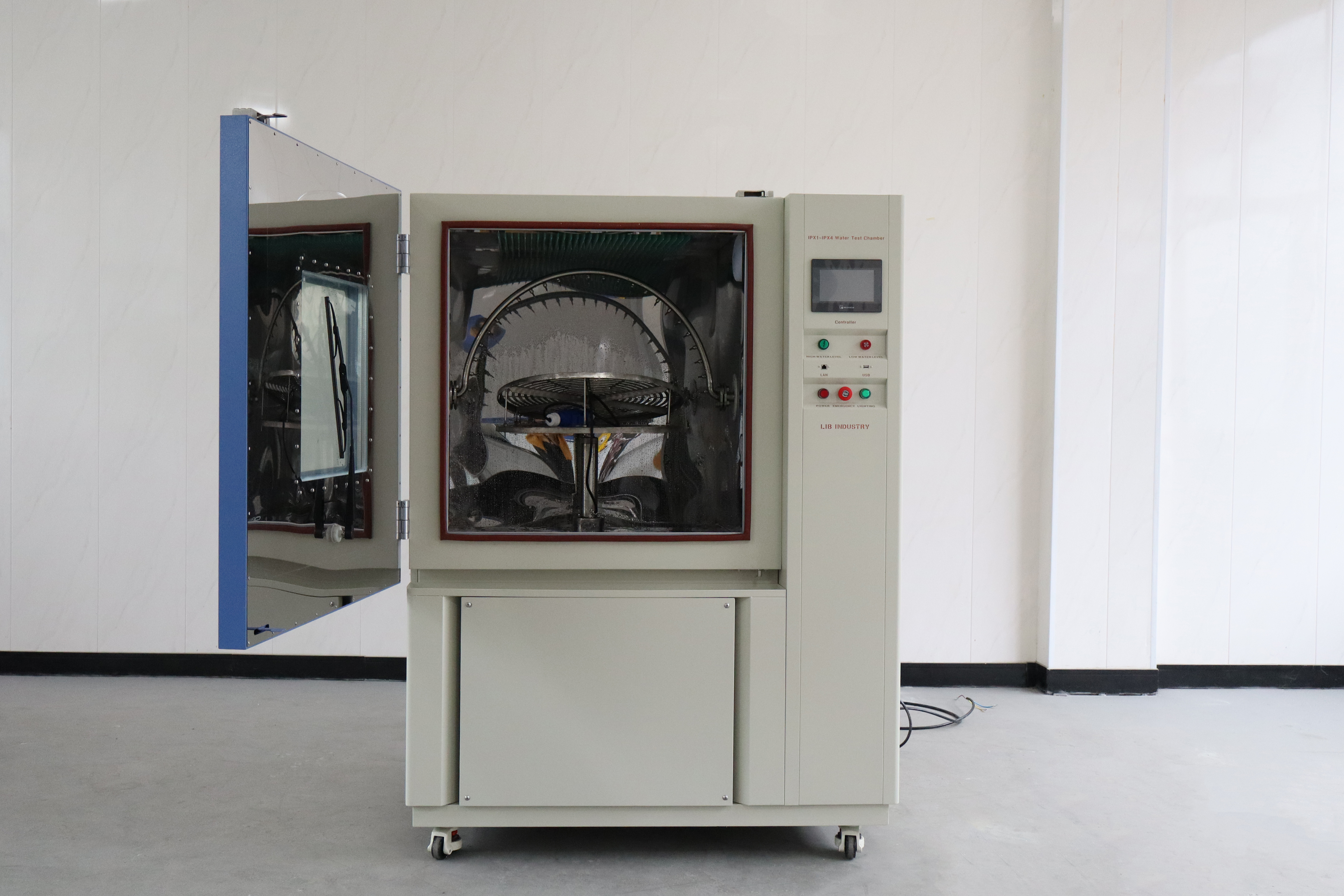

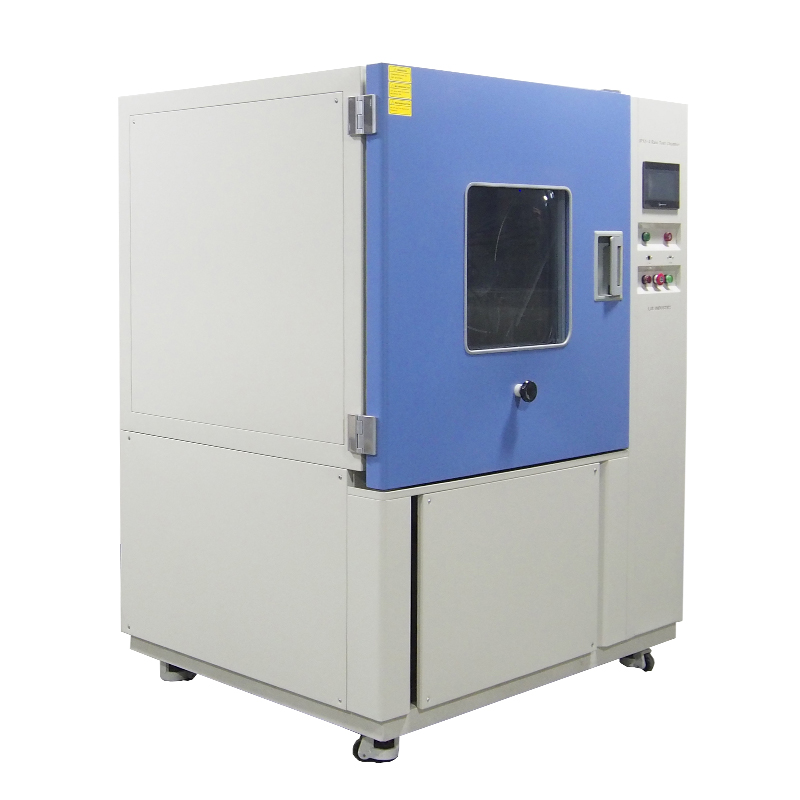

The IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber reproduces four levels of water exposure in one enclosure. For IPX1 and IPX2, a stainless steel drip box releases water at 1 mm/min onto a rotating turntable running at 1 r/min. For IPX3 and IPX4, an oscillating tube with 0.4 mm nozzles spaced 50 mm apart swings between ±60° and ±180°, spraying 0.07 L/min per nozzle. A closed-loop water filtration and recycling system keeps water consumption low, while a waterproof power connector inside the equipment lets engineers power on their samples during the test to check real-time function under water exposure.

Testing Methods for IPX1 to IPX4

Each protection level follows a fixed procedure under IEC 60529, ISO 20653, and SAE J2020.

European Customers Appreciate LIB's Water-Saving Design and After-Sales Service

Several European customers have run full waterproof performance tests on their electronic enclosures using LIB Industry's equipment, and the feedback has been consistently positive. They point to a few clear advantages:

1. Full compliance with CE and IEC 60529 requirements, which simplifies their internal certification process.

2. Strong safety protection, including over-current, over-temperature, water shortage, and earth leakage protection, reducing risk during long unattended test cycles.

3. High testing accuracy, with flow meter-controlled water pressure and adjustable swing angles that give repeatable results batch after batch.

4. Good cost-performance ratio, since the built-in water recycling system lowers daily water and energy usage.

5. Free customization for sample size, turntable load, and chamber dimensions, which many customers say saved them from ordering an oversized or undersized unit.

6. A 3-year warranty plus lifetime technical support, which gives long-term peace of mind for labs running the equipment daily.

7. Patient, knowledgeable after-sales engineers who also provide on-site training, so operators are not left guessing after installation.

Beyond IPX1 to IPX4, LIB Industry has also delivered equipment for IP5X dust testing and IPX9 high-temperature, high-pressure spray testing to customers including partners in the Apple supply chain, which gives new buyers extra confidence in the manufacturing quality and consistency of LIB Industry's products.

LIB Popular Dust and Water Test Equipment
Combined Chamber(IPX1 X2 X3 X4 X5 X6) Multi-level IP testing, Space-saving design	IPX7 IPX8 Water Immersion Test Equipment Deep water simulation,Long-duration immersion	IPX9K High Pressure Water Spray Test Chamber 88°C hot water jets, High-pressure spray testing	Whole Set of IP Test Equipment-No Housing Type Easy sample loading, flexable
IP5X/6X Sand and Dust Test Chamber Controlled dust circulation, IEC 60529 compliance	MIL-STD-810  Sand and Dust Test Chamber Harsh dust simulation, Defense and aerospace testing	MIL-STD-810 Rain Test Chamber Harsh water simulation, Defense and aerospace testing	IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber 1 mm/min drip test, ±60° /180° swing

IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber vs. No Housing IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber: How to Choose

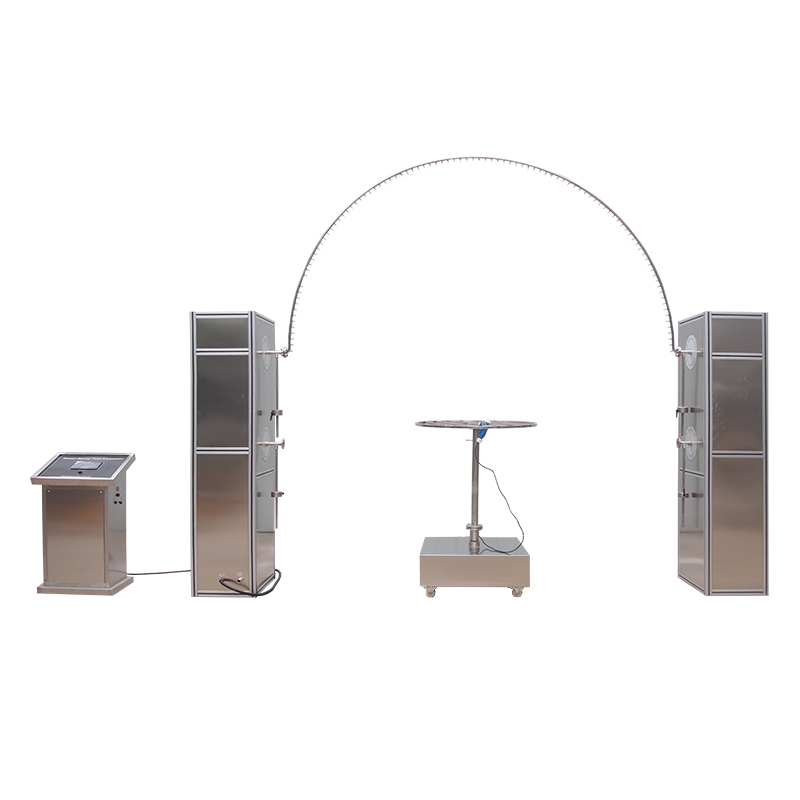

Some labs only need the water spray system itself, without a full enclosure, especially when testing is done inside an existing room or integrated into a larger production line. Here is how the two configurations compare.

For most labs, the standard enclosed equipment is the safer choice because it keeps water contained and controls humidity around the sample. The no-housing version fits research institutions or production sites that already have a dedicated wet-testing room and only need the spray mechanism itself.

FAQs on the IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber

Q1: What standards does the equipment meet?

It complies with IEC 60529, EN 60529, IEC 60068-2-18, ISO 20653, DIN 40050-9, JIS C 0920, AS 60529, and NEMA 250.

Q2: Can the equipment be customized for larger samples?
Yes. The turntable is height adjustable and supports up to 50 kg by default, with custom sizing available for larger or irregular samples.

Q3: How is the equipment shipped internationally?
LIB Industry arranges sea or air freight depending on the model size, provides full export documentation, and coordinates with local agents in 60+ countries for delivery and installation support.

Q4: What after-sales service is included?
Every unit comes with a 3-year warranty, lifetime technical support, and 24/7 assistance, along with optional on-site training for new operators.

Q5: How long does delivery take after order confirmation?
Standard models such as the R-800C typically ship within 4 to 6 weeks, while customized configurations may take longer depending on specifications.

Contact LIB Industry for Your IPX1–IPX4 Water Spray Test Chamber Needs

If you're in the market for reliable water ingress testing equipment, whether you need an IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber for drip and oscillating spray testing, a Combined Chamber (IPX1 X2 X3 X4 X5 X6) for multiple IP protection levels, an IPX7 IPX8 Water Immersion Test Equipment for immersion testing, or an IPX9K High Pressure Water Spray Test Chamber for high-temperature, high-pressure water exposure, don't hesitate to reach out.

LIB Industry can help you select the right configuration based on your target standards, sample size, turntable load, chamber dimensions, testing requirements, and laboratory space. With customizable equipment, a 3-year warranty, lifetime technical support, and after-sales assistance, we're ready to provide a practical water ingress testing solution for your laboratory.

References

LIB Industry Technical Team, Technical information, testing methods, product specifications, and application guidance for IPX1–IPX4 water spray test chambers and related IP testing equipment.
