A watch that survives a rainy jog can still fail when a garden hose hits it. A car light that shrugs off drizzle can leak after one
pressure wash. The gap between these two cases is the gap between IPX5 and IPX6, and it is bigger than one digit suggests: IPX6 pushes eight times more water per minute at your product.
A real-world example comes from Eagerton, a U.S. electronics customer Bob using LIB Industry's water jet test equipment. During a recent follow-up, the customer shared this feedback:“The chamber is working very well. I have had no issues with it so far. Thank you for reaching out.”
This article explains howIPX5 and IPX6 Water Jet Test Chambers differ under IEC 60529, how to choose the right one, where they are used, and how Apple and Standard Bank put LIB Industry equipment to work.
Both ratings test protection against water jets, so the setup looks alike: a nozzle, a fixed distance, and a rotating specimen. The difference is the size of the nozzle and the force of the water. IPX5 is a strong jet, like a garden hose. IPX6 is a powerful jet, like a ship deck wash. A product that passes IPX6 is generally built to a tougher seal standard than one that passes IPX5. Note that passing a higher level does not automatically cover lower water tests such as immersion, so always check the standard.
| Item | IPX5 | IPX6 | IPX6K |
|---|---|---|---|
 | |||
| Standard | IEC 60529 | IEC 60529 | ISO 20653 |
| Nozzle inner diameter | 6.3 mm | 12.5 mm | 6.3 mm |
| Water flow rate | 12.5 L/min ±5% | 100 L/min ±5% | 75 L/min ±5% |
| Water pressure | About 30 kPa at 3 m | About 100 kPa at 3 m | 1000 kPa at the nozzle |
| Spray distance | 2.5 to 3 m | 2.5 to 3 m | 2.5 to 3 m |
| Jet core size | 40 mm at 2.5 m | 40 mm at 2.5 m | Per ISO 20653 |
| Test time | 1 min per m², minimum 3 min | 1 min per m², minimum 3 min | 1 min per m², minimum 3 min |
How to choose: pick IPX5 for indoor and light outdoor products such as housings, switches, consumer electronics, and speakers. Pick IPX6 for outdoor lighting, control cabinets, and parts that face heavy rain or washdowns. Choose IPX6K when automotive standards such as ISO 20653 apply. If your lab serves several customers, one IPX5 IPX6 Water Jet Test Chamber with both nozzles saves floor space and cost. Tell us your standard, for example IEC 60529, ISO 20653, UL 50E, or MIL-STD-810H, and LIB Industry will send a customized solution within 24 hours.

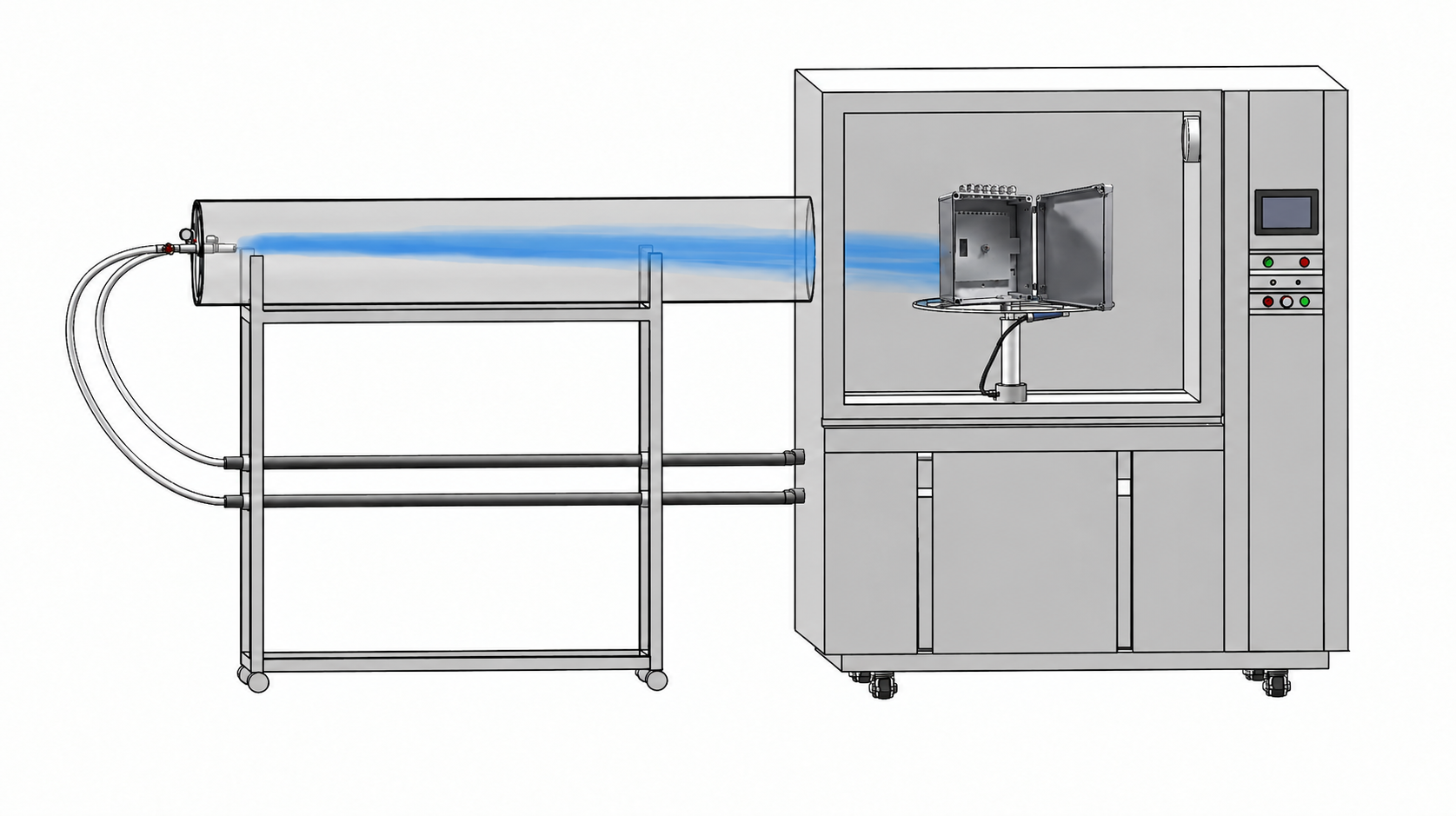

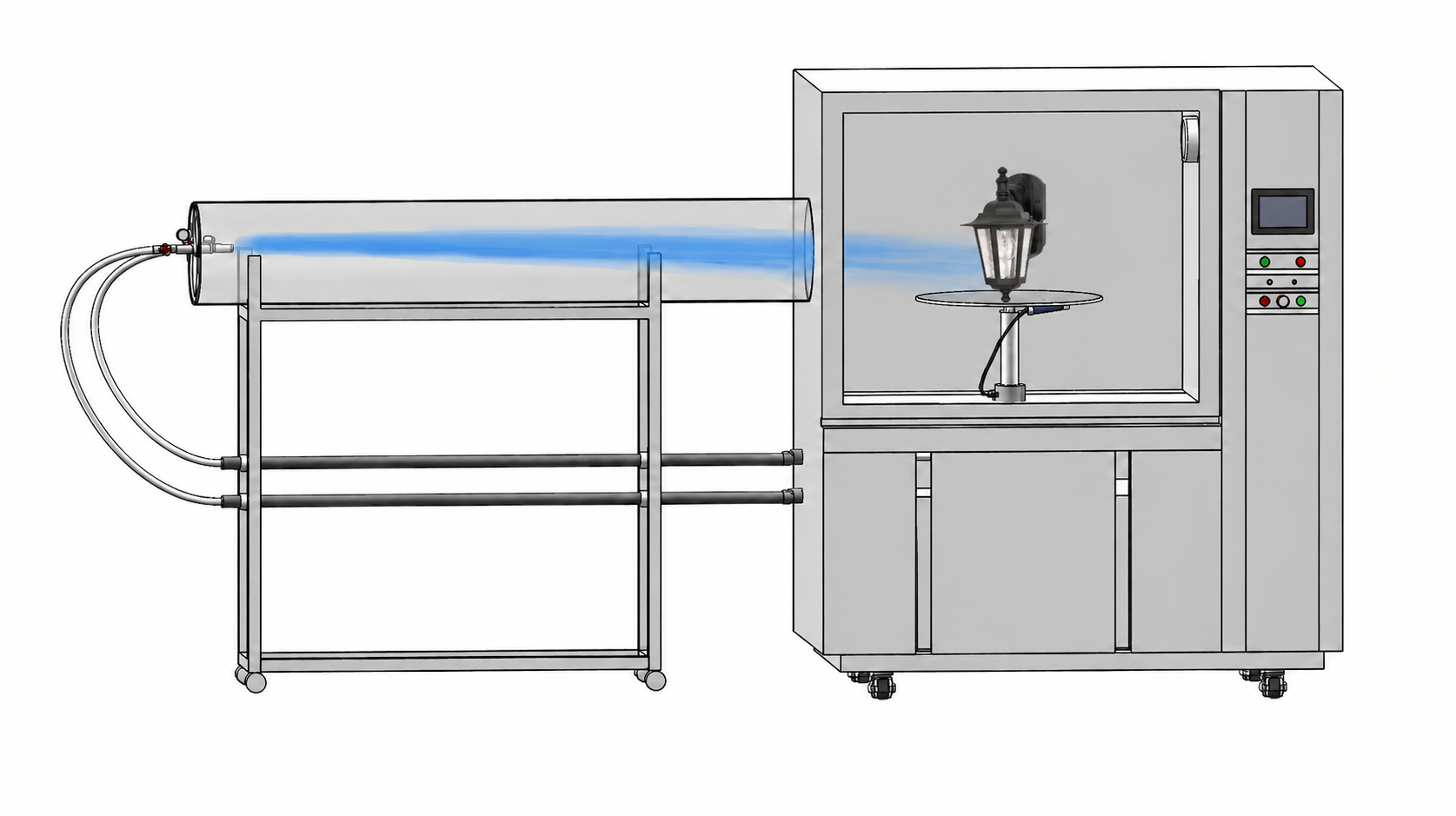

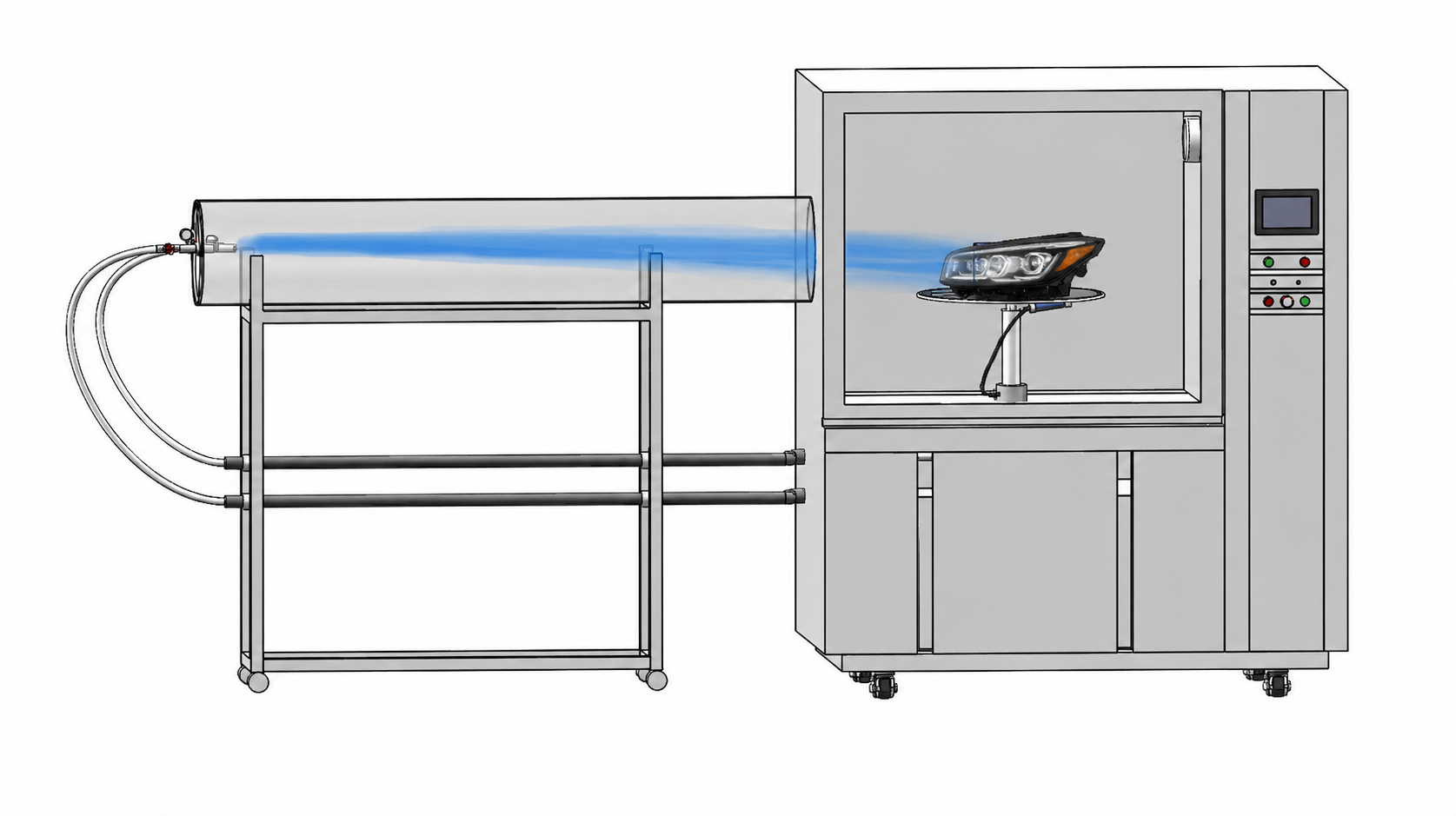

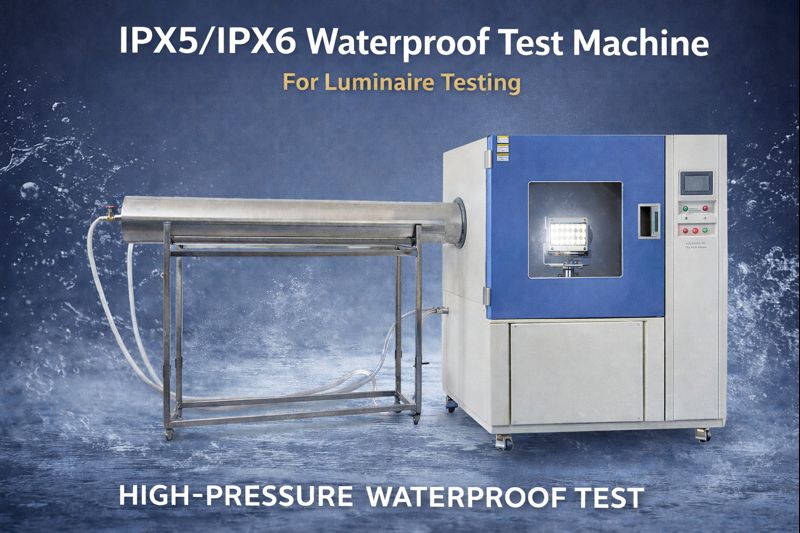

In the automotive field, they test ECUs, connectors, and lamps under ISO 20653, ISO 16750, LV 124, SAE J575, SAE J1455, JIS D 0203, JIS D 0207, and GMW16001. For electronics and electrical enclosures, they check housings, connectors, and switches under IEC 60529, UL 50E, and DIN 40050-9. Outdoor lighting makers use them to prove that lamp bodies and control cabinets keep water out under 6.3 mm and 12.5 mm nozzle jets at 2.5 to 3 m. One leak can mean corrosion, short circuits, and costly returns, so testing before launch is far cheaper than fixing field failures.
Industry | Products You Can Test | Relevant Standards |
Automotive | ECUs, connectors, and automotive lights | ISO 20653, ISO 16750, LV 124, SAE J575, SAE J1455, JIS D 0203, JIS D 0207, GMW16001 |
Electronics & Electrical Enclosures | Enclosures, housings, connectors, switches, and consumer electronics | IEC 60529 (IPX5 / IPX6), UL 50E, DIN 40050-9 |

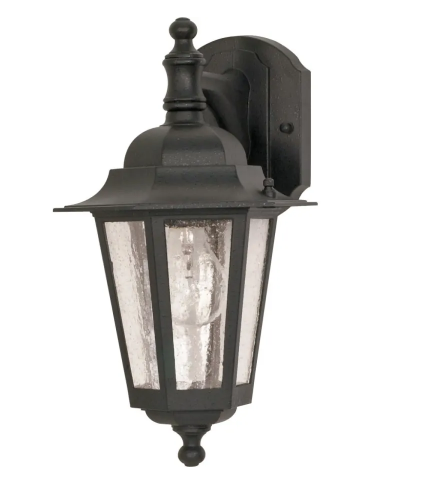

Outdoor Lightings and Equipment | Outdoor devices, lighting enclosures, and control cabinets | IEC 60529; 6.3 mm / 12.5 mm nozzles; spray distance of 2.5–3 m |

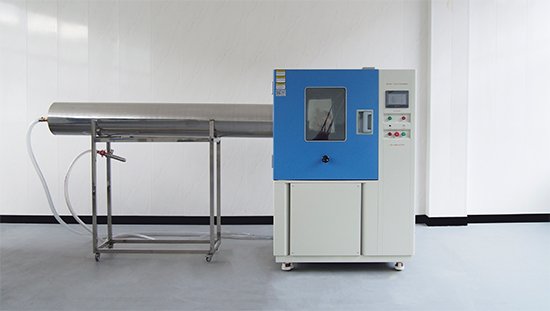

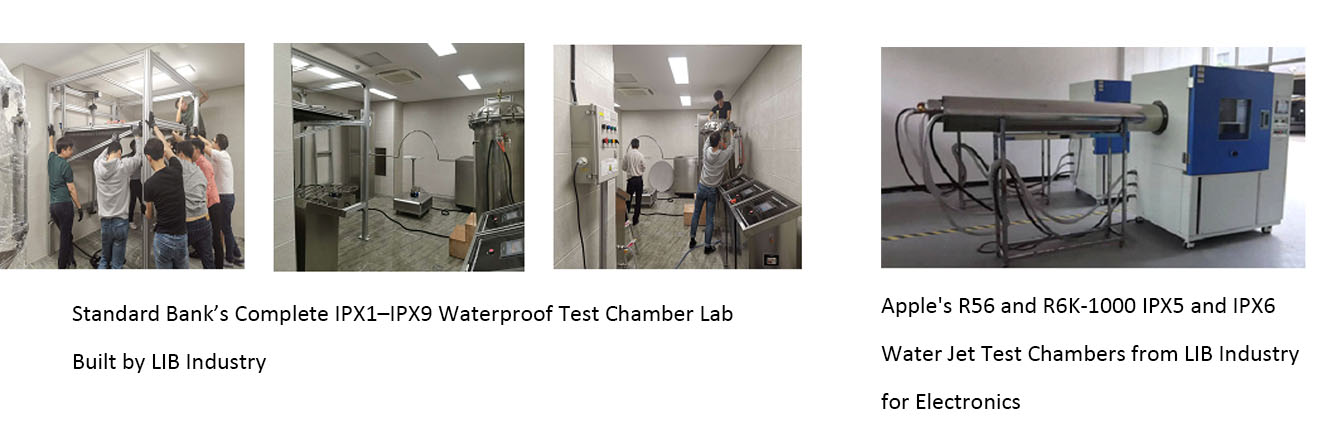

LIB Industry has made environmental test chambers since 2012. We serve customers in 60+ countries through 29 distributors and 4 overseas service centers. Every test chamber carries a 36-month warranty, plus lifetime maintenance and long-term technical support. Standard Bank in South Korea bought the R56-800 as part of an IP set with the R12-1600, R-3200, R78-600, and DI-1000. Our engineers installed it on site, and we caLIBrate its flow sensor to ISO 17025 every year. Kiwa bought the RNH-56 within an IP test set, and Apple's purchase list includes the R56 and R6K-1000.
① Stable flow. An electromagnetic flow sensor feeds a PID controller, which keeps 12.5 L/min and 100 L/min within ±5% without manual caLIBration.
② Less water, less work. Automatic filtration and refill recycle the water and allow long, unattended runs.
③ Real conditions. A power connector on the turntable lets the specimen run during the water jet, and the turntable height adjusts from 350 to 500 mm at 0 to 7 r/min.
| Name |

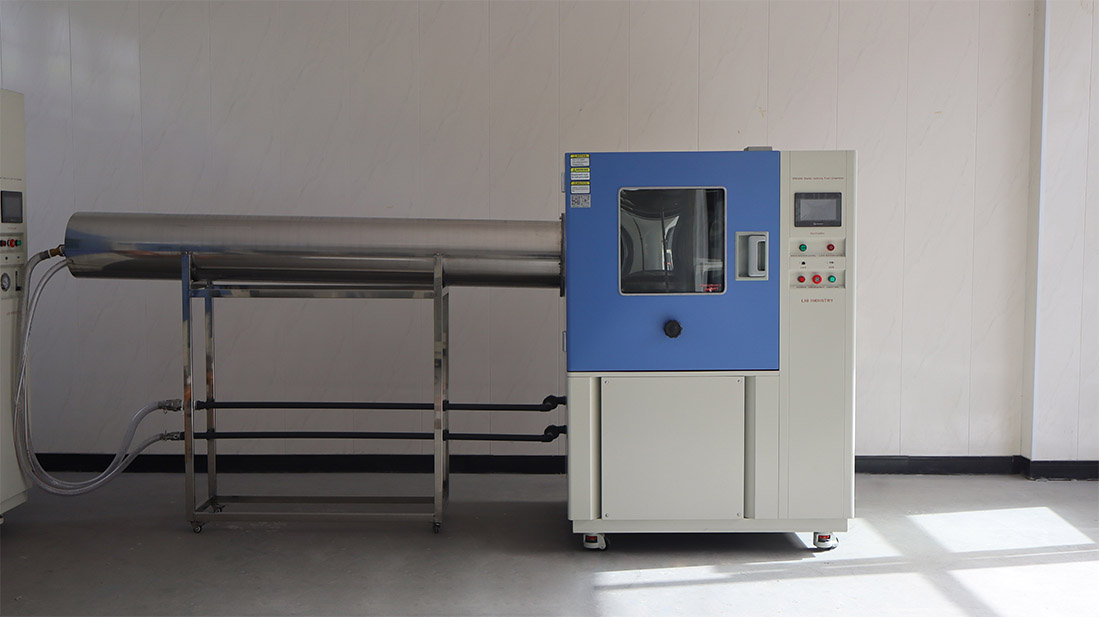

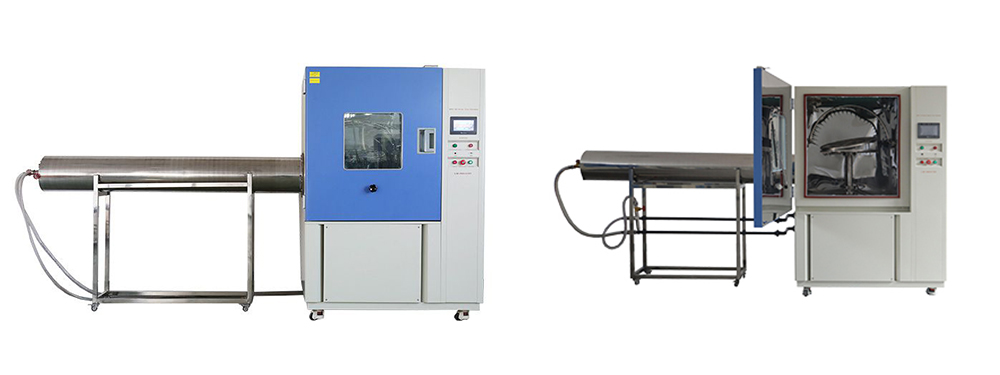

LIB Industry's IPX5 and IPX6 Water Jet Test Chamber |
| Model | R56-800 |
| Workroom dimension (mm) | 800*800*800 |
| External dimension (mm) | 950*3150*1800 |
| Interior Volume (L) | 510 |
| Diameter of Turntable (mm) | 600 |
| Turntable Rotation Speed | 0~7r/min (Adjustable) |
| Internal Diameter of IPX5 Nozzle | 6.3mm |
| Internal Diameter of IPX6 Nozzle | 12.5mm |
| Water Flow Rate IPX5/ IPX6 | 12.5L/min ±5% / 100L/min ±5% |
| Controller | Programmable color LCD touch screen controller, Ethernet connection |
| Water Supply System | Water tank, booster pump, Automatic water supply, Water purification system |
| Safety Device | Over-temperature Protection; Over-current Protection; |
| Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Observation Window | Double layer insulating glass with wiper |
| LIB Industry's popular water andenvironmental test chambers for your testing needs and purchase requirements. | |||
|  |  |  |
Combined Chamber(IPX1 X2 X3 X4 X5 X6) Multi-level IP testing, Space-saving design | IPX7 IPX8 Water Immersion Test Equipment Deep water simulation,Long-duration immersion | IPX9K High Pressure Water Spray Test Chamber 88°C hot water jets, High-pressure spray testing | Whole Set of IP Test Equipment-No Housing Type Easy sample loading, flexable |
 |  |  |  |
IP5X/6X Sand and Dust Test Chamber Controlled dust circulation, IEC 60529 compliance | MIL-STD-810 Sand and Dust Test Chamber Harsh dust simulation, Defense and aerospace testing | Harsh water simulation, Defense and aerospace testing | IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber 1 mm/min drip test, ±60° /180° swing |
1. Timeline and results. On September 5, 2019, Apple first asked LIB Industry about the R9K-1200 for waterproof testing of

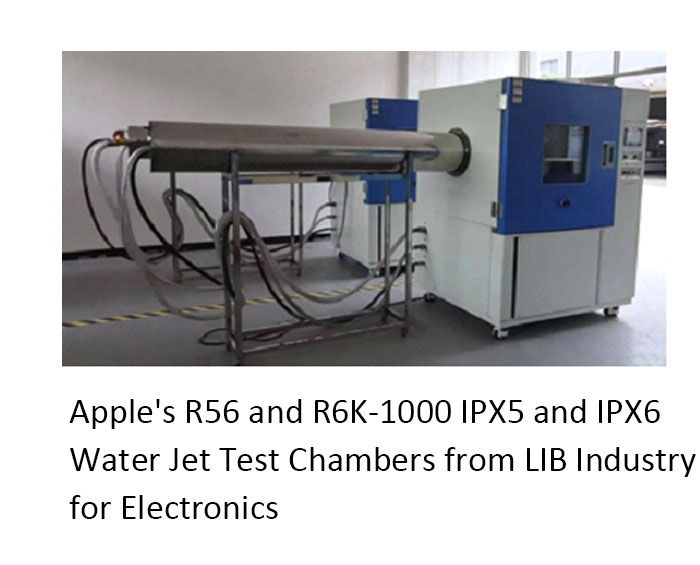

electronic products. Apple placed the order on October 6, 2019. Fast production and delivery earned good feedback. On March 9, 2022, Apple came back to ask about the IPX5/6 and IPX6K R566K-1000 IPX5 and IPX6 Water Jet Test Chambers for watches and speakers. Our aftersales team then trained Apple staff on maintenance and daily use.
2. Test method under IEC 60529. The specimen sits on the turntable, with height and angle set to the standard. For IPX5, the 6.3 mm nozzle sprays 12.5 L/min from 2.5 to 3 m. For IPX6, the 12.5 mm nozzle sprays 100 L/min from the same distance. Each side is sprayed for at least 1 min per m² and no less than 3 min in total. After the test, staff check for water ingress and function.

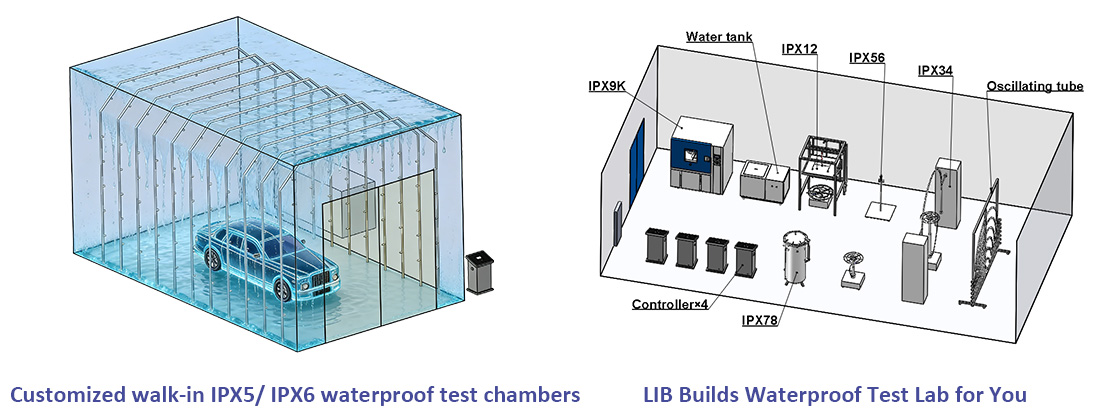

3. Customization. Apple valued how LIB Industry adjusted the test chamber to its products, from nozzle choice to size and training. We can also build double-door and walk-in test chambers for large or heavy specimens.

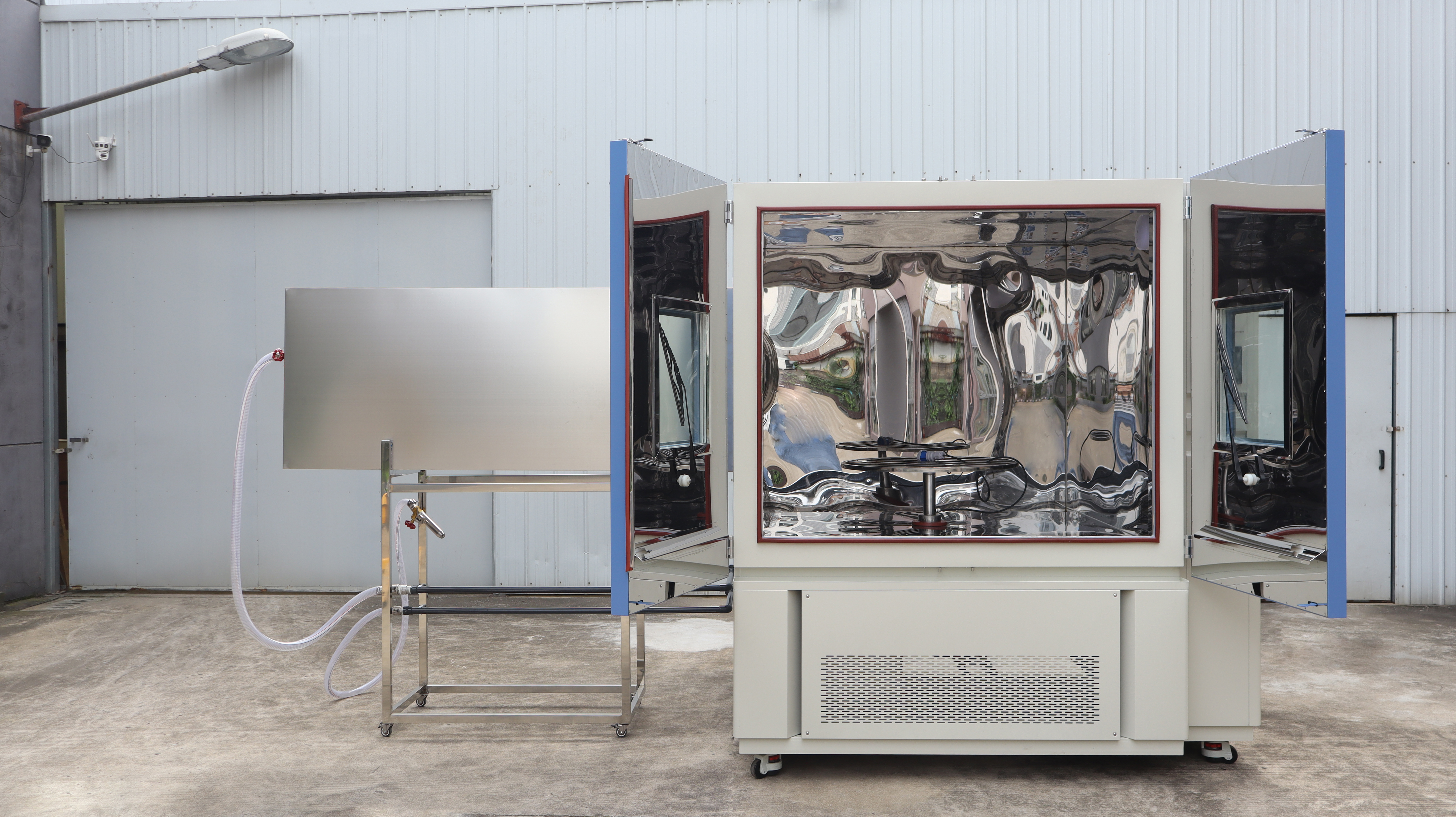

IPX5 X6 Double-door rain jet test chamber |
|
1. What is the main difference between IPX5 and IPX6?
The nozzle grows from 6.3 mm to 12.5 mm, and the flow rises from 12.5 L/min to 100 L/min.
2. Can I power the product during the test?
Yes. The optional power connector on the turntable keeps the specimen energized while it is sprayed.
3. What size does the R56-800 have?
The workroom is 800 x 800 x 800 mm, the volume is 510 L, and the turntable diameter is 600 mm. The outer size is 950 x 3150 x 1800 mm, so check your floor space first.
4. How is the test chamber shipped?
We pack each unit securely for sea or air freight and confirm the delivery time in the quotation. Apple praised our fast production and delivery.
5. What service do you provide after the sale?
You get a 36-month warranty, lifetime maintenance, on-site installation and training, and yearly ISO 17025 flow sensor caLIBration. Four overseas service centers support users worldwide.
✓ 3-year warranty and lifetime technical support for long-term equipment reliability
✓ Fast delivery in 7–15 days for selected models, helping reduce project lead times
✓ Accurate water flow control at 12.5 L/min for IPX5 and 100 L/min for IPX6, with ±5% tolerance
✓ IEC 60529-compliant testing with 6.3 mm IPX5 and 12.5 mm IPX6 nozzles
✓ Flexible customization options including adjustable turntables, powered specimen testing, double-door chambers, and walk-in systems
✓ Efficient water management with automatic water supply, filtration, and circulation systems
Whether you test automotive lights, electronic enclosures, connectors, switches, or outdoor equipment, LIB Industry provides reliable water jet testing solutions to help evaluate water ingress protection and product durability.
