Which MIL-STD-810 test methods are supported by a MIL STD 810 Blowing Rain Environmental Test Chamber?

For manufacturers serving defense, aerospace, automotive, electronics, and industrial markets, environmental testing according to MIL-STD-810 has become an essential part of product qualification. A properly designed MIL STD 810 Blowing Rain Environmental Test Chamber allows engineers to reproduce real-world rain conditions inside the laboratory before products enter service.

This article explains which MIL-STD-810 test methods are supported by a MIL STD 810 Blowing Rain Environmental Test Chamber, how these methods are applied across different industries, why customers in Saudi Arabia selected LIB equipment, and how to choose between a MIL STD 810 Blowing Rain Environmental Test Chamber and a MIL STD 810 Blowing Dust Environmental Test Chamber.

Which Test Methods Are Supported by a MIL STD 810 Blowing Rain Environmental Test Chamber?

MIL-STD-810H Method 506.7 defines multiple rain-related procedures designed to evaluate equipment exposed to water intrusion, wind-driven rain, and dripping water. LIB's MIL STD 810 Blowing Rain Environmental Test Chamber supports all major procedures specified in Method 506.7 while also meeting environmental testing requirements used throughout defense, automotive, aerospace, electronics, and industrial sectors.

Procedure I – Rain and Blowing Rain Test

Procedure I is the most widely used rain test within MIL-STD-810H Method 506.7. It evaluates products exposed directly to outdoor weather conditions.

According to the standard, the chamber must generate rainfall with droplet diameters predominantly between 500 μm and 4500 μm while maintaining wind speeds of at least 18 m/s. Rainfall exposure typically lasts a minimum of 30 minutes per test surface. The test item temperature should be maintained at least 10°C higher than the rainwater temperature before exposure begins.

Typical products tested include: Military radios, Surveillance cameras, Outdoor communication equipment, Vehicle electronic control units, Aerospace connectors, Ruggedized computers

The LIB MIL STD 810 Blowing Rain Environmental Test Chamber accurately reproduces these conditions using calibrated spray nozzles, high-capacity circulation fans, and programmable wind-speed control systems.

Procedure II – Exaggerated Rain Test

Procedure II is designed to evaluate enclosure sealing performance under severe water spray conditions.

MIL-STD-810H specifies nozzle pressures of approximately 276 kPa, with overlapping spray patterns covering the entire test surface. Water is sprayed for at least 40 minutes per exposed face to identify leakage paths and sealing weaknesses.

This procedure is commonly used for: Military shelters, Tactical vehicle enclosures, Outdoor battery systems, Electrical cabinets, Radar housings, Renewable energy equipment.

Procedure III – Drip Test

Procedure III simulates water dripping from ceilings, aircraft structures, shelters, and overhead surfaces.

The standard requires water flow rates exceeding 280 L/m²/hr, with drip heights not less than 1 meter above the test specimen. Exposure duration is generally 15 minutes or longer depending on operational requirements.

Typical applications include: Avionics equipment, Aircraft electronics, Defense shelters, Portable military devices, Indoor communication systems, Medical equipment.

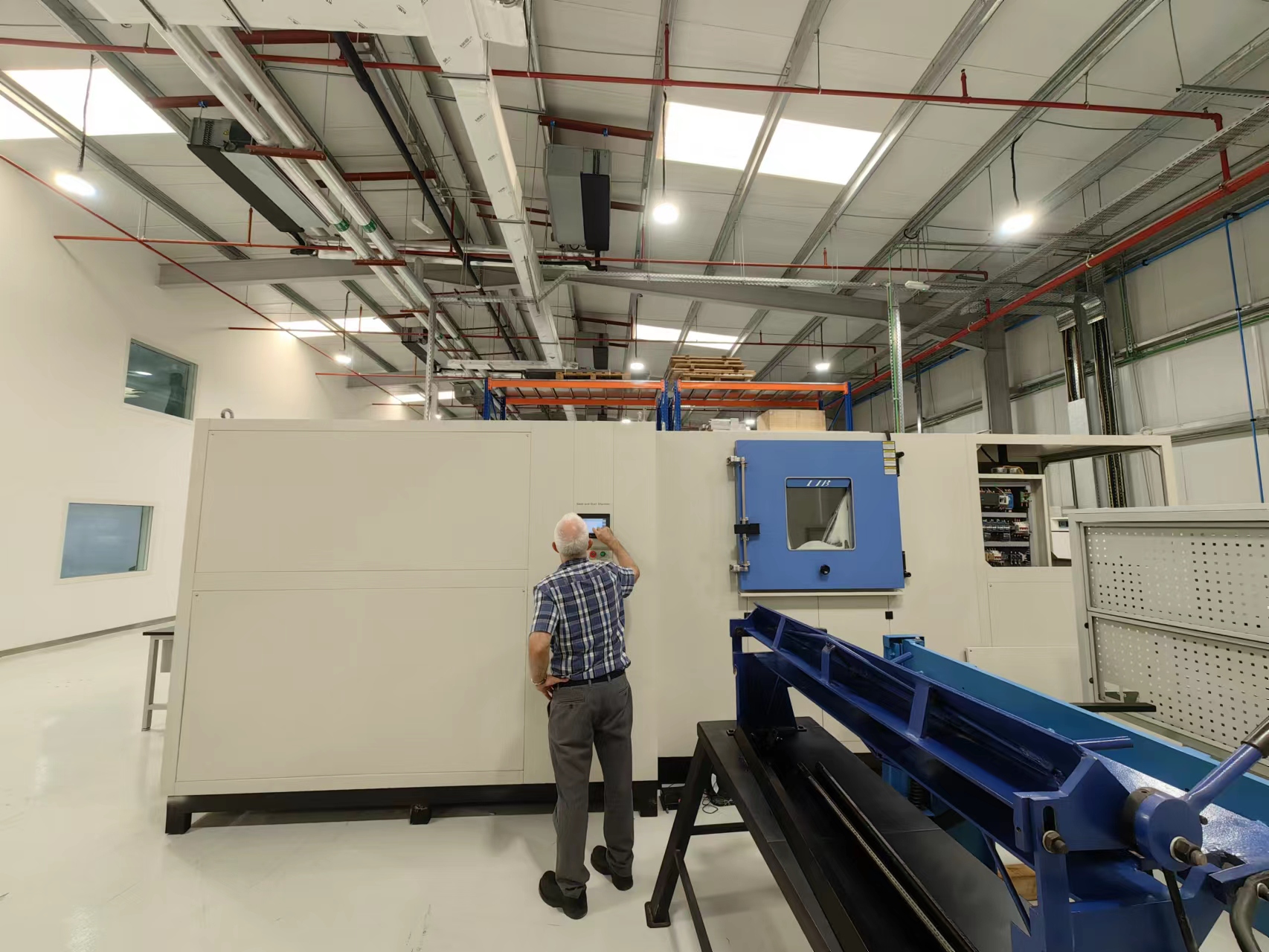

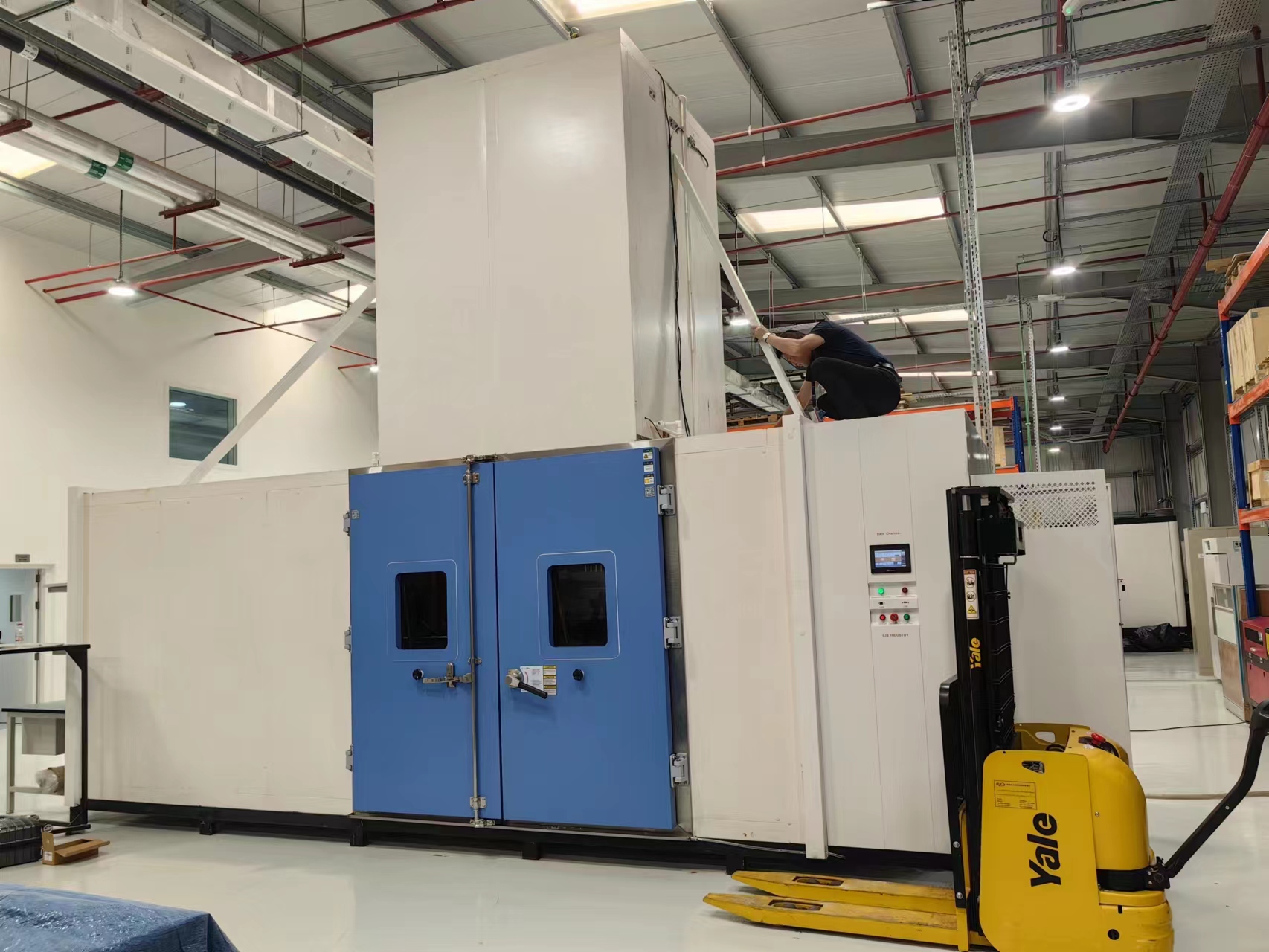

Saudi Arabian Customer Purchased Two LIB MIL-STD-810 Environmental Chambers

A customer in Saudi Arabia recently purchased two environmental chambers from

LIB:

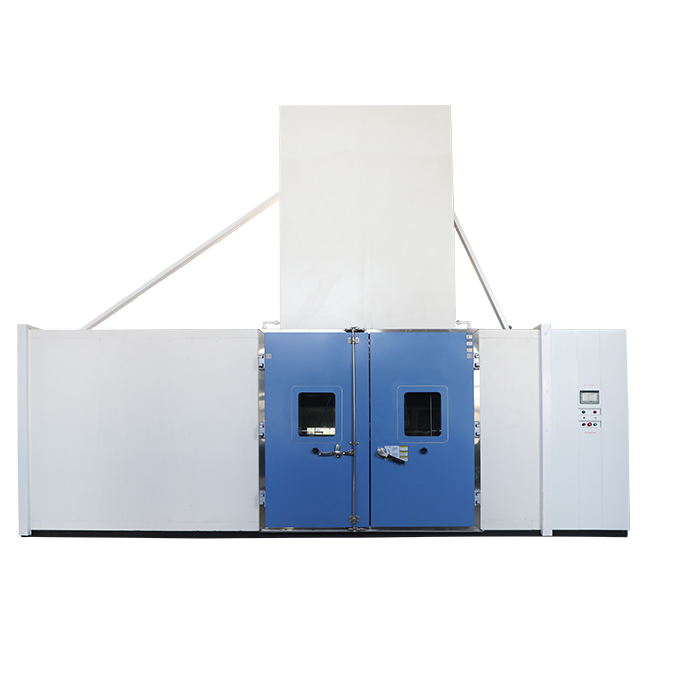

1. MIL STD 810 Blowing Rain Environmental Test Chamber

2. MIL STD 810 Blowing Dust Environmental Test Chamber

The equipment are used for environmental reliability verification of outdoor electronic products, vehicle systems, sensors, communication equipment, and military-support components operating under harsh desert conditions.

After installation and commissioning, the customer reported excellent performance and repeatability from both systems.

Why the Customer Chose LIB

Easy Sample Loading and Unloading

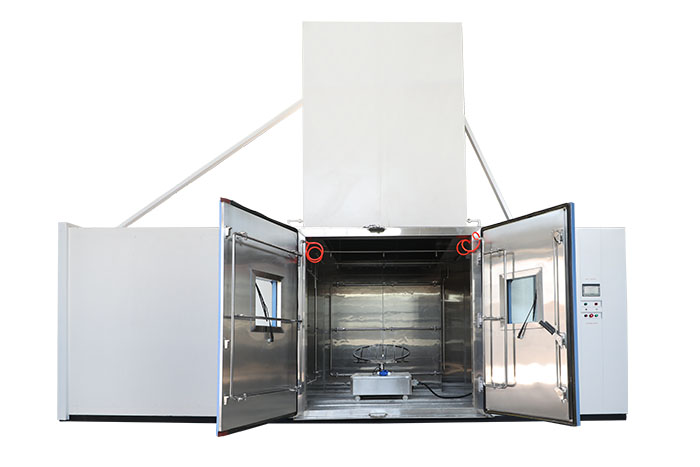

Large-access doors, rotating platforms, and ergonomic chamber layouts allow operators to quickly position heavy test specimens while reducing setup time.

Stable Environmental Control

The chamber maintains stable operating conditions throughout long-duration tests. Wind speed, rainfall intensity, temperature, and humidity are continuously monitored and controlled through intelligent PID regulation.

Enhanced Safety Protection

Safety is critical during long-duration environmental qualification testing. The LIB MIL STD 810 Environmental Test Chambers incorporate multiple protection systems to ensure both operator safety and equipment reliability. Features such as electromagnetic safety door locks prevent accidental opening during testing, while over-temperature protection continuously monitors chamber conditions to avoid overheating. Water shortage protection safeguards spray and humidity systems, and leakage current monitoring reduces electrical risks during operation. An integrated emergency stop system allows operators to immediately halt testing whenever necessary. Together, these safety features help maintain stable chamber operation, protect valuable test specimens, and support safe, uninterrupted testing in accordance with MIL-STD-810 environmental validation requirements.

International Compliance

LIB chambers comply with major international requirements, including: CE Certificatio, IEC Electrical Safety Requirements, CSA Safety Standards.

Excellent Cost Performance

Compared with many imported systems, LIB provides equivalent testing capability, full customization support, shorter lead times, and significantly lower ownership costs while maintaining high reliability.

The customer successfully completed both blowing rain and blowing dust qualification programs and expressed strong satisfaction with overall equipment performance.

MIL STD 810 Blowing Rain Environmental Test Chamber vs. MIL STD 810 Blowing Dust Environmental Test Chamber

How to Choose

Choose the MIL STD 810 Blowing Rain Environmental Test Chamber if your products must withstand rainstorms, tropical climates, coastal environments, or water ingress risks.

Choose the MIL STD 810 Blowing Dust Environmental Test Chamber if your products operate in deserts, mining sites, construction environments, or regions with airborne dust and sand.

For military, aerospace, and automotive products exposed to both weather conditions, many manufacturers purchase both chambers to achieve complete MIL-STD-810 environmental qualification.

LIB Popular Dust and Water Test Equipment
Combined Chamber(IPX1 X2 X3 X4 X5 X6) Multi-level IP testing, Space-saving design	IPX7 IPX8 Water Immersion Test Equipment Deep water simulation,Long-duration immersion	IPX9K High Pressure Water Spray Test Chamber 88°C hot water jets, High-pressure spray testing	Whole Set of IP Test Equipment-No Housing Type Easy sample loading, flexable
IP5X/6X Sand and Dust Test Chamber Controlled dust circulation, IEC 60529 compliance	MIL-STD-810  Sand and Dust Test Chamber Harsh dust simulation, Defense and aerospace testing	MIL-STD-810 Rain Test Chamber Harsh water simulation, Defense and aerospace testing

FAQs on the MIL STD 810 Blowing Rain Environmental Test Chamber

Q1: Does the chamber fully comply with MIL-STD-810H Method 506.7?

Yes. LIB chambers support Procedure I (Rain and Blowing Rain), Procedure II (Exaggerated Rain), and Procedure III (Drip Test) according to MIL-STD-810H Method 506.7 requirements.

Q2: Can the chamber perform temperature and humidity conditioning before rain testing?

Yes. Optional pre-conditioning systems can simulate temperature ranges from -70°C to +150°C and humidity levels from 10% RH to 98% RH before rain exposure begins.

Q3: How long is the delivery time?

Standard models are typically delivered within 15–25 working days. Customized projects may require additional production time depending on chamber size and configuration.

Q4: Is overseas installation service available?

Yes. LIB provides remote commissioning, online training, operation manuals, video guidance, and on-site installation support when required.

Q5: What warranty does LIB provide?

All LIB environmental chambers include a 3-year warranty, lifetime technical support, spare parts assistance, and 24/7 English-language service.

Q6: How is equipment transported internationally?

The chamber is packed in reinforced export-grade wooden crates with moisture protection. Sea freight, air freight, railway transportation, and door-to-door logistics services are available worldwide.

Whether you need to verify waterproof performance according to MIL-STD-810H Method 506.7 or develop a complete environmental qualification program combining rain, dust, temperature, and humidity testing, LIB Industry can provide customized solutions tailored to your products, standards, and laboratory requirements.

Contact LIB Industry to learn more about our MIL STD 810 Blowing Rain Environmental Test Chamber and complete MIL-STD-810 environmental testing solutions.
