Automotive components operate in some of the harshest environments imaginable. Road dust, desert sand,
construction debris, and airborne particles continuously challenge the durability of sensors, ECUs, connectors, lighting systems, battery enclosures, and charging equipment. Even a small amount of dust intrusion can cause electrical failure, corrosion, signal interruption, or reduced service life.
This article explains how LIB IP6X IP5X Ingress Test Chamber Dust Test Machine complies with international standards for automotive testing, why a Thailand customer selected LIB equipment for product performance verification, how it compares with a MIL-STD-810H Blowing Sand and Dust Test Chamber, and how to choose the right solution for your testing requirements.
IEC 60529 is the most widely recognized standard for ingress protection testing. It defines IP5X as dust-
protected, where limited dust ingress is permitted without affecting operation, and IP6X as dust-tight, where no dust penetration is allowed after testing.

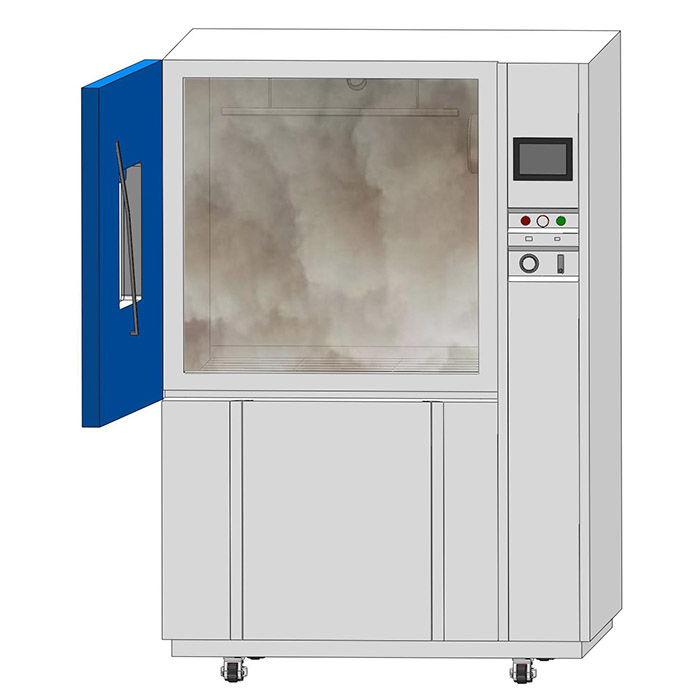

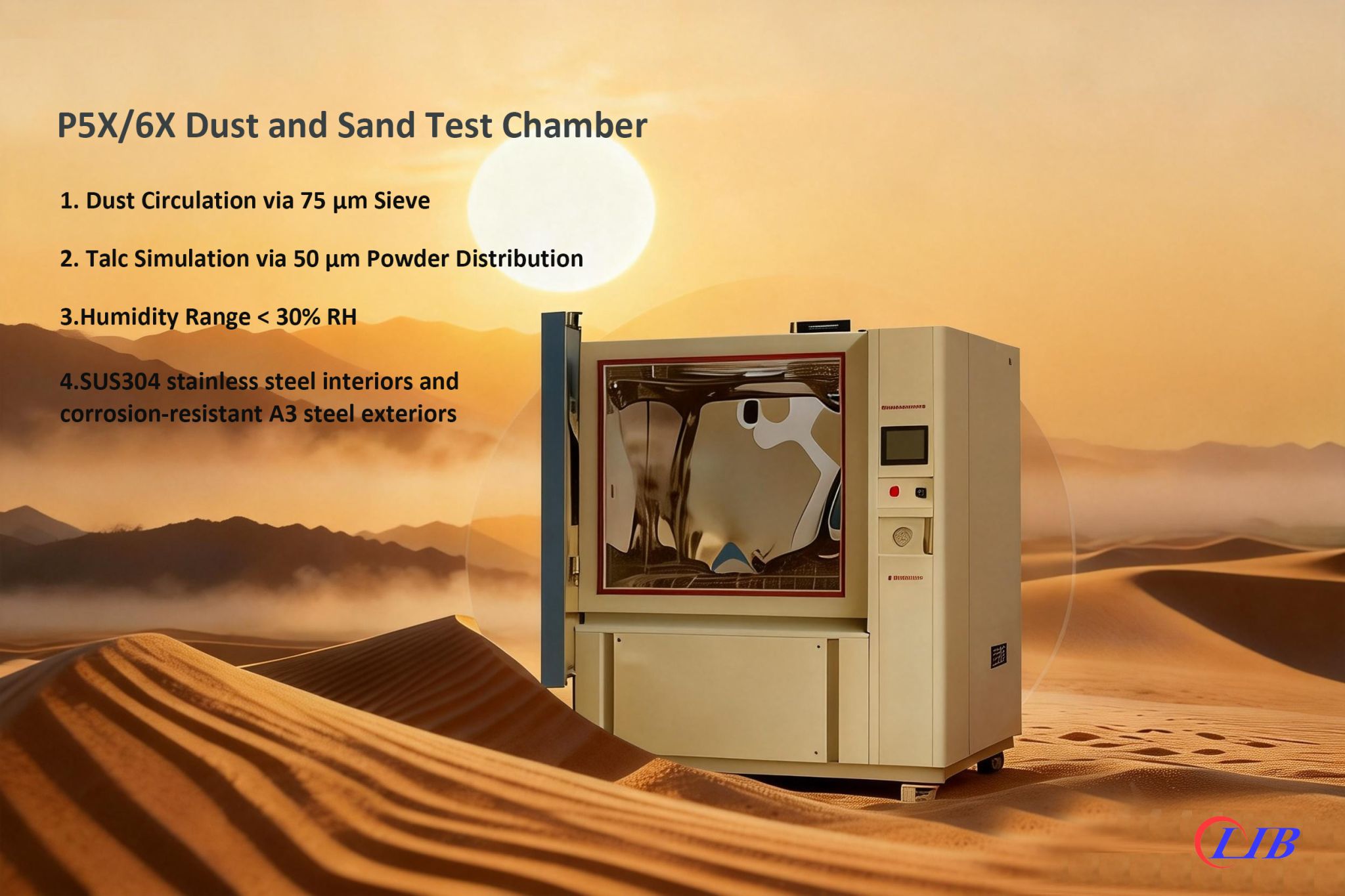

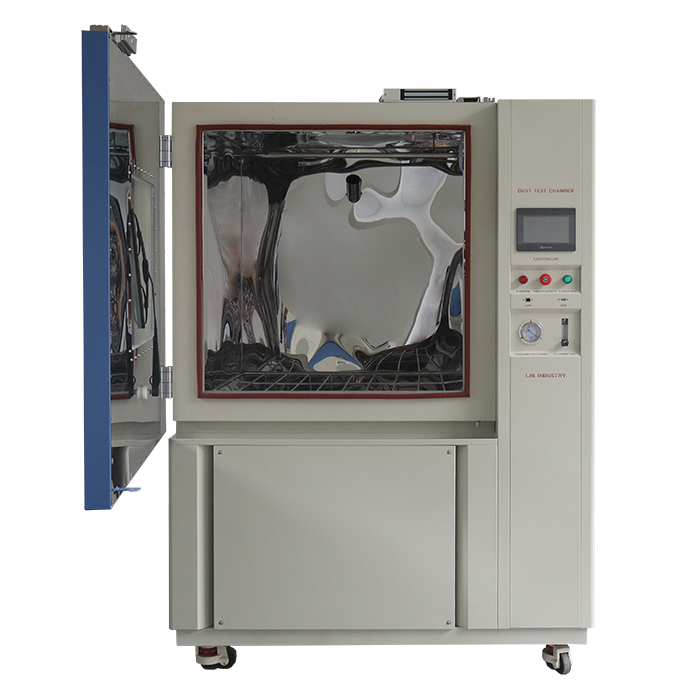

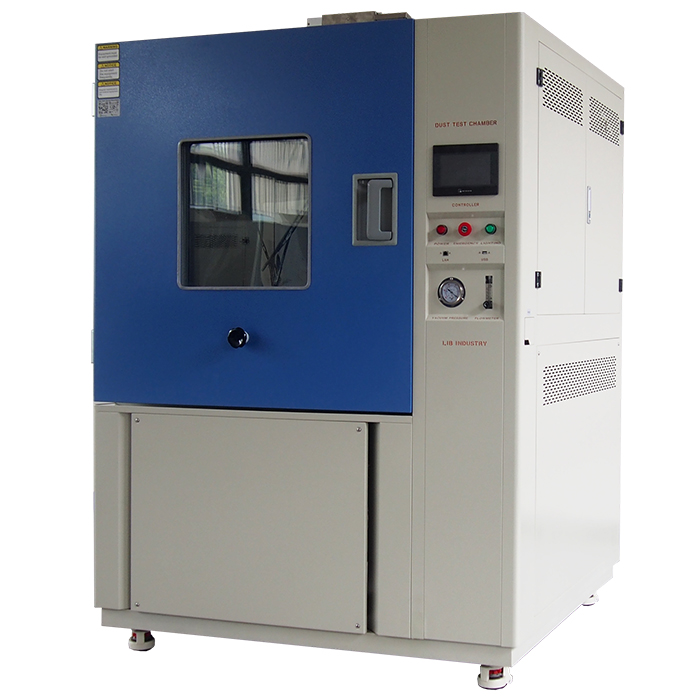

The LIB IP6X IP5X Ingress Test Chamber Dust Test Machine reproduces standardized dust environments using talcum powder with a nominal particle size of 50 μm and a dust concentration of 2–4 kg/m³. Vacuum testing can also be applied to evaluate enclosure sealing performance under negative pressure conditions. These capabilities make it suitable for testing automotive sensors, ECUs, LED lighting, charging systems, and electrical connectors.
ISO 20653 specifically addresses ingress protection requirements for road vehicles and automotive electrical
equipment. The standard verifies that automotive components maintain functionality when exposed to dust and environmental contaminants during normal vehicle operation.
LIB's IP6X IP5X Ingress Test Chamber Dust Test Machine fully supports ISO 20653 testing requirements through controlled dust circulation, adjustable airflow, programmable test cycles, and repeatable test conditions. Industries that benefit include automotive manufacturing, EV battery systems, vehicle electronics, automotive lighting, and transportation equipment suppliers.
IEC 60068-2-68 provides environmental dust testing procedures for electrical and electronic equipment, while MIL-STD-810H Method 510 evaluates equipment exposed to blowing dust and blowing sand conditions.
The LIB equipment can simulate fine dust environments required by IEC 60068-2-68 while maintaining temperatures up to +50°C. It is widely used in electronics, telecommunications, industrial control systems, aerospace components, military electronics, and automotive product development laboratories where reliable and repeatable dust testing is required.

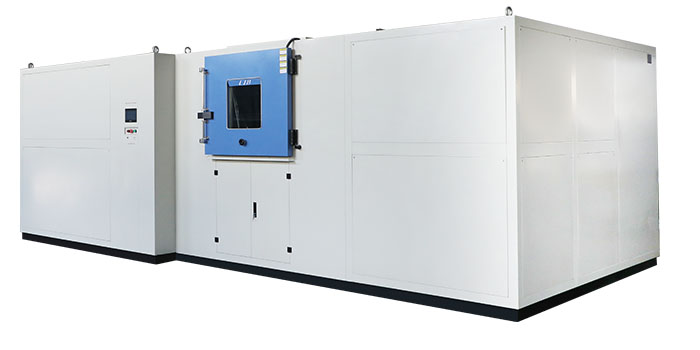

A customer in Thailand selected a customized 2000L LIB IP6X IP5X Ingress Test Chamber Dust Test Machine to
evaluate the dust resistance performance of automotive and industrial products. After installation and operation, the customer expressed satisfaction with the chamber's testing performance, operational convenience, and compliance capabilities.
Several factors contributed to their positive experience:
The customer required a larger workspace than standard models. LIB customized a 2000L chamber while maintaining full compliance with IEC 60529, ISO 20653, and IEC 60068-2-68 requirements. Although only the chamber size was customized, additional functions such as airflow systems, control software, vacuum systems, viewing windows, and specimen holders can also be customized when required.

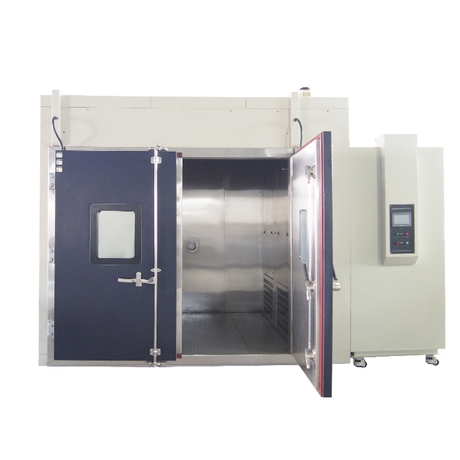

The spacious workroom design allows operators to easily place and remove large automotive components, reducing setup time and improving testing efficiency. Adjustable specimen holders accommodate different product sizes and weights.
The equipment complies with CE, IEC, and CSA electrical safety requirements. Multiple protection systems include:
Over-temperature protection
Leakage protection
Over-current protection
Phase sequence protection
Electromagnetic door lock protection
These features ensure both operator safety and test integrity throughout long-duration testing cycles.
The integrated vacuum system enables testing of sealed enclosures under negative pressure conditions, a critical requirement for many automotive electronic components. This helps manufacturers accurately evaluate sealing performance according to IP6X requirements.
Compared with purchasing separate dust testing systems and customized solutions from multiple suppliers, the LIB chamber provides comprehensive functionality, reliable operation, and lower long-term ownership costs.
Although both chambers evaluate dust resistance, their applications and test methods differ significantly.
| Item |
|
MIL-STD-810H Blowing Sand and Dust Test Chamber |
|---|---|---|
| Main Standard | IEC 60529, ISO 20653 | MIL-STD-810H Method 510 |
| Test Purpose | Dust ingress protection | Dust and sand environmental durability |
| Dust Type | Talcum powder | Dust and silica sand |
| Particle Size | 50 μm nominal | Up to 150 μm or larger |
| Vacuum Test | Yes | No |
| Dust Concentration | 2–4 kg/m³ | Controlled airflow exposure |
| Air Velocity | Low circulation airflow | High-speed blowing airflow |
| Automotive Applications | ECUs, connectors, sensors, lighting | External equipment and military vehicles |
| Pass Criteria | Dust ingress protection level | Functional performance after exposure |
| Typical Industries | Electronics, automotive, telecom | Military, aerospace, defense |
Choose the IP6X IP5X Ingress Test Chamber Dust Test Machine when:
| Choose a MIL-STD-810H Blowing Sand and Dust Chamber when:
|
| LIB Popular Dust and Water Test Equipment | |||
|  |  |  |
Combined Chamber(IPX1 X2 X3 X4 X5 X6) Multi-level IP testing, Space-saving design | IPX7 IPX8 Water Immersion Test Equipment Deep water simulation,Long-duration immersion | IPX9K High Pressure Water Spray Test Chamber 88°C hot water jets, High-pressure spray testing | Whole Set of IP Test Equipment-No Housing Type Easy sample loading, flexable |
 |  |  | |
IP5X/6X Sand and Dust Test Chamber Controlled dust circulation, IEC 60529 compliance | MIL-STD-810 Sand and Dust Test Chamber Harsh dust simulation, Defense and aerospace testing | Harsh water simulation, Defense and aerospace testing | |
Automotive sensors, ECUs, connectors, LED lamps, battery enclosures, charging systems, control modules, and electrical assemblies can all be tested according to IEC 60529 and ISO 20653 requirements.
Yes. The programmable control system allows operators to configure test parameters according to both IP5X and IP6X procedures.
Yes. The chamber includes a vacuum system that simulates pressure differences across sealed enclosures, supporting IP6X dust-tightness verification.
Standard models are typically delivered within 7–15 days. Customized configurations may require additional production time depending on project requirements.
No. The equipment arrives largely assembled. LIB provides installation guidance, operation training, remote technical support, and after-sales assistance.
Yes. Capacity, dimensions, airflow systems, vacuum functions, controllers, specimen holders, access ports, and software functions can all be customized.
Reliable dust protection testing is essential for automotive component durability and certification. LIB's IP6X IP5X Ingress Test Chamber Dust Test Machine provides accurate, repeatable, and standards-compliant testing that helps manufacturers improve product quality and accelerate market approval.
Contact LIB Industry to explore customized solutions and enhance your automotive dust testing capabilities.
