Modern laboratories face a common challenge: how to perform accurate environmental testing without sacrificing valuable workspace. Large environmental chambers provide high capacity, but they often occupy significant floor space, generate considerable noise, and make sample handling less convenient.
This article explains how to select the right Small Laboratory Benchtop Environmental Test Chamber, compares benchtop and reach-in chambers, and highlights why leading electronics manufacturers trust LIB equipment for reliable temperature and humidity testing according to international standards such as IEC 60068, IEC 60529, CE, CSA, and ISO requirements.
Many electronic products must operate reliably in cold environments. LIB's Small Laboratory Benchtop Environmental Test Chamber is available in multiple temperature configurations:
① Model A: -20°C to +150°C
② Model B: -40°C to +150°C
③ Model C: -70°C to +150°C
④ Model D: -86°C to +150°C
Available chamber volumes include:
① 50 L
② 80 L
③Custom laboratory sizes
The refrigeration system combines high-efficiency compressors, evaporators, and intelligent PID control algorithms to achieve stable low-temperature conditions. This makes the chamber suitable for testing electronic components, batteries, sensors, connectors, semiconductors, and communication devices according to IEC 60068 Test requirements.
Electronic devices often experience elevated temperatures during operation, transportation, and storage. LIB
chambers provide stable heating up to +150°C with a heating rate of approximately 3°C/min.
The chamber uses electric heaters combined with PT100 Class A sensors featuring measurement accuracy up to 0.001°C. Temperature fluctuation is controlled within ±0.5°C and temperature deviation within ±2.0°C.
These conditions support:PCB reliability testing, solder joint evaluation, semiconductor verification, cable aging studies, electronic component qualification.
Many laboratories perform testing according to IEC 60068-2-2 Dry Heat Test standards to verify product performance under elevated temperatures.
Real-world environments rarely involve temperature alone. Moisture can significantly affect electronic reliability.
LIB equipment provide:
① Humidity range: 20% RH to 98% RH
② Humidity deviation: ±2.5% RH
③ Temperature range: up to -86°C to +150°C
The humidification system precisely controls moisture levels while maintaining stable chamber conditions. This allows engineers to simulate tropical climates, storage environments, transportation conditions, and accelerated aging tests according to IEC 60068-2-30 Damp Heat Cyclic and IEC 60068-2-78 Damp Heat Steady State standards.
For this reason, Small Laboratory Benchtop Environmental Test Chambers are widely used in: consumer electronics, semiconductors, automotive electronics, telecommunications, sensors and IoT devices, research laboratories, universities, and medical electronics.
Environmental testing directly affects product reliability. Electronics manufacturers require accurate, repeatable,
and safe testing systems before products enter mass production.

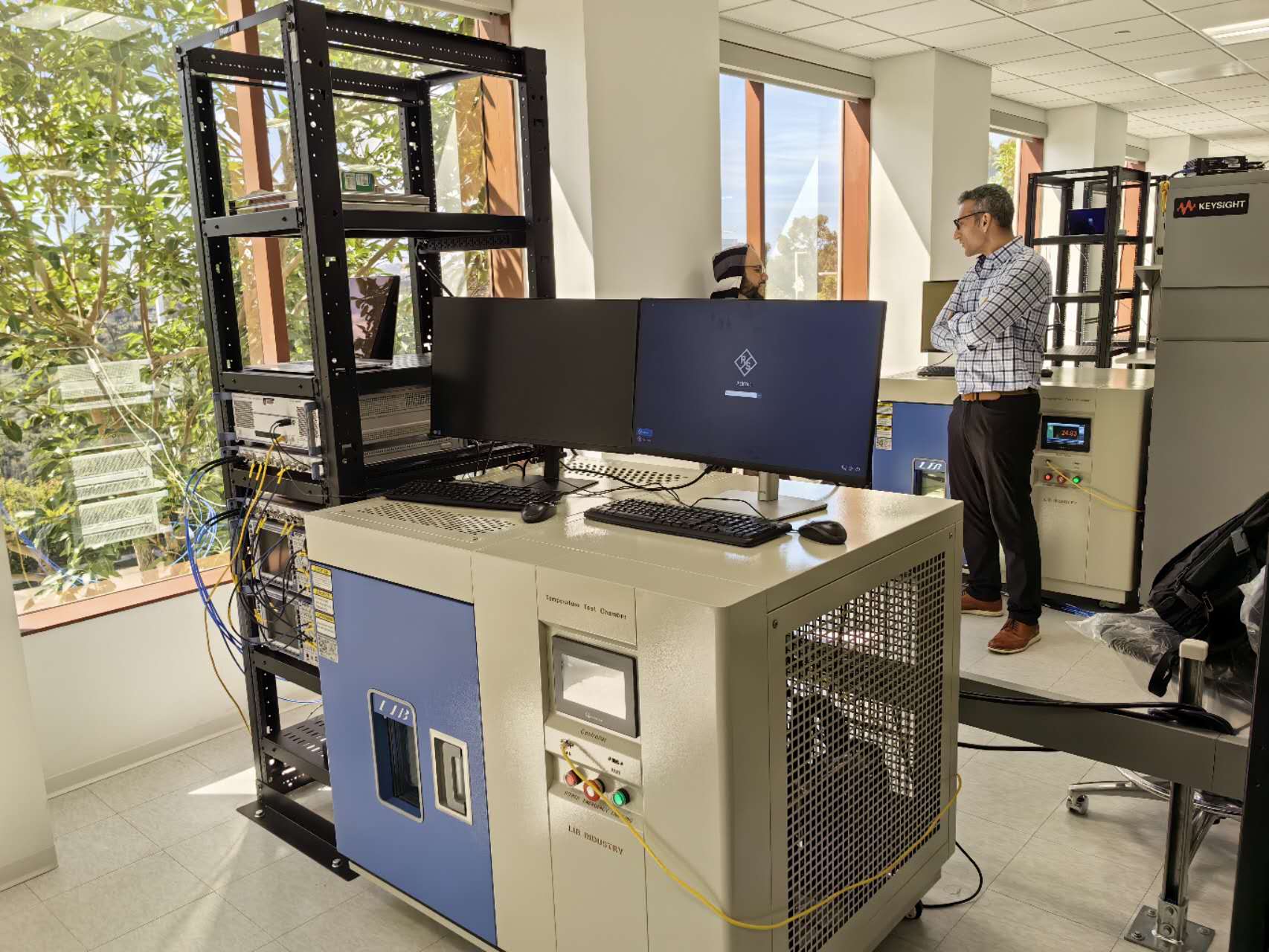

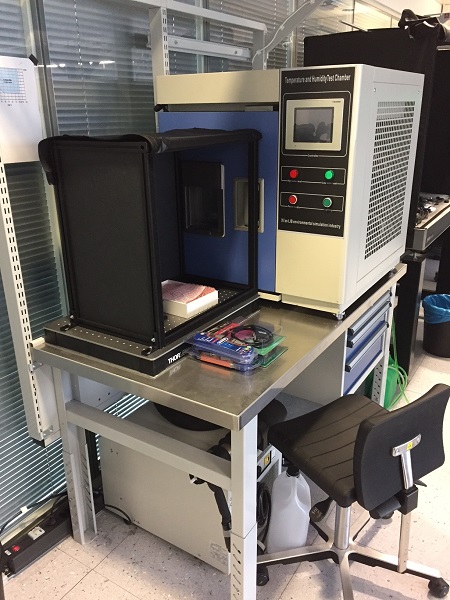

If your laboratory is crowded with oscilloscopes, power supplies, data acquisition systems, and test samples, finding room for a large environmental chamber can be difficult. LIB Small Laboratory Benchtop Environmental Test Chamber allows you to perform temperature and humidity testing directly beside your workstation. With footprints as small as 800 × 1050 mm for the 50 L model and 900 × 1100 mm for the 80 L model, the chamber fits comfortably on a laboratory bench, making sample loading and unloading faster and more convenient.
Environmental testing should not interfere with your daily work. With an operating noise level of ≤65 dBA, LIB's
Small Laboratory Benchtop Environmental Test Chamber runs quietly enough for electronics laboratories, research centers, and quality control departments. You can continue meetings, discussions, measurements, and data analysis while tests are running, creating a more comfortable and productive working environment.
When validating electronic products, even small temperature or humidity variations can affect test results. LIB chambers use high-precision PT100 Class A sensors and advanced PID control technology to maintain temperature fluctuation within ±0.5°C, temperature deviation within ±2.0°C, and humidity deviation within ±2.5% RH. This level of stability helps you obtain reliable, repeatable data when performing product development, reliability verification, and environmental qualification testing.
Many electronic devices must remain powered during environmental testing. Whether you are testing PCBs, sensors, communication modules, or control systems, equipment safety is critical. LIB chambers include multiple protection functions such as over-temperature protection, over-current protection, leakage protection, compressor protection, low-water protection, and emergency stop systems. Integrated cable ports allow powered testing while maintaining stable environmental conditions, giving you greater confidence throughout the test process.
If your products are intended for global markets, environmental testing must often comply with recognized international standards. LIB Small Laboratory Benchtop Environmental Test Chambers support testing requirements associated with IEC 60068 and IEC 60529 while being manufactured according to CE, CSA, RoHS, and ISO quality standards. This helps simplify your testing procedures, improve documentation consistency, and support product certification requirements worldwide.
Many international electronics companies use LIB environmental testing equipment.
After successfully purchasing two LIB rain test chambers for product waterproof verification, Apple further selected LIB Small Laboratory Benchtop Environmental Test Chambers for environmental reliability testing. Customers value the chambers' compact design, stable temperature and humidity control, low operating noise, and cost-effective performance.
Similarly, manufacturers such as Intel require reliable environmental testing systems for product performance validation, durability evaluation, and quality assurance before products enter production.
Choosing the right chamber depends on laboratory space, sample size, testing volume, and budget.
| Feature |
|
|
|---|---|---|
| Installation Space | Fits on bench or tabletop | Requires dedicated floor space |
| Chamber Volume | 50 L–80 L typical | 150 L–1000 L+ |
| Noise Level | ≤65 dBA | Higher |
| Sample Loading | Easy access from workstation | Requires movement to chamber area |
| Power Consumption | Lower | Higher |
| Initial Investment | Lower | Higher |
| Testing Throughput | Small batches | Large batches |
| Best Application | Electronics R&D | Production testing |
| Maintenance Cost | Lower | Higher |
| Mobility | Easy relocation | Fixed installation |
Choose a Small Laboratory Benchtop Environmental Test Chamber if:
| Choose a Reach-In Environmental Test Chamber if:
|
For most electronics laboratories, benchtop chambers provide an excellent balance between performance, space utilization, and operating costs.
| LIB Popular Temperature Humidity Chambers | |||
Standing temperature humidity chamber Precise climate simulation, Reliable long-term stability testing |
Combined Climate and Vibration Chamber Simulate temperature, humidity, and vibration stresses in one test |
Small temperature humidity chamber Compact footprint design, High-accuracy environmental control |
Walk-In temperature humidity chamber Large-capacity testing space, Ideal for oversized products |
Industrial High-Temperature Vacuum Drying Oven Uniform heat distribution, Efficient material drying |
Extreme thermal stress simulation, Fast failure detection capability |
Ultra-low temperature performance, Reliable cold resistance evaluation |
ICH-compliant stability testing, Precise temperature and humidity control |
LIB chambers are widely used for environmental testing related to IEC 60068, IEC 60529, CE, CSA, RoHS, and ISO quality requirements, helping manufacturers perform reliable qualification and compliance testing.
Yes. Optional cable ports allow PCBs, sensors, communication modules, and other electronic devices to remain powered during temperature and humidity testing.
LIB chambers maintain±0.5°C temperature fluctuation, ±2.0°C temperature deviation, and ±2.5% RH humidity deviation, providing stable and repeatable test conditions.
Delivery time depends on the chamber configuration and destination. LIB supports worldwide shipping through sea freight, air freight, and door-to-door delivery services.
LIB offers a 3-year warranty, lifetime technical support, installation guidance, remote troubleshooting, and spare parts delivery within 7–15 days in most regions.
Yes. LIB can customize chamber size, cable ports, shelves, fixtures, communication interfaces, and voltage configurations to meet specific testing requirements.
A properly selected Small Laboratory Benchtop Environmental Test Chamber can significantly improve testing efficiency, laboratory productivity, and product reliability while saving valuable space.
Contact LIB Industry to learn how our Small Laboratory Benchtop Environmental Test Chamber can help your laboratory achieve accurate, repeatable, and standards-compliant environmental testing.
