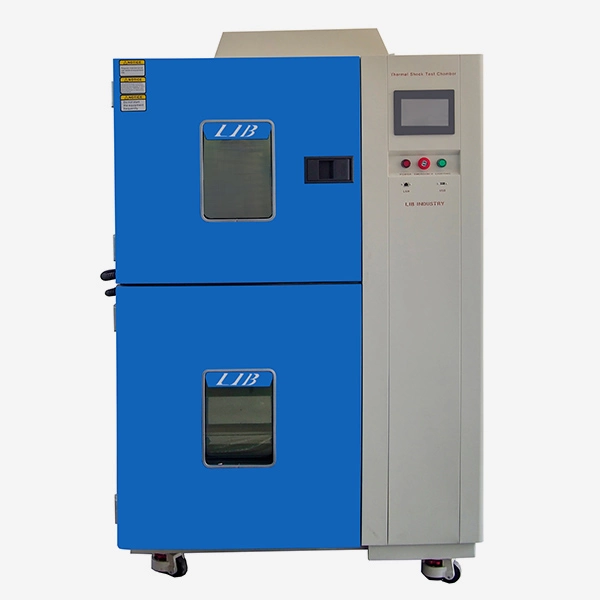

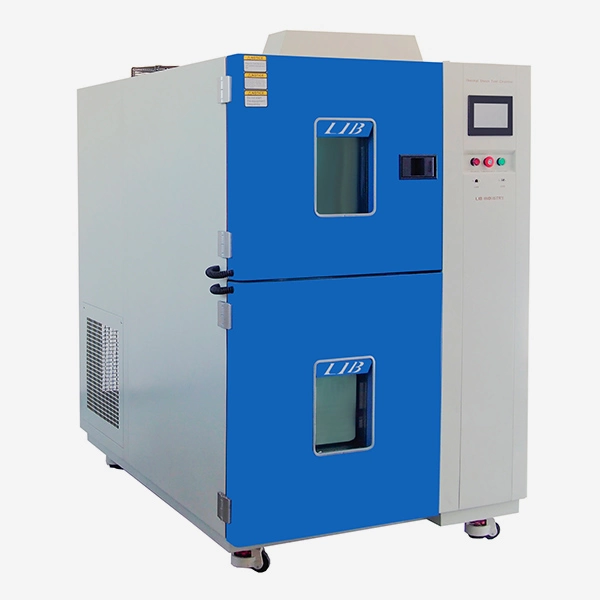

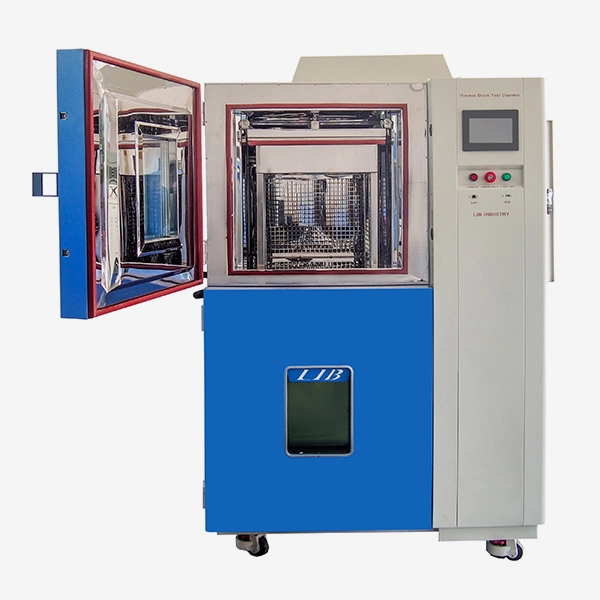

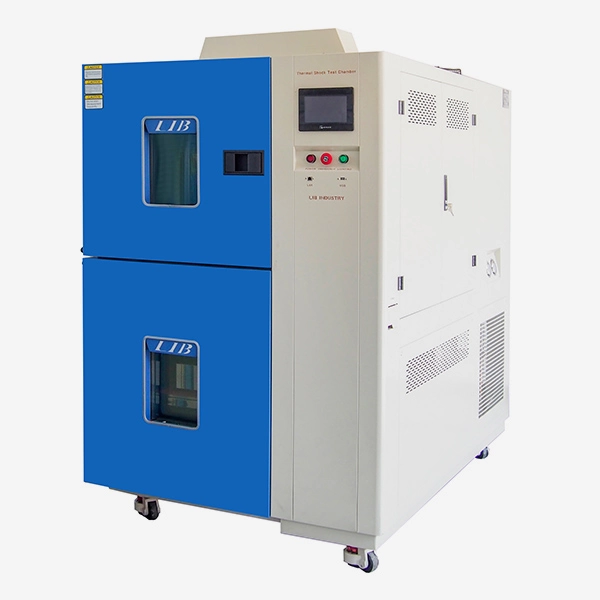

LIB 2-Zone Thermal Shock Test Chamber is available in small capacity and large capacity to meet different testing requirements. Test can be performed during thermal shock testing from -70 to +200°C.The specimen automatic transferred from cold chamber to hot chamber by basket. The basket slides vertically and smoothly through rails, to make the specimen is exposed to the two chambers.
The LIB 2-Zone Thermal Shock Test Chamber provides fast, repeatable thermal shock performance for demanding applications. With a transfer time ≤ 3 seconds and temperature recovery ≤ 5 minutes, specimens are rapidly exposed to extreme conditions for accurate and efficient testing. Temperature fluctuation is controlled within ±0.5 °C, with deviation within ±3.0 °C, ensuring reliable data for thermal fatigue, durability, and reliability testing across electronics, automotive, and aerospace components.
The LIB 2-Zone Thermal Shock Test Chamber is designed in full compliance with international testing standards, ensuring global applicability and acceptance of test results. It meets requirements of IEC 60068-2-14, MIL-STD-883, MIL-STD-810, JESD22-A104, JESD22-A106, GB/T 2423.22, ISO 16750, and other relevant thermal shock and environmental testing standards. This wide standards coverage allows the chamber to be used across industries such as electronics, automotive, aerospace, military, and medical devices, supporting both R&D validation and quality assurance testing.
TS-162/TS-340/TS-500/TS-1000
LIB Industry
| Quantity: | |
|---|---|
Product Advantage
1.Replicate Severe High–Low Temperature Extremes：The 2-Zone Thermal Shock Test Chamber is engineered to reproduce drastic temperature variations. Its high-temperature zone can be heated up to 220°C, while the low-temperature zone cools down to -75°C, ensuring reliable performance under demanding thermal stress conditions.
2.Boost Testing Speed and Optimize Cycle Efficiency: With a high-speed basket lift system, specimens are transferred between zones in less than 3 seconds, and stable temperatures are restored within 5 minutes, maximizing overall testing efficiency.
3.Moving Shelving for Enhanced Flexibility: The chamber features adjustable and removable shelves that can be reconfigured to suit different sample sizes and quantities. The tool-free design allows for quick removal and repositioning, making sample loading, chamber cleaning, and maintenance more convenient while reducing labor effort and upkeep costs.
4. Cable Hole for Live Testing: An integrated cable hole enables power-on testing for electronic devices, power batteries, and other test specimens. This design allows continuous data monitoring during testing. The port is equipped with a stainless steel protective cover, providing excellent corrosion resistance and long-term durability.
5. Ensure a Stable and Clean Test Environment: The chamber's advanced defrosting system maintains consistent test conditions, protects equipment longevity, and keeps the internal environment hygienic. It prevents condensation or icing that could block samples or distort data, reduces moisture-related corrosion to extend service life, and eliminates stagnant water that might promote bacterial growth, safeguarding sensitive samples in electronics, pharmaceuticals, and other industries.
Technical Parameters
Model | TS-162 | TS-340 | TS-500 | TS-1000 | |
Internal Dimensions (mm) | 300*300*250 | 450*450*360 | 650*650*500 | 850*850*700 | |
Overall Dimension (mm) | 1560*870*1545 | 1710*1020*1845 | 1910*1220*2265 | 2110*1420*2665 | |
Interior Volume (mm) | 22L | 72L | 211L | 505L | |
Loading Capacity | 20kg | 30kg | 50kg | 60kg | |
Pre-heat Room | Upper limit Temperature | +220℃ | |||
Heating Time | Ambient ~ + 200℃, within 30 minutes | ||||
Pre-cool Room | Lower limit Temperature | -75℃ | |||
Cooling time | Ambient ~ -70℃, within 30 minutes | ||||
Test Room | High Temperature Exposure Range | Ambient +20 ~ +200°C | |||
Low temperature Exposure Range | –65 ~ -5°C | ||||
Temperature Fluctuation | ≤±0.5℃ | ||||
Temperature Deviation | ≤±3 ℃ | ||||
Temperature Recovery Time | Within 5 minutes | ||||
Cooling System | Mechanical compression refrigeration system | ||||
Refrigerating Unit | French TECUMSEH compressor | ||||
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link | ||||
Safety Device | Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Operate Guide of the Thermal Shock Test Chamber
To operate the LIB 2-Zone Thermal Shock Test Chamber, first power on the system and wait for the hot and cold zones to reach standby temperatures. Place the test specimens securely on the basket shelves and insert the basket along the guide rails. Set the desired temperature range, dwell time, and number of cycles on the touchscreen controller, then start the program. The basket will automatically transfer between the cold and hot zones, and the system will record temperature data and cycle information. After testing, allow the chamber to return to standby, remove specimens, and export data for analysis. Regular cleaning and inspection of rails and basket chains are recommended to ensure safety and long-term reliability.
Video of the Thermal Shock Test Chamber
Services of the Thermal Shock Test Chamber
We provide 36 months warranty along with lifetime follow-up services. Our dedicated after-sales team, together with local service centers, is ready to respond quickly and efficiently. Support requests are handled 24/7, ensuring your questions are addressed promptly.
