O-100/O-225/O-500/0-800/O-1000
LIB Industry
| Quantity: | |
|---|---|
Equipped with PT-100 Class A temperature sensors, the Industrial High-Temperature Vacuum Drying Oven delivers high-resolution measurement accuracy of 0.001 °C, while maintaining temperature stability within ±0.5 °C and deviation within ±2.0 °C across the chamber. This level of control ensures repeatable test environments for sensitive materials such as electronic components, ceramics, composites, advanced polymers, and aerospace alloys. Combined with a programmable PID controller and vacuum pressure regulation, the oven allows users to conduct multi-stage heating programs that simulate demanding industrial processes with high consistency.
Performance Advantages
1. Vacuum-Enhanced Drying Efficiency: The vacuum drying system reduces air pressure inside the chamber, lowering the boiling point of moisture and accelerating drying processes. This allows delicate materials to be dried efficiently at lower effective temperatures while preventing oxidation, contamination, or structural damage. It is especially beneficial for electronics, powders, pharmaceuticals, and composite materials.
2. Extreme High-Temperature Capability: The oven supports a wide temperature range up to 1200 °C, making it suitable for demanding applications such as high-temperature aging tests, ceramic sintering preparation, heat treatment studies, and thermal resistance evaluations. Multiple temperature configurations such as 250 °C, 500 °C, 800 °C, and 1000 °C can also be selected according to specific testing requirements.
3. Precision Temperature Control: Using PT-100 Class A sensors and intelligent PID regulation, the system delivers extremely accurate thermal control with ±0.5 °C stability. This ensures highly reliable and repeatable test conditions, which is critical for scientific experiments, material characterization, and product qualification processes.
4. Rapid Heating for Faster Test Cycles: With heating rates reaching 6 °C/min, the oven significantly reduces waiting time between test stages. Faster heating and recovery improve productivity in laboratories and manufacturing environments where turnaround time is important.
5. Fully Customizable Structure: Recognizing that each laboratory or production line has unique requirements, the oven supports flexible customization of chamber dimensions, internal configurations, and vacuum interfaces. External sizes such as 750 × 880 × 850 mm can be adjusted to match available workspace or process layouts.

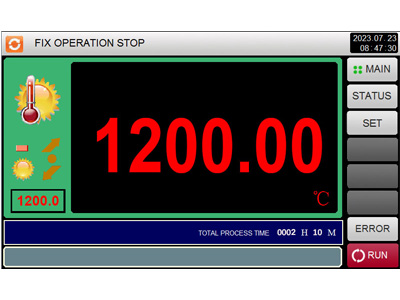

6. Intelligent Control and Connectivity: A programmable color touchscreen controller allows users to configure multi-stage heating processes and store large numbers of test programs. Network connectivity supports remote monitoring, data export, and integration with laboratory information systems, helping engineers maintain full traceability of every thermal process.
Technical Specifications
Name | Industrial High-Temperature Vacuum Drying Oven | |
Model | O-100 | O-500 |
Internal Dimension (mm) | 400*500*500 | 700*800*900 |
Overall Dimension (mm) | 750*880*850 | 1100*1100*1300 |
Interior Volume | 100L | 500L |
Temperature Range | A: Ambient ～+250 ℃，B: Ambient ～+400 ℃，C: Ambient ～+900 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | |
Temperature Deviation | ± 2.0 ℃ | |
Heating Rate | 6 ℃ / min | |
Controller | PID color LCD touch screen controller，Ethernet connection, PC Link(Option) | |
Exterior Material | Steel Plate with protective coating | |

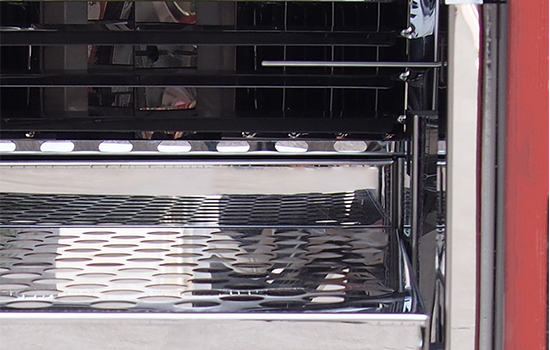

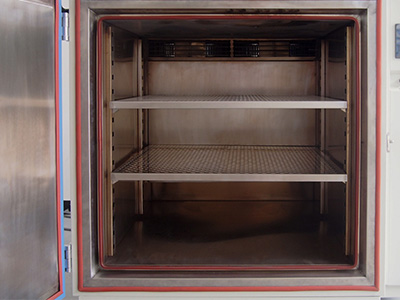

Interior Material | SUS304 stainless steel | |
Thermal Insulation | Polyurethane foam（Refractory brick） | |
Typical Tests perfromed by the Industrial High-Temperature Vacuum Drying Oven
The industrial vacuum drying oven can perform a variety of high-temperature and moisture-removal processes widely used in research and manufacturing. Typical applications include vacuum drying of electronic components at temperatures between 80 °C and 200 °C, high-temperature material aging tests from 300 °C to 800 °C, and thermal treatment experiments approaching 1000 °C for advanced alloys and ceramics. In addition, laboratories often conduct vacuum degassing of composite materials, powder drying under reduced pressure, and accelerated stability testing of high-performance materials. During operation, temperature and vacuum conditions are continuously monitored by the controller to ensure stable, repeatable, and fully documented test results.
Video of the Industrial High-Temperature Vacuum Drying Oven
FAQs on the Industrial High-Temperature Vacuum Drying Oven
Q1: What vacuum level can the Industrial High-Temperature Vacuum Drying Oven achieve?
The standard vacuum system can reach pressures as low as 10–100 Pa, depending on the selected vacuum pump configuration. For specialized processes requiring deeper vacuum levels, the system can be customized to integrate higher-capacity vacuum pumps and additional pressure monitoring components.
Q2: Can the oven support multi-stage heating programs?
Yes. The programmable controller supports up to 120 stored programs with 100 segments each, allowing users to create complex heating and vacuum profiles for advanced thermal processes such as staged drying, material curing, or thermal aging cycles.
Q3: Is customization available for chamber size and accessories?
Absolutely. The Industrial High-Temperature Vacuum Drying Oven can be customized with different chamber volumes, viewing windows, additional test ports, or specialized sample holders. Standard modifications generally do not affect delivery schedules, and typical production lead times range from 7 to 15 days depending on configuration.
