What Standards Apply To A Xenon Accelerated Weathering Test Chamber?

A coating that looks perfect on the shelf can crack, fade, or chalk after just one summer outdoors. Manufacturers cannot wait three years to find out if a paint, plastic, or cable jacket will survive real sunlight and rain, so they turn to accelerated light aging equipment that reproduces years of outdoor exposure in a matter of weeks.

This article explains which international standards a LIB Industry's xenon accelerated weathering test chamber must meet, how the equipment controls light and temperature with high precision, and how a standard test cycle actually runs under ASTM G155.

A customer in Russia who has been running the LIB Industry Xenon Accelerated Weathering Test Chamber summed up their experience simply: "Good afternoon! We are satisfied with the purchase; there have been no complaints about the equipment. Thank you." Feedback like this is a good starting point for looking at exactly what the equipment is built to do.

Standards the Equipment Meets

The LIB Industry Xenon Accelerated Weathering Test Chamber is built to run tests under the major global standards used for coatings, plastics, textiles, and automotive parts. These include ASTM G155, ASTM D6695, ASTM D2565, ASTM D4459, ASTM D7869, ISO 4892-2, ISO 11341, ISO 105-B02, SAE J2527, SAE J1960, GMW3414, and GB/T 16422.2. Covering this many standards in one piece of equipment means a single lab can test paints, plastic components, fabrics, and automotive interior or exterior parts without switching machines, which saves both budget and floor space for R&D and quality teams.

How the Equipment Controls Light

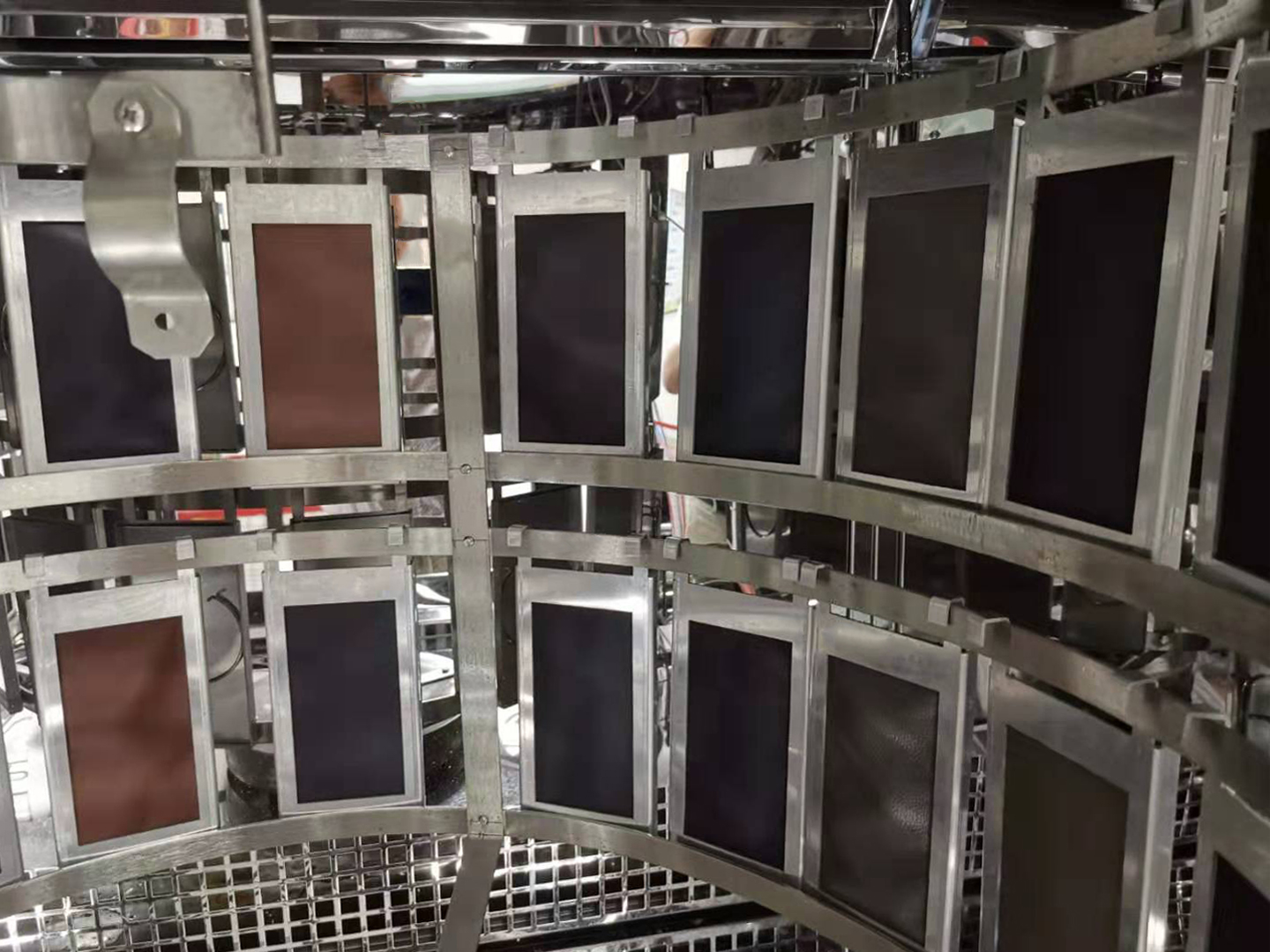

The core of the equipment is a 4500 W or 6500 W water-cooled xenon arc lamp paired with daylight, window glass, and extended UV filters, covering a spectrum from 280 nm to 800 nm. Irradiance is held at 0.35 W/m² at 340 nm under the daylight filter, 0.51 W/m² at 340 nm for the extended UV setting, and 1.10 W/m² at 420 nm under the window glass filter, with control accuracy within 2 percent. Black panel temperature is maintained between 35°C and 85°C with a tolerance of ±2°C, and humidity is adjustable from 50 percent to 98 percent RH with a tolerance of ±5 percent. A rotating sample rack that holds 42 samples keeps every panel receiving the same dose of light and water, so results stay consistent from the first sample to the last.

Testing Method Based on ASTM G155

ASTM G155 sets out how the light, water spray, and darkness cycles should alternate during a test. A common cycle under this standard runs 102 minutes of continuous xenon light exposure followed by 18 minutes of water spray, and this pattern repeats continuously for the full test duration, which can range from a few hundred to several thousand hours depending on the material and the target service life. The 120-program touchscreen controller on the equipment can store up to 100 steps per program, so operators can set light, spray, darkness, and humidity segments to match ASTM G155 or any related standard without manual switching. This means a lab can queue up a paint test today and a plastic test tomorrow using saved programs rather than reprogramming from scratch.

Vietnamese Customers Trust the LIB Industry Equipment

A group of automotive parts manufacturers in Vietnam recently used the LIB Industry Xenon Accelerated Weathering Test Chamber to check the color fastness and surface durability of exterior trim and coated components before shipping to overseas buyers. After running their tests, they told LIB Industry they were satisfied with several things. First was safety: the equipment is certified to CE, IEC, and CSA safety requirements, so operators can run long unattended cycles with confidence. Second was accuracy: irradiance and black panel temperature stayed within the stated tolerances throughout multi-week tests, which matched their customers' certification requirements exactly. Third was value: the price matched the level of precision and safety they received, so they did not need to pay extra for a higher-tier machine to get lab-grade results.

They also pointed out that LIB Industry offers free customization for chamber size, lamp power, and program settings, backed by a 3-year warranty and lifelong technical support. On-site training for their engineers made it easy for a new team to run the equipment correctly from day one. This kind of confidence is not new for LIB Industry. The company has previously worked with Electricite de France (EDF), the French national grid operator, supplying a xenon accelerated weathering test chamber capable of testing cable jackets down to minus 40°C, a project that pushed the equipment's temperature range and reliability well beyond typical lab conditions. That track record is part of why customers across different countries keep choosing LIB Industry for demanding weathering programs.

Xenon Weathering vs UV Weathering: How to Choose

Xenon and UV chambers both accelerate weathering, but they are not interchangeable. The table below shows the main differences.

If the material's final appearance, such as color, gloss, or fading, matters to your customer, the xenon equipment is the better choice because it reproduces the full sunlight spectrum. If the main concern is UV-driven degradation on a tight budget, a UV weathering chamber is usually enough. Many labs actually keep both types side by side, using the UV chamber for quick screening and the xenon equipment for final certification testing.

FAQs on the Xenon Accelerated Weathering Test Chamber

Q1: Does LIB Industry provide installation and training after delivery?

Yes. LIB Industry sends technicians for on-site installation and operator training, and remote support is available afterward through the equipment's Ethernet and Wi-Fi connectivity for software issues.

Q2: What is the warranty period? The equipment comes with a 3-year warranty on parts, plus ongoing lifetime technical support for software updates and troubleshooting.

Q3: Can the chamber size and lamp configuration be customized? Yes, chamber volume, lamp wattage, filter combinations, and control software can be customized at no extra design cost to match your specific standard and sample size.

Q4: How is the equipment packaged and shipped internationally? Units are shipped in reinforced wooden crates with moisture-proof wrapping, and LIB Industry arranges sea or air freight with full tracking, along with export documentation for customs clearance.

Q5: How long does delivery take? Standard models typically ship within 30 to 45 days after order confirmation, while customized configurations may take slightly longer depending on the modifications requested.

Contact LIB Industry for Your Xenon Accelerated Weathering Test Chamber Needs

If you're in the market for a xenon accelerated weathering test chamber, whether it's a Xenon Test Chamber for full-spectrum sunlight simulation, a Fluorescent UV Test Chamber for fast UV degradation testing, a UV Preconditioning Chamber for PV Solar Panels, or a companion Cyclic Salt Spray Corrosion Chamber for combined weathering and corrosion programs, don't hesitate to reach out. We're ready to discuss your target standards, sample size and loading needs, irradiance and temperature range, and cycle programming, and help you find the right xenon weathering solution for your laboratory.
