How Fast Does Air To Air Hot Cold Thermal Shock Test Machine Switch Between Hot and Cold Zones?

Electronic components, automotive modules, aerospace materials, and military devices often experience sudden temperature changes during operation. A circuit board may move from a freezing outdoor environment to a heated enclosure within seconds. An automotive sensor can encounter extreme cold at night and engine heat moments later. These rapid temperature transitions create thermal stress that can lead to cracking, deformation, seal failure, and electrical malfunction.

This article explains how LIB Air To Air Hot Cold Thermal Shock Test Machine achieves rapid temperature switching, which standards it complies with, where it is used, and why many manufacturers choose LIB for reliable thermal shock testing solutions.

How Fast Does the Air To Air Hot Cold Thermal Shock Test Machine Switch?

---

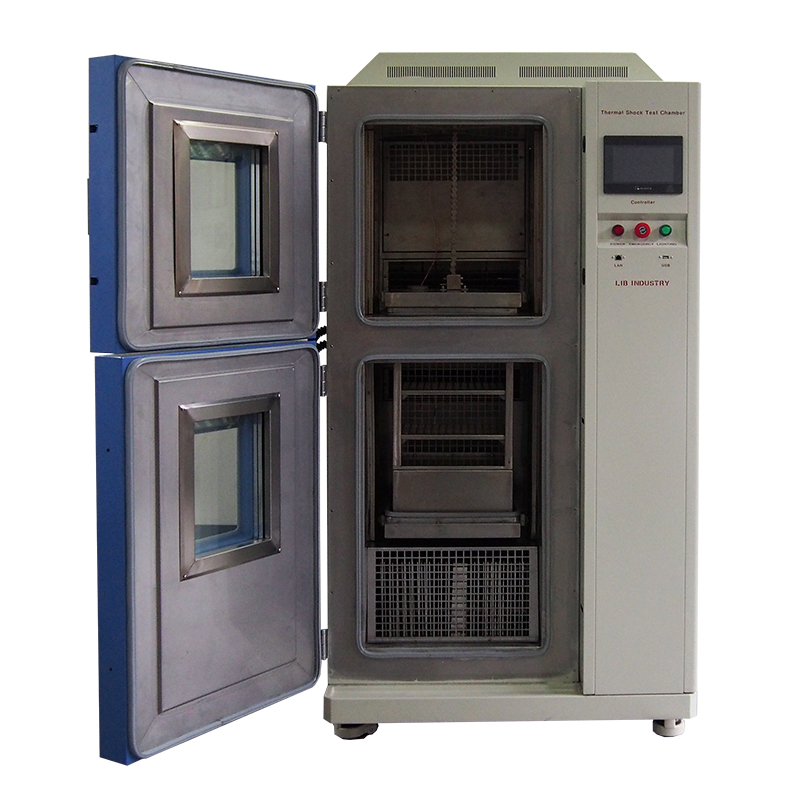

Basket Transfer System Completes Switching Within 3 Seconds

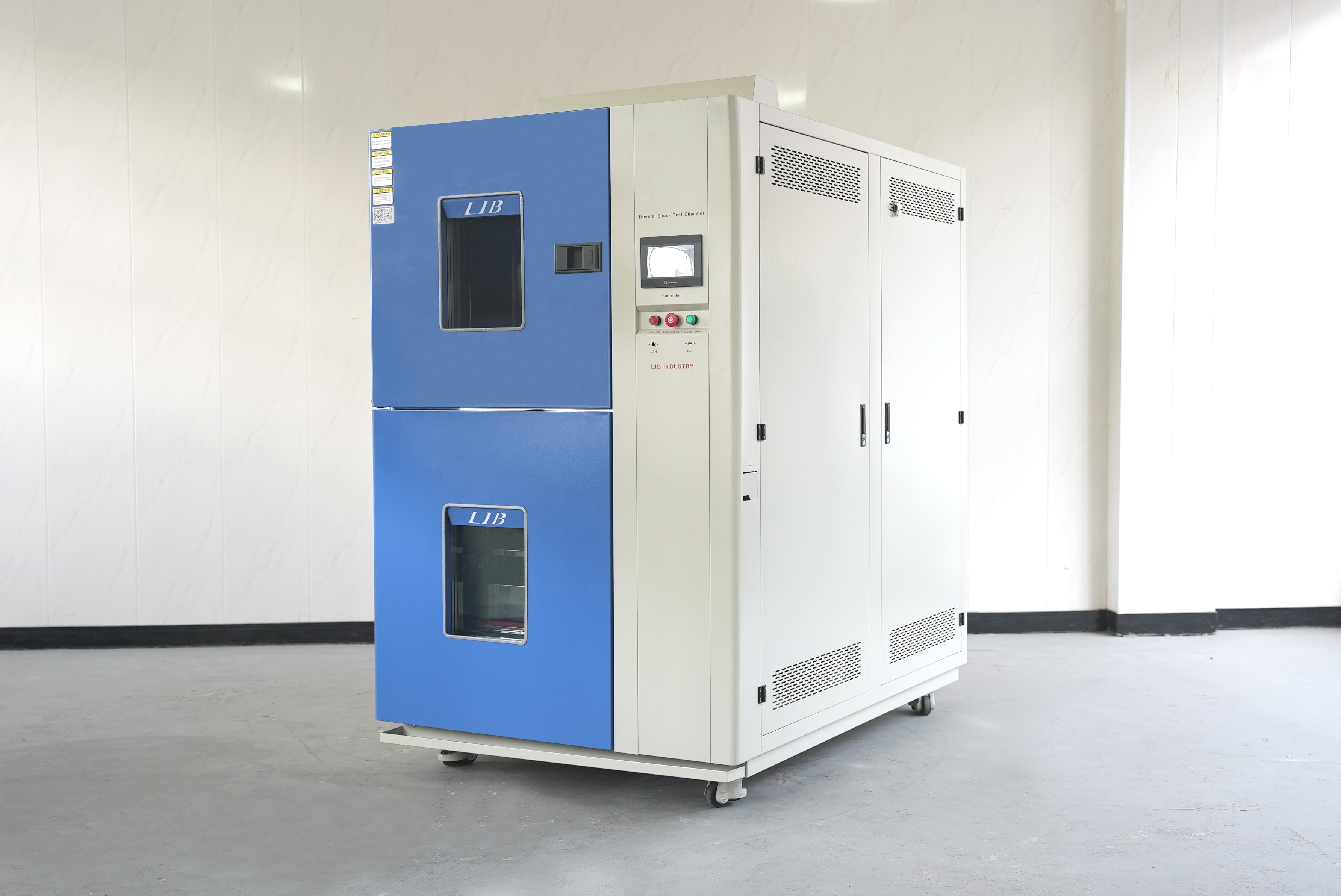

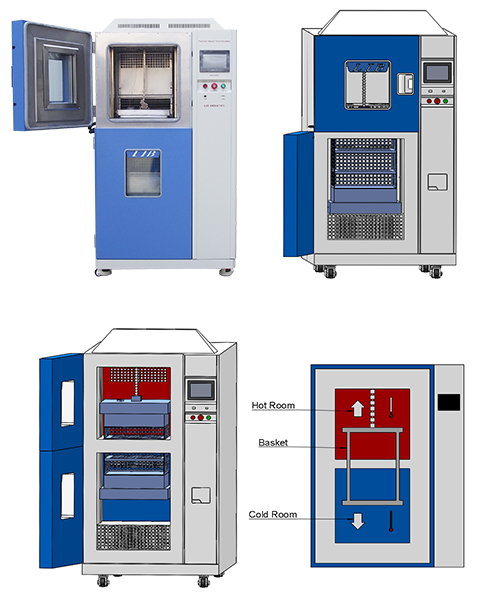

The most important parameter in thermal shock testing is the switching time between hot and cold environments. LIB's Air To Air Hot Cold Thermal Shock Test Machine uses a two-zone structure consisting of an independent hot chamber and cold chamber.

The specimen basket automatically moves between the two zones in ≤3 seconds. During testing, products can be transferred directly from temperatures as low as -75°C to temperatures as high as 220°C without intermediate transition. This fast transfer accurately simulates real-world thermal shock conditions and exposes hidden material or component weaknesses quickly.

Key performance data:

• Transfer Time: ≤3 seconds

• Cold Zone: -75°C

• Hot Zone: +220°C

• Temperature Fluctuation: ≤±0.5°C

• Temperature Deviation: ≤±3.0°C

Temperature Recovery Time Within 5 Minutes

Fast transfer of  Air To Air Hot Cold Thermal Shock Test Machine alone is not enough. The chamber must quickly recover and stabilize after each cycle.

LIB's independent heating and cooling systems continuously maintain preset temperatures in both chambers. Once the basket moves, the system restores temperature conditions within ≤5 minutes, allowing continuous cycling without significant interruptions.

This feature is particularly valuable for:

• Semiconductor reliability testing

• Automotive electronics validation

• Aerospace component qualification

• Military equipment durability testing

The stable recovery performance improves testing efficiency while maintaining highly repeatable results.

IEC 60068 Thermal Shock Test Methods and Applications

The Air To Air Hot Cold Thermal Shock Test Machine is designed to perform thermal shock testing according to internationally recognized standards, including:

• IEC 60068-2-14 Environmental Testing – Temperature Change

• MIL-STD-810 Thermal Shock Testing

• JESD22-A104 Temperature Cycling Test

• JESD22-A106 Thermal Shock Test

• GJB 150 Military Environmental Testing Standard

• GB/T 2423 Environmental Testing Standards

According to IEC 60068-2-14, products are exposed to rapid temperature changes to evaluate resistance to thermal expansion and contraction stresses.

Typical industries include:

• Automotive electronics

• Aerospace systems

• Consumer electronics

• Telecommunications equipment

• Medical devices

• Defense and military equipment

• Batteries and energy storage systems

Products such as connectors, PCB assemblies, sensors, relays, displays, batteries, and electronic control units are commonly tested using thermal shock methods.

Thai Customer Customized a Large Air To Air Hot Cold Thermal Shock Test Machine and Achieved Excellent Results

---

Recently, a customer from Thailand required a large-capacity Air To Air Hot Cold Thermal Shock Test Machine for performance verification of automotive electronic modules.

The customer needed:

• Large specimen loading capacity

• Stable thermal shock performance

• High operational safety

• Compliance with international standards

• Easy sample loading and unloading

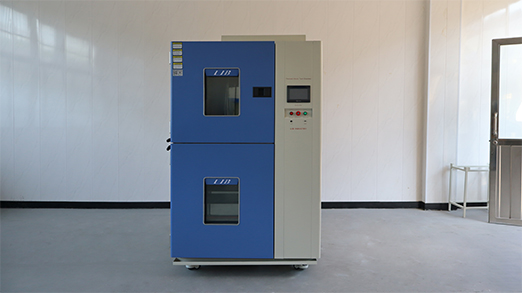

LIB provided a customized solution with an enlarged basket structure and optimized chamber dimensions. The basket design significantly improved loading efficiency and reduced operator workload.

After installation, the customer reported excellent testing consistency and appreciated several advantages:

High Testing Accuracy

The chamber maintains stable temperature conditions with excellent uniformity and repeatability, helping improve confidence in product qualification results.

High Safety Standards

Operational safety was a key concern for the customer. The chamber is equipped with multiple protection systems, including over-temperature protection, compressor protection, emergency stop functions, motor overload protection, and leakage protection. These features help ensure safe and reliable operation during continuous thermal shock testing.

Compliance with International Standards

The equipment supports testing methods in accordance with IEC 60068-2-14, JESD22, MIL-STD-810, and other environmental reliability standards. The machine is manufactured in compliance with CE requirements and can meet laboratory safety expectations associated with IEC and CSA practices.

Flexible Customization Capabilities

LIB provides a wide range of customized thermal shock solutions based on customer applications. In addition to standard Air To Air Hot Cold Thermal Shock Test Machine models, customized chamber sizes, special fixtures, automated loading systems, and Air-to-Liquid thermal shock solutions are also available.

Convenient Operation and Sample Handling

The basket transfer structure simplifies sample placement and removal, reducing operator effort and improving testing efficiency. The intelligent touchscreen controller allows users to create automated test programs, monitor operating status, and export test data easily.

Long-Term Service and Technical Support

To provide long-term reliability and peace of mind, LIB offers a 3-year warranty and lifetime technical support. Customers also benefit from remote troubleshooting assistance, spare parts supply, installation guidance, and professional operator training services.

Positive Customer Feedback

After commissioning, the Thailand customer reported excellent thermal shock testing performance and high operational stability. They were particularly satisfied with the chamber's testing accuracy, ease of use, customization flexibility, cost-effectiveness, and comprehensive after-sales support.

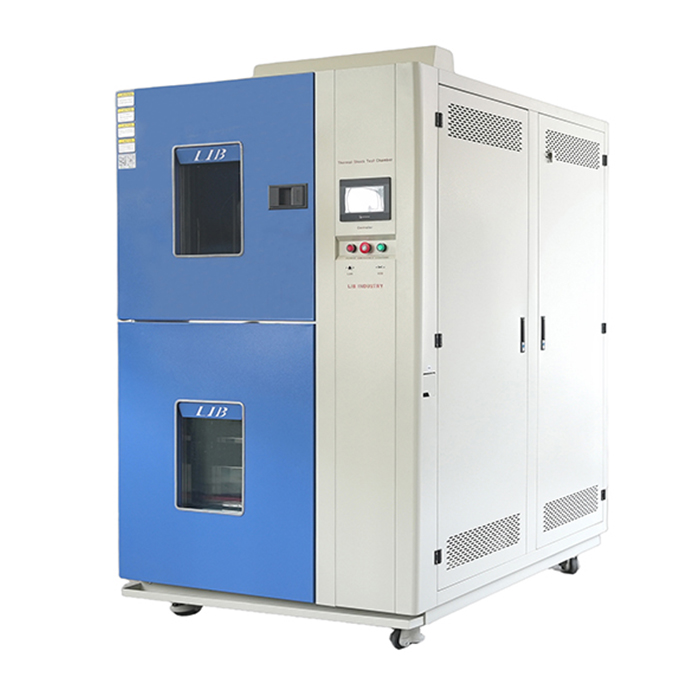

Model		TS-162	TS-340	TS-500	TS-1000
Internal Dimensions (mm)		300*300*250	450*450*360	650*650*500	850*850*700
Overall Dimension (mm)		1560*870*1545	1710*1020*1845	1910*1220*2265	2110*1420*2665
Interior Volume (mm)		22L	72L	211L	505L
Loading Capacity		20kg	30kg	50kg	60kg
Pre-heat Room	Upper limit Temperature	+220℃
	Heating Time	Ambient ~ + 200℃, within 30 minutes
Pre-cool Room	Lower limit Temperature	-75℃
	Cooling time	Ambient ~ -70℃, within 30 minutes
Test Room	High Temperature  Exposure Range	Ambient +20 ~ +200°C
	Low temperature Exposure Range	–65 ~ -5°C
Temperature Fluctuation		≤±0.5℃
Temperature Deviation		≤±3 ℃
Temperature Recovery Time		Within 5 minutes
Cooling System		Mechanical compression refrigeration system
Refrigerating Unit		French TECUMSEH compressor
Controller		Programmable color LCD touch screen controller Ethernet connection, PC Link
Safety Device		Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection
Exterior Material		Steel Plate with protective coating
Interior Material		SUS304 stainless steel

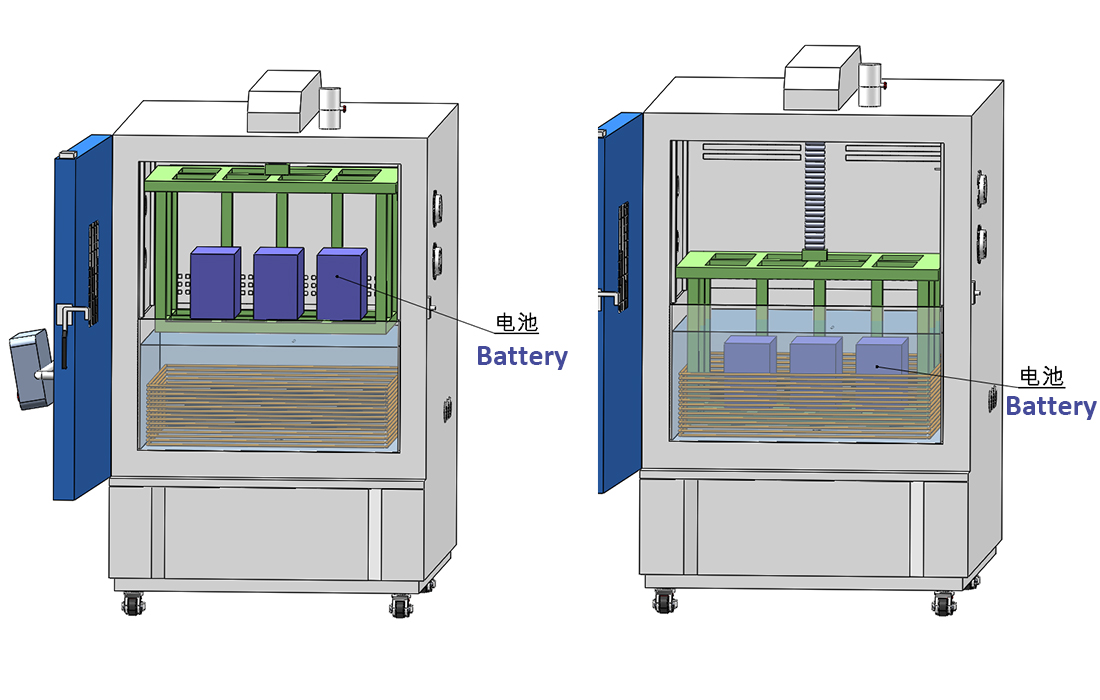

Air To Air Hot Cold Thermal Shock Test Machine vs Air To Liquid Shock Test Machine

---

Although both systems perform thermal shock testing, their operating principles and applications differ significantly.

Comparison Item	Air To Air Hot Cold Thermal Shock Test Machine	Air To Liquid Shock Test Machine
Appearance	Two-zone chamber with transfer basket	Liquid bath tanks with transfer basket
Shock Medium	Hot air and cold air	Hot liquid and cold liquid
Temperature Range	-75°C to +220°C	Typically -65°C to +150°C
Transfer Time	≤3 seconds	≤10 seconds
Sample Contact	Non-contact testing	Direct liquid contact
Corrosion Risk	Very low	Higher depending on liquid
Maintenance	Relatively simple	More liquid management required
Typical Standards	IEC 60068-2-14, JESD22, MIL-STD-810	MIL-STD, specific liquid shock standards
Suitable Products	Electronics, sensors, PCBs, aerospace components	Metal parts, sealed assemblies, ruggedized products

How to Choose the Right System? Choose Air To Air Hot Cold Thermal Shock Test Machine when: • Testing electronic components • Avoiding liquid contamination • Following IEC 60068 standards • Requiring wider temperature ranges

Choose Air To Liquid Shock Test Machine when: • Faster heat transfer is required • Testing sealed components • Simulating immersion-related thermal stress • Evaluating rugged industrial products

For most electronic reliability testing applications, Air To Air systems are the preferred choice because they provide excellent thermal shock performance without exposing products to liquids.

LIB popular Temperature Humidity Chambers

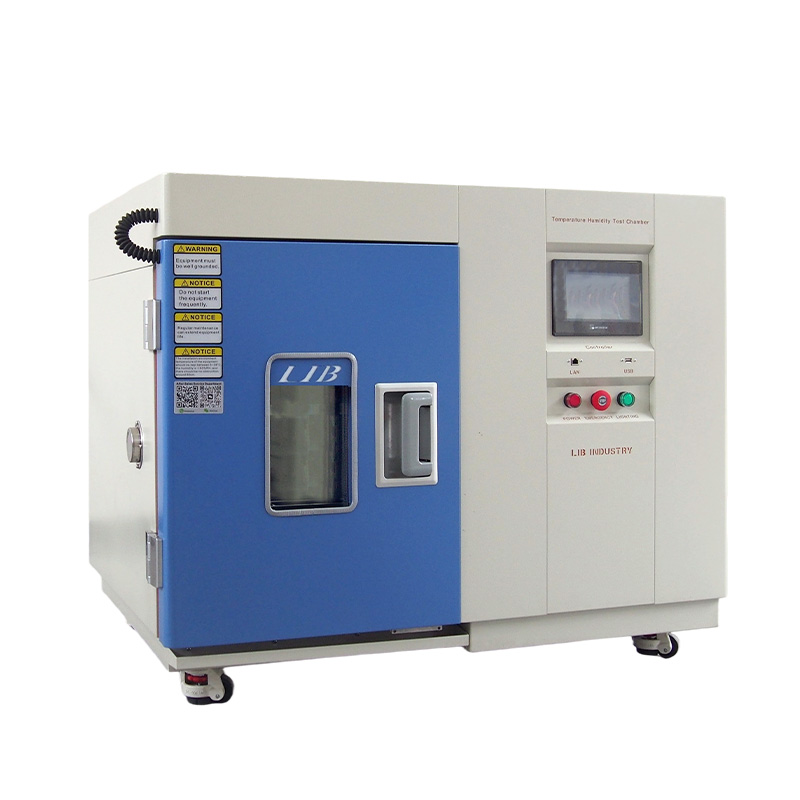

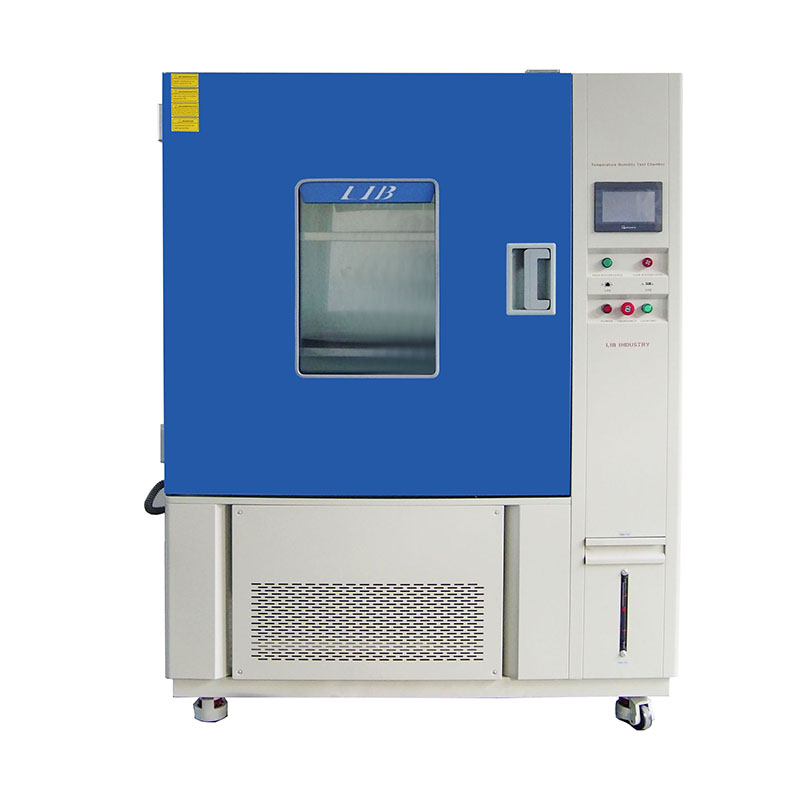

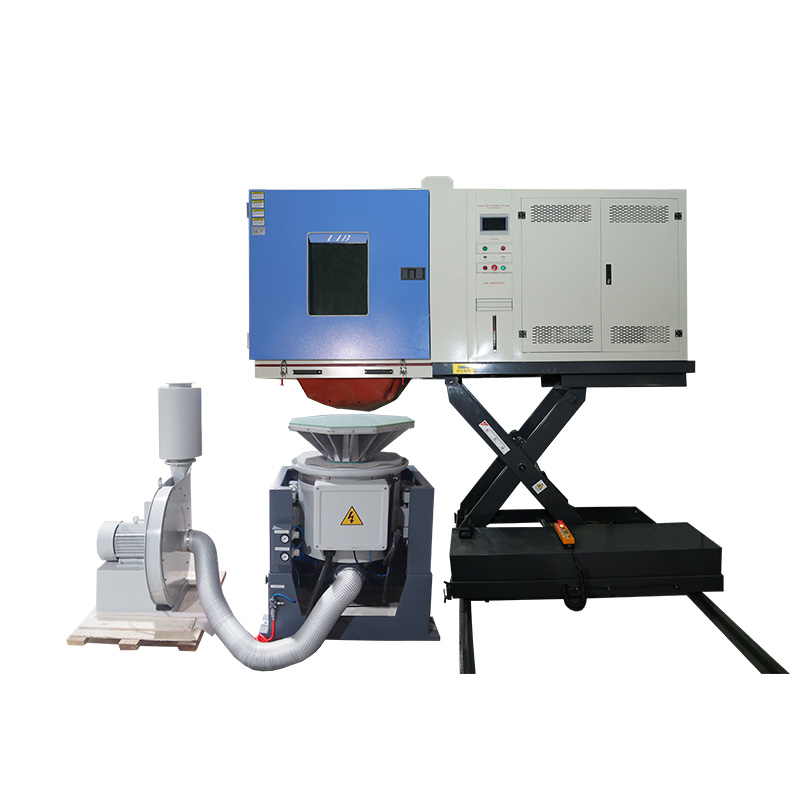

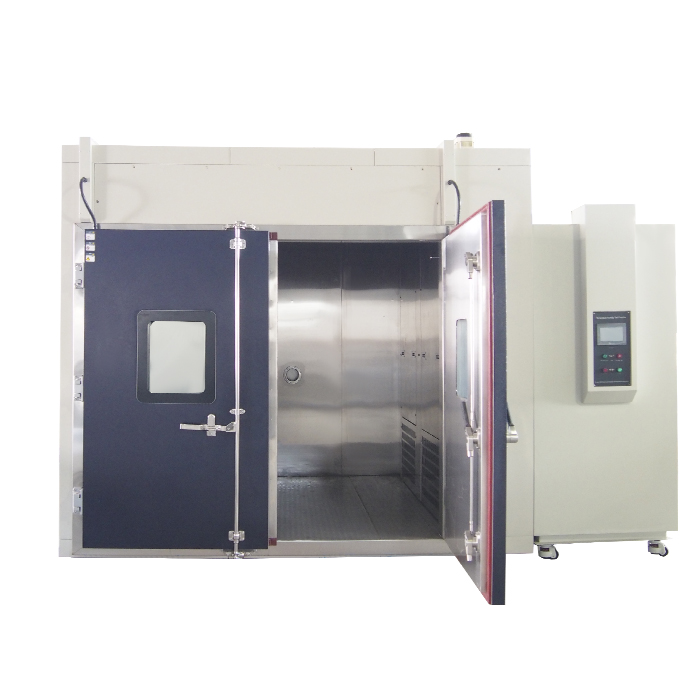

Standing temperature humidity chamber Precise climate simulation, Reliable long-term stability testing	Combined Climate and Vibration Chamber Simulate temperature, humidity, and vibration stresses in one test	Small  temperature humidity chamber Compact footprint design, High-accuracy environmental control	Walk-In temperature humidity chamber Large-capacity testing space, Ideal for oversized products

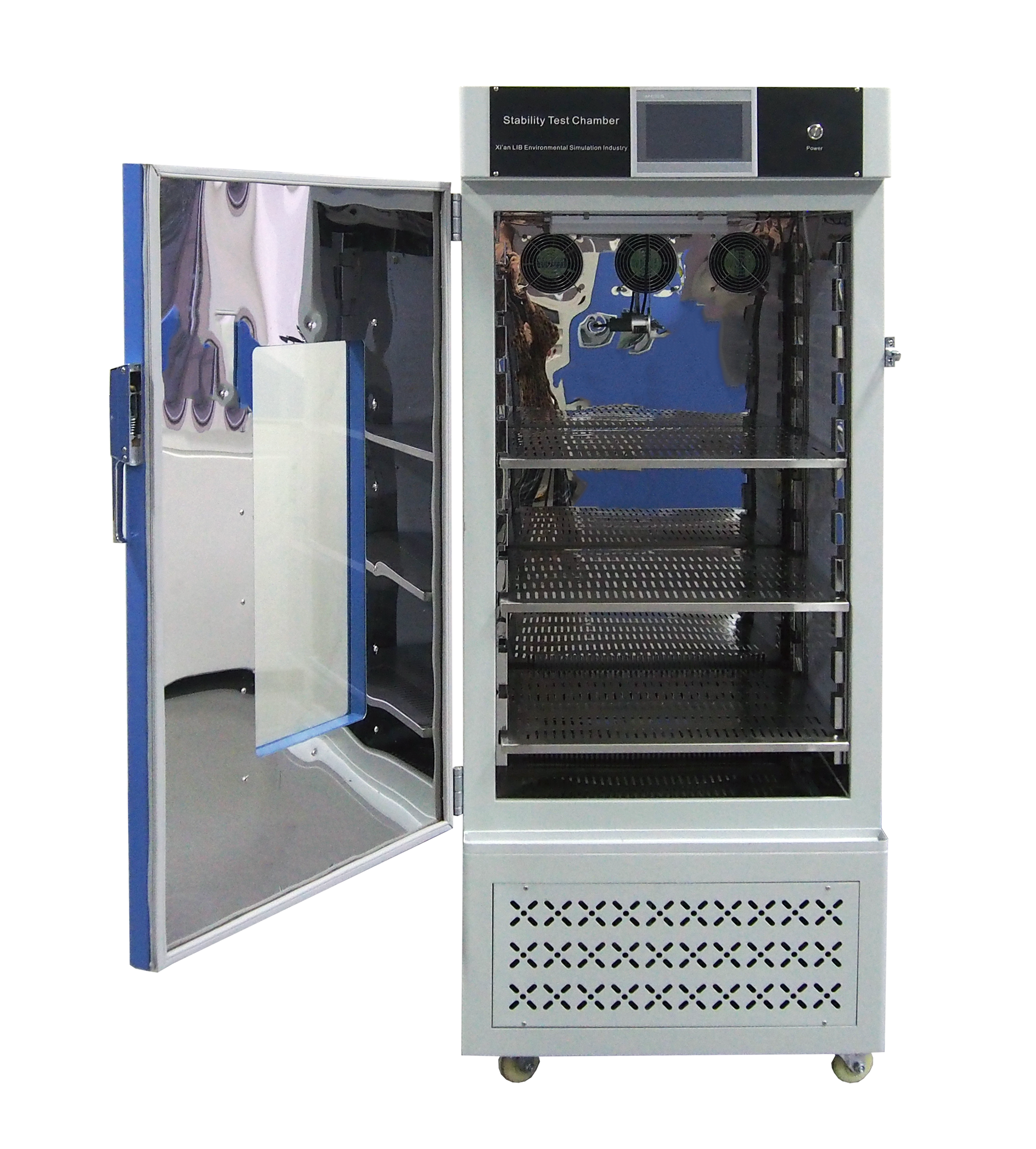

Industrial High-Temperature Vacuum Drying Oven Uniform heat distribution, Efficient material drying	Thermal Shock Test Chamber Extreme thermal stress simulation, Fast failure detection capability	Cryogenic Chamber Ultra-low temperature performance, Reliable cold resistance evaluation	Stability Chamber ICH-compliant stability testing, Precise temperature and humidity control
