Aerospace Thermal Tress Temperature Shock Chamber

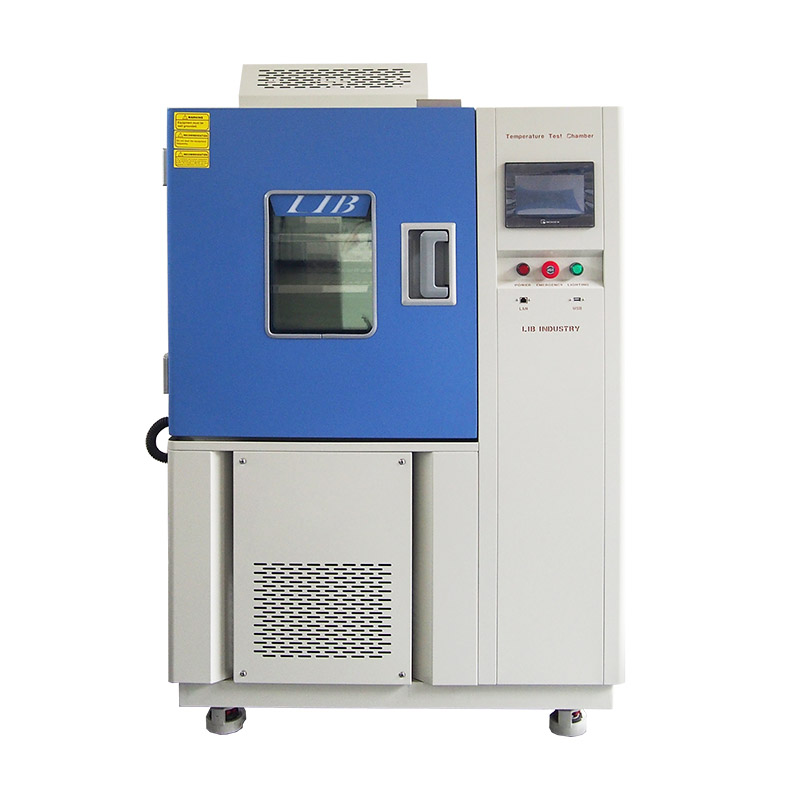

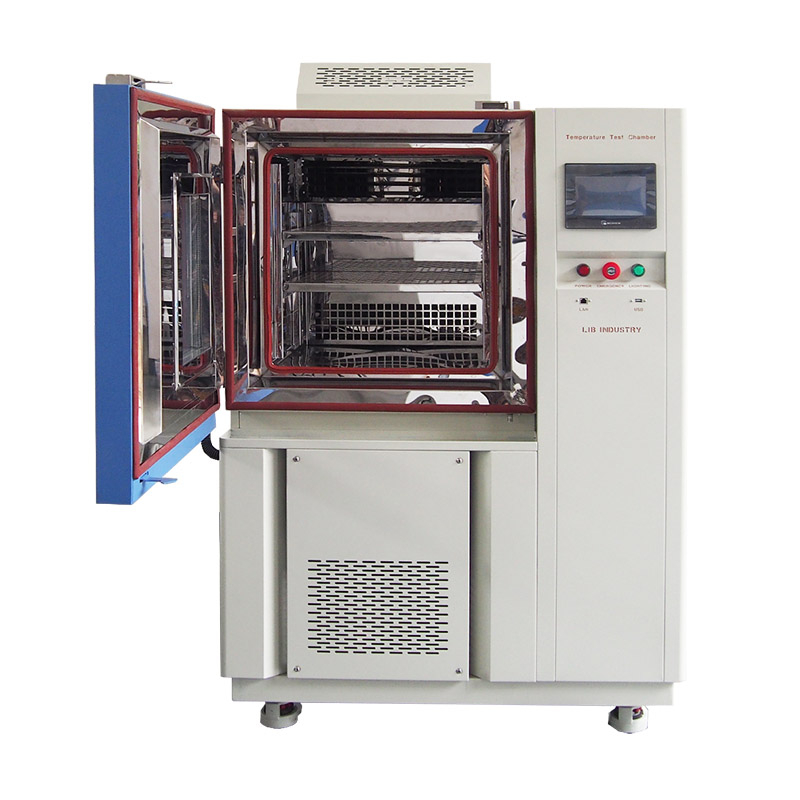

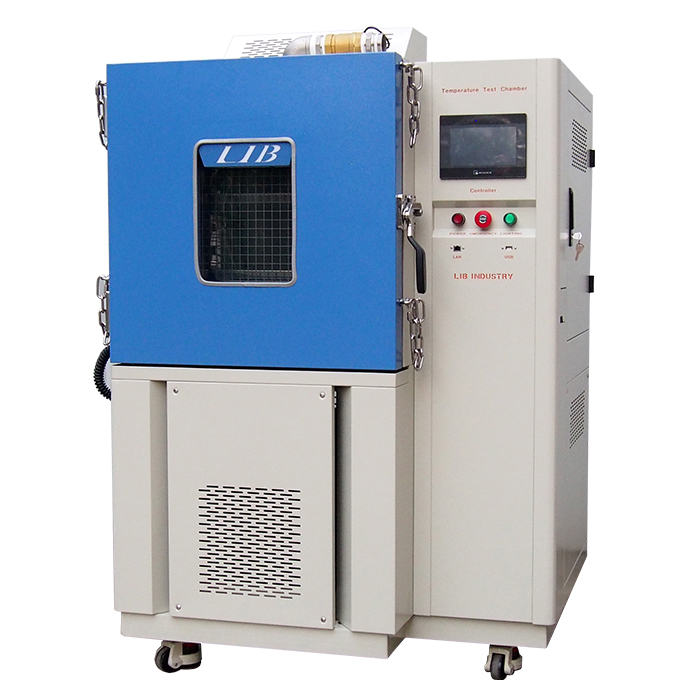

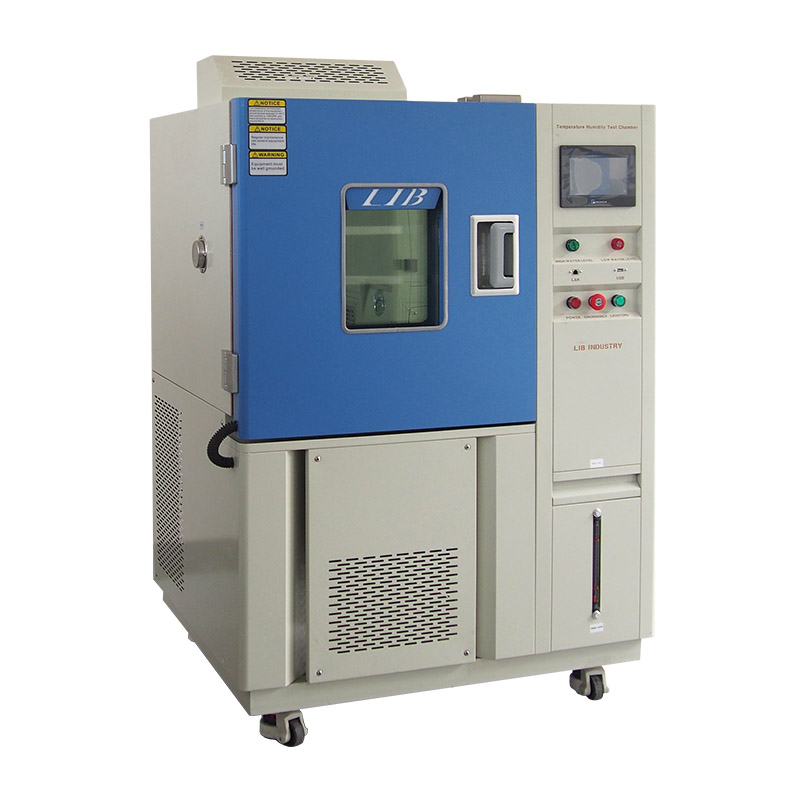

LIB Aerospace Thermal Stress Temperature Shock Chamber features a robust stainless-steel interior and reinforced steel exterior structure designed for long-term continuous operation. Internal capacities are available from 220 L to larger customized volumes, supporting testing of avionics modules, aerospace sensors, communication equipment, battery systems, composite materials, and precision mechanical assemblies. The programmable touch-screen controller supports up to 120 testing programs with 100 steps per program, allowing complex thermal stress profiles to be executed automatically. Ethernet and USB communication interfaces provide real-time monitoring, remote operation, and complete data traceability. The optimized airflow system minimizes temperature gradients throughout the workspace, ensuring consistent environmental conditions across all test specimens. Low maintenance requirements, energy-efficient refrigeration technology, and multiple safety protections make the chamber suitable for aerospace research laboratories, defense facilities, qualification centers, and manufacturing quality-control departments.

Functional advantages of the Aerospace Thermal Tress Temperature Shock Chamber

1. Fast Temperature Transition Capability: The chamber is engineered for accelerated thermal stress testing with selectable ramp rates of 5 °C/min, 10 °C/min, and 15 °C/min. Optional customized systems can achieve 20 °C/min or higher. Fast temperature transitions help reveal latent defects such as material cracking, solder fatigue, seal leakage, and structural deformation significantly earlier than conventional environmental testing methods.

2. Aerospace-Level Environmental Simulation: Designed for demanding aerospace applications, the chamber accurately simulates conditions encountered during high-altitude flight, rapid ascent and descent, satellite operation, launch events, and extreme climate exposure. The wide operating range from –70 °C to +150 °C allows engineers to evaluate component performance under realistic environmental stress conditions.

3. High Accuracy and Uniformity: PT100 Class A sensors with intelligent PID control provide precise temperature regulation throughout the test process. Temperature stability is maintained within ±0.5 °C, while optimized airflow circulation ensures excellent chamber uniformity. This guarantees repeatable and reliable test results even during rapid temperature changes.

4. Programmable Multi-Stage Testing: The advanced touchscreen controller enables users to create complex test sequences involving temperature cycling, humidity exposure, dwell periods, and ramp transitions. Up to 120 programs and 100 steps per program can be stored, supporting long-term qualification testing with minimal operator intervention.

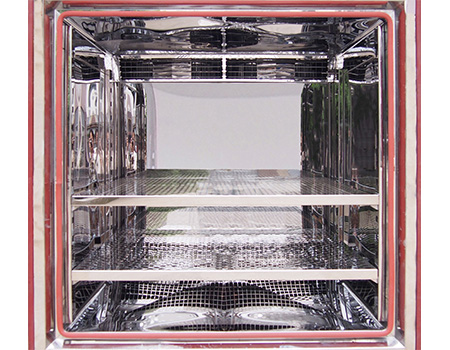

5. Reliable Construction and Safety Protection: The chamber interior is manufactured from SUS304 stainless steel for superior corrosion resistance and long service life. Comprehensive safety systems include over-temperature protection, compressor overload protection, leakage protection, phase-sequence monitoring, emergency shutdown functions, and optional aerospace-grade alarm systems to ensure safe operation during continuous testing.

6. Efficient Data Management and Remote Monitoring: Built-in Ethernet and USB interfaces support data export, remote monitoring, and laboratory integration. Test records can be stored automatically, helping organizations meet aerospace quality management and certification requirements while simplifying documentation and traceability.

Main Parameters of the Aerospace Thermal Tress Temperature Shock Chamber

Tests and Testing Standards

The Aerospace Thermal Stress Temperature Shock Chamber is widely used across aerospace, defense, electronics, automotive, energy storage, and research industries. In aerospace applications, it supports temperature variation testing, environmental qualification, and thermal cycling validation. Typical conditions include thermal cycling between –55 °C and +125 °C, high-temperature endurance testing at +125 °C to +150 °C, and low-temperature storage at –65 °C to –70 °C. For avionics and electronic assemblies, the chamber performs IEC 60068-2-14 thermal cycling tests and JESD22-A104 accelerated temperature cycling. Common profiles include transitions from –40 °C to +125 °C, 500 to 1000 cycle durability tests, and rapid 10 °C/min temperature changes for solder-joint reliability verification. Automotive electronic components are tested according to ISO 16750 and VW environmental specifications. Typical conditions include –40 °C to +85 °C cycling, 85 °C/85 % RH humidity exposure, and rapid temperature transitions simulating real vehicle operating environments. Battery and energy-storage systems are evaluated using thermal stress conditions similar to IEC 62133, UL 2580, and UN38.3 requirements, including low-temperature operation at –40 °C, high-temperature storage at +85 °C, and accelerated thermal cycling to assess safety and performance stability.

Video of the Aerospace Thermal Tress Temperature Shock Chamber

FAQs on the Aerospace Thermal Tress Temperature Shock Chamber

Q1: What is the maximum temperature change rate available?

Standard chamber configurations provide 5 °C/min, 10 °C/min, and 15 °C/min ramp rates. Customized systems can achieve 20 °C/min or higher depending on chamber size and testing requirements.

Q2: Can humidity control be integrated into the chamber?

Yes. Optional humidity systems support environmental testing from 20 % RH to 98 % RH, allowing combined temperature-humidity cycling and damp heat testing.

Q3: What aerospace standards can the chamber support?

The equipment can support IEC 60068 series, MIL-STD-810, RTCA DO-160, NASA thermal cycling procedures, JESD22, ISO 16750, ASTM standards, and many customer-specific aerospace qualification protocols.

Q4: Can chamber size and internal configuration be customized?

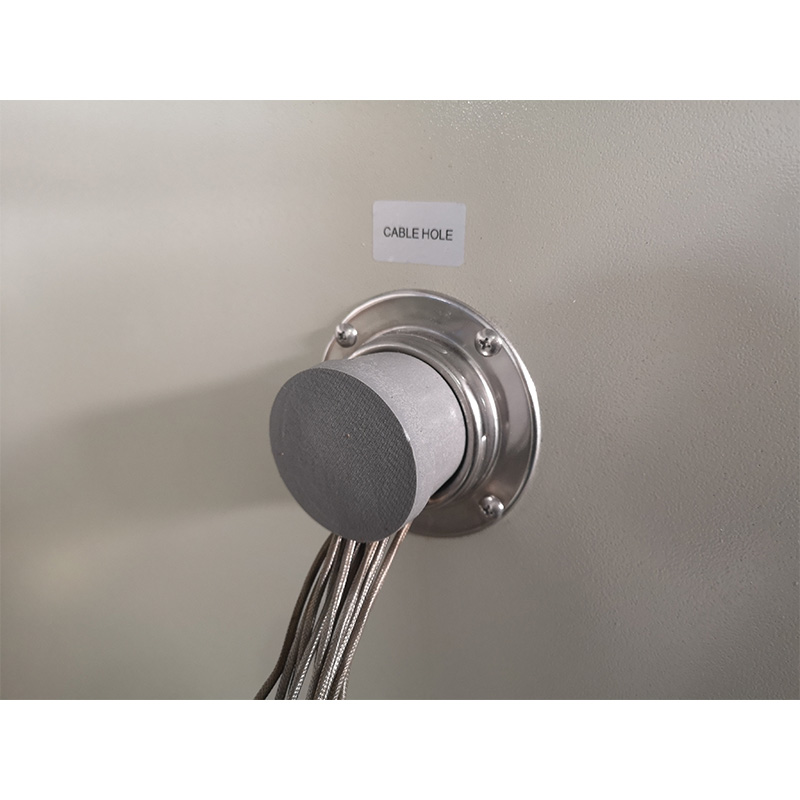

Yes. LIB offers customized internal volumes, additional cable ports, observation windows, special fixtures, explosion-proof options, and tailored temperature ramp-rate configurations according to project requirements.
