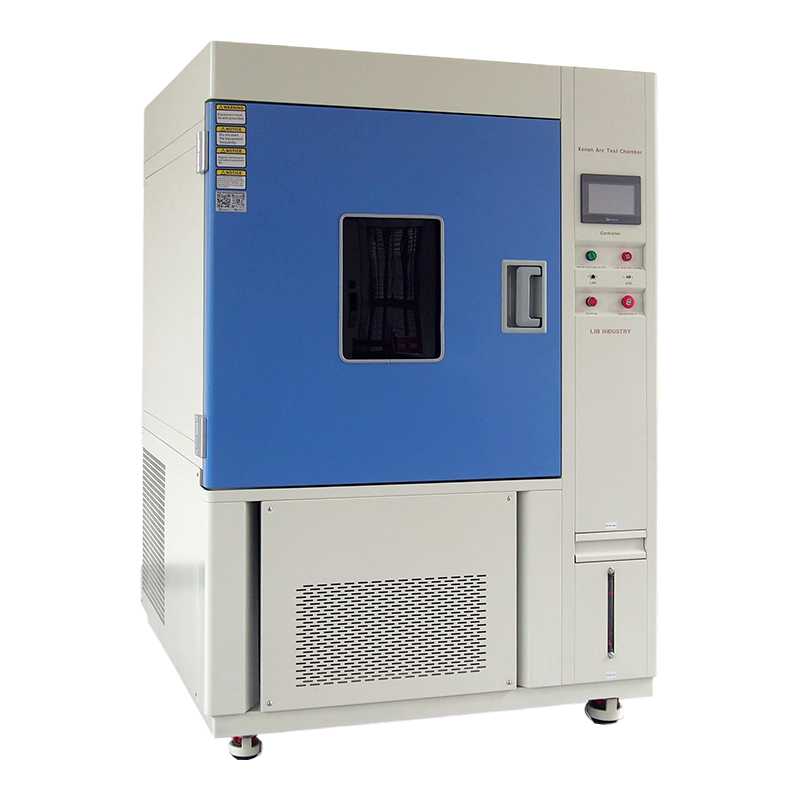

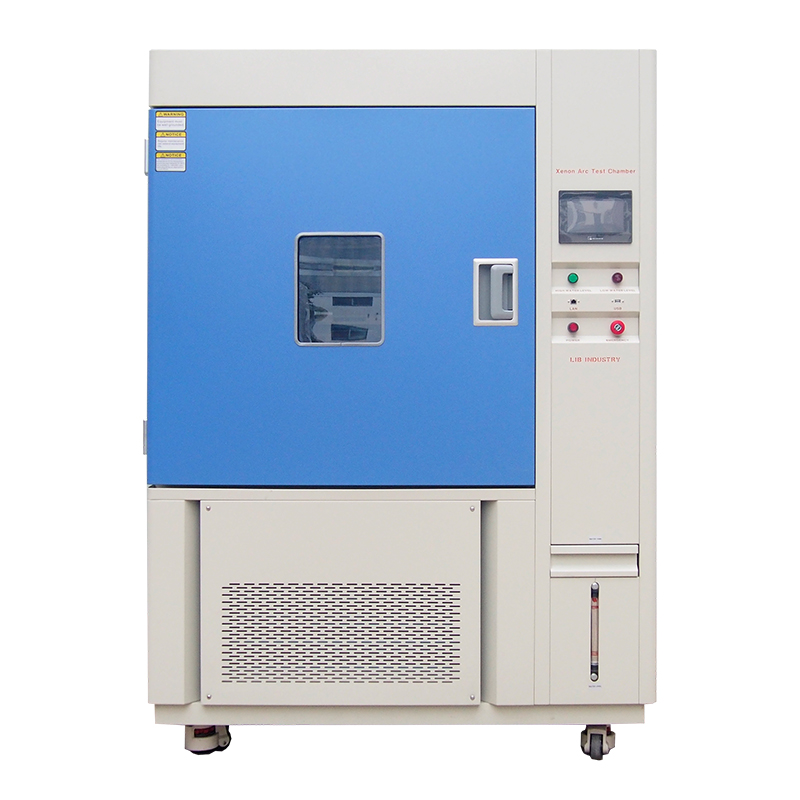

JIS K 5600 Xenon Arc Light Resistance Tester for Paints

LIB Xenon Arc Light Resistance Tester uses a high-intensity 4500W water-cooled xenon lamp, simulating full-spectrum sunlight from 290–800 nm, including UV, visible, and infrared light. With interchangeable filters (such as daylight and window glass), it can reproduce different real-world exposure conditions, from outdoor sunlight to indoor lighting behind glass, making it suitable for both interior and exterior coating evaluation. The system ensures stable and repeatable testing through precise control of irradiance, temperature, and exposure uniformity. Irradiance stability is maintained within ±0.02 W/m² (340 nm) and temperature fluctuation within ±1°C. A rotating sample rack holds up to 42 specimens, ensuring uniform exposure and minimizing position-related errors. Real-time sensors continuously monitor key parameters to guarantee traceable and consistent test data.

Working Principle of the JIS K 5600 Xenon Arc Light Resistance Tester

1. High-Precision Xenon Arc Solar Simulation System: The system uses a water-cooled xenon lamp to generate a stable and continuous spectrum closely matching natural sunlight. Unlike traditional UV lamps, xenon arc technology reproduces a full spectral range, ensuring realistic degradation behavior of paints and coatings. Optical filters are used to adjust spectral distribution, while irradiance sensors maintain stable energy output throughout long test cycles. This ensures that every sample receives identical exposure conditions, improving result reliability.

2. Controlled Temperature and Humidity Aging Environment: The tester integrates precise temperature and humidity control to simulate real environmental aging. Temperature is regulated between ambient +10°C up to 100°C, while humidity ranges from 10% to 95% RH. Black panel temperature control ensures accurate surface heating of test specimens, typically maintained at 50–70°C for accelerated aging. This combination of heat and moisture helps simulate outdoor conditions such as tropical climates, desert sunlight, and coastal environments.

3. Rain, Dew, and Condensation Simulation: To replicate real-world weathering, the system includes automatic spray and condensation functions using deionized water. Spray cycles can be set from 1–999 minutes, while condensation cycles typically operate at 40–60°C saturated humidity conditions. These cycles simulate rain impact, overnight dew formation, and moisture accumulation, which are critical factors affecting paint durability such as blistering, peeling, and corrosion.

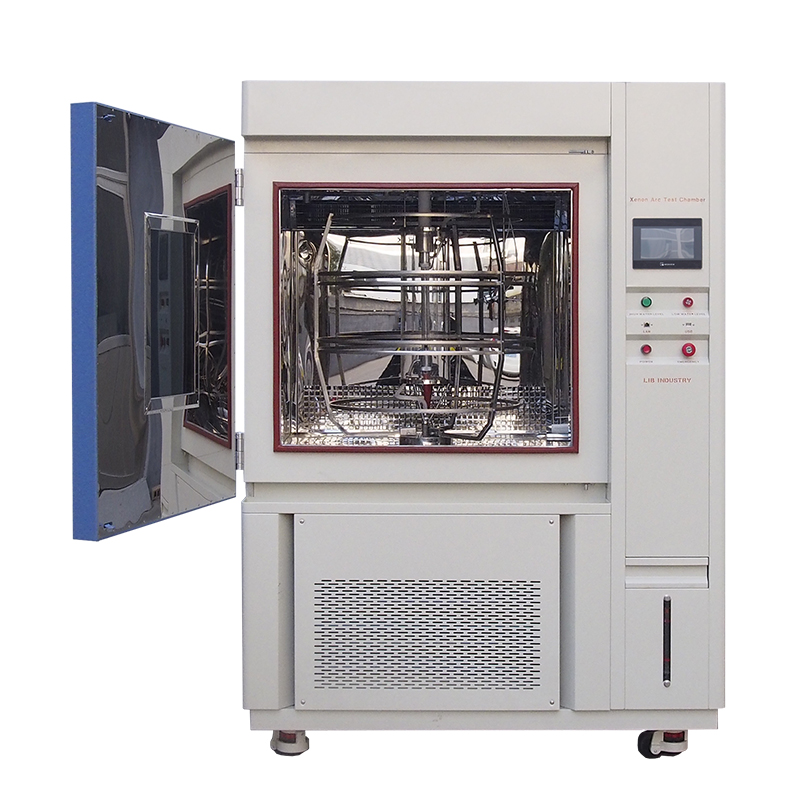

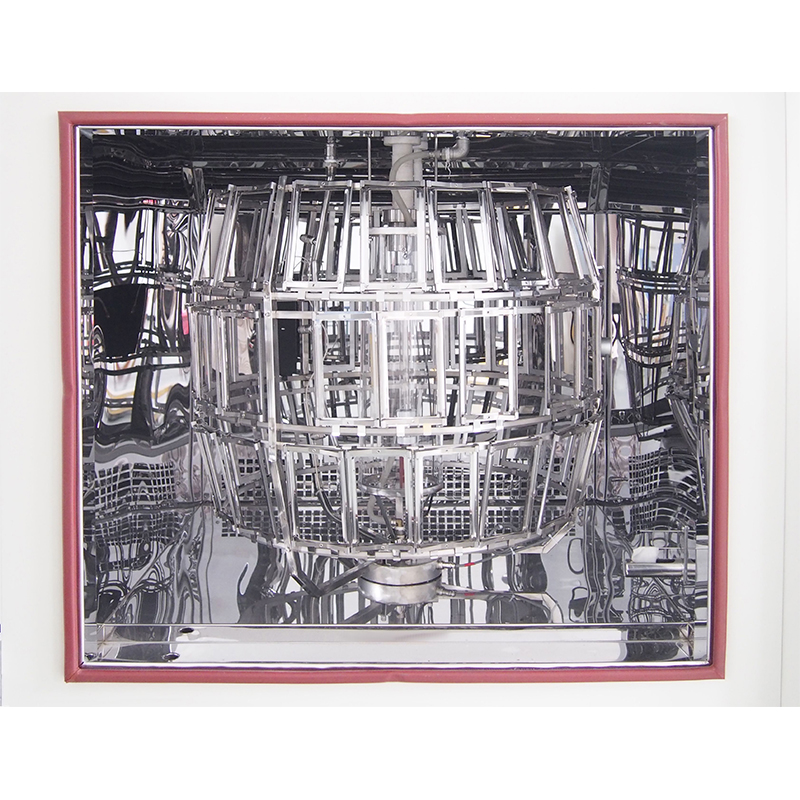

4. Stable Irradiance and Uniform Exposure Design: A rotating sample rack ensures that all specimens are evenly exposed to xenon radiation. Irradiance control is maintained within ±0.02 W/m², while temperature uniformity is controlled within ±2°C across the chamber space. This eliminates edge-to-center variation and ensures consistent aging conditions for all test samples, which is essential for comparative material evaluation.

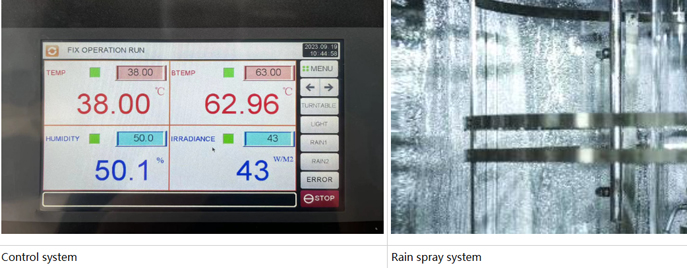

5. Intelligent Control and Data Traceability System: The system is equipped with a programmable touchscreen controller supporting up to 120 stored test programs. Each program can include multiple steps such as light exposure, dark recovery, spray, and condensation phases. Data logging is available via USB and Ethernet, allowing full traceability of test conditions. This ensures compliance with laboratory quality systems and supports certification requirements for coating performance evaluation.

Operating Parameters of the JIS K 5600 Xenon Arc Light Resistance Tester

Test Method Required by JIS K 5600

Typical test conditions include exposure cycles such as 102 minutes of light exposure followed by 18 minutes of light with water spray, or 4-hour light + 4-hour condensation cycles, depending on material requirements. Irradiance levels commonly range from 0.35 to 0.55 W/m² (340 nm), while total test durations typically range from 250 hours to 2000 hours to simulate long-term outdoor exposure. According to the JIS K 5600 testing method for paints, the procedure typically evaluates coating performance under controlled xenon arc exposure by monitoring key changes such as color difference, gloss retention, chalking level, and surface cracking after defined exposure intervals. Standard test conditions often include irradiance control at around 0.35 W/m² (340 nm), black panel temperature maintained at approximately 63°C, and cyclic exposure involving light + moisture or light + spray phases to accelerate real-weather aging effects. These conditions allow reliable comparison of paint durability and weather resistance under standardized laboratory simulation.

Video of the JIS K 5600 Xenon Arc Light Resistance Tester

FAQs on the JIS K 5600 Xenon Arc Light Resistance Tester

Q1: Can the chamber simulate different sunlight conditions?

Yes, by using different optical filters such as daylight and window glass filters, the system can simulate various real-world sunlight conditions, including outdoor exposure and indoor lighting behind glass.

Q2: What is the typical test duration for paint aging tests?

Depending on the standard and material type, test durations usually range from 250 hours to over 2000 hours for long-term durability evaluation.

Q3: Does the system support custom test programs?

Yes, the controller supports up to 120 programmable test cycles with 100 steps each, allowing full customization of light, humidity, spray, and condensation conditions.
