Which Manufacturers Make the Best ASTM B117 Fog Corrosion Salt Spray Test Cabinet?

A small weak spot on a chrome-plated bracket may look fine during a quick inspection, but it can still lead to serious corrosion after months of exposure to salty air. This is why reliable salt spray testing matters. A good salt spray chamber should provide stable temperature, consistent salt fog, and uniform test conditions. If the chamber temperature changes too much or the fog is uneven, the test results may not be reliable, and months of testing could be wasted.

This article walks through why LIB Industry has become a trusted name for ASTM B117 Fog Corrosion Salt Spray Test Cabinets, shares direct feedback from a Korean customer running real production testing, compares this cabinet against its cyclic counterpart, and answers the questions buyers ask most before purchasing.

LIB Industry as a Leading ASTM B117 Fog Corrosion Salt Spray Test Cabinet Manufacturer

Proven Strength in Salt Spray Testing Equipment
LIB Industry has spent years building corrosion and climate test chambers for automotive, electronics, marine hardware, and fastener manufacturers across more than a dozen countries. Its engineering teams work directly with quality labs and OEM suppliers to refine chamber sealing, fog uniformity, and long-term structural durability under continuous salt exposure — the exact conditions that wear out lesser cabinets within a year or two.

Standards Compliance and Working Principle
Every LIB Industry ASTM B117 Fog Corrosion Salt Spray Test Cabinet is engineered to satisfy ASTM B117, ISO 9227, GB/T 10125, JIS Z 2371, and DIN 50021 simultaneously. A PID controller paired with PT100 Class A sensors holds chamber temperature at 35 ± 2 °C with fluctuation limited to ±0.5 °C, while a quartz nozzle operating near 83 kPa atomizes a 5% NaCl solution into a fog deposition rate of 1–2 mL per 80 cm² per hour. A saturated air-preheating barrel conditions incoming air before it reaches the spray tower, keeping fog chemistry and humidity (95–98% RH) stable across test runs lasting hundreds of hours.

Testing Methods Supported
The cabinet is engineered to satisfy multiple salt spray standards within one enclosure: Neutral Salt Spray (NSS) per ASTM B117 using 5±1% NaCl at pH 6.5–7.2 and 35±2°C for general corrosion screening; Acetic Acid Salt Spray (AASS) per ASTM G85 at pH 3.1–3.3 for decorative and electroplated finishes; and Copper-Accelerated Acetic Acid Salt Spray (CASS) per ASTM B368 with 0.26 g/L copper chloride at 50±2°C for aggressive automotive and aerospace coating evaluation. Exposure duration is agreed between purchaser and seller, commonly in multiples of 24 hours ranging from short screening runs to 1,000+ hours for full qualification, with samples mounted 15°–30° from vertical per standard practice.

Korean Customer's Experience with the Cyclic Fog Corrosion Salt Spray Test Cabinet

A South Korean manufacturer purchased an Cyclic Fog Corrosion Salt Spray Test Cabinet from LIB Industry to validate the coating performance of automotive fasteners before shipping to overseas OEM partners. After extended use, the customer reported several concrete advantages:

1. Precise, standards-aligned testing: results matched ASTM B117 and ISO 9227 requirements consistently, with temperature holding at ±0.5 °C across thousands of test hours.

2. Certified safety compliance: the cabinet meets CE, IEC 61010, and CSA safety requirements, letting the customer deploy it without extra local certification delays.

3. High cost-performance ratio: reliable long-duration performance at a price point the customer felt outperformed competing suppliers.

4. Free customization: LIB Industry adjusted interior rack spacing and specimen holder configuration at no additional cost to match the customer's part geometry.

5. 3-year warranty with lifetime support: giving the customer confidence that future issues would be resolved quickly.

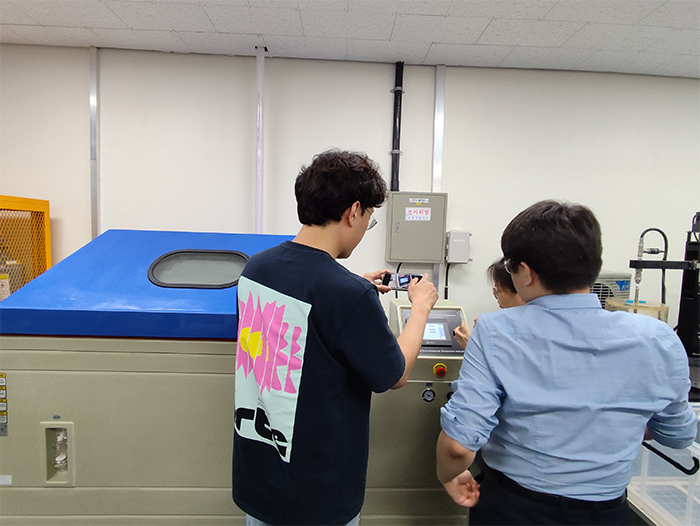

6. On-site training: LIB Industry technicians trained operating staff directly, reducing onboarding time and operator error.

7. Stable humidity control: maintained within ±2% RH throughout continuous testing, which the customer noted was essential for repeatable pass/fail decisions.

The combination of certified safety, tight tolerances, and responsive support gave the customer confidence they had not found with previous suppliers.

ASTM B117 Fog Corrosion Salt Spray Test Cabinet vs. Cyclic Fog Corrosion Salt Spray Test Cabinet

Both cabinets generate salt fog, but they serve different testing goals. The ASTM B117 cabinet runs a single, continuous condition, while the Cyclic Fog Corrosion Salt Spray Test Cabinet automatically alternates between salt fog, drying, and humidity phases to better mimic real-world weathering.

For fast coating or plating quality checks, the standard ASTM B117 cabinet delivers quicker, simpler results. For OEM approval or products facing seasonal wet-dry field cycles, the cyclic cabinet provides data that correlates more closely with actual outdoor corrosion behavior.

LIB Popular Environmental Chamber for Meatal and Paints
Cyclic Salt Spray Corrosion Chamber Realistic Wet-Dry Corrosion Simulation, Accelerated Corrosion Testing for Long-Term Durability	ASTM B117 Fog Corrosion Salt Spray Test Cabinet Reliable Salt Fog Exposure Testing, Accurate Corrosion Resistance Evaluation	Salt Spray and Sulfur Dioxide Climatic Chamber Simulate Acid Rain and Industrial Pollution, Advanced SO₂ Corrosion Testing Solution	Walk-in Salt Spray Corrosion Chamber Large-Capacity Corrosion Testing Space, Ideal for Oversized Components and Assemblies
ASTM G155 G151 Accelerated Weathering XenonTest Apparatus Full-Spectrum Sunlight Simulation, Accelerated Outdoor Weathering Analysis	UVA 340 Fluorescent Lamp Light Fastness Test Instrument Precise UV Aging Performance Testing, Reliable Material Durability Verification	Temperature Humidity Test Chamber Stable Environmental Conditioning, Accurate Temperature and Humidity Control	Compact Mini Temperature Stability Climatic Test Chamber Space-Saving Laboratory Solution, High-Precision Climate Simulation in a Compact Design

FAQs on the ASTM B117 Fog Corrosion Salt Spray Test Cabinet

Q1: What certifications does the cabinet meet?

It is built to CE, IEC 61010, and CSA safety standards, alongside ASTM B117 and ISO 9227 testing requirements, ensuring both operator safety and internationally recognized test validity.

Q2: Can the cabinet be customized for different sample sizes?
Yes. LIB Industry offers free customization of internal racking, specimen holder angles, and chamber dimensions to accommodate irregular or oversized parts at no added engineering cost.

Q3: What support is available after installation, including shipping?
Every cabinet includes a 3-year warranty with lifetime technical support, with spare parts delivered internationally within 7–15 days. LIB Industry also provides on-site or remote training and coordinates safe transportation and installation guidance for overseas customers.

Q4: How long does delivery take, and does LIB Industry handle international shipping?
Standard units typically ship within 4–6 weeks; custom configurations may take longer. LIB Industry manages export documentation, freight coordination, and installation guidance for overseas customers.

Q5: How long does a typical test run, and can duration be adjusted?
Tests commonly run from 24 hours for quick screening up to 1,000+ hours for full qualification. With 120 programmable profiles, operators can freely set custom durations or chain multiple test phases together.

Contact LIB Industry today to learn how our ASTM B117 Fog Corrosion Salt Spray Test Cabinet can strengthen your product's corrosion resistance validation and accelerate your certification timeline.
