TH-50/ TH-80
LIB Industry
| Quantity: | |
|---|---|
The Compact Mini Temperature Stability Climatic Test Chamber features a space-saving benchtop design with internal volumes ranging from 50 L to 80 L, making it ideal for testing small samples such as PCBs, sensors, electronic modules, and precision components. Operating noise is maintained at ≤65 dBA, enabling continuous testing in shared laboratories without disrupting routine work.
Core strengths
1. Quiet Running Performance: The Compact Mini Temperature Stability Climatic Test Chamber operates at noise levels of ≤65 dBA, making it significantly quieter than most conventional laboratory equipment. Even during extended temperature and humidity cycling, the system runs smoothly without generating distracting noise. An optional silent operation mode is available, further reducing sound output for cleanrooms, shared laboratories, and R&D environments where focus, communication, and measurement accuracy are critical.
2.Optimized Benchtop Configuration: Designed to maximize laboratory space efficiency, the chamber features overall dimensions of 820 × 1160 × 950 mm, allowing it to be conveniently placed next to workbenches or beneath laboratory hoods. Its compact footprint helps laboratories optimize limited floor space while still offering full environmental testing capabilities typically found in larger systems.
3. Wide Temperature and Humidity Simulation Range: This compact climatic test chamber supports an extensive operating range from –86 °C to +150 °C, with humidity control from 10 % to 98 % RH. A high-performance refrigeration system combined with responsive electric heating enables accurate simulation of extreme cold, high-temperature, and high-humidity conditions. The chamber is suitable for environmental testing of electronics, materials, batteries, and components under realistic stress scenarios.
4. High Precision and Environmental Uniformity: Equipped with PT100 Class A temperature sensors offering a resolution of 0.001 °C, the chamber provides highly accurate and stable environmental control. Intelligent PID regulation maintains temperature stability within ±0.5 °C and humidity stability within ±2 % RH. Optimized airflow generated by centrifugal fans minimizes spatial variation, ensuring consistent exposure of all samples for reliable and repeatable test results.
5. Rapid Heating and Cooling Capability: With heating speeds of up to 3 °C per minute and cooling speeds of 1 °C per minute, the chamber significantly reduces overall test cycle time. Programmable control allows multiple test stages to be executed in a single automated sequence, minimizing manual intervention and improving laboratory efficiency. This performance supports accelerated testing and faster data generation.
6. Durable Construction and Comprehensive Safety Protection: The test chamber interior is constructed from SUS304 stainless steel, providing excellent corrosion resistance in high-humidity environments. A reinforced 4 mm A3 steel exterior with protective coating ensures long-term structural durability. Integrated safety systems—including over-temperature protection, leakage current monitoring, grounding protection, and phase sequence detection—ensure safe operation and protect both operators and test specimens.
Performance Parameters
| Model | TH-50 | TH-80 |
| Internal Dimension (mm) | 320*350*450 | 400*400*500 |
| Overall Dimension (mm) | 820*1160*950 | 900*1210*1000 |
| Interior Volume | 50L | 80L |
| Temperature Range | A : -20℃ ～ +150 ℃ | |
| B : -40℃ ～ +150 ℃ | ||
| C: -70℃ ～ +150 ℃ | ||
| Temperature Fluctuation | ± 0.5 ℃ | |
| Temperature Deviation | ± 2.0 ℃ | |
| Humidity Range | 20% ~ 98% RH | |
| Humidity Deviation | ± 2.5% RH | |
| Cooling Rate | 1 ℃ / min | |
| Heating Rate | 3 ℃ / min | |
| Cooling system | Mechanical compression refrigeration system | |
| Controller | Programmable color LCD touch screen controller, Ethernet and USB connections. | |
| Safety System | Humidifier dry-burn protection; over-temperature protection; over-current protection; refrigerant high-pressure protection; water shortage protection; earth leakage protection. | |
| Exterior Material | A3 Steel Plate with protective coating | |

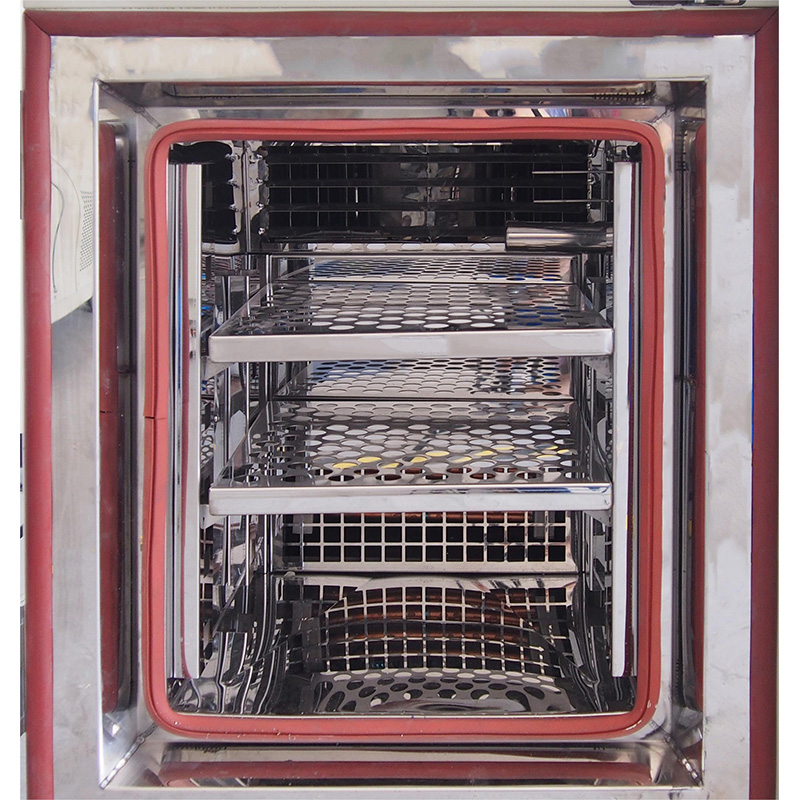

| Interior Material | SUS304 stainless steel | |
| Observation Window | Inner-glass conductive film prevents frosting; built-in LED lighting. | |

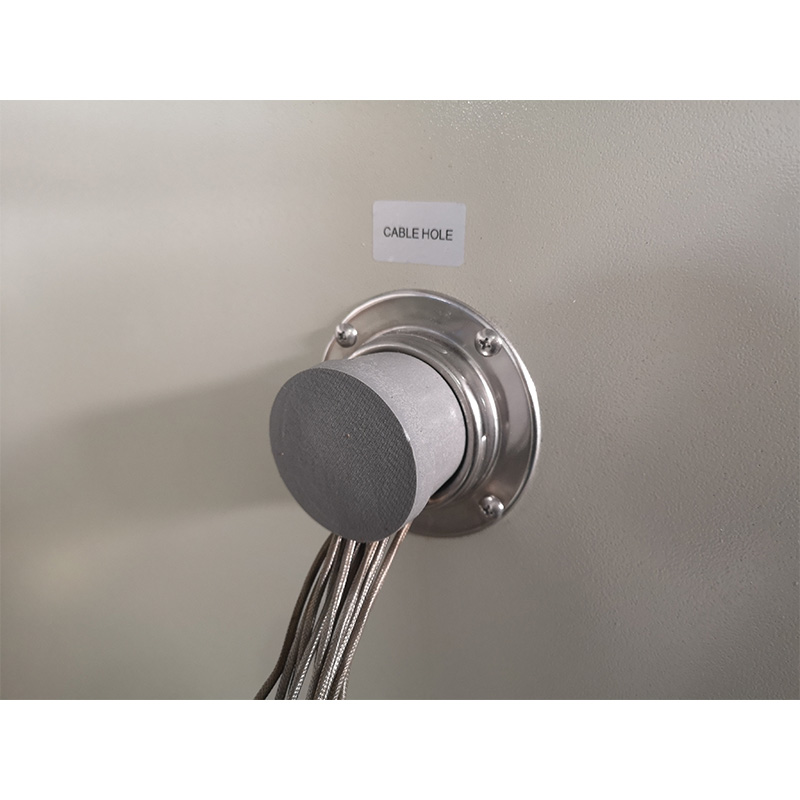

| Standard Configuration | 1 Cable hole (Φ 50,) with silicone rubber plug; 2 shelves | |
Examples of Applicable Tests
This Compact Mini Temperature Stability Climatic Test Chamber supports a broad range of environmental testing applications, such as thermal shock exposure between –40 °C and 85 °C, temperature cycling from 0 °C to 70 °C, steady high- and low-temperature tests at 85 °C and –20 °C, high-humidity and damp heat testing up to 95 % RH, controlled shelf-life evaluation at 25 °C, humidity freeze testing between –20 °C and 25 °C, and hydrolysis aging under elevated humidity at temperatures from 20 °C to 70 °C. All test parameters are continuously monitored to ensure consistency, accuracy, and repeatability.
Video Showcase
Customization, Warranty & Global Support
LIB provides flexible customization options to meet specific testing requirements and application needs. Each unit is backed by a comprehensive 3-year warranty along with lifetime technical support. Should any problem arise during the warranty period that cannot be resolved through service or repair, a replacement will be provided at no additional cost. An experienced English-speaking after-sales team is available around the clock to ensure prompt assistance, while efficient logistics enable delivery within approximately 7–15 days.
