What is a UV Weathering Test Chamber used for?

A UV Weathering Test Chamber must provide stable performance for long-term material aging evaluation. An Australian customer recently shared positive feedback after LIB completed maintenance support for their UV Test Chamber. After sensor installation, the customer confirmed that the chamber was “working perfectly fine now” and appreciated LIB’s professional service and maintenance guidance.

Sunlight, UV radiation, heat, moisture, and rain can gradually damage materials, causing fading, cracking, and performance degradation. A UV Weathering Test Chamber accelerates this process under controlled laboratory conditions, helping manufacturers evaluate durability, improve product designs, and meet international weathering standards.

This article explains how a UV Weathering Test Chamber works, which testing standards it supports, why laboratories choose LIB UV Weathering Test Chambers, and how to select between UV and xenon arc accelerated weathering systems for different applications.

UV Weathering Test Chamber Testing Standards

Meeting International Weathering Test Requirements

A reliable UV Weathering Test Chamber must provide accurate UV radiation simulation, stable temperature control, and repeatable moisture cycles to meet international testing requirements. LIB UV Weathering Test Chambers are designed according to major weathering standards, including ASTM G154, ISO 4892-3, ASTM D4587, SAE J2020, GB/T 16422.3, IEC 61215, and IEC 61730.

These standards are widely used for evaluating the durability of plastics, coatings, paints, rubber, automotive components, photovoltaic materials, and outdoor products. The chamber controls critical parameters such as irradiance, black panel temperature, condensation, and water spray to ensure consistent test results.

ASTM G154 Test Method and UV Exposure Simulation

The ASTM G154 standard defines procedures for exposing nonmetallic materials to fluorescent UV lamps, temperature, and moisture cycles to simulate outdoor weathering effects.

During ASTM G154 testing, a UV Weathering Test Chamber typically uses fluorescent UV lamps such as:

• UVA-340 lamps: Simulate the critical UV wavelength range of natural sunlight from approximately 295 nm to 365 nm.

• UVB-313 lamps: Provide accelerated UV degradation testing for comparative evaluation.

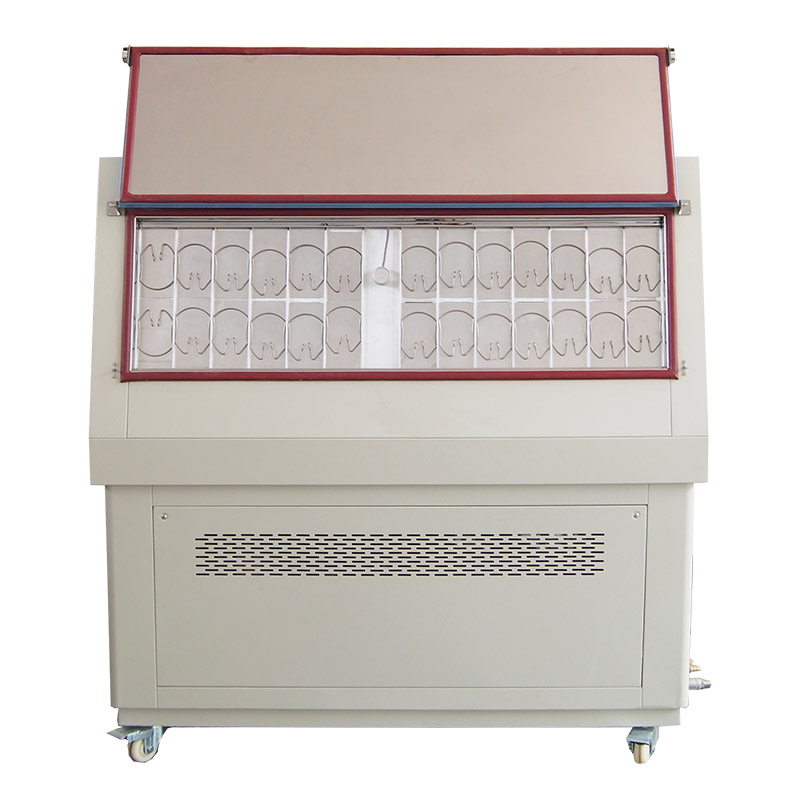

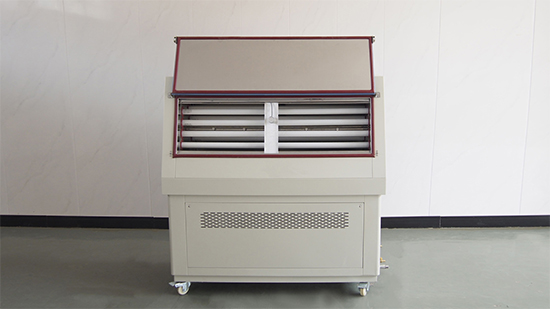

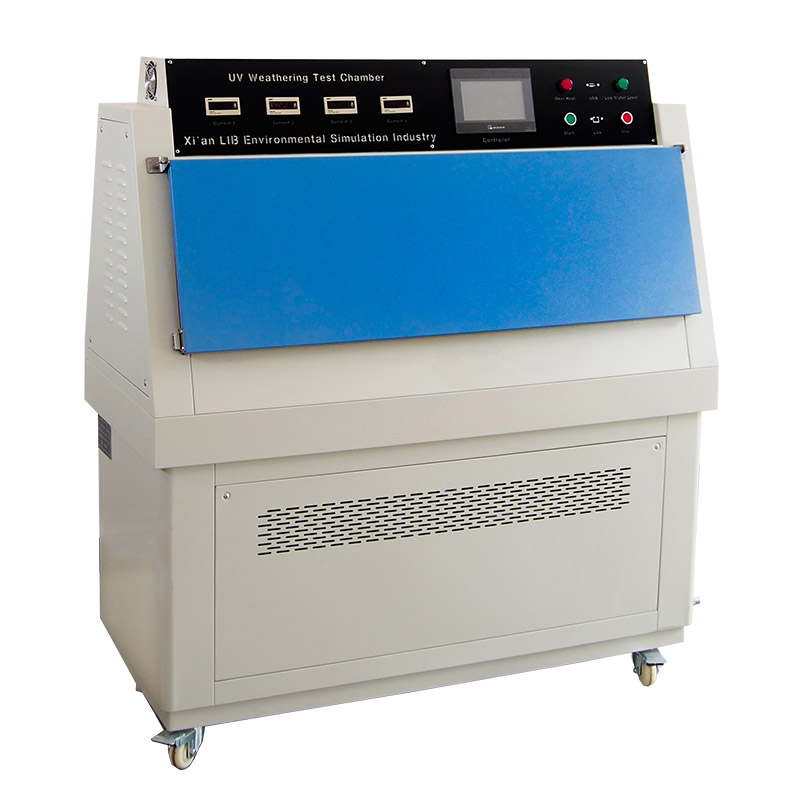

LIB UV Weathering Test Chambers provide:

Model	UV-SI-260  UV Weathering Test Chambers
Internal Dimension (mm)	450*1170*500
Overall Dimension (mm)	610*1330*1470
Specimen Holder Size(mm)	75*150
Specimen Capacity	52 Pieces
Irradiation Source	Fluorescent UV lamps (8) - 40 W
Temperature Range	Ambient ～ 90 ℃ ±2℃
Black Panel Temperature (BPT)	35 ～ 80 ℃
Humidity Range	≥95% RH
Bandwidth	290 ~ 400nm
Irradiance Control	0.3~20 W/㎡
Water Spray Cycle	1~9999H59M (Adjustable)
Distance of Specimen and lamp	50mm
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water Supply System	Automatic water supply, Water purification system
Safety Device	Over-temperature Protection; Over-current Protection;
	Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 Stainless Steel

The chamber automatically switches between UV exposure, condensation, and water spray cycles to reproduce real outdoor conditions. This helps identify material failures such as fading, cracking, chalking, and loss of mechanical strength within a much shorter testing period.

Industries Using UV Weathering Test Chambers

UV accelerated aging testing is widely used because almost every outdoor product is affected by sunlight exposure. Common applications include:

1. Automotive Industry
Automotive manufacturers use UV Weathering Test Chambers to evaluate dashboards, exterior plastics, coatings, lamps, rubber seals, and interior materials according to standards such as SAE J2020.

2. Plastic and Coating Industry
Manufacturers test paint coatings, polymer materials, protective films, and plastic products according to ASTM G154, ISO 4892-3, and ASTM D4587.

3. Solar Energy Industry

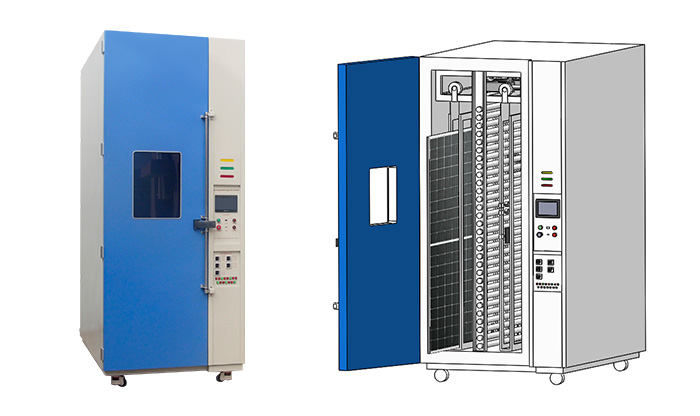

Photovoltaic manufacturers use UV testing before long-term reliability evaluations. LIB UV chambers support PV-related standards including IEC 61215 and IEC 61730 to evaluate module material durability.

4. Research Laboratories and Universities
Laboratories use UV Weathering Test Chambers for material research, aging analysis, and product development with controlled and repeatable environmental conditions.

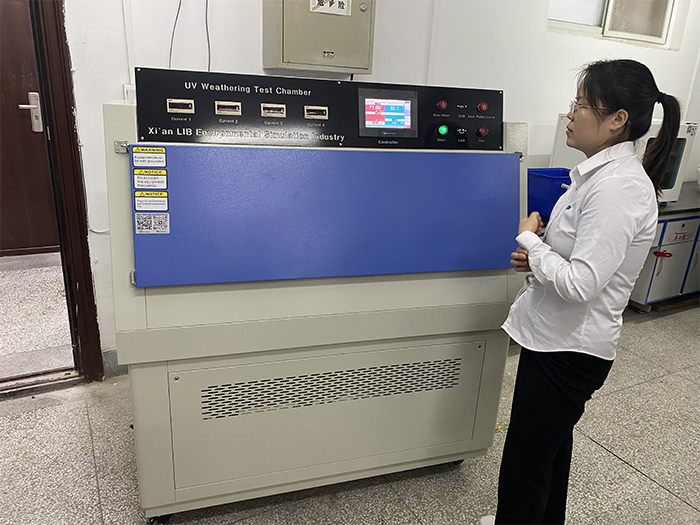

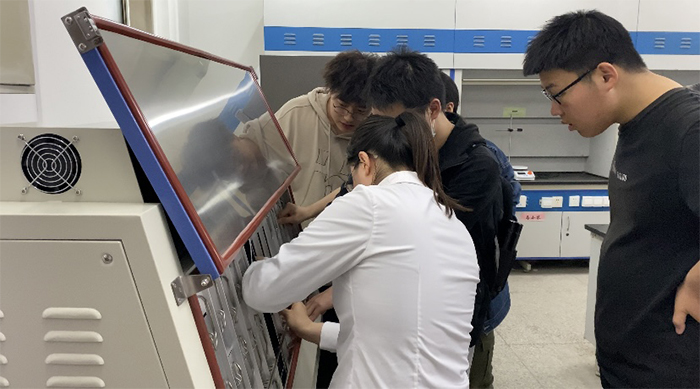

Xi'an Jiaotong University Recognized LIB UV Weathering Test Chamber Quality

Recently, LIB completed maintenance and performance verification for a UV Weathering Test Chamber installed at Xi'an Jiaotong University. The laboratory mainly uses the equipment for coating durability and material weather resistance research.

During operation evaluation, the research team highly recognized LIB's chamber performance, especially its stable UV output, accurate temperature control, and reliable long-term operation.

Key advantages include:

Accurate UV Irradiance Control

LIB UV Weathering Test Chamber uses an advanced irradiance monitoring system to continuously measure UV intensity and automatically adjust lamp output. This maintains stable radiation conditions throughout long testing cycles and improves test repeatability.

Flexible Customization for Different Testing Requirements

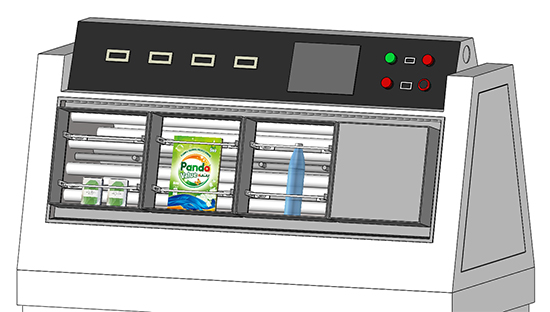

LIB UV Weathering Test Chambers can be customized according to different laboratory layouts, sample sizes, and testing requirements. Available customization options include optical observation windows for real-time sample inspection, customized sample holders for different specimen shapes and sizes, and special fixtures to meet unique testing applications. These flexible configurations allow researchers to optimize the chamber setup, improve testing efficiency, and achieve more accurate and reliable weathering evaluation results.

High Safety Performance

LIB UV Weathering Test Chambers are equipped with multiple safety protection systems to ensure reliable operation during long-term accelerated aging tests. The chamber integrates over-temperature protection, water shortage protection, lamp protection, electrical leakage protection, and emergency shutdown functions to reduce operational risks and protect both operators and test samples. Designed to meet international safety requirements, LIB UV chambers comply with CE, IEC, and CSA safety standards, providing safe and stable performance for laboratories and testing facilities worldwide.

Reliable Testing Performance and Cost Efficiency

The PID temperature control system, high-quality sensors, and uniform airflow structure ensure accurate and stable testing conditions. Compared with traditional outdoor exposure testing, LIB UV Weathering Test Chambers provide faster results, better repeatability, and lower operating costs.

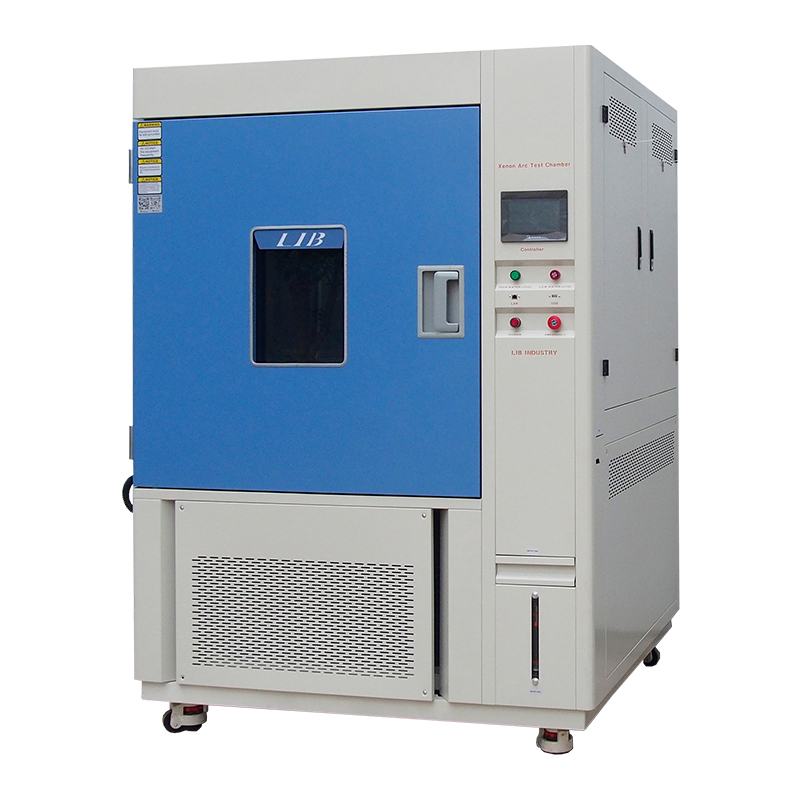

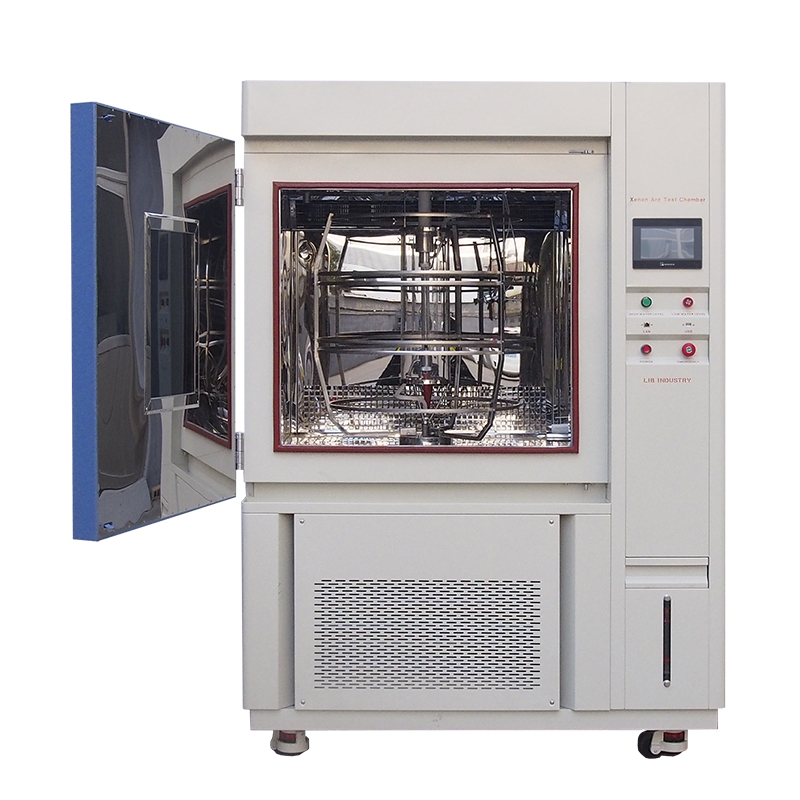

UV Weathering Test Chamber vs Xenon Arc Test Chamber: How to Choose?

Both UV Weathering Test Chambers and Xenon Arc Test Chambers are designed for accelerated weathering evaluation, but they simulate different parts of sunlight.

FAQs on the UV Weathering Test Chamber

Q1: What is a UV Weathering Test Chamber used for?

A UV Weathering Test Chamber is used to simulate sunlight exposure and environmental conditions to evaluate material aging performance. It is commonly used for plastics, coatings, rubber, textiles, automotive parts, and photovoltaic materials.

Q2: Which standards does LIB UV Weathering Test Chamber support?

LIB UV chambers support international standards including: ASTM G154, ISO 4892-3, ASTM D4587, SAE J2020, GB/T 16422.3, IEC 61215, IEC 61730, and so on.

Q3: Can LIB customize a UV Weathering Test Chamber?

Yes. LIB provides customized chambers based on sample size, testing requirements, and laboratory conditions. Options include customized sample holders, optical windows, cable holes, and special fixtures.

Q4: Does LIB provide installation and technical support?

Yes. LIB provides professional installation guidance, operation training, calibration support, maintenance service, and lifetime technical assistance to ensure stable equipment operation.

Q5: How does LIB ship UV Weathering Test Chambers internationally?

LIB has extensive experience exporting environmental test chambers worldwide. Equipment is professionally packaged for ocean, air, and land transportation, with complete export documentation provided according to destination requirements.

Q6: What is the delivery time for LIB UV Weathering Test Chamber?

Delivery time depends on the model and customization requirements. Standard models can usually be prepared quickly, while customized systems may require additional manufacturing time.

Discover how LIB UV Weathering Test Chambers help laboratories achieve faster, more accurate, and standards-compliant weathering evaluations for plastics, coatings, rubber, automotive components, textiles, and photovoltaic materials. Contact LIB Industry today for your customized weathering testing solution.
