What is the temperature and humidity range of a benchtop environmental chamber?

Modern R&D and quality laboratories are under constant pressure to test faster, smaller, and more accurately. As electronic devices become more compact and sensitive, even slight temperature or humidity fluctuations can cause failure in the field. That is why benchtop environmental chambers have become a core tool for engineers who need laboratory-grade control in limited space.

A recent feedback from a university laboratory in Spain highlights this trend in real application. The research team reported that the chamber has been working well and is actively used in their lab for preparing polymer-based foams and membranes via a phase inversion process under controlled humidity conditions, as they noted: “We have been using it mainly to prepare polymer-based foams using the phase inversion process for different ongoing projects and research.” They also shared lab photos showing the equipment integrated into their workflow, demonstrating how LIB benchtop environmental chamber  supports advanced academic research in material science.

This article explains the full temperature and humidity range of a benchtop environmental chamber, how it works, and how LIB's benchtop environmental chamber supports standardized testing such as IEC 60068 with high precision, stability, and efficiency.

Temperature and Humidity Control Range of a Benchtop Environmental Chamber

1. Full Temperature and Humidity Range Capability

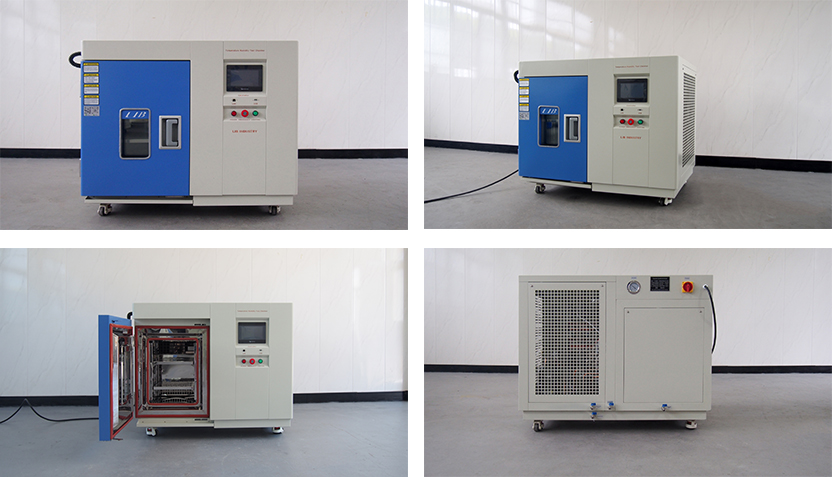

A benchtop environmental chamber is designed to simulate a wide range of real-world climates in a compact system. LIB's benchtop environmental chamber typically offers:

① Temperature range: -86°C to +150°C (low-temperature extended model available)

②Humidity range: 20% RH to 98% RH

③Transition control: fast heating and cooling cycles for dynamic testing

This wide range allows users to reproduce environments from Arctic storage conditions to tropical humidity exposure in a single compact unit placed directly on a laboratory bench.

2. Typical Application Testing Ranges in Different Industries

Different industries do not always use the full extreme range, but instead operate within standardized testing zones:

①Electronics industry:
Common tests run from -40°C to +85°C, following reliability screening for PCBs, semiconductors, and sensors.

② Automotive sector:
Components such as ECUs and battery systems are usually tested between -40°C cold soak and +125°C hot soak, simulating under-hood and winter driving conditions.

③ Pharmaceutical and biotech:
Stability testing often requires 25°C / 60% RH or 40°C / 75% RH as defined in ICH guidelines.

④ Material and coating tests:
Humidity cycling between 30%–95% RH is commonly used to evaluate corrosion resistance and adhesion performance.

These standard ranges ensure products meet global compliance requirements before entering the market.

3. Precision and Stability of Benchtop Control

Range alone is not enough—precision determines reliability. LIB benchtop environmental chamber ensures:

① Temperature stability: ±0.5°C

② Humidity deviation: ±2.5% RH

③ Sensor accuracy: PT100 Class A with 0.001°C resolution

④ Uniformity: optimized airflow system reduces internal gradients

Compared to full-size chambers, benchtop models provide faster response time due to smaller internal volume, making them ideal for rapid prototyping and repeatable lab testing.

Name	Small  temperature humidity chamber	Standing temperature humidity chamber	Walk-In temperature humidity chamber
Capacity	TH-50: 800x1050x950 mm TH-80: 900×1100×1000mm	Capacity: 100L; 225L; 500L; 800L; 1000L	＞20m³
Throughput	Ideal for small components, sensors, boards	Subassemblies or mid-volume batches	Bulk testing of items or vehicles as a whole
Energy Saving	Automatic Moisture Circulation in Humidity System	Automatic Moisture Circulation in Humidity System	Automatic Moisture Circulation in Humidity System
Operational Cost	Lowest	Medium	Highest
Standards Coverage	Full IEC / ISO / ASTM compliance
Noise Level	≤ 65 dBA

Working Principle of LIB Benchtop Environmental Chamber

LIB's system operates through a closed-loop environmental simulation mechanism combining heating, cooling, humidification, and intelligent control.

① Cooling system: compressor-based refrigeration enables rapid temperature drop, reaching ultra-low conditions as low as -86°C.

② Heating system: electric resistance heaters provide fast and stable temperature rise up to +150°C.

③ Humidity system: steam or vapor humidification maintains RH between 20% and 98%.

④ Air circulation: centrifugal fans ensure even distribution of temperature and humidity across all test samples.

⑤ Control system: a PID algorithm continuously adjusts output to maintain stable conditions with minimal fluctuation.

Power Supply Cable Hole	Temperature and Humidity Sensor	Air circulation

The chamber continuously monitors internal conditions and automatically corrects deviations in real time, ensuring consistent environmental simulation throughout the test cycle.

IEC 60068 Standard Testing in LIB Benchtop Environmental Chamber

The IEC 60068 series is one of the most widely used international standards for environmental testing of electronic components. It defines how products should be tested under temperature and humidity stress conditions.

Standard Test Cycle Example (IEC 60068-2-1 / 2-2 / 2-78)

A typical environmental reliability cycle includes:

LIB Benchtop Environmental Chamber Application

Using LIB's benchtop environmental chamber (for example, the T-80 model), this full IEC 60068 cycle can be programmed automatically with up to 120 multi-step test programs, allowing engineers to simulate months or years of environmental stress within days.

Key Advantages of LIB for IEC 60068 Testing:

FAQs on LIB Benchtop Environmental Chamber

Q1: Can LIB chambers be customized for special testing needs?

Yes. LIB provides customization options such as internal rack design, additional sensor ports, special voltage requirements, and reinforced shelving for heavy samples. Custom temperature ranges and humidity extensions are also available for specific industry standards.

Q2: What after-sales service does LIB provide?

LIB offers 3-year warranty coverage and lifetime technical support. Engineers provide remote troubleshooting, calibration guidance, and maintenance training. Spare parts are globally available with typical delivery times of 7–15 days.

Q3: How is shipping and installation handled?

Chambers are shipped in reinforced export packaging to ensure safe global transport. LIB supports door-to-door delivery, and installation guidance is provided via video or on-site support depending on customer requirements.

Q4: Is training provided for new users?

Yes. LIB provides multilingual operation manuals, video tutorials, and online training sessions to help users quickly master test programming and maintenance procedures.

Environmental testing is no longer limited to large-scale laboratory rooms. With compact yet powerful systems like LIB’s benchtop environmental chamber, engineers can now perform precise temperature and humidity simulations directly at their workstation, improving speed, efficiency, and data reliability.

Contact LIB Industry to learn how our benchtop environmental chamber can upgrade your testing capability with professional-grade performance in a compact design.
