Corrosion testing is one of the most critical steps in validating metal, coating, and surface protection performance. In
industries such as automotive, electronics, aerospace, and marine engineering, even small corrosion failures can lead to product malfunction, safety risks, and costly recalls.
Among all accelerated corrosion methods, NSS, ASS, and CASS are the three most widely used salt spray test types defined under ISO 9227, and each one simulates a different level of environmental aggressiveness.
This article explains the differences between these three methods, how they compare with natural corrosion testing, how LIB's NSS ASS CASS Mist Corrosion Salt Spray Test Machine are used in real industrial applications, and how to choose the right temperature and humidity testing equipment for laboratory research and production validation.
| Test Type | Standard | Solution Composition | pH Value | Temperature | Main Application |
|---|---|---|---|---|---|
| NSS (Neutral Salt Spray) | ISO 9227, ASTM B117 | 5% NaCl | 6.5–7.2 | 35 ± 2°C | General corrosion resistance |
| ASS (Acetic Acid Salt Spray) | ISO 9227 | 5% NaCl + Acetic Acid | 3.1–3.3 | 35 ± 2°C | Decorative coatings, electroplating |
| CASS (Copper-Accelerated Salt Spray) | ISO 9227 | 5% NaCl + Acetic Acid + CuCl₂ (0.26 g/L) | 3.1–3.3 | 50 ± 2°C | High-performance coatings |
A. NSS (Neutral Salt Spray Test)NSS is the most basic and widely used corrosion test method. It uses a 5% NaCl solution at neutral pH (6.5–7.2) and operates at 35°C ± 2°C, following ISO 9227 and ASTM B117 standards. It is mainly used for general metal corrosion resistance, basic coating durability checks, and electronics enclosure testing, and is widely applied in electronics manufacturing, automotive components, and general industrial materials. | B. ASS (Acetic Acid Salt Spray Test)ASS introduces glacial acetic acid, lowering the pH to 3.1–3.3, making the environment more aggressive than NSS. Key conditions: ① 5% NaCl + acetic acid ② pH: 3.1–3.3 ③ Temperature: 35°C ± 2°C ④ Standard: ISO 9227 It is used for decorative coatings, electroplated surfaces such as nickel, chrome, and zinc, and automotive interior trims, and is widely applied in consumer electronics, automotive appearance parts, and decorative metal finishing industries. | C. CASS (Copper-Accelerated Salt Spray Test)CASS is the most aggressive corrosion test in ISO 9227. It adds CuCl₂ (0.26 g/L) and increases temperature to 50°C ± 2°C, accelerating corrosion dramatically. Key conditions: ① 5% NaCl + acetic acid + CuCl₂ ② pH: 3.1–3.3 ③ Temperature: 50°C ± 2°C It is used for high-performance coatings, marine-grade materials, and aerospace and automotive exterior parts, and is widely applied in aerospace, marine engineering, and high-end automotive manufacturing industries. |
Natural environmental corrosion can take months or even years, depending on climate conditions such as humidity, salt exposure, and temperature fluctuations. In contrast, a Salt Spray Test Machine compresses this process into 24–1000 hours, ensuring faster product validation.
Robust Workroom | Salt Fog Deposition | 1～2ml / 80cm2 · h | ||
Spray Type | Continuous / Periodic | |||
Heating Element | Nichrome heater | |||
Salt Fog Collected | Fog collector and fog measure cylinder | |||
Salt Fog collector | Controller | PID controller | ||
Material | Glass fiber reinforced plastics | |||
Standard Configuration | 8 round | |||
① Natural exposure: Uncontrolled, slow, inconsistent
② Salt spray chamber: Controlled, repeatable, accelerated
Standards commonly supported:
| Industries benefiting most:
|

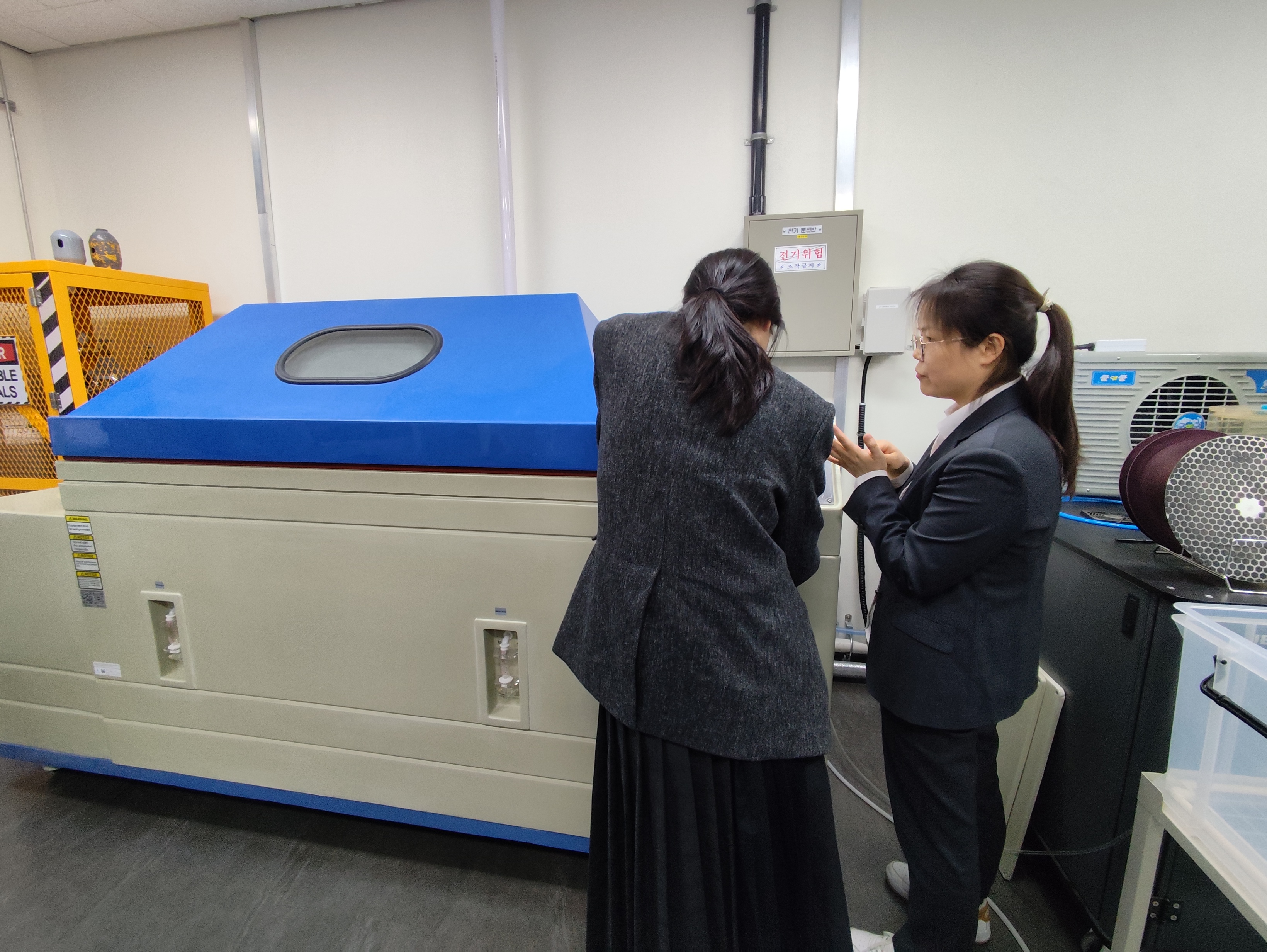

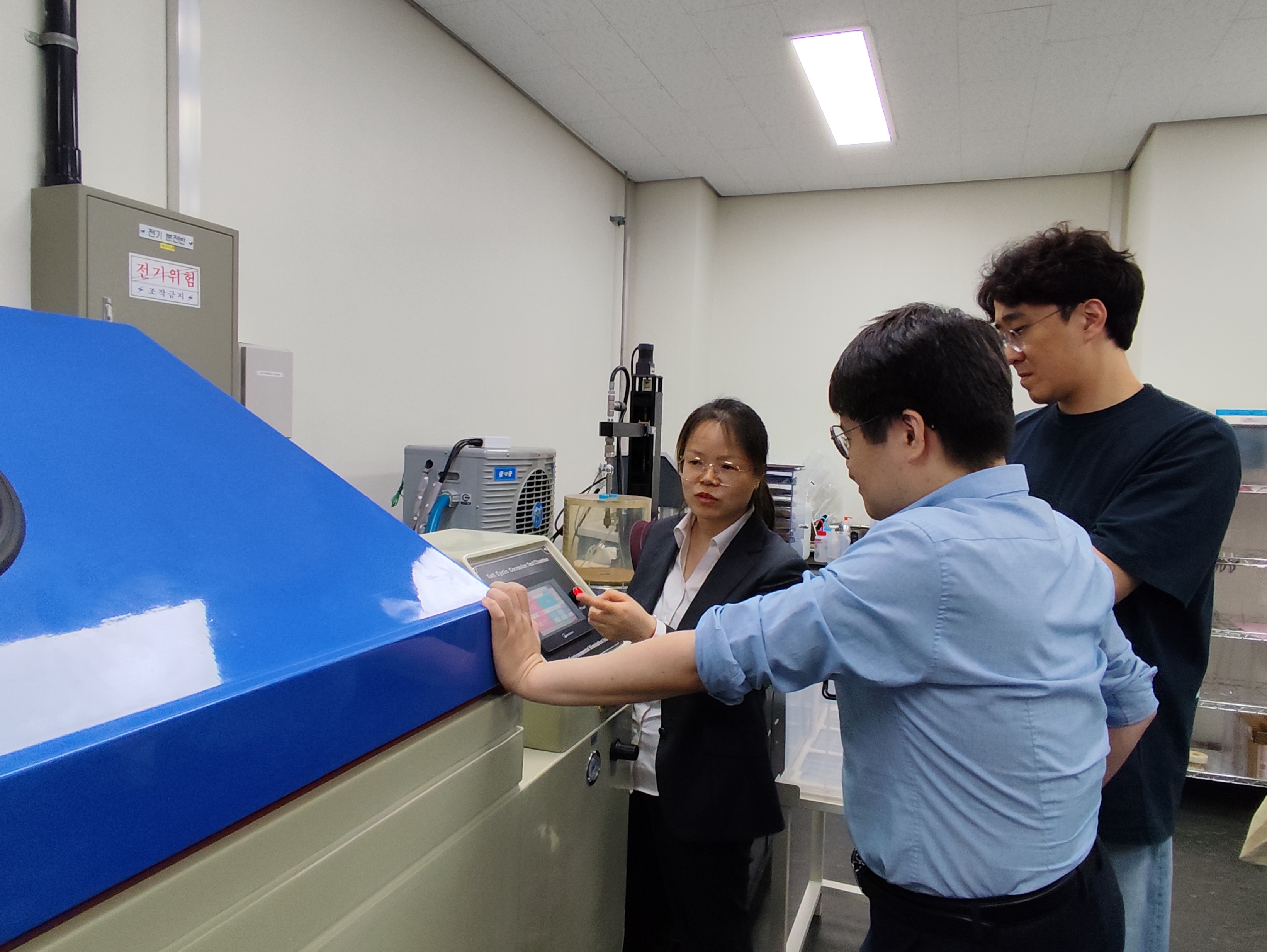

LIB provides cyclic salt spray test systems for electronic device manufacturers in Korea, where precise corrosion simulation
is essential for high-reliability components.
After installation and long-term use, the customer reported strong satisfaction, highlighting that the system delivers stable and repeatable results for electronic testing applications. They emphasized that LIB's Cyclic Salt Spray Test Machine
fully complies with ISO 9227 and ASTM B117 standards, ensuring internationally recognized test reliability.
The customer also appreciated:
① Excellent corrosion-resistant chamber structure
② Stable humidity and temperature control during cyclic testing
③ Reliable salt fog distribution system
④ Easy integration into automated test workflows
LIB's system uses:

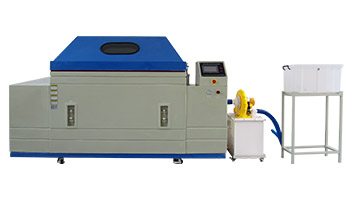

Model | SC-010 | SC-016 | SC-020 |
|
Internal dimensions (mm) | 800*1450*680 | 1000*1600*800 | 1000*2000*900 | |
Overall dimensions (mm) | 1400*2500*1720 | 1600*2650*1840 | 1600*3050*1940 | |
Interior Volume (L) | 800 | 1280 | 1800 | |
Temperature Range | +10 ℃ ～ +90 ℃ | |||
Temperature Fluctuation | ± 0.5 ℃ | |||
Temperature Deviation | ± 2.0 ℃ | |||
Humidity Range | 30% ~ 98% RH | |||
Humidity Deviation | + 2%, - 3% | |||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||
External Water Solution Tank | 340*230*230（18L） | |||
View Window Size（mm） | 800*300 | |||
These features significantly improve long-term reliability testing of electronic components, especially for moisture-sensitive and corrosion-prone devices.
Salt spray corrosion testing is widely used to evaluate material durability under accelerated corrosive environments. LIB offers both Basic Salt Spray Test Chambers and Cyclic Salt Spray Test Chambers, depending on test complexity, simulation depth, and industry requirements.
| Feature | Basic Salt Spray Test Chamber | Cyclic Salt Spray Test Chamber |
|---|---|---|
| Test Mode | Continuous salt fog exposure | Multi-phase cycles (salt spray + humidity + drying + temperature) |
| Simulation Type | Static corrosion environment | Dynamic real-world environment |
| Standards | ISO 9227, ASTM B117 | ISO 9227, ASTM B117, ASTM G85, SAE J2334 |
| Control System | Basic PID control | Advanced multi-program cycle control |
| Application | Simple corrosion screening | Accelerated real-environment simulation |
| Test Complexity | Low | High |
| Data Output | Basic logging | Full multi-stage traceable data |
Choose Basic Salt Spray Test Chamber if:
| Choose Cyclic Salt Spray Test Chamber if:
|
LIB systems support testing in accordance with ISO 9227, ASTM B117, ASTM G85, EN 60068-2-52, SAE J2334, and MIL-STD-810 standards.
Yes. LIB provides global shipping with typical delivery times of 7–15 days, depending on destination and configuration.
LIB offers a 3-year warranty, lifetime technical support, remote troubleshooting, spare parts supply within 7–15 days, and online commissioning assistance.
Yes, LIB provides remote video installation guidance, English technical documentation, and online training and operation support.
Yes, custom options include chamber size, multi-standard test programming, special voltage requirements, data acquisition integration, and advanced corrosion cycle programming.
NSS, ASS, and CASS represent three levels of salt spray corrosion testing under ISO 9227, each designed for different environmental severities—from general corrosion resistance to extreme marine and aerospace conditions. Selecting the right test method ensures accurate material evaluation and reliable product performance in real-world environments.
LIB provides advanced NSS ASS CASS salt spray test machines and cyclic corrosion systems designed for stable control, international compliance, and long-term durability.
Contact LIB Industry to configure your Salt Spray Test Chamber for ISO 9227-compliant corrosion testing and accelerate your product reliability validation process.
