Outdoor electronic products today face far harsher conditions than simple rain exposure. Automotive components are frequently washed with high-pressure hot water, EV battery packs must withstand industrial cleaning systems, and outdoor communication devices operate in dusty, wet, and corrosive environments for years. If waterproof sealing fails, the result is often immediate corrosion, short circuit, or complete system failure.
This article explains how the IPX9K High Pressure & Temperature Water Spray Chamber works based on IEC 60529, ISO 20653, DIN 40050-9, JIS D0203, and IEC 60068-2-68 standards, and how LIB Industry provides stable and repeatable waterproof testing solutions for global laboratories.

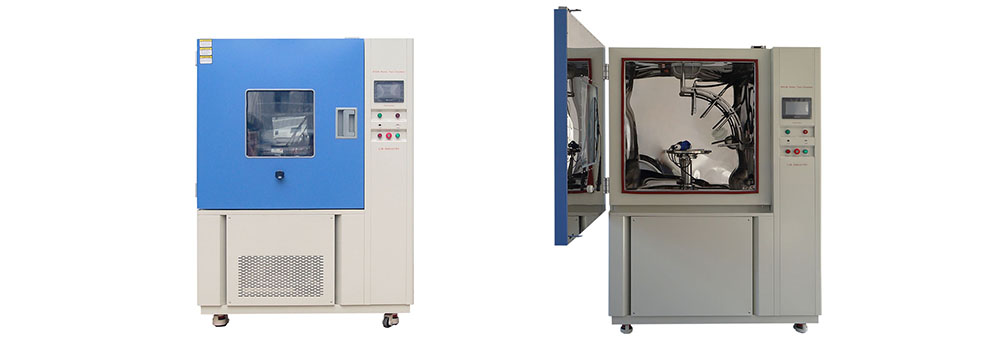

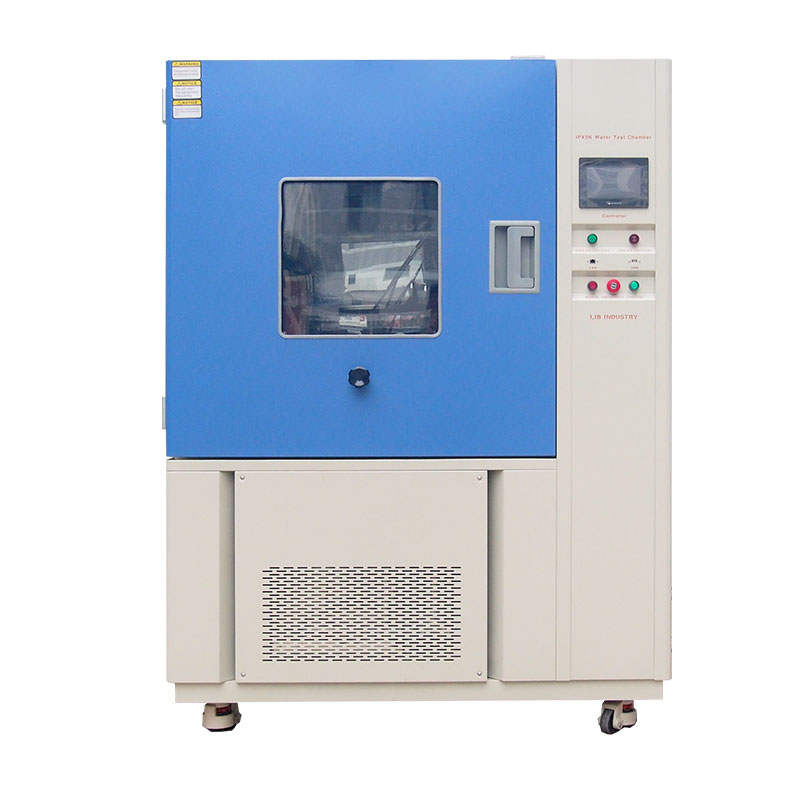

The IPX9K High Pressure & Temperature Water Spray Chamber reproduces extreme cleaning environments using hot water spray at 8000–10000 kPa pressure and temperature up to +88°C. Unlike natural rainfall (<10 kPa), this system simulates industrial pressure washing used in automotive production lines and heavy-duty cleaning processes.

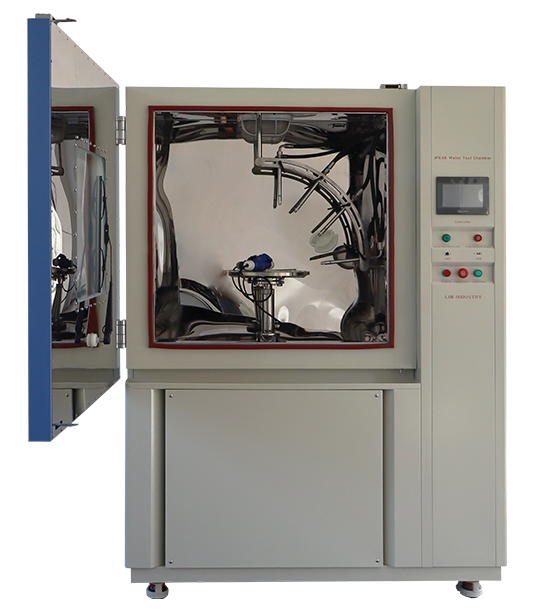

Four nozzles spray water at 0°, 30°, 60°, and 90° angles, ensuring full surface coverage. Water flow is controlled at 14–16 L/min, meeting IEC 60529 requirements. This makes the test severity hundreds of times stronger than natural rain conditions.
Stable test conditions are critical for certification accuracy. Even small fluctuations in pressure or temperature can lead to inconsistent results.
LIB's system uses PID closed-loop control and PT100 temperature sensors to maintain stable operation. Pressure is continuously regulated between 8000–10000 kPa, while temperature deviation is controlled within a narrow tolerance range.

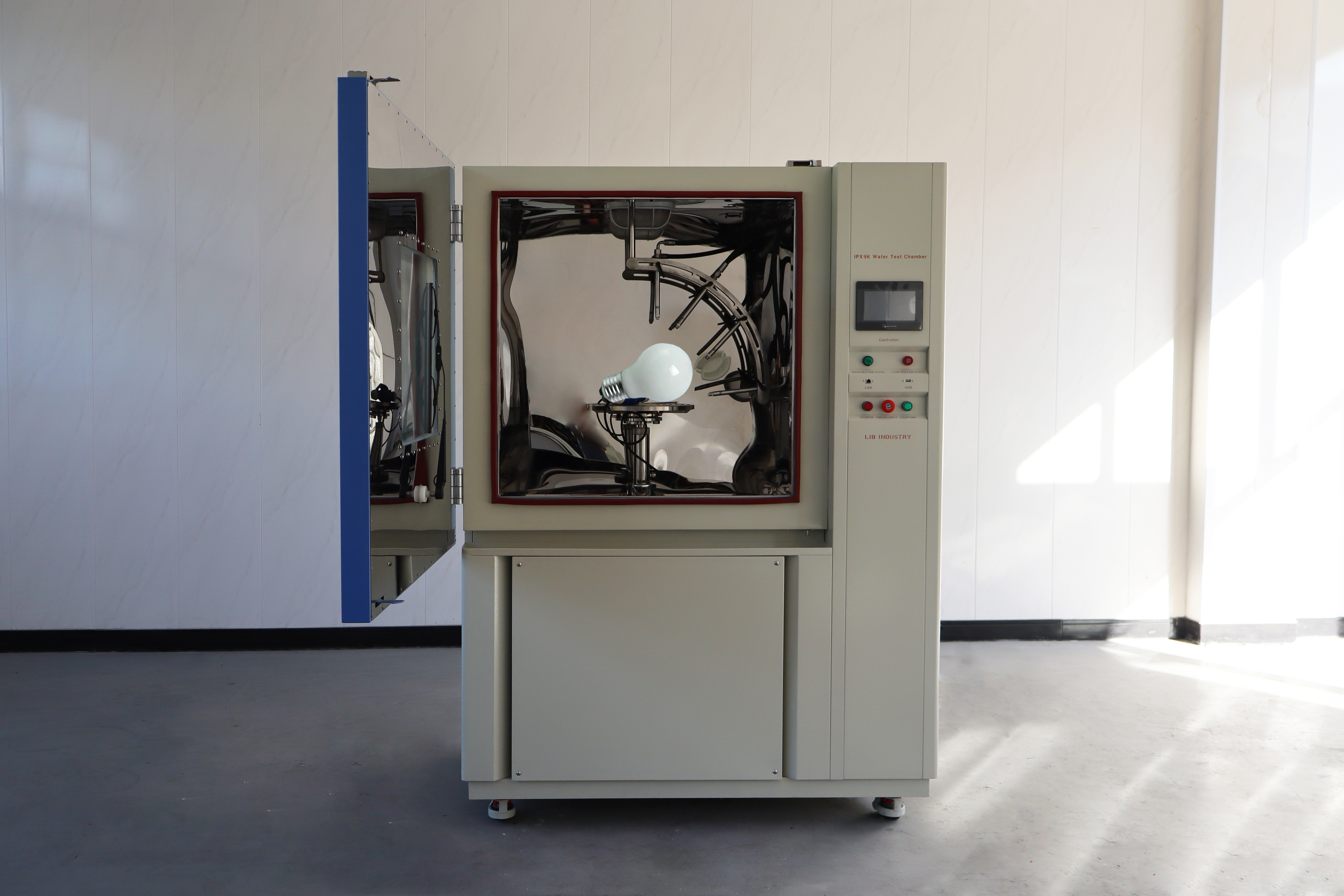

The rotating platform runs at 5 ± 1 r/min, ensuring uniform exposure across all sides of the specimen. Adjustable sample height from 200–400 mm guarantees correct positioning relative to the spray nozzles.
Natural environmental conditions such as rain, humidity, or splash water are relatively low energy and unpredictable. In contrast, IPX9K testing is a standardized extreme simulation of high-pressure hot water cleaning environments.
IPX9K testing is defined under:
IEC 60529
ISO 20653
DIN 40050-9
JIS D0203
IEC 60068-2-68
It is widely used in:
Automotive ECUs and sensors
EV battery packs
ADAS cameras and radar systems
Industrial connectors
Outdoor LED lighting systems
Marine and telecom electronics

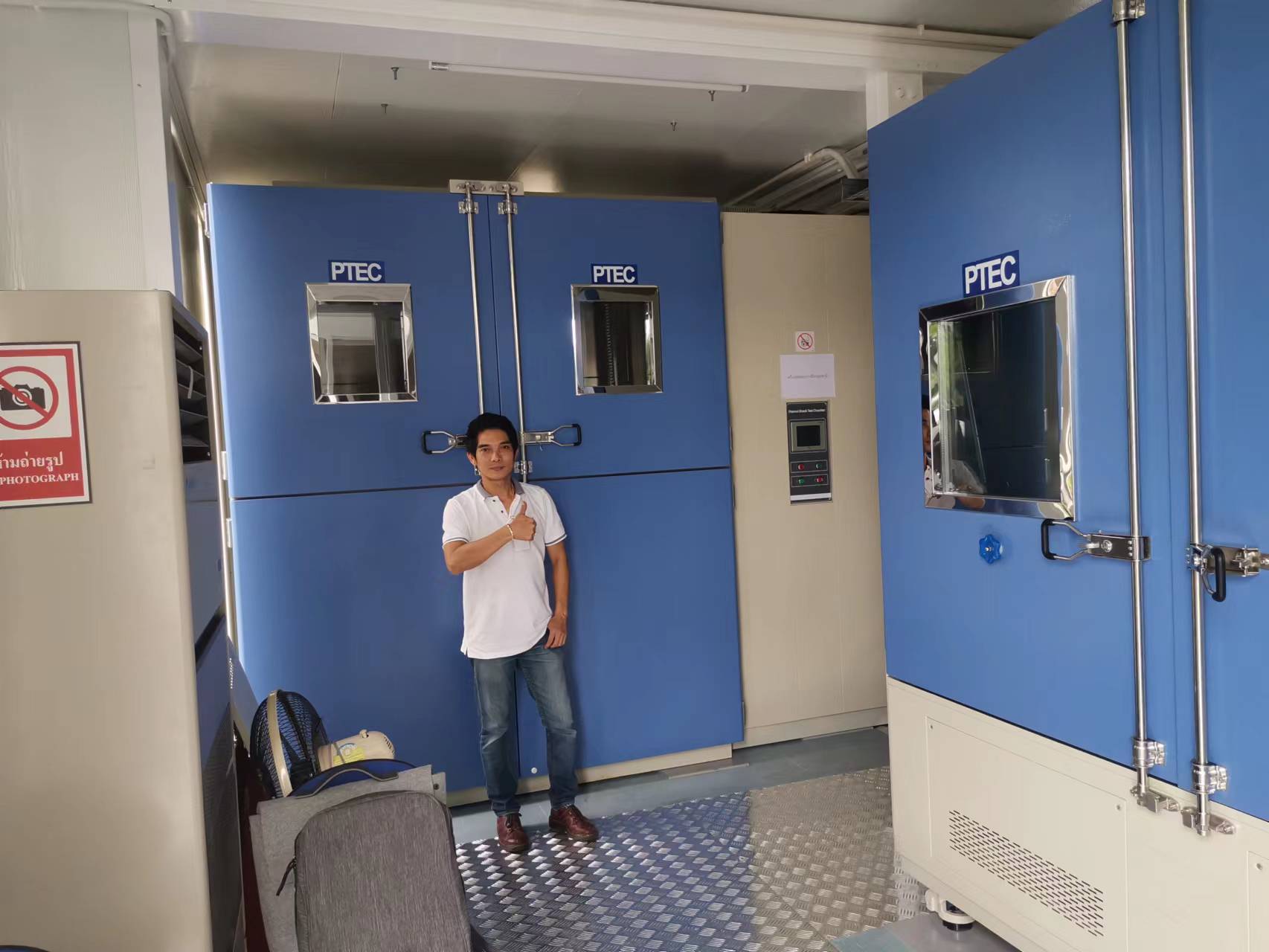

A customer from Thailand recently adopted LIB's double-door IPX9K High Pressure & Temperature Water Spray Chamber for product waterproof reliability testing. The system was used to evaluate sealing performance and enclosure durability under IEC 60529 IPX9K conditions.
The customer reported that the chamber delivered stable pressure control, consistent temperature performance up to +88°C, and reliable repeatability across multiple test cycles. They were especially satisfied with the double-door structure, which allows easier sample loading and unloading, improving laboratory workflow efficiency.
They also highlighted that the system supports continuous operation testing of energized samples, enabling real-time performance verification during water spray exposure. Compared with their previous equipment, LIB’s system significantly improved testing convenience, reduced setup time, and provided more stable and standardized results aligned with IEC 60529 and ISO 20653 certification requirements.
| Item | IPX9K High Pressure Chamber | Whole Set of IP Test Equipment (No Housing Type) |
|---|---|---|
| Standard Coverage | IPX9K only (IEC 60529 / ISO 20653) | IPX1–IPX6 (expandable to IPX7/8 optional) |
| Test Severity | Extremely high pressure + hot water | Rain, drip, spray, splash |
| Temperature Control | Up to +88°C | Ambient water temperature |
| Application Focus | Automotive, EV, industrial sealing validation | General waterproof testing |
| System Structure | Closed high-pressure chamber | Modular open structure |
| Turntable Rotation | 5 ± 1 r/min | 1 r/min or optional rotation |
| Sample Size | Heavy-duty components | Flexible product sizes |
| Cost Level | Higher investment | Cost-efficient entry-level solution |
If your product must survive high-pressure hot water cleaning, industrial wash-down, or automotive engine bay environments, choose IPX9K High Pressure & Temperature Water Spray Chamber.

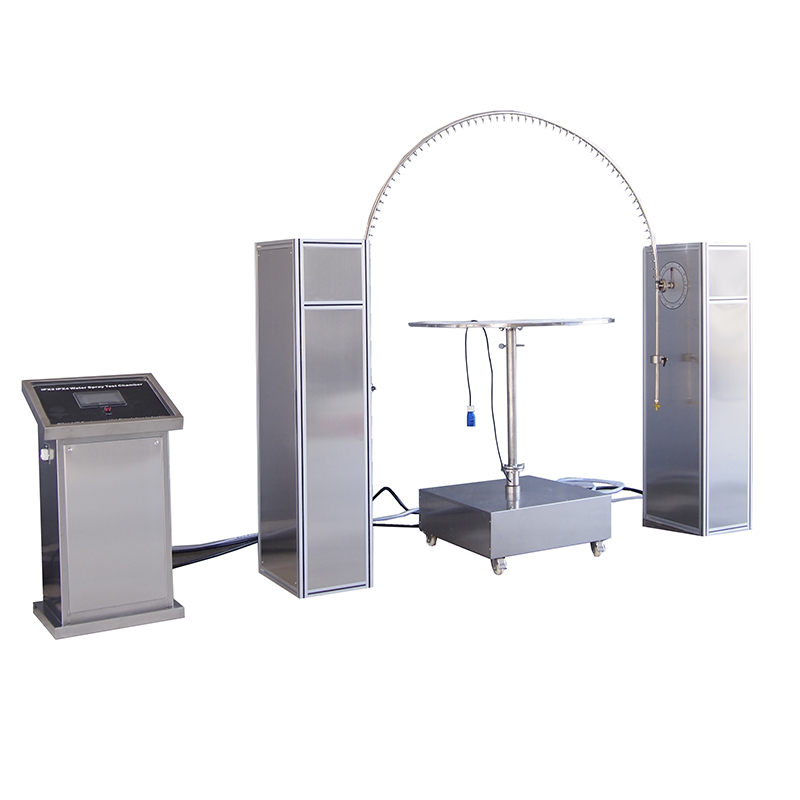

If your testing focuses on rain, splash, and general waterproof verification, choose the Whole Set of IP Test Equipment (No Housing Type).
Many laboratories combine both systems to achieve full IPX1–IPX9K coverage.
It fully complies with IEC 60529, ISO 20653, DIN 40050-9, JIS D0203, and IEC 60068-2-68 for automotive and industrial waterproof testing.
Yes. The chamber supports energized testing, allowing real-time performance monitoring during IPX9K exposure.
LIB provides global shipping, on-site installation guidance, remote commissioning, and 24/7 technical support. Spare parts are available from international warehouses with delivery typically within 7–15 days.
The system uses a closed-loop filtration and recycling system, reducing water usage by up to 80%, making it suitable for long-term laboratory operation.
Yes. LIB supports customization of dimensions, nozzle configuration, turntable load capacity, voltage standards, and integrated IPX1–IPX6 modules.
LIB Industry provides reliable, repeatable, and standards-compliant IP waterproof testing solutions for automotive, electronics, and industrial applications worldwide.
Contact LIB Industry to learn how IPX9K High Pressure & Temperature Water Spray Chamber can improve your waterproof testing accuracy and certification efficiency.
