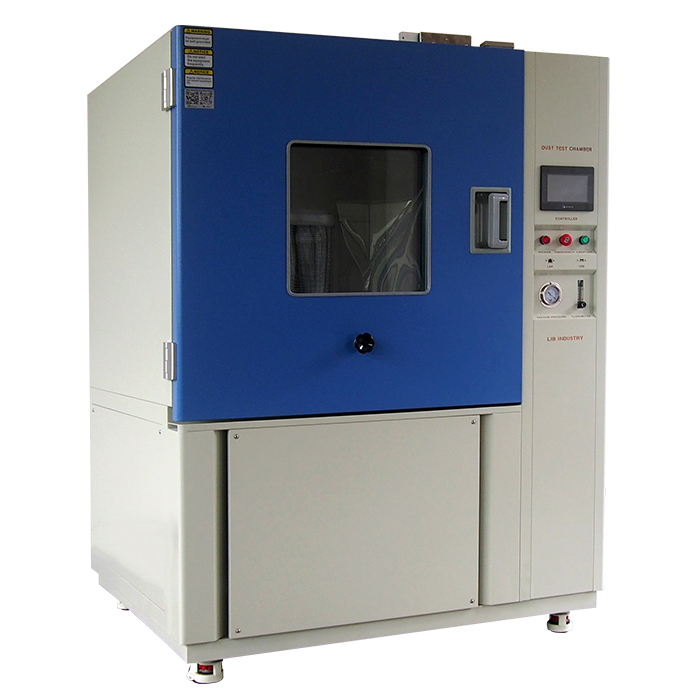

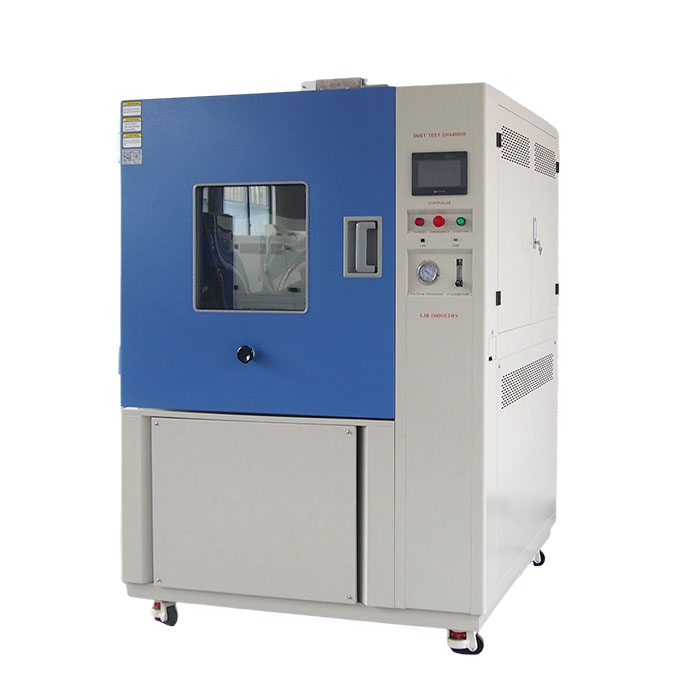

DI-800/DI-1000/DI-1500/DI-2000
LIB Industry
| Quantity: | |
|---|---|
The UL50E Outdoor Indoor Circulating Dust Test Chamber is suitable for compliance testing according to UL 50E, NEMA enclosure requirements, IEC 60529 (IP5X and IP6X), ISO 20653, IEC 60068-2-68, MIL-STD-810, ASTM environmental test methods, and various manufacturer-specific dust ingress procedures. These standards are widely applied across electrical distribution equipment, renewable energy systems, automotive electronics, telecommunications infrastructure, industrial control cabinets, outdoor lighting products, and consumer electronics. By meeting these international requirements, manufacturers can confidently demonstrate product durability and environmental protection performance in global markets.
Working Principle of the UL50E Outdoor Indoor Circulating Dust Test Chamber
1. UL50E-Compliant Circulating Dust Simulation: The chamber reproduces UL50E circulating dust test conditions through a closed-loop dust circulation system. Fine talcum powder is continuously suspended and redistributed throughout the workspace using a high-performance blower system. Airflow velocity can reach approximately 305 m/min (1000 ft/min), ensuring that dust remains airborne and uniformly distributed during the entire test period. This creates a severe dust exposure environment capable of revealing weaknesses in enclosure sealing systems.
2. Precise Dust Concentration Control: A dedicated dust feeding and circulation mechanism maintains consistent dust concentration throughout the test cycle. The chamber can generate dust loading conditions up to 1.5 kg/m³ based on chamber volume, closely matching the requirements specified by UL50E. Uniform dust distribution ensures repeatable and reliable test results, minimizing variations between test runs.
3. Intelligent Airflow Management: Advanced airflow design promotes vertical and horizontal dust circulation within the workspace. Dust particles continuously move around the test specimen, allowing all enclosure surfaces to be exposed equally. This eliminates dead zones and provides comprehensive evaluation of gasket performance, cable entry points, ventilation openings, hinges, and door seals.

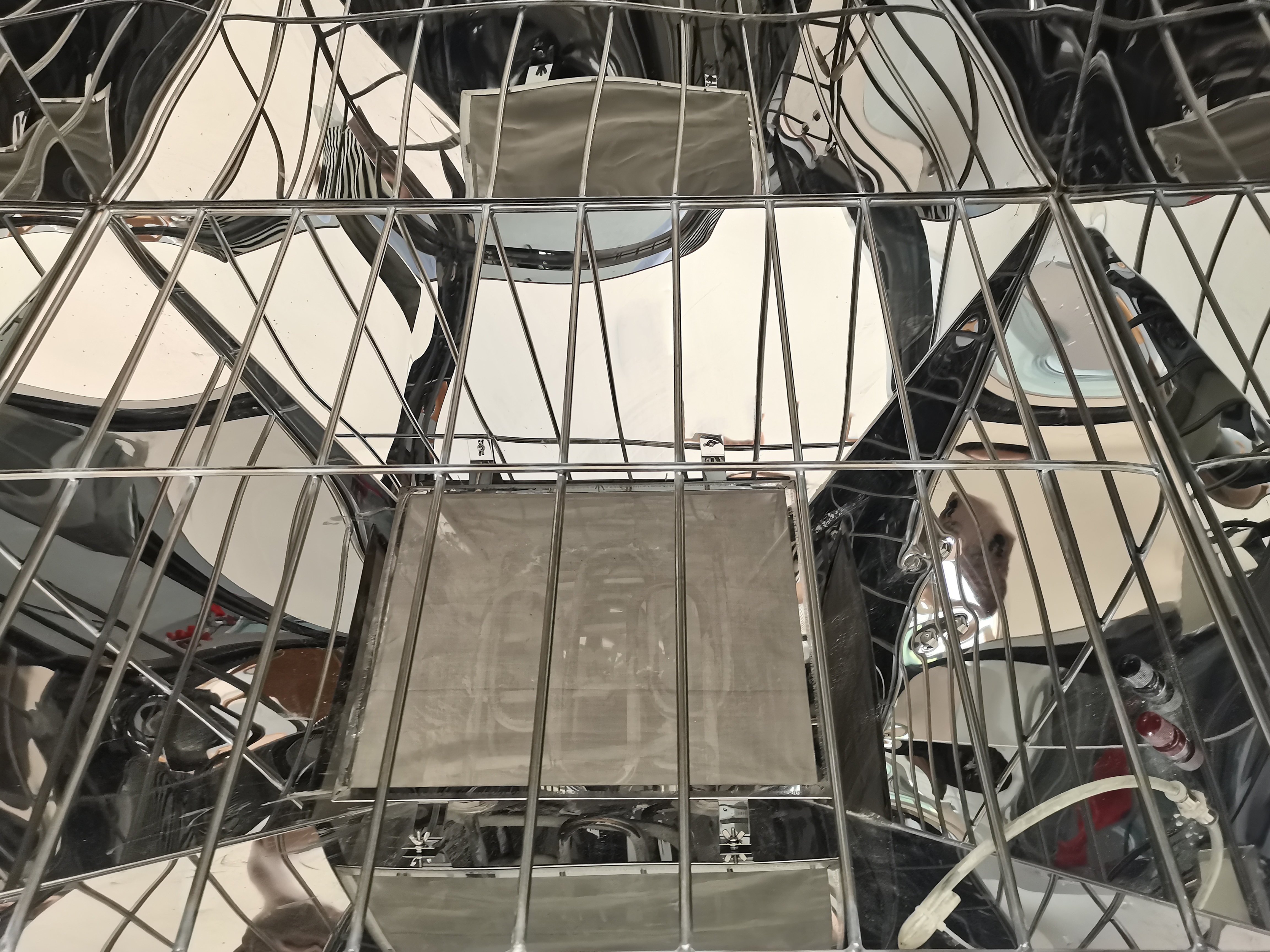

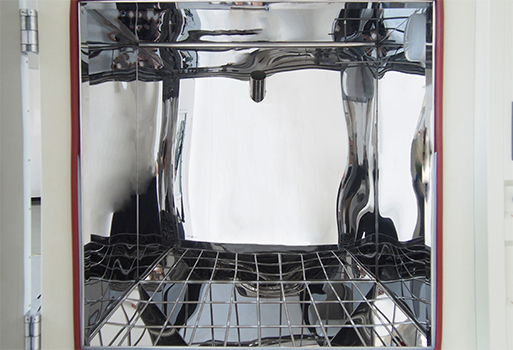

4. Robust Stainless-Steel Construction: The interior workspace is manufactured from SUS304 stainless steel, providing excellent resistance to abrasion, corrosion, and long-term dust exposure. The chamber exterior utilizes reinforced steel construction with protective coatings, ensuring durability under continuous laboratory operation and demanding industrial testing schedules.
5. Programmable Touch-Screen Controller: The chamber incorporates a PID programmable color touch-screen controller capable of storing up to 120 programs with multiple segments. Users can easily configure airflow duration, circulation intervals, dust concentration settings, and test cycles. Computer communication capabilities support data recording, process monitoring, and test traceability.

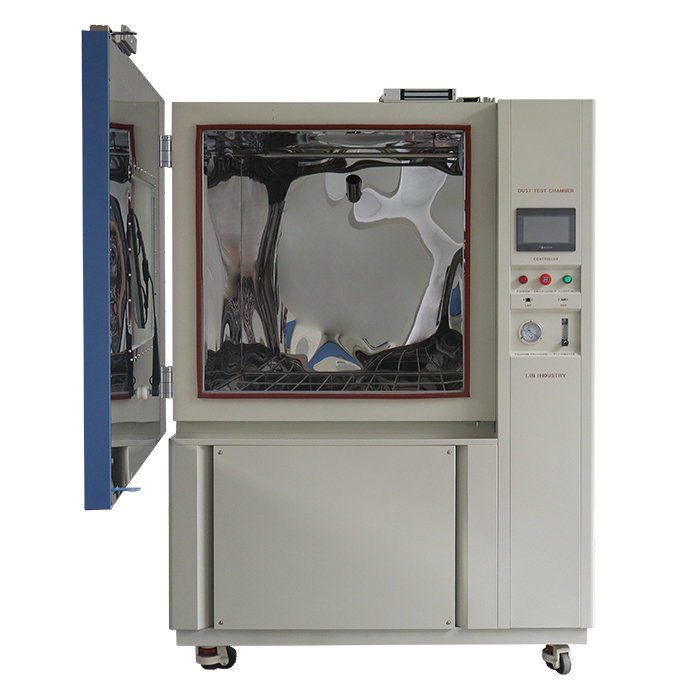

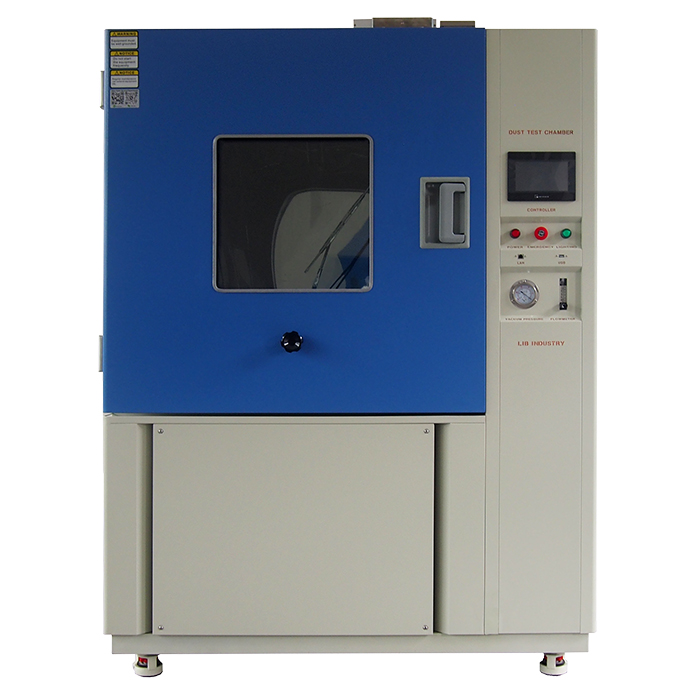

6. Real-Time Observation and Operational Safety: A large observation window with integrated lighting enables operators to monitor specimens during testing. An automatic window cleaning system helps maintain visibility even under heavy dust conditions. Electromagnetic door locking technology prevents accidental opening during operation, protecting both personnel and test integrity.
7. Stable Environmental Conditions: The chamber operates under controlled ambient conditions with relative humidity typically maintained between 20% and 50%, preventing dust agglomeration and ensuring consistent test performance. Integrated heating elements reduce moisture accumulation and maintain dust flow characteristics throughout extended testing periods.
Operating Parameters of the UL50E Outdoor Indoor Circulating Dust Test Chamber
Model | UL50E-800 | UL50E-1000 | UL50E-1500 | UL50E-2000 |
Internal Dimension (mm) | 800×1000×1000 | 1000×1000×1000 | 1000×1500×1000 | 1000×2000×1000 |
Overall Dimension (mm) | 1040×1450×1960 | 1330×1450×1960 | 1330×1950×1990 | 1330×2450×1990 |
Useful Volume (L) | 800 | 1000 | 1500 | 2000 |
Test Standard | UL 50E Section 8.4.2.1.1 Circulating Dust Test | |||
Equipment Requirement | Sealed chamber, minimum 0.169 m³ (6 ft³), and not less than 150% of test specimen volume | |||
Temperature | Ambient | |||
Relative Humidity | 20% RH ~ 50% RH | |||
Dust Type | Dry Talcum Powder | |||
Dust Particle Size | ≤75 μm | |||
Dust Concentration | 1.5 kg/m³ of chamber volume | |||
Air Circulation Method | Blower-induced circulating dust system | |||
Air Velocity | Approx. 305 m/min (1000 ft/min) at outlet | |||
Dust Exposure Time | Continuous circulation for 5 minutes (programmable extension available) | |||
Controller | Programmable Color LCD Touch Screen Controller with Ethernet Connection | |||
Observation Window | Double-layer tempered glass with interior LED lighting | |||
Door Lock | Electromagnetic Safety Lock | |||
Specimen Power Outlet | Dust-proof Socket 16A | |||
Safety Device | Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Fan Overload Protection; Phase Sequence Protection | |||
Exterior Material | A3 Steel Plate with Protective Coating | |||
Interior Material | SUS304 Stainless Steel | |||
Standard Configuration | Sample Shelf, Dust Collection Hopper, Talcum Powder (5 kg), Interior Lighting | |||
Optional Configuration | Additional Shelves, Cable Port, Data Logger, Customized Fixture | |||
Acceptance Criteria | No dust penetration into the enclosure after test completion | |||
Test Characteristic | Simulates severe indoor dust environments with high dust concentration and continuous dust circulation | |||
Industries and Standards Supported
The UL50E Outdoor Indoor Circulating Dust Test Chamber is widely used in electrical enclosure manufacturing, power distribution equipment, solar energy systems, telecommunications cabinets, EV charging stations, automotive electronics, industrial automation equipment, outdoor LED lighting, railway control systems, military electronics, and consumer electrical products. Common test standards include UL 50E Section 8.4.2.1 Circulating Dust Test, NEMA Type enclosure verification, IEC 60529 IP5X and IP6X dust protection testing, ISO 20653 road vehicle enclosure protection, IEC 60068-2-68 dust and sand testing, MIL-STD-810 environmental dust exposure, and customized OEM validation procedures. Typical test conditions may include dust particle sizes ≤75 μm, airflow velocities around 305 m/min, dust concentrations up to 1.5 kg/m³, circulation durations of 5 minutes or longer, and post-test inspections confirming no dust ingress into critical enclosure areas.
FAQs on the UL50E Outdoor Indoor Circulating Dust Test Chamber
Q1: Can the chamber be customized for larger enclosure testing?
Yes. Standard chamber volumes are available, but LIB can also provide customized workspace dimensions to accommodate oversized electrical cabinets, telecommunications enclosures, renewable energy equipment, and other large products.
Q2: What type of dust is typically used for UL50E testing?
UL50E circulating dust testing commonly uses dry talcum powder with particle sizes not exceeding 75 μm. The chamber is designed to maintain consistent dust circulation and concentration throughout the test cycle.
Q3: Can the chamber perform both UL50E and IEC 60529 dust tests?
Yes. The chamber can be configured to support multiple dust testing standards, including UL50E, IEC 60529 IP5X/IP6X, ISO 20653, IEC 60068-2-68, MIL-STD-810, and customized customer test procedures, providing a versatile solution for global product certification and reliability testing.
