TH-50/ TH-80
LIB Industry
| Quantity: | |
|---|---|

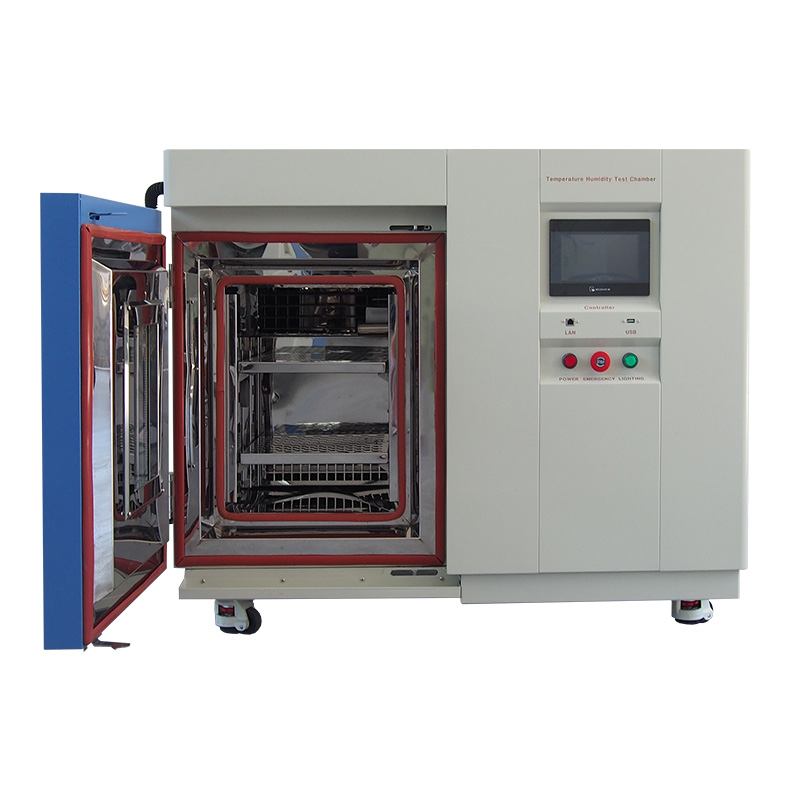

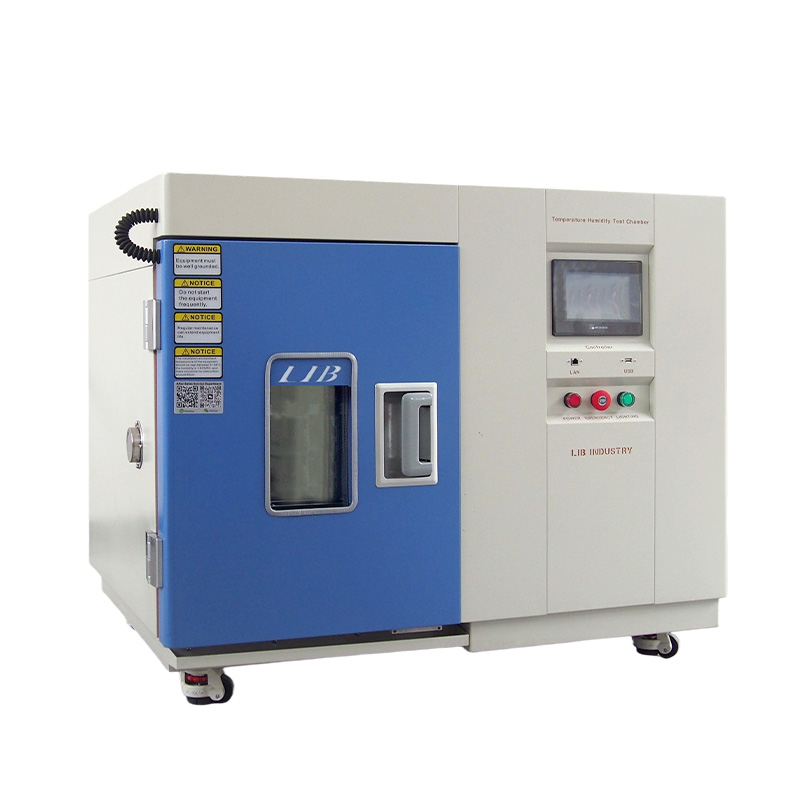

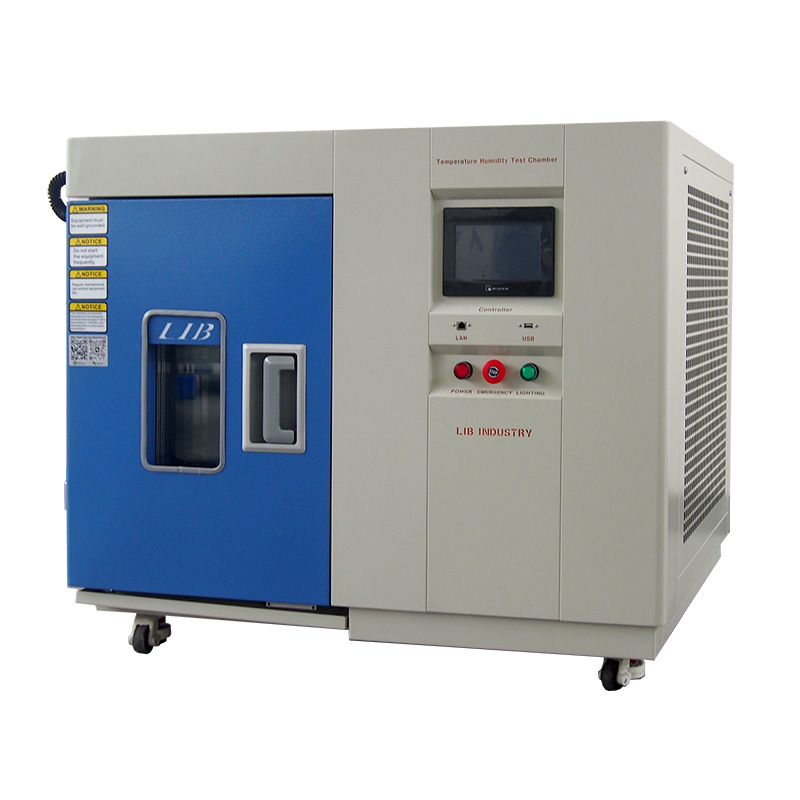

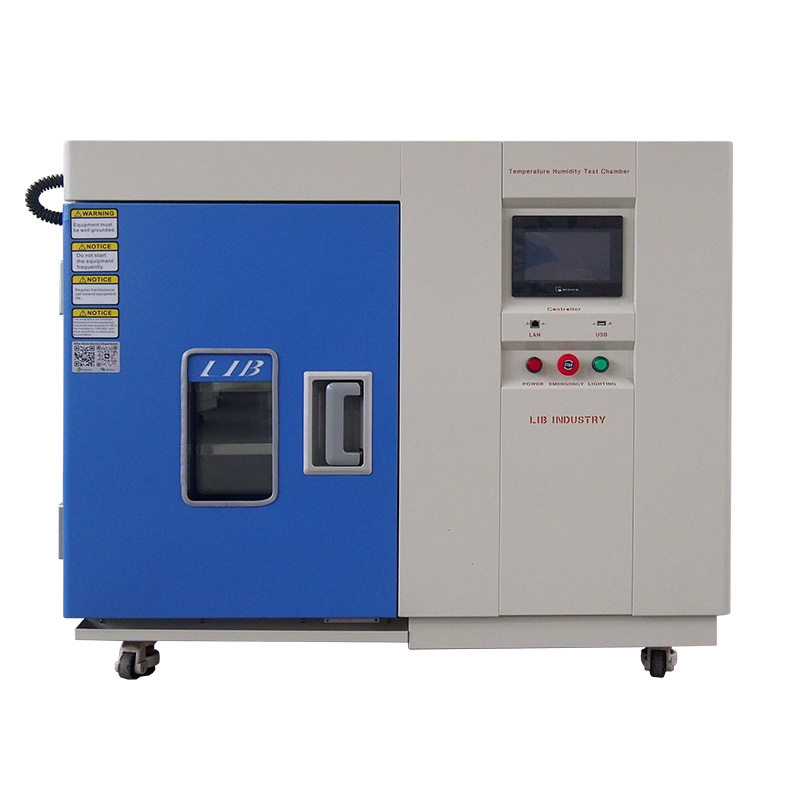

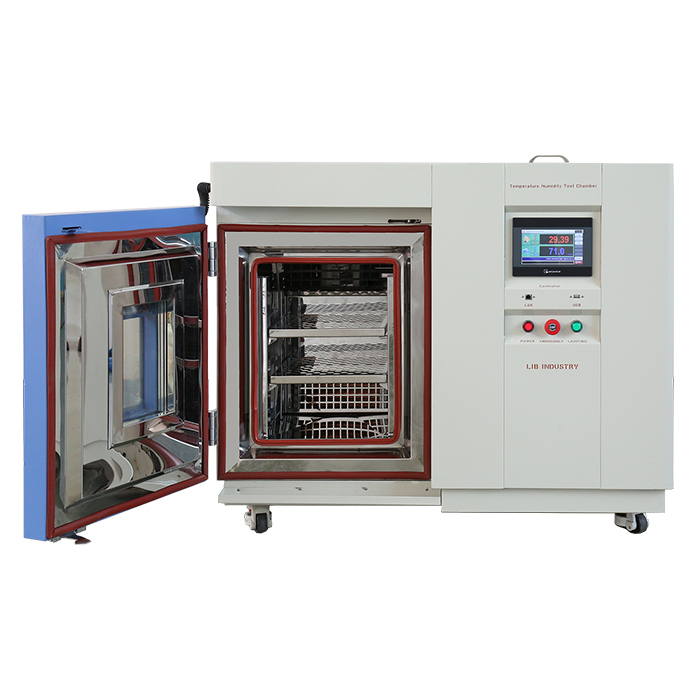

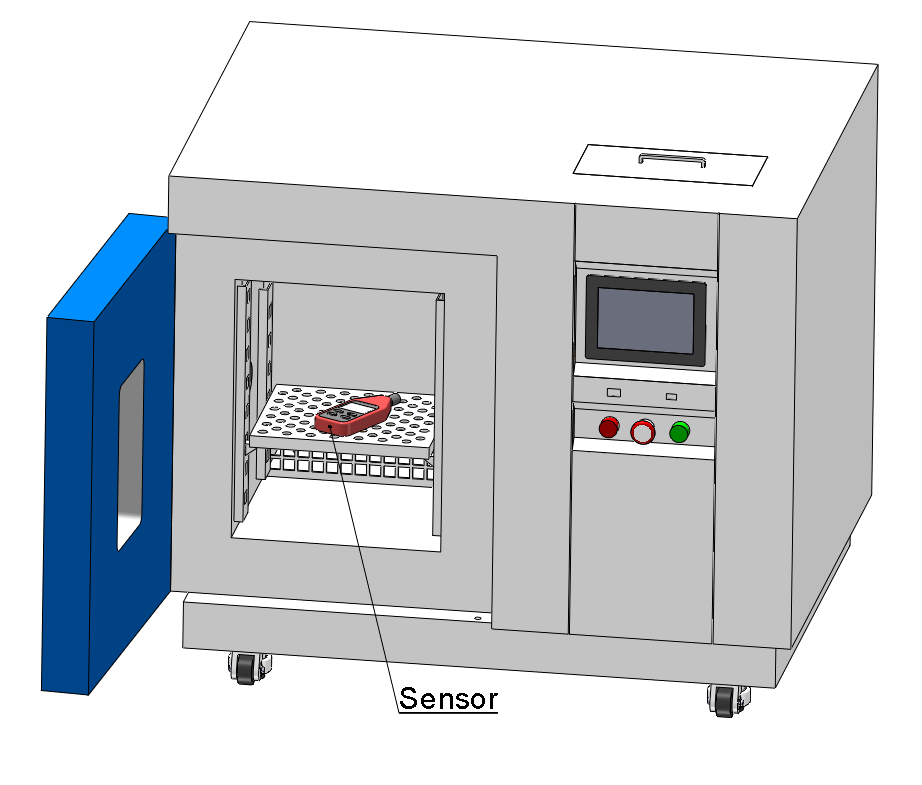

The Temperature and Humidity Calibration Chamber for Thermometers and Hygrometers features a compact benchtop structure with working volumes typically ranging from 50 L to 100 L, making it ideal for laboratories where space is limited but accuracy demands are high. Despite its small footprint, the chamber provides full-scale environmental simulation performance with uniform airflow distribution and minimal spatial deviation. The noise level is controlled at ≤65 dBA, allowing quiet operation in shared laboratory environments without affecting precision measurements or operator focus. The interior is constructed from SUS304 stainless steel, ensuring corrosion resistance, easy cleaning, and long-term durability under frequent humidity cycling conditions.
Advantages of LIB Temperature and Humidity Calibration Chamber

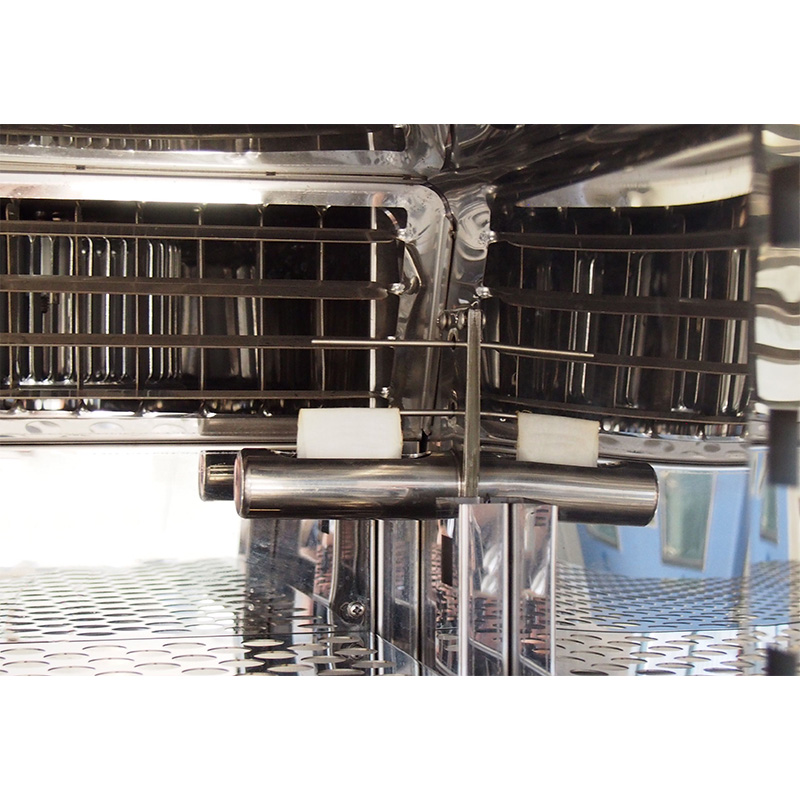

1. High-Precision Calibration Performance: Equipped with PT100 Class A sensors (0.001 °C resolution), the chamber ensures temperature stability within ±0.3 °C and humidity accuracy within ±2 % RH. This level of precision is essential for reliable instrument calibration.
2. Compact Benchtop Design: With a small footprint of approximately 0.9 m², the chamber can be placed directly on laboratory benches or workstations, making it ideal for space-limited calibration labs.
3. Wide Environmental Simulation Range: The system supports –40 °C to +100 °C and 20 % to 98 % RH, allowing full-range calibration of sensors used in industrial, medical, and environmental monitoring applications.
4. Excellent Environmental Uniformity: Optimized airflow circulation ensures consistent temperature and humidity distribution throughout the chamber, eliminating measurement deviation caused by uneven exposure.

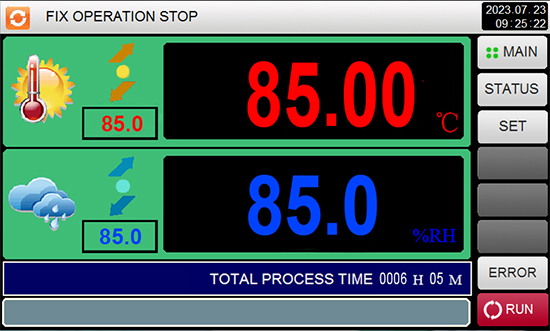

5. Automated Calibration Programs: The 7-inch touchscreen controller supports up to 120 programs with multi-step calibration sequences, enabling unattended operation and improving testing efficiency.
6. Stable and Durable Structure: SUS304 stainless steel interior and reinforced outer casing ensure long service life and resistance to moisture, corrosion, and chemical exposure.
Performance Specifications
Model | TH-50 | TH-80 |
Internal Dimension (mm) | 320*350*450 | 400*400*500 |
Overall Dimension (mm) | 820*1160*950 | 900*1210*1000 |
Interior Volume | 50L | 80L |
Heat load | 1000W | |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | |
Temperature Deviation | ± 2.0 ℃ | |
Humidity Range | 20% ~ 98% RH | |
Humidity Deviation | ± 2.5% RH | |
Cooling Rate | 1 ℃ / min | |
Heating Rate | 3 ℃ / min | |
Cooling system | Mechanical compression refrigeration system | |
Controller | Programmable color LCD touch screen controller,Ethernet connection, PC Link | |
Safety Device | Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection | |
Exterior Material | Steel Plate with protective coating | |

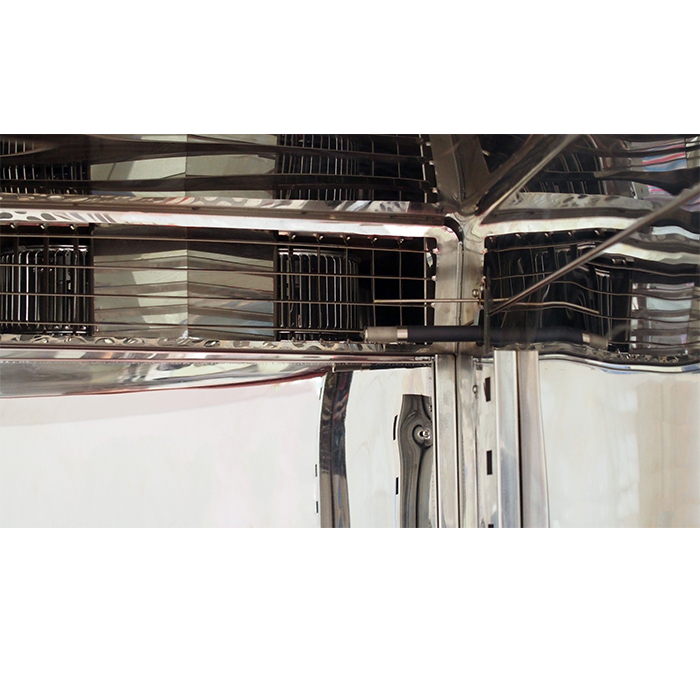

Interior Material | SUS304 stainless steel | |
Typical Calibration Applications
The Temperature and Humidity Calibration Chamber is widely used for calibration and verification of environmental instruments in different industries. Common applications include calibration of digital thermometers used in cold chain logistics, humidity sensors used in storage warehouses, environmental monitoring devices in cleanrooms, and system sensors used in building management systems. A typical calibration process may include maintaining 25 °C / 50 % RH for baseline verification, followed by 40 °C / 85 % RH for high-humidity response testing, and 0 °C for low-temperature accuracy confirmation. These controlled cycles ensure that instruments maintain accuracy across their full operating range.
Video of the Temperature and Humidity Calibration Chamber for Calibration
FAQs on the Temperature and Humidity Calibration Chamber
Q1: Can the chamber support high-precision calibration requirements?
Yes. The chamber is designed for metrology-level calibration with temperature accuracy of ±0.3 °C and humidity accuracy of ±2 % RH.
Q2: Is it suitable for ISO 17025 calibration laboratories?
Yes. It supports traceable calibration processes and data logging required for ISO 17025 compliant laboratories.
Q3: Can multiple sensors be calibrated at the same time?
Yes. As long as airflow is not blocked, multiple thermometers or hygrometers can be calibrated simultaneously under identical conditions.
