Outdoor products fail faster than many manufacturers expect. Coatings fade, plastics crack, rubber hardens, and automotive materials lose strength after continuous exposure to UV radiation, heat, rain, and humidity. Waiting 2–5 years for natural outdoor exposure testing is too slow for modern product development, especially in automotive, coatings, photovoltaic, textile, and electronics industries.

A customer from Vietnam recently shared positive feedback after using a LIB ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus in daily testing operations. During a maintenance follow-up, the customer confirmed that “The chamber works stably” and expressed appreciation for LIB’s professional maintenance support documentation. Stable operation, long-term reliability, and responsive after-sales service are important reasons why many international laboratories choose LIB environmental test equipment for continuous weathering validation projects.

This article explains how the ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus simulates real sunlight conditions, compares xenon arc testing with UV weathering testing, and shows how LIB equipment helps manufacturers perform accurate and repeatable material durability evaluations according to internationally recognized standards.

How ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus Simulates Sunlight

---

1. Full-Spectrum Xenon Arc Light Simulation

ASTM G151 defines the general practice for accelerated weathering test equipment, while ASTM G155 specifically regulates xenon arc light exposure systems for non-metallic materials. The purpose is to reproduce natural sunlight, temperature, humidity, and rain in a controlled laboratory environment.

LIB ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus uses a 4500 W water-cooled xenon lamp to simulate the complete solar spectrum from 280 nm to 800 nm, including ultraviolet, visible, and infrared light. Different optical filters such as daylight filters and window-glass filters are available to reproduce outdoor sunlight or indoor sunlight through glass.

Compared with fluorescent UV systems, xenon arc technology reproduces sunlight more realistically because it covers a wider wavelength range. The chamber also combines Black Panel Temperature (BPT) control and irradiance monitoring to maintain stable test conditions during long exposure periods of 500 h, 1000 h, or even 3000 h.

Industries commonly using ASTM G155 xenon testing include:

① Automotive coatings and interiors

② Aerospace materials

③ Plastic products

④ Solar photovoltaic components

⑤ Textile and fabric materials

⑥ Outdoor electronic housings

2. Difference Between ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus and Natural Outdoor Exposure

Natural outdoor exposure testing places materials directly under real environmental conditions for months or years. Materials are exposed to sunlight, rain, humidity, seasonal temperature changes, and atmospheric pollutants. Although this method provides real environmental aging data, the testing period is extremely long and environmental conditions cannot be controlled or repeated consistently.

ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus is designed to reproduce these outdoor conditions inside a laboratory within a much shorter time. According to ASTM G151 and ASTM G155 standards, the chamber uses a xenon arc lamp system to simulate the full spectrum of sunlight, including ultraviolet (UV), visible light, and infrared radiation. At the same time, the chamber controls humidity, temperature, water spray, and condensation cycles to recreate realistic outdoor weather conditions.

Compared with natural exposure testing, the ASTM G155 xenon arc chamber offers several major advantages:

① Faster aging results within weeks or months

② Stable and repeatable testing conditions

③ Precise irradiance and temperature control

④ Reduced influence from seasonal climate variations

⑤ Better consistency between laboratories

Natural outdoor exposure commonly requires 12–36 months depending on geographic location and climate severity. In comparison, accelerated xenon arc testing can significantly shorten product development cycles while maintaining strong correlation with outdoor weathering performance.

3. Standard Compliance and Industry Applications

ASTM G155 requires precise control of critical testing parameters such as irradiance, black panel temperature, chamber humidity, and water spray cycles. LIB ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus uses PID intelligent control technology together with full-spectrum irradiance sensors to maintain highly stable and repeatable testing conditions during long-term weathering exposure.

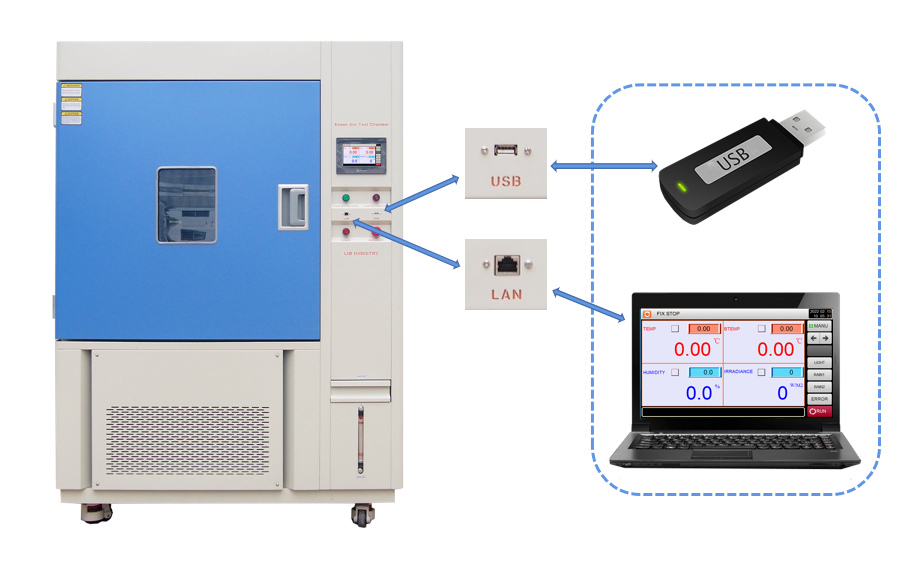

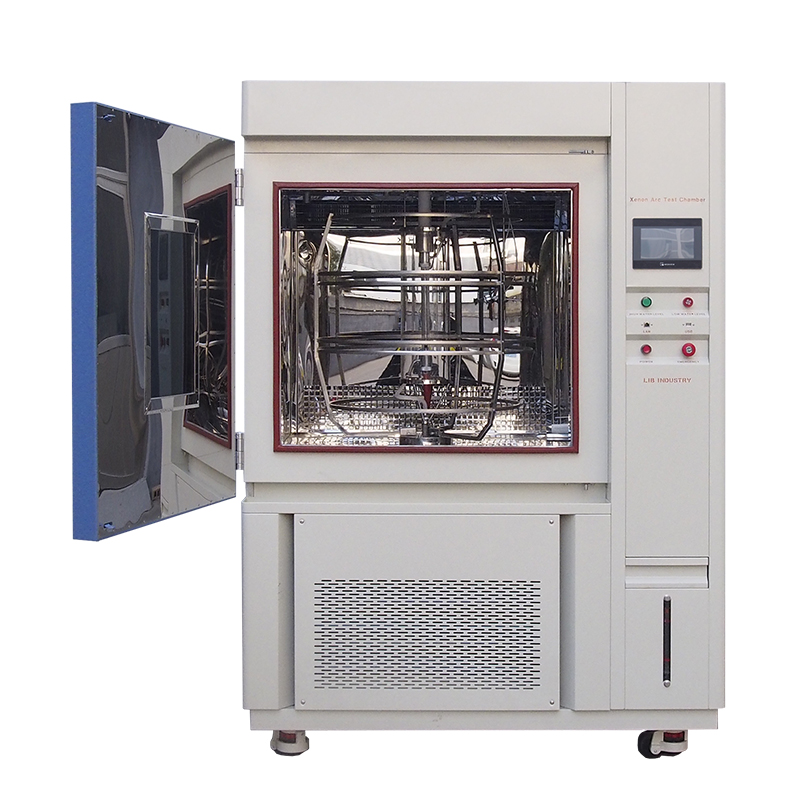

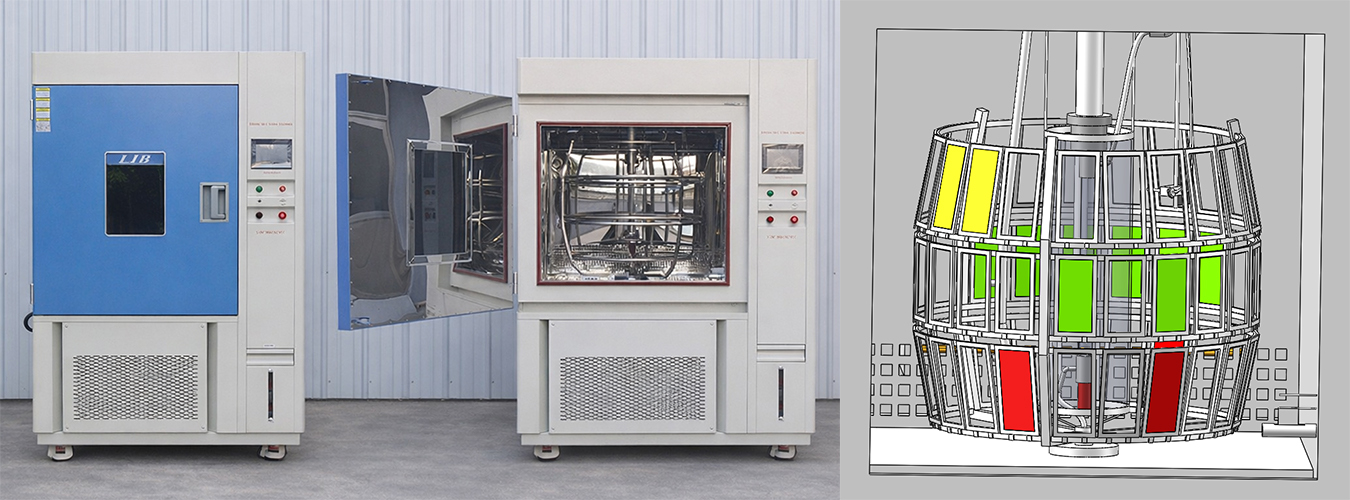

To improve testing consistency, the chamber is equipped with a rotating specimen rack that provides uniform light exposure for up to 42 samples at the same time. During testing, the system automatically monitors and records key parameters including irradiance intensity, chamber temperature, black panel temperature, relative humidity, and spray operation cycles. These functions help laboratories meet ASTM G155 Section 10 requirements for test traceability and data documentation.

Main Industries Using ASTM G155 Xenon Testing

① Automotive OEM suppliers and component manufacturers

② Paint and industrial coating companies

③ Plastic and polymer material producers

④ Textile and fabric testing laboratories

⑤ Consumer electronics manufacturers

⑥ Construction and building material industries

Main Standards Supported：

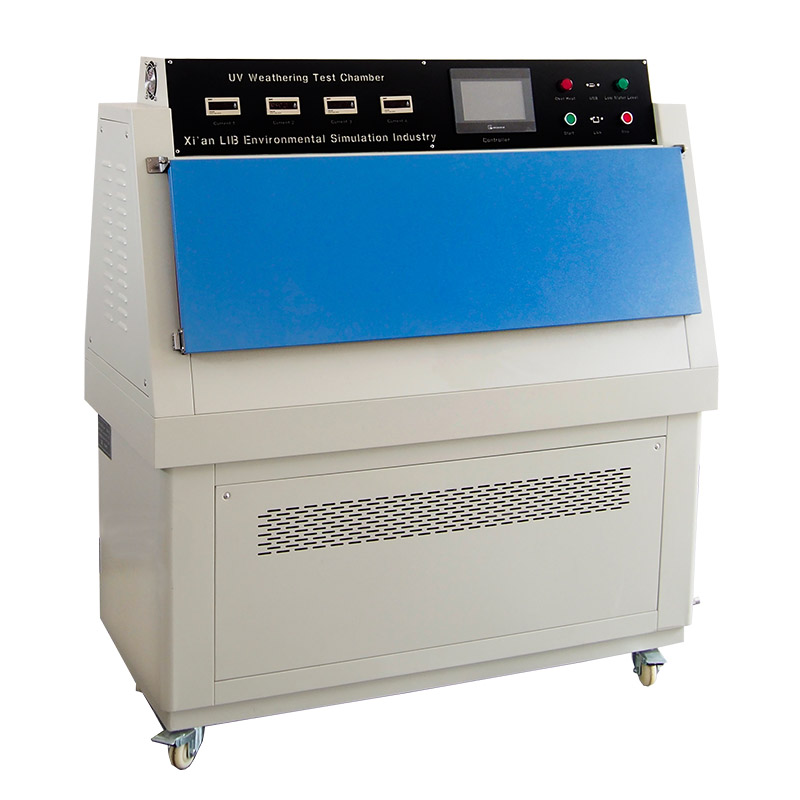

Comparison Between LIB UV Weathering Resistance Test Chamber and ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus

---

Item	UV Weathering Resistance Test Chamber	ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus
Light Source	UVA-340 or UVB-313 fluorescent UV lamps	4500 W water-cooled xenon arc lamp
Simulation Method	Simulates short-wave ultraviolet radiation	Simulates full-spectrum sunlight including UV, visible, and infrared light
Weather Simulation Functions	UV exposure and condensation	Sunlight, heat, humidity, rain spray, and condensation
Testing Focus	Surface UV degradation	Comprehensive outdoor weathering performance
Operating Cost	Lower operating cost	Higher operating cost with broader testing capability
Test Speed	Faster UV degradation screening	More realistic long-term weathering simulation
Irradiance Control	Basic UV intensity control	Precise full-spectrum irradiance control
Correlation with Outdoor Exposure	Moderate correlation	Better correlation with natural outdoor exposure
Maintenance	Simple lamp replacement and maintenance	More advanced cooling and water circulation system
Typical Applications	Surface cracking, chalking, discoloration	Color retention, coating durability, automotive weathering
Typical Standards	ASTM G154, ISO 4892-3, ASTM D4329	ASTM G151, ASTM G155, ISO 4892-2, SAE J2527
Suitable Industries	Plastic products, rubber materials, packaging materials, construction coatings	Automotive interiors and exteriors, aerospace coatings, photovoltaic materials, outdoor electronics
Recommended Use	Fast comparative UV resistance testing	High-accuracy accelerated sunlight weathering testing

How to Choose the Right Equipment

Choose a UV Weathering Resistance Test Chamber when: ① Budget is limited ② Only UV degradation is required ③ Fast screening tests are needed ④ Basic coating evaluation is sufficient

Choose ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus when: ①  Full sunlight simulation is necessary ② Automotive or SAE standards are required ③ Long-term outdoor durability must be predicted ④ Accurate color retention evaluation is important ⑤ International certification testing is required

LIB ASTM G155 G151 Accelerated Weathering Xenon Test

---

1. Common Standard: SAE J2527 for Automotive Coatings

One of the most widely used standards for automotive coating durability is SAE J2527. This standard uses xenon arc exposure according to ASTM G155 procedures for accelerated exterior automotive material testing.

Typical SAE J2527 Cycle:

① Light exposure: 102 minutes

Irradiance: 0.55 W/m² at 340 nm

Black panel temperature: 63 °C

Relative humidity: 50%

Water spray: 18 minutes

Total cycle: 120 minutes

This cycle simulates sunlight, heat, moisture, and rain conditions experienced by vehicle exterior coatings.

2. Recommended LIB Model

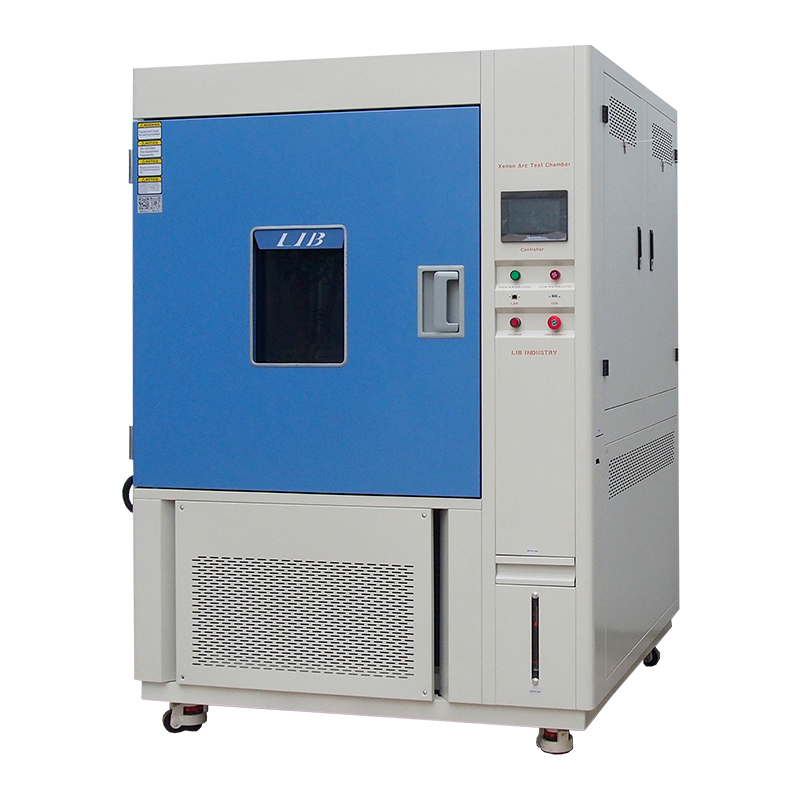

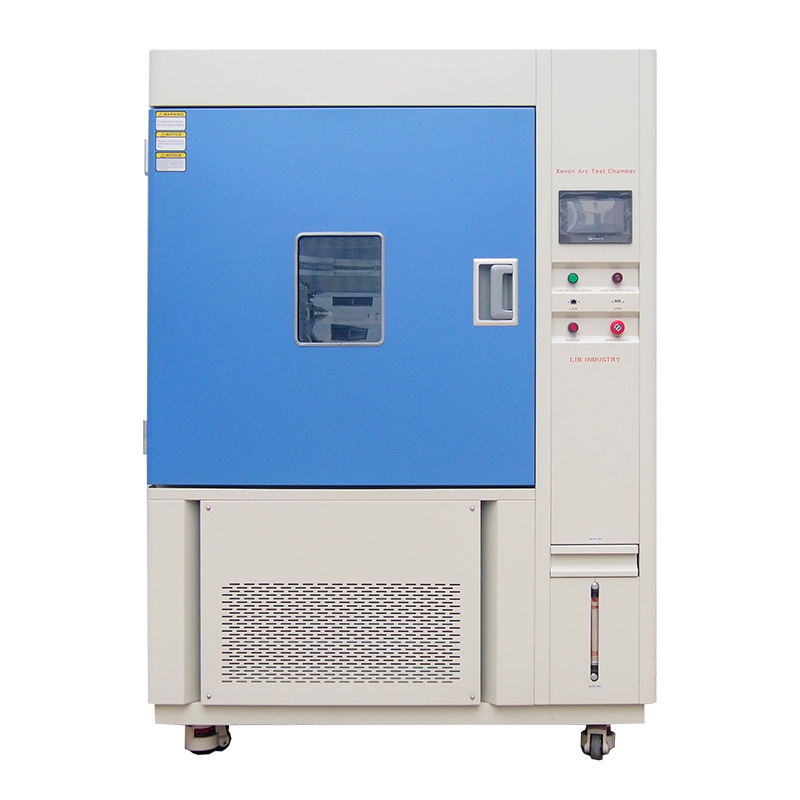

LIB ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus Model: XL-S-750

Main specifications:

Model	XL-S-750
Internal Dimension (mm)	950*950*850 mm
Overall Dimension (mm)	1400*1400*1950 mm
Specimen Holder Size(mm)	95*180
Specimen Capacity	42pcs
Chamber Type	Rotating Holder
Irradiation Source	1 piece of 4500w water-cooled xenon arc lamp
Irradiance Range	35~150 W/㎡
Bandwidth Measurement	300nm~400nm (340nm or 420nm)
Chamber Temperature Range	Ambient ～ 100 ℃ ±2℃
Black Panel Temperature	BPT 35 ～ 85 ℃ ±2℃
Humidity Range	50% ~ 98% RH
Humidity Deviation	± 5% RH
Water Spray Cycle	1~9999H59M  (Adjustable)
Controller	Programmable color LCD touch screen controller
Water supply system	Automatic water supply, Water purification system
Radiometer	UV Radiometer, Tolerance: ±5%
Cooling System	Mechanical compression refrigeration system
Safety Device	Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection
Exterior Material	Steel plate with protective coating
Interior Material	SUS304 Stainless steel

3. Advantages of LIB ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus

① Stable Water-Cooled Xenon System

Water cooling improves spectrum stability and extends lamp service life compared with air-cooled systems.

② Accurate Irradiance Control

Full-spectrum radiometers continuously monitor irradiance to maintain highly repeatable test conditions.

③ Intelligent Water Recycling

The automatic deionized water system recycles condensate and reduces water consumption by up to 80%.

④ Flexible Programming Functions

Users can freely program light, spray, humidity, and dark cycles according to ASTM, ISO, and SAE standards.

⑤ Global Technical Support

LIB provides 3-year warranty coverage, lifetime technical assistance, English-language support, and worldwide spare parts delivery within 7–15 days.

FAQs on the ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus

---

Popular Environmental Aging Test Chamber for Coating and Paint Testing
ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus	UVA UVB UVC Lamp UV Accelerated Weathering Tester
ASTM B117 Fog Corrosion Salt Spray Test Cabinet	Cyclic Salt Spray Corrosion Chamber

Q1：How long does ASTM G155 xenon testing usually take?

Most accelerated weathering tests require 500 h, 1000 h, 2000 h, or 3000 h depending on the material type and customer specification.

Q2: What is the difference between ASTM G154 and ASTM G155?

ASTM G154 uses fluorescent UV lamps for UV exposure only, while ASTM G155 uses xenon arc lamps to simulate full-spectrum sunlight, humidity, rain, and heat.

Q3:Does LIB provide customized sample holders?

Yes. LIB supports customized specimen racks and holders for automotive parts, coatings, textiles, plastics, and irregular-shaped samples.

Q4:What industries commonly use ASTM G155 chambers?

Common industries include automotive, aerospace, coatings, plastics, textiles, photovoltaic, electronics, and construction materials.

Q5: Does LIB provide installation and training services?

Yes. LIB provides remote video guidance, English technical support, operation training, installation assistance, and maintenance support for global customers.

Q6: How are the equipment shipped internationally?

LIB chambers are packed in export-grade wooden cases with shock protection and moisture-proof sealing. Global shipping is available by sea, air, or railway transportation depending on customer requirements.

Q7: What warranty and after-sales services are included?

LIB provides:

① 3-year warranty

② Lifetime technical support

③ 24-hour English-language response

④ Free replacement if equipment problems cannot be resolved

⑤ Worldwide spare parts support

Contact LIB Industry today to get a professional ASTM G155 G151 Accelerated Weathering Xenon Test Apparatus solution customized for your laboratory and industry testing requirements.
