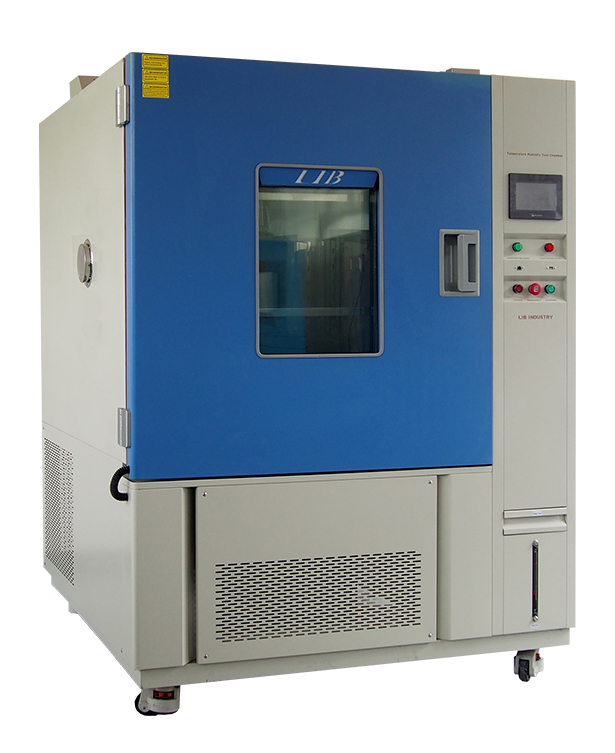

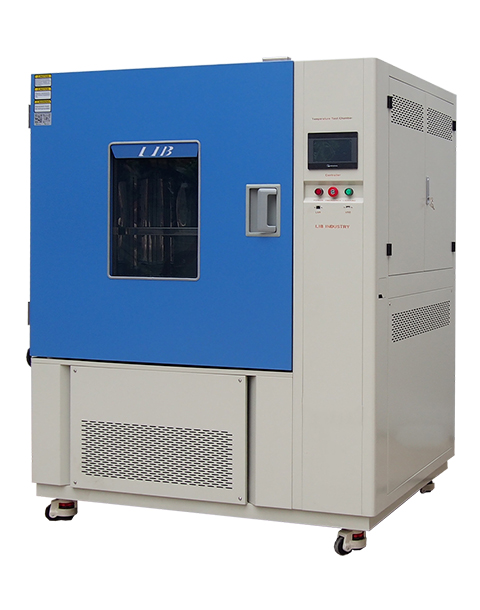

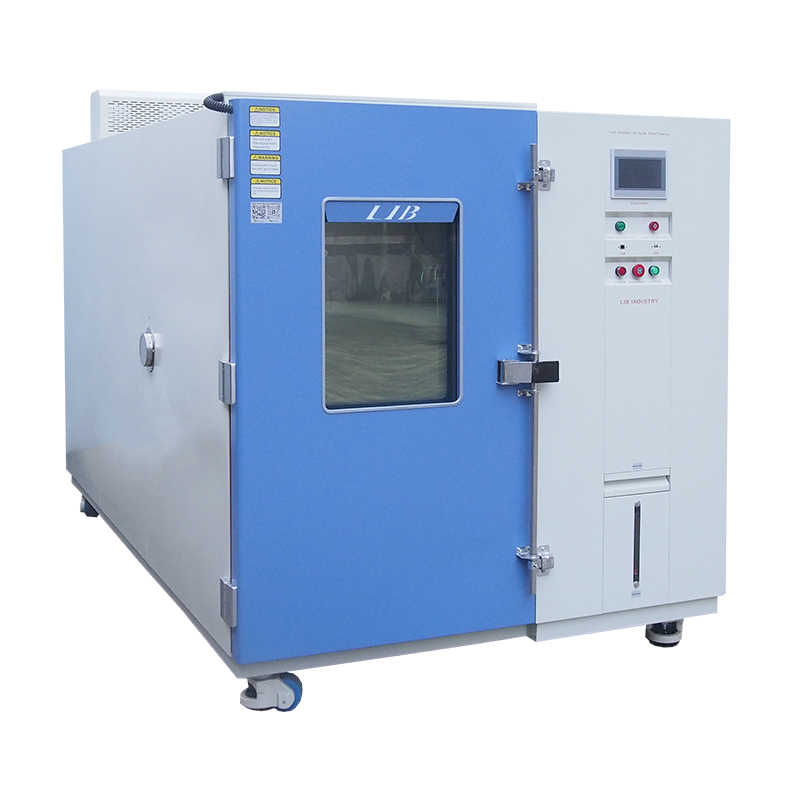

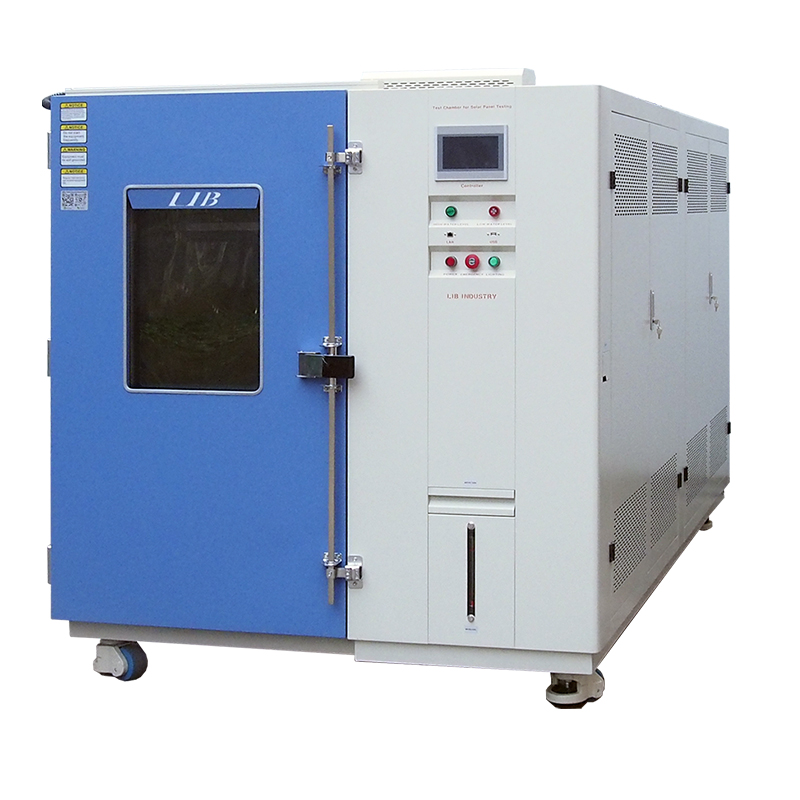

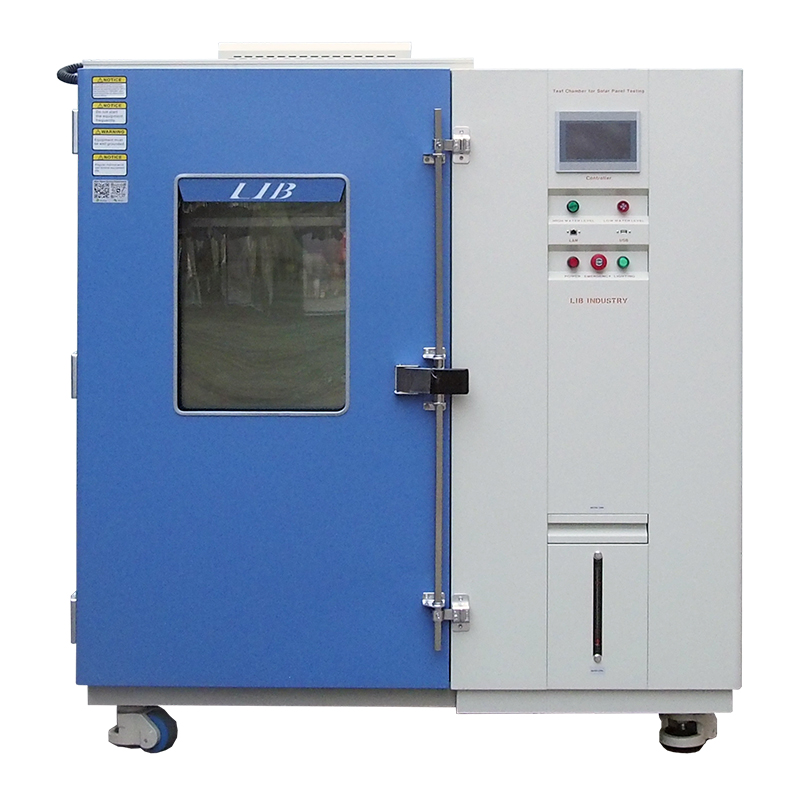

Damp Heat Humidity Freeze Temperature Cycling Test Chamber for Solar Cell

Solar modules are exposed to changing weather conditions throughout their service life, including high heat, humidity, freezing temperatures, and daily temperature fluctuations. The Damp Heat Humidity Freeze Temperature Cycling Test Chamber helps manufacturers recreate these conditions in a controlled laboratory environment to evaluate long-term product reliability. During damp heat testing, samples are typically maintained at 85°C and 85% RH for extended periods to simulate years of exposure in hot and humid climates. Thermal cycling tests repeatedly switch temperatures between –40°C and +85°C, allowing engineers to observe how materials, solder joints, and electrical connections respond to expansion and contraction over time. Humidity freeze testing combines moisture exposure with rapid cooling, helping identify issues such as cracking, delamination, and moisture-related damage before products are deployed in the field. By combining these environmental stresses into one testing process, manufacturers can better understand product durability, improve design quality, and verify compliance with photovoltaic industry standards.

Key Features and Operating Advantages of the Damp Heat Humidity Freeze Temperature Cycling Test Chamber for Solar Cell

1. Consistent Conditions Throughout the Chamber: An optimized air circulation system distributes temperature and humidity evenly inside the workspace. This ensures that every solar sample is tested under the same environmental conditions, resulting in more reliable and repeatable test data.

2. Accurate Temperature Transition Control: The chamber integrates efficient heating and cooling systems with intelligent PID control technology. Temperature changes are smooth and precisely regulated, making it suitable for photovoltaic thermal cycling tests that require stable and repeatable performance.

3. Reliable Humidity Regulation: A dedicated humidity control system maintains stable moisture levels throughout long-duration testing. It can accurately reproduce high-humidity environments that often accelerate corrosion, material aging, and moisture penetration in solar products.

4. Flexible Automated Testing: Users can create customized test programs that combine damp heat, humidity freeze, and temperature cycling in a single automated sequence. The controller supports data recording, remote monitoring, and long-term unattended operation, reducing manual intervention and improving testing efficiency.

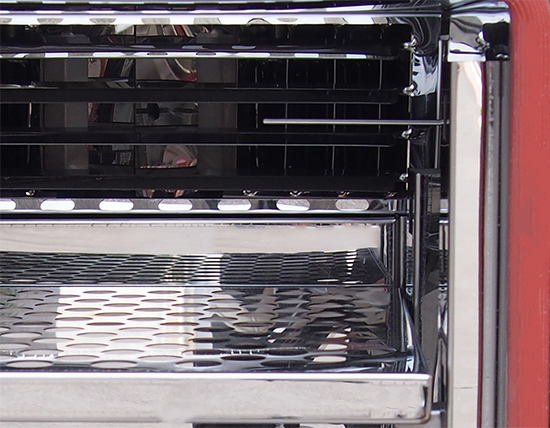

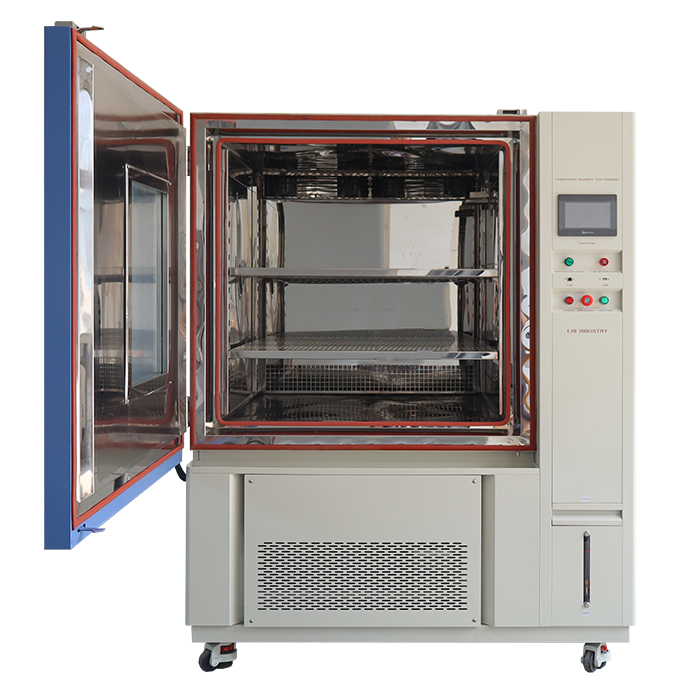

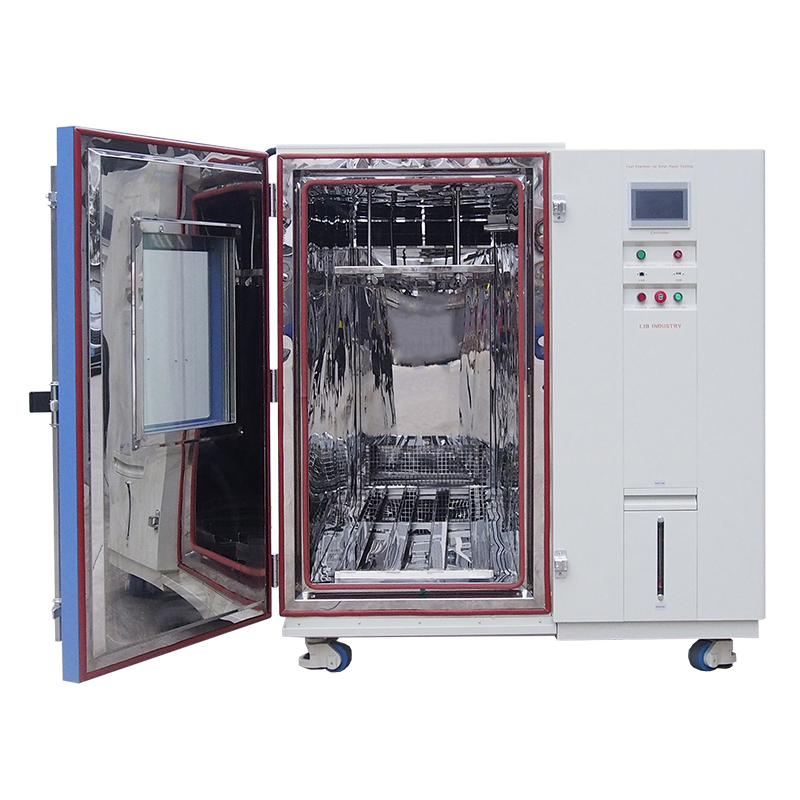

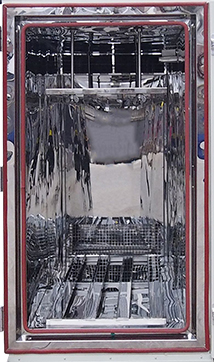

5. Robust Construction for Long-Term Use: The chamber interior is manufactured from corrosion-resistant SUS304 stainless steel, making it suitable for continuous operation under high-humidity conditions. Multiple safety protections—including over-temperature alarms, compressor protection, water-level monitoring, and electrical safety functions—help ensure reliable operation during extended test cycles.

Operating Parameters of the Damp Heat Humidity Freeze Temperature Cycling Test Chamber for Solar Cell

Standards and Tests

The Damp Heat Humidity Freeze Temperature Cycling Test Chamber for Solar Cell is designed to perform environmental reliability tests widely recognized in the photovoltaic industry. It supports testing procedures referenced in international standards such as IEC 61215 for PV module qualification, IEC 61730 for safety verification, IEC 60068 for environmental simulation, and ASTM E1171 for photovoltaic durability assessment. The chamber can accurately reproduce a variety of climatic stresses experienced by solar products during long-term outdoor operation, including high temperature and humidity exposure, rapid temperature fluctuations, freezing conditions, and prolonged aging environments. Typical test programs include damp heat testing at 85°C and 85% RH, thermal cycling between –40°C and +85°C, humidity freeze sequences that combine moisture exposure with sub-zero temperatures, and long-duration storage simulations under controlled temperature and humidity conditions. By recreating these accelerated aging conditions in the laboratory, manufacturers can evaluate product durability, identify potential failure mechanisms, improve design reliability, and support compliance with international certification requirements for photovoltaic modules and materials.

Video of the Damp Heat Humidity Freeze Temperature Cycling Test Chamber for Solar Cell

FAQs  on the Damp Heat Humidity Freeze Temperature Cycling Test Chamber for Solar Cell

Q1: Why is humidity freeze testing important for photovoltaic modules?

Humidity freeze testing helps evaluate how solar modules perform when exposed to moisture followed by rapid freezing conditions. This test can reveal potential issues such as delamination, microcracks, seal failure, and moisture-related structural damage that may affect long-term field reliability.

Q2: What types of solar products can be tested in this chamber?

The chamber is suitable for testing solar cells, photovoltaic modules, encapsulation materials, junction boxes, connectors, and other PV components. It can also be used by certification laboratories, research institutes, and manufacturers for product validation and reliability studies.

Q3: Can the equipment perform multiple photovoltaic reliability tests in one program?

Yes. The system allows users to combine damp heat, thermal cycling, humidity freeze, and aging tests into a single automated test sequence. This reduces manual intervention and improves testing efficiency while simulating comprehensive environmental stress conditions.

Q4: How does the chamber help manufacturers improve photovoltaic product reliability?

By reproducing years of outdoor environmental exposure within a controlled laboratory environment, the chamber enables engineers to identify potential failure mechanisms at an early stage. The test data can be used to optimize product design, improve material selection, enhance manufacturing quality, and support international certification requirements.
