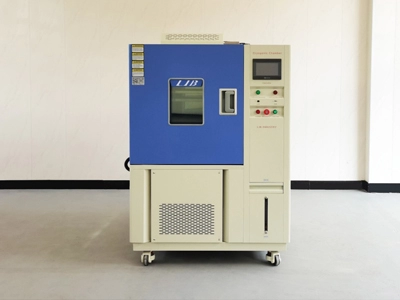

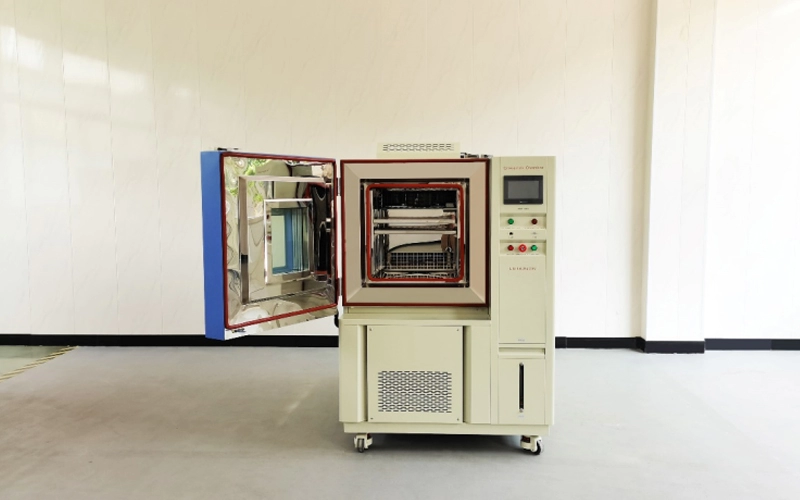

Cryogenic Chamber
The cryogenic chambers are used in industrial cold treatment, mainly in the application of cold work mold steel, high-speed steel, bearing steel, cold work molds and mold accessories; This cryogenic chamber can significantly increase the hardness and strength of the products, ensure the dimensional accuracy of the products, improve the wear resistance and impact toughness of the products, and improve the stress distribution.
As with other environmental test chambers, cryogenic chambers are used by manufacturers to test their products for potential flaws and malfunctions in order to improve the design and production process. Improving a product based on environmental test results will ensure a better quality product. Cryogenic chamber is widely used in ultra-low temperature testing of automobiles, engineering machinery, aircraft components, aerospace components, military components.
LIB cryogenic chamber uses a mechanical compressor to cool to -120℃, which replaces the traditional liquid nitrogen cooling method. The temperature test range is-120 ℃ to 150℃. It can be applied to various field for test by simulating extreme natural environments, to detect product substitution and performance stability. Its specs as follows:
| Model | CF-100 | CF-225 | CF-500 | CF-800 | CF-1000 | |
| Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 | |
| Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 | |
| Interior Volume | 100L | 225L | 500L | 800L | 1000L | |
| Temperature Range | -120℃ ~ +150℃ | |||||
| Temperature Fluctuation | ± 0.5 ℃ | |||||
| Temperature Deviation | ± 2.0 ℃ | |||||
| Cooling Rate | 1 ℃ / min | |||||
| Heating Rate | 3 ℃ / min | |||||
| Cooling | Cooling system | Mechanical compression refrigeration system | ||||
| Refrigerating unit | Cascade compressor | |||||
| Maximum Noise | 65 dBA | |||||
Cryogenic Chamber Benefits
●Mechanical refrigeration
Cryogenic chamber uses triple refrigeration, using combined refrigerants and mechanical refrigeration to control the temperature at -120℃.
●Energy saving
When the temperature needs to be stabilized again, the advanced PID control can effectively control the output value of the constant phase and the recovery phase.
Please contact us to get the detailed information and quotation, and our team will provide the best testing solution according to your requirements.
