Sulfur dioxide (SO₂) gas corrosion is a serious challenge for materials used in harsh industrial environments. From power plants and chemical facilities to oil and gas infrastructure, prolonged exposure to SO₂ can significantly reduce material performance, shorten service life, and increase maintenance costs. To address these risks, SO₂ gas corrosion testing provides a reliable and controlled method for evaluating how materials and coatings withstand corrosive sulfur-containing atmospheres before they are deployed in real-world applications.

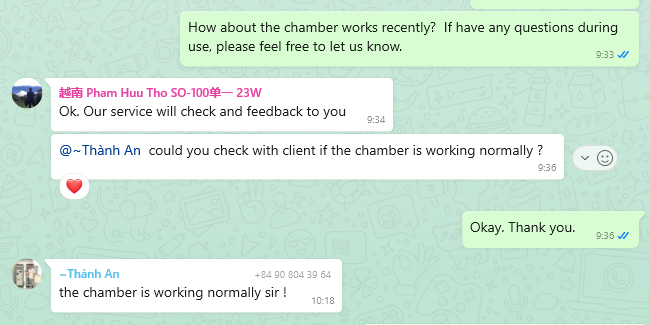

In real applications, the reliability of testing equipment is just as important as the test method itself. Customer feedback confirms the stable performance of LIB SO₂ gas corrosion chambers in daily use. A recent installation for a Vietnamese customer demonstrated consistent and normal operation during testing, as confirmed through routine service follow-ups and on-site checks. The customer reported that the chamber was working properly without operational issues, reflecting the reliability, ease of use, and stable control performance of LIB SO₂ gas corrosion chambers from the start of operation.
Importance of SO2 Gas Corrosion Testing
Sulfur dioxide (SO2) is a highly reactive gas that can cause severe corrosion in various materials. It is
produced during the combustion of fossil fuels containing sulfur impurities, such as coal and oil. When released into the atmosphere, SO2 can react with moisture to form sulfuric acid, which is a strong corrosive agent. This acid can corrode metals, concrete, and other materials, leading to structural damage and equipment failures.
SO2 gas corrosion testing helps in determining the resistance of materials and coatings to the corrosive effects of SO2 gas. By subjecting test specimens to controlled environments simulating SO2 exposure, researchers can evaluate the performance and durability of materials in real-world conditions. This testing is essential for selecting suitable materials for construction and manufacturing processes, ensuring the longevity and reliability of structures and equipment.
LIB SO2 Gas Corrosion Chambers

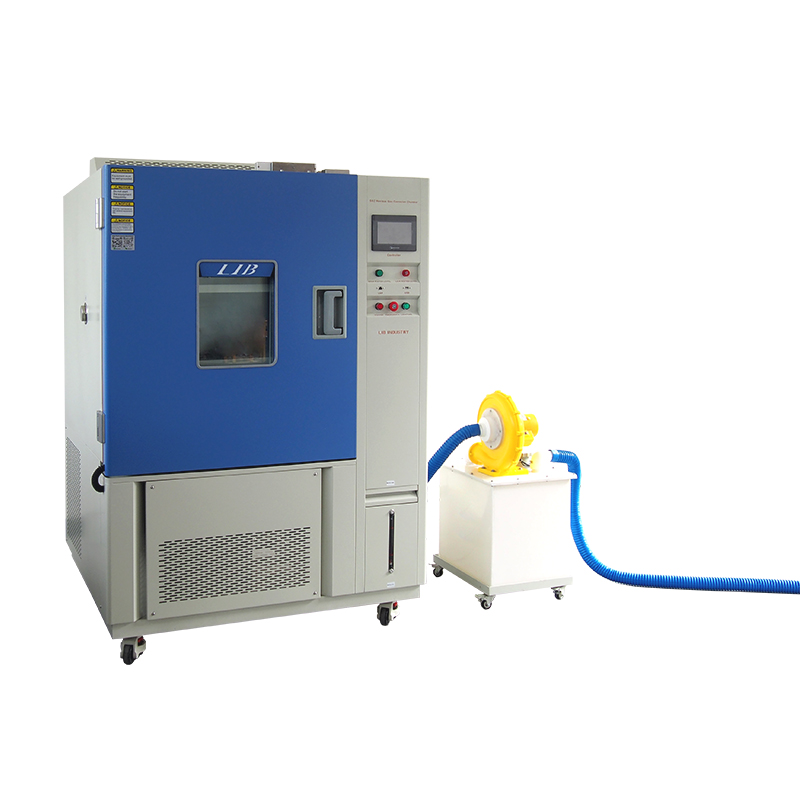

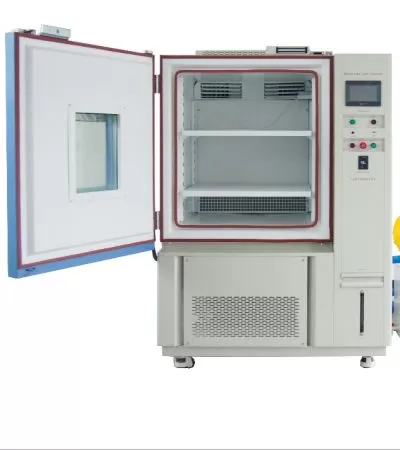

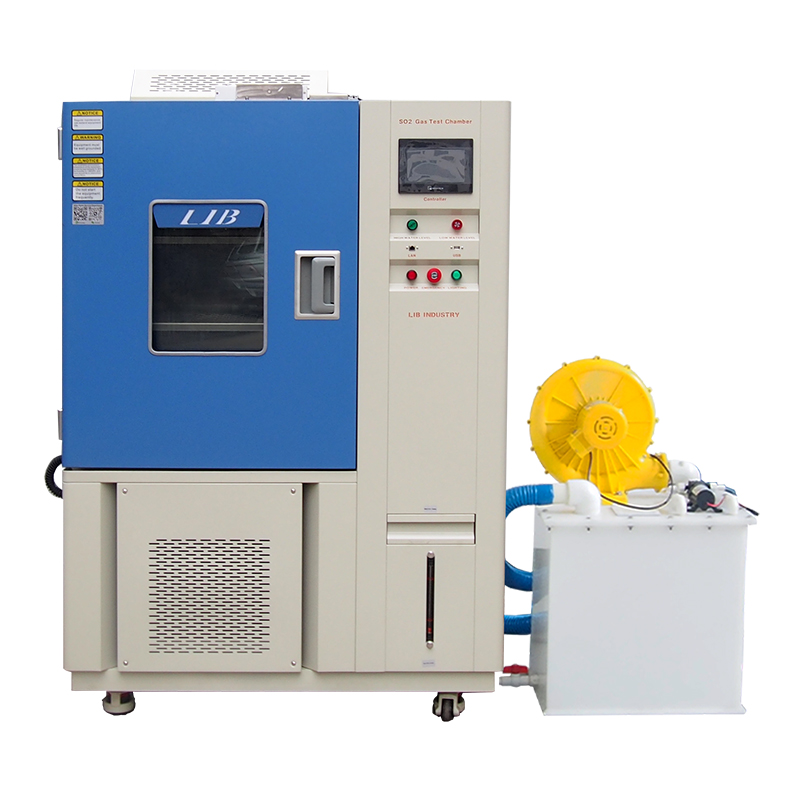

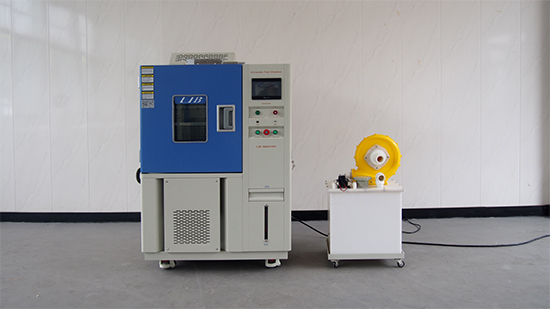

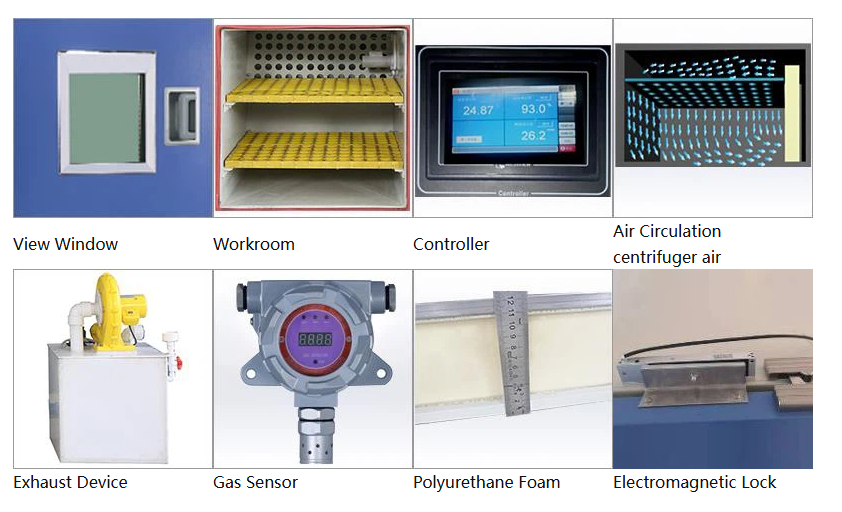

LIB SO2 gas corrosion chambers are specially designed enclosures that simulate the corrosive environment caused by exposure to SO2 gas. These noxious gas chambers provide a controlled atmosphere where test specimens can be exposed to predetermined levels of SO2 gas concentration, temperature, and humidity. The chambers are equipped with monitoring and control systems to ensure precise testing conditions.
 | Model: LIB TH-225 SO2 Gas Corrosion Chambers ① Internal Dimensions (mm):500*600*750 ② Overall Dimensions (mm): 960*1150*1860 ③ Temperature Range: 15 ℃ ～ 80 ℃ ④ Temperature Fluctuation: ± 0.5 ℃ ⑤ Temperature Deviation: ± 2.0 ℃ ⑥ Humidity Range: 30% ~ 98% RH ⑦ Humidity Deviation: ±1% RH ⑧ SO2 Concentration: 25±5 ppm |
Sulfur dioxide corrosion testing is conducted by placing test specimens inside a sealed corrosion chamber designed to maintain a controlled and stable testing environment. Once the chamber is closed, a regulated concentration of SO₂ gas is introduced to simulate corrosive atmospheric conditions commonly found in industrial, urban, and high-pollution environments. Test parameters such as gas concentration, temperature, and relative humidity can be precisely adjusted to reproduce specific service conditions and accelerate corrosion reactions.
During the exposure process, specimens may remain inside the chamber for periods ranging from several hours to multiple weeks, depending on the selected testing standard and evaluation objective. Throughout the test cycle, materials are regularly examined for visible or measurable changes, including oxidation, coating deterioration, discoloration, pitting, cracking, or mass reduction. These observations help determine how effectively the material resists sulfur dioxide attack over time.
SO₂ corrosion testing is widely used to evaluate the durability and protective performance of metals, coatings, electronic components, and industrial materials exposed to sulfur-containing atmospheres. The collected data assists manufacturers and researchers in improving material selection, optimizing protective coatings, enhancing product reliability, and reducing the risk of corrosion-related failures in real operating environments.
The LIB SO-225 SO₂ Gas Corrosion Test Chamber is designed to provide stable and repeatable testing conditions for sulfur dioxide corrosion evaluation, supporting reliable environmental simulation for laboratory and industrial applications.
Working Principle of the LIB SO₂ Gas Corrosion Chamber
The LIB SO₂ Gas Corrosion Chamber operates by accurately simulating sulfur dioxide–containing
environments to evaluate the corrosion resistance of materials and protective coatings. Its working principle is based on the controlled generation, distribution, and regulation of SO₂ gas within a sealed test enclosure, combined with precise temperature and humidity control. During operation, test specimens are placed on non-reactive sample holders inside the chamber. Once the door is securely sealed, the control system initiates the test program. SO₂ gas is introduced into the chamber through a dedicated gas injection system, ensuring a stable and uniform concentration throughout the test space. At the same time, the chamber's temperature and humidity control units regulate environmental parameters to replicate real-world industrial or atmospheric conditions where sulfur dioxide corrosion commonly occurs.
An internal air circulation system ensures even gas distribution and consistent exposure across all specimens. Sensors continuously monitor SO₂ concentration, temperature, and humidity, feeding real-time data back to the control system. Any deviations from the set parameters are automatically corrected to maintain test accuracy and repeatability.
Through this controlled and accelerated corrosion process, the LIB SO₂ Gas Corrosion Chamber enables reliable evaluation of material degradation, coating performance, and long-term durability under sulfur dioxide exposure.
Maintenance Guidelines for the LIB SO₂ Gas Corrosion Chamber
Routine maintenance of the LIB SO₂ Gas Corrosion Test Chamber is important for maintaining stable operating performance, ensuring testing accuracy, and extending equipment lifespan. Consistent servicing also helps minimize unexpected downtime and protects critical components from corrosion-related damage caused by long-term exposure to sulfur dioxide environments.
Following each testing cycle, the chamber interior should be cleaned carefully to eliminate residual SO₂ gas deposits and acidic contaminants generated during testing. Washing the chamber with clean water or using appropriate neutralizing solutions can help reduce corrosion accumulation on the stainless-steel interior, sample racks, and other exposed parts. Fixtures and specimen holders should likewise be cleaned and inspected before the next operation.
The gas delivery system should be examined regularly to confirm stable operation and safe gas flow. This includes checking hoses, joints, valves, and pipelines for leakage, clogging, or wear. Environmental monitoring devices such as SO₂ concentration sensors, temperature sensors, and humidity sensors should undergo periodic calibration to maintain reliable measurement performance throughout the testing process.
Ventilation and air circulation components should also be inspected to verify efficient airflow distribution and proper exhaust discharge. In addition, electrical systems, wiring areas, and the control cabinet should remain dry and protected from corrosive moisture or gas exposure to avoid operational failures.
With proper routine inspection and preventive maintenance, the LIB SO₂ Gas Corrosion Test Chamber can continue delivering consistent environmental simulation, dependable corrosion testing results, and long-term operational reliability in laboratory and industrial applications. These improve the operation and safe gas flow and exposed prats. The fixtures and specimen holders sould likewise be cleaned and inspected before the next operation. It can make the testing great
Looking for a reliable solution for SO₂ gas corrosion testing? Contact LIB Industry today to learn more about the SO-225 SO₂ Gas Corrosion Chamber and get expert support for your testing requirements. Our team is ready to help you select the right configuration for your application and ensure long-term testing reliability.
