Water is one of the most common causes of product failure in real-world applications. From sudden rainstorms to high-pressure cleaning, electronic devices, automotive parts, and outdoor equipment are constantly exposed to moisture risks that can lead to corrosion, short circuits, or complete system breakdown.
To ensure products can survive these environments before they reach the market, manufacturers rely on standardized waterproof testing systems. The IEC 60529 IPX1/2/3/4/5/6 Combined Waterproof Test Chamber provides a complete, controlled solution for simulating rainfall, dripping water, splash conditions, and powerful water jets—all in one integrated system.
This article explains how the IEC 60529 IPX1/2/3/4/5/6 Combined Waterproof Test Chamberworks, why it is essential for global compliance, and how LIB’s integrated solution improves efficiency, accuracy, and cost control for modern laboratories and manufacturers.
The IEC 60529 IPX1/2/3/4/5/6 Combined Waterproof Test Chamber operates by integrating multiple water
simulation modules into a single controlled environment. It includes a drip system (IPX1/IPX2), oscillating tube system (IPX3/IPX4), and high-pressure jet nozzles (IPX5/IPX6).
① IPX1/IPX2: 1 mm/min vertical drip simulation using a precision drip tray
② IPX3/IPX4: Oscillating tube spray with ±60° to ±180° swing and 0.4 mm nozzles
③ IPX5: 6.3 mm nozzle, 12.5 ± 0.625 L/min water flow
④ IPX6: 12.5 mm nozzle, 100 ± 5 L/min high-pressure water jet
The system is controlled by a programmable touchscreen controller that maintains stable flow rate, angle, pressure, and test duration with high repeatability.
Natural rainfall testing depends on weather conditions, which are unpredictable and inconsistent. Rain intensity, droplet size, wind direction, and duration vary significantly, making it impossible to achieve standardized results.
In contrast, the IEC 60529 chamber provides:
① Controlled water flow accuracy within ±5% deviation
② Fixed spray distance of 2.5–3 meters for IPX5/IPX6
③ Repeatable test cycles of minimum 10–30 minutes depending on level
④ Stable turntable rotation at 1 rpm for uniform exposure
This controlled simulation ensures every test sample receives identical conditions, which is critical for certification, product comparison, and quality control.
The system fully complies with international waterproof testing standards, including:
① IEC 60529 (IP protection classification)
② ISO 20653 (road vehicles protection levels)
③ DIN 40050-9 (automotive electrical equipment testing)
④ JIS D0203 (rain and spray testing standards)
It is widely used in industries such as:
① Automotive components (ECUs, sensors, lighting systems)
② Consumer electronics (phones, cameras, wearable devices)
③ Outdoor lighting and smart city infrastructure
④ Industrial control systems and communication equipment
These industries rely on IP testing to prevent failures caused by environmental exposure.

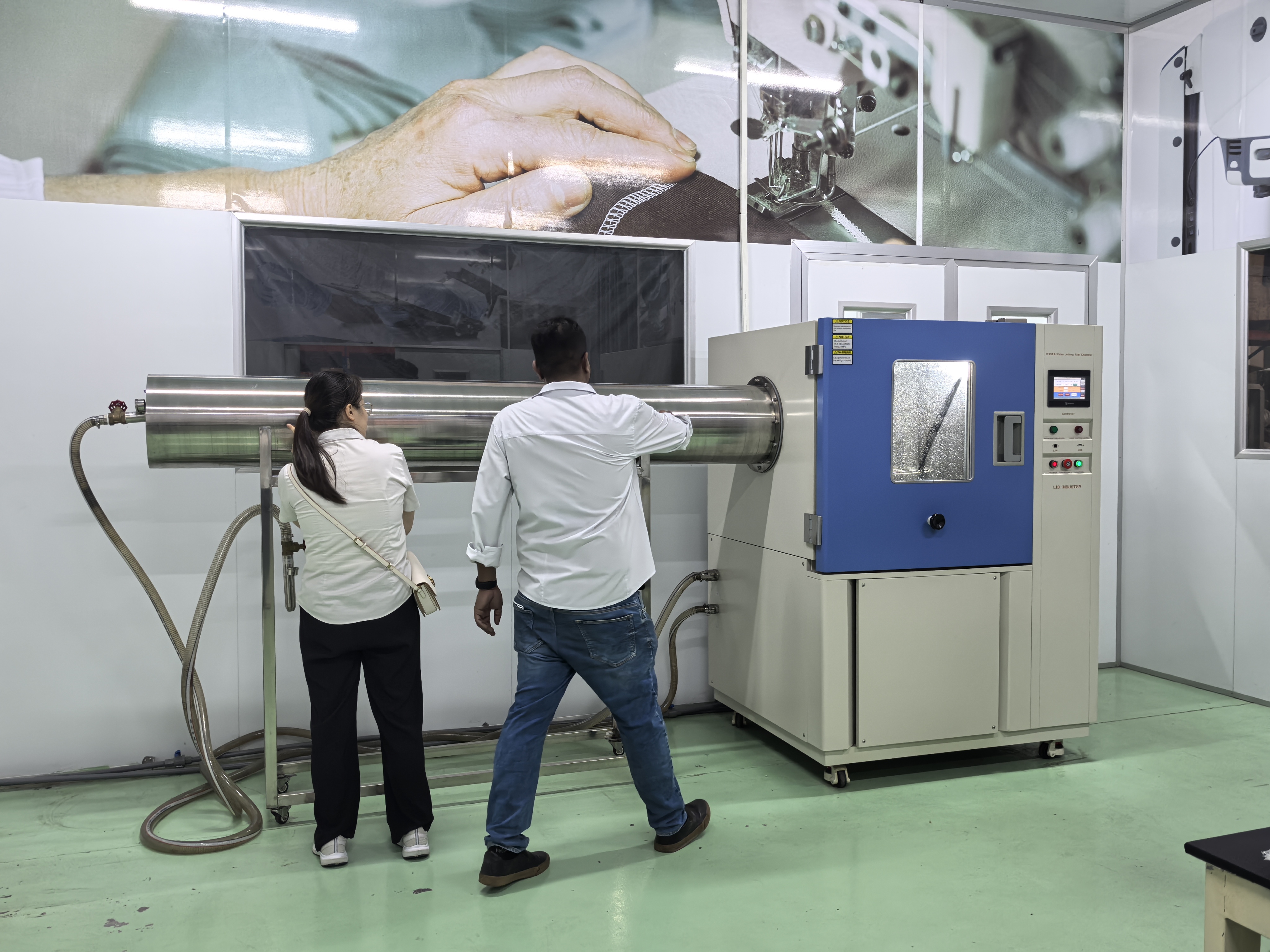

A recent project delivered by LIB Industry involved a manufacturer in India testing motorcycle helmets,
automotive waterproof covers, and outdoor protective clothing.
The customer needed stable and repeatable IPX5/IPX6 testing under IEC 60529 conditions, especially for high-pressure water jet resistance used in real riding and outdoor environments.
After installation of the IEC 60529 IPX1/2/3/4/5/6 Combined Waterproof Test Chamber, the customer reported several improvements:
① Stable compliance with IEC 60529 and ISO 20653 certification requirements
② Easy sample loading and unloading with a 50 kg adjustable turntable
③ Reduced manual labor thanks to automatic water circulation and recycling system
④ Improved test repeatability for helmet shell and fabric waterproof performance
⑤ Faster test cycles for batch validation of automotive accessories
The built-in SUS304 stainless steel structure also ensured long-term durability in humid and high-frequency testing environments. The customer highlighted that the system significantly improved lab efficiency while reducing water and electricity consumption.
https://www.lib-industry.com/Water-spray-test-chamber/combined-chamberipx1-x2-x3-x4-x5-x6
| Combined Test Chamber (IPX1 X2 X3 X4 X5 X6) | |||
| Model | RD-800C | RD-1200C | |
| Dimension | Internal dimensions | 900*950*950mm -D*W*H | 1300*1350*1370mm -D*W*H |
| Overall dimensions | 1180*1420*1920mm -D*W*H | 1540*1820*2200 -D*W*H | |
| IPX5 IPX6 tube dimensions | Length is 2000mm, | Length is 2000mm, | |
| diameter is 325mm | diameter is 325mm | ||
| IPX1 IPX2 | Drip box | 600*600mm | 900*900mm |
| Hole spacing | 20mm | ||
| Hole diameter | φ0.4mm | ||
| IPX3 IPX4 | Oscillating tube radius | 400mm | 600mm |
| Spraying hole diameter | φ0.4mm | ||
| Hole spacing | 50 mm | ||
| Number of holes | 25 | 37 | |
| Oscillating tube range | 0~ ±180° | ||
| Swivel velocity speed of tubes | 60°/seconds | ||
| IPX5 IPX6 | Nozzle diameter | Dia6.3mm for IPX5 nozzle diameter, | |
| Dia12.5mm for IPX6 nozzle diameter | |||
| Water flow rate | 12.5L/min ±5% for IPX5 test, | ||
| 100L/min ±5% for IPX6 test | |||
| Core of the substantial stream | circle of approximately 40 mm diameter at 2,5 m distance from nozzle | ||
| Turntable | Diameter | 600mm | |
| Height | 350~600mm, adjustable | ||
| rotation speed | 1~5r/min | ||
| Controller | Programmable color display touch screen controller, | ||
| PC Link with software, Ethernet interface | |||
| Water supply system | Storage water tank, booster pump, Automatic water supply, Water cycling system, Water purification system, Water saving | ||
| Safety protection device | Electric leakage, short circuit, motor overheating, over-current protection | ||
| Exterior material | Steel Plate with protective coating | ||
| Interior material | SUS304 stainless steel | ||
Both systems support IPX1–IPX6 testing, but their structure and application scenarios are different.
| Feature |
|
|
|---|---|---|
| System Design | Fully integrated closed chamber | Modular open structure |
| Test Range | IPX1 to IPX6 in one unit | IPX1 to IPX6 with separate modules |
| Space Requirement | Compact, lab-saving design | Requires larger installation area |
| Water System | Built-in circulation and filtration | External or semi-integrated system |
| Automation Level | Fully automated control system | Semi-automated operation |
| Sample Flexibility | 50 kg adjustable turntable + tilt | High flexibility for oversized samples |
| Best Use Case | Certification labs & production QC | Research labs & large or irregular samples |
Choose the Combined Chamber if you need high efficiency, certification accuracy, and space-saving integration.
Choose the No Housing Type System if your testing involves oversized, irregular, or prototype-level samples requiring flexible setup.
Yes. The system integrates IPX1 to IPX6 testing modules in one chamber, allowing automatic switching between test levels through the touchscreen controller.
Yes. It fully complies with IEC 60529, ISO 20653, DIN 40050-9, and JIS D0203 standards, ensuring global certification acceptance.
The built-in closed-loop water circulation system recycles up to 80% of water, significantly reducing operational cost and environmental impact.
The system is packaged in reinforced export-grade wooden crates. LIB provides full installation guidance, remote commissioning support, and on-site service options depending on region. Standard delivery time for spare parts is 7–15 days via global warehouses.
LIB provides a 3-year warranty, lifetime technical support, and 24/7 multilingual assistance. Critical components are stocked globally to minimize downtime.
The IEC 60529 IPX1/2/3/4/5/6 Combined Waterproof Test Chamber is an essential solution for manufacturers that require accurate, repeatable, and fully standardized waterproof testing in a controlled laboratory environment. By integrating all IPX levels into a single system, it improves efficiency, reduces cost, and ensures global compliance.
