DHPV-04
LIB Industry
| Quantity: | |
|---|---|

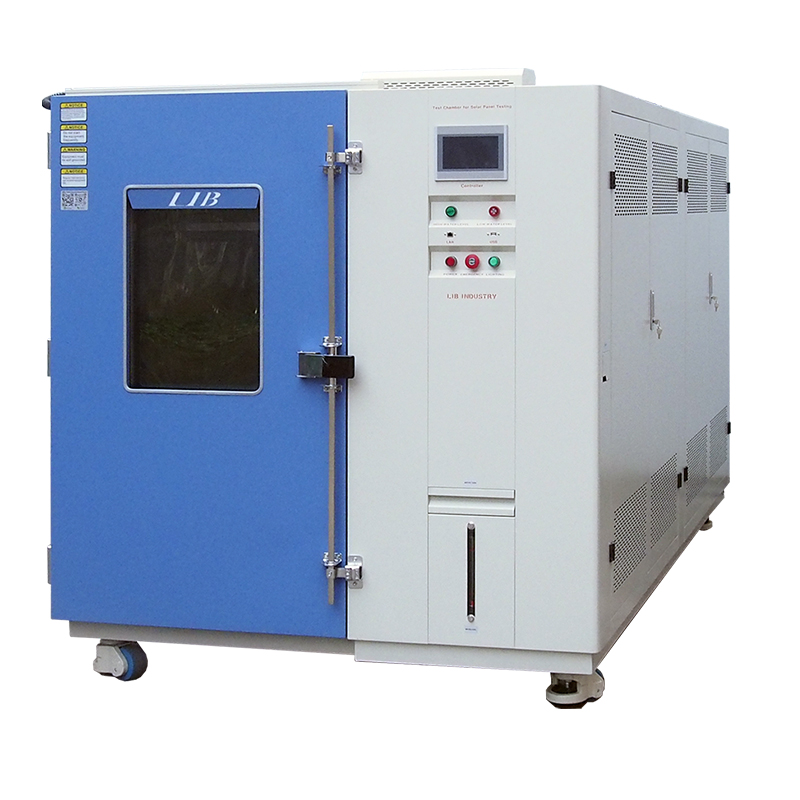

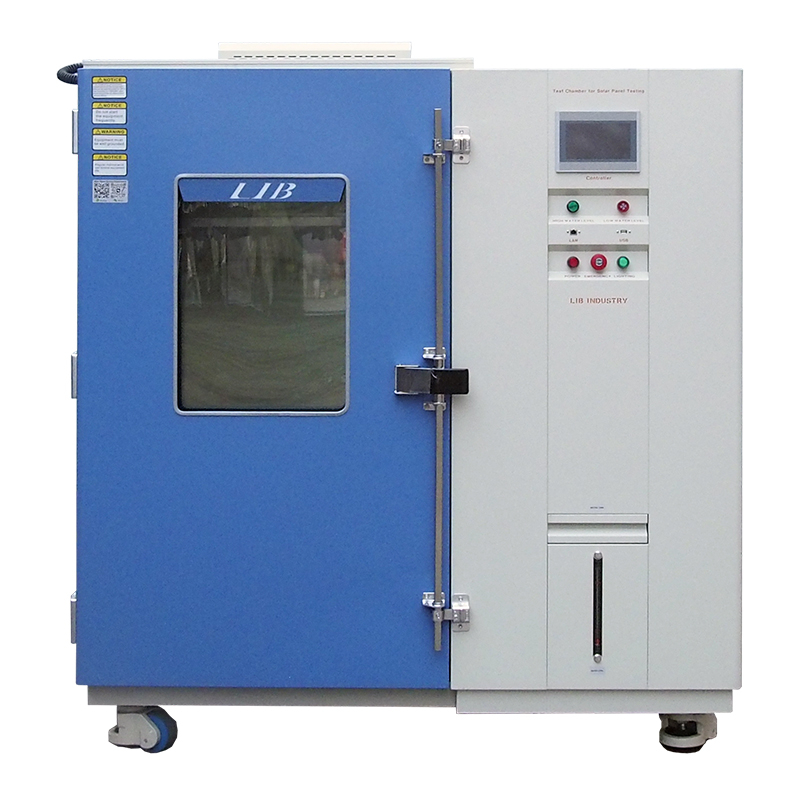

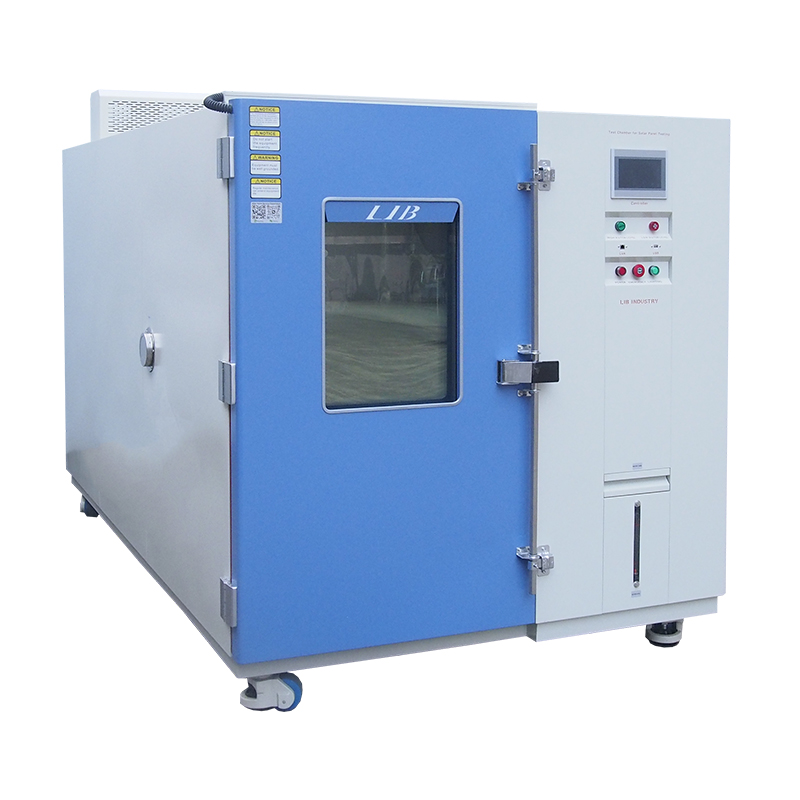

In addition to damp heat testing, the UL 1703 IEC 61464 Photovoltaic Panel Damp Heat Test Chamber integrates humidity-freeze and thermal cycling modes within a single platform, offering a comprehensive solution for PV module qualification. The humidity-freeze test alternates between hot, humid conditions and extreme cold, typically cycling from 85 °C / 85 % RH to –40 °C, to assess seal integrity, lamination strength, and resistance to moisture expansion and contraction. Thermal cycling further stresses solder joints, interconnections, glass, and frames through repeated temperature swings, ensuring modules can withstand harsh day–night and seasonal changes in real-world installations.
Key Advantages
1. Full Compliance with PV Industry Standards：the chamber is engineered to meet UL 1703, IEC 61464, IEC 61215, and IEC 61646 requirements, allowing manufacturers to perform standardized damp heat, humidity-freeze, and thermal cycling tests using a single piece of equipment. This simplifies certification workflows and reduces reliance on external testing laboratories.
2. Stable and Accurate Environmental Control: advanced PID regulation maintains temperature stability within ±0.5 °C and humidity control within ±2.5 % RH. Uniform airflow minimizes spatial deviation, ensuring all PV modules are exposed to identical test conditions for reliable and repeatable results.
3. Integrated Multi-Mode Testing Capability: by combining damp heat, humidity-freeze, and thermal cycling in one chamber, users can execute complete PV reliability programs without relocating samples, reducing handling risk and improving testing efficiency.
4. Energy-Efficient and Eco-Friendly Cooling System: a high-performance refrigeration system with a TECUMSEH compressor enables rapid cooling to –40 °C while using environmentally responsible refrigerants. This ensures strong performance with reduced global warming potential.

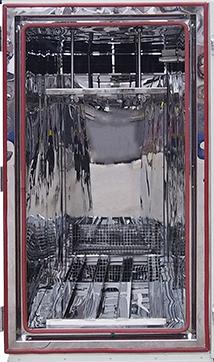

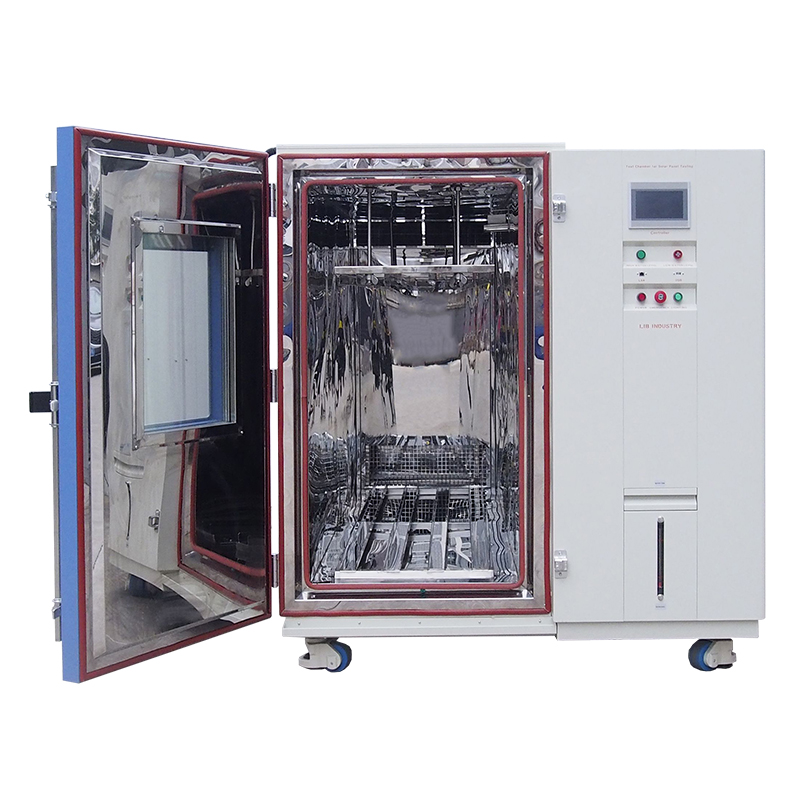

5. Flexible Configuration for Different Module Sizes: adjustable racks, optional rollers, and customizable sample spacing allow the chamber to accommodate various panel sizes and quantities, from small R&D batches to production-level verification.
6. Robust Construction and Safety Protection: the chamber features reinforced insulation, over-temperature protection, compressor safeguards, leakage protection, and alarm systems to ensure safe, continuous operation during long-duration tests.
Equipment Specifications
| Name | UL 1703 IEC 61464 Photovoltaic Panel Damp Heat Test Chamber |
Internal Dimension | 1300*700*1350 |
Overall Dimension | 1900*1100*1750 |
Temperature Range | -60℃～+100 ℃ |
Temperature Fluctuation | ± 0.5 ℃ |
Temperature Deviation | ± 2.0 ℃ |
Humidity Range | 20% ~ 98% RH |
Humidity Deviation | ± 2.5% RH |
Temperature Change Rate | 1~3.4 ℃ / min |
| Panel Size | 1m*2m |
| Panel Capacity | 4 / 6 / 8 / 10 / 12 Pieces |
Typical Tests Performed by the PV Damp Heat Test Chamber
This photovoltaic test chamber is commonly used for long-term damp heat exposure at 85 °C and 85 % RH to evaluate moisture resistance, corrosion behavior, and insulation stability. It also performs humidity-freeze cycling between high humidity and subzero temperatures to assess sealing performance and lamination durability. Thermal cycling tests, often conducted between –40 °C and 85 °C for dozens or hundreds of cycles, help verify solder joint reliability, glass-to-frame bonding, and resistance to thermal fatigue. These tests collectively provide a comprehensive picture of PV module reliability under diverse environmental stresses.
Video
FAQs
Q1: Can the chamber support extended damp heat tests beyond 1000 hours?
Yes. The chamber is designed for long-duration operation and can support damp heat tests of 1500 or 2000 hours, depending on your certification or internal validation requirements.
Q2: Is customization available for panel size?
Yes. LIB offers customized racks, viewing windows, and control options to suit different PV module dimensions and test setups without significantly affecting delivery time.
Q3: Does the chamber support data recording for certification audits?

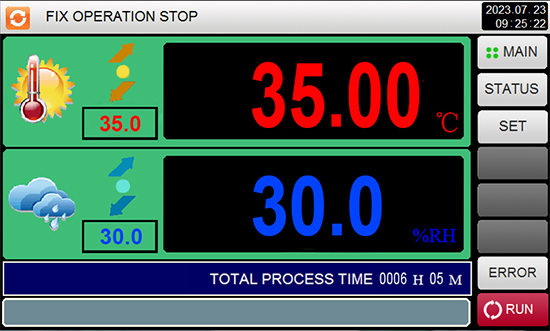

The system supports continuous data logging and export via USB or Ethernet, generating traceable records suitable for UL, IEC, and internal quality audits.
