R9K-1200
LIB Industry
| Quantity: | |
|---|---|
Ingress Protection Dust and Water Resistance IP69K Test Equipment features a robust construction with stainless steel interiors, insulated tanks, and high-precision components that maintain stable performance during intensive testing. For IP6X dust testing, vertical airflow ensures uniform dust circulation, while heating elements prevent caking, guaranteeing consistent exposure. Built-in LED lighting and observation windows allow operators to monitor samples without interrupting the cycle. The IPX9K water test utilizes imported high-pressure pumps and solenoid valves to precisely control water pressure and flow, achieving a deviation as low as ±0.01 kPa. Spray nozzles are arranged to cover 0°, 30°, 60°, and 90° angles, ensuring all surfaces are tested thoroughly. Turntable rotation speeds and platform heights are fully adjustable to accommodate samples from small electronic modules to automotive parts weighing up to 50 kg.

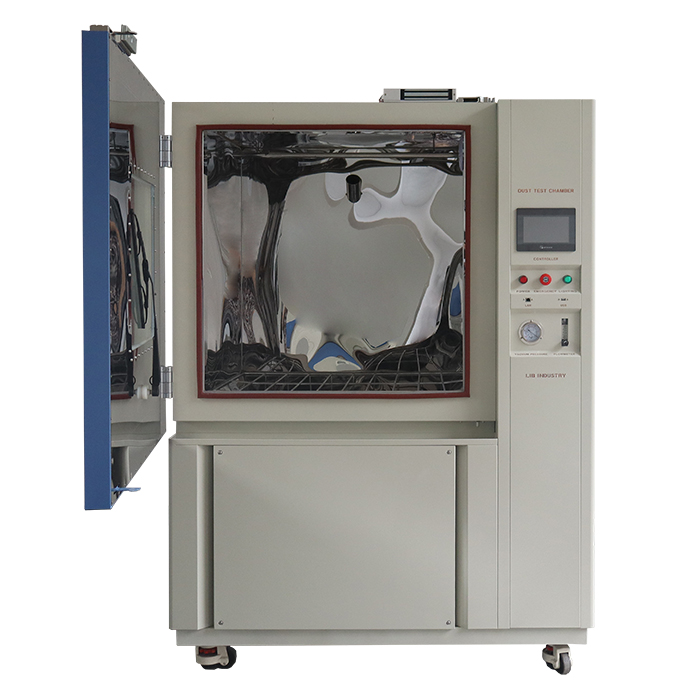

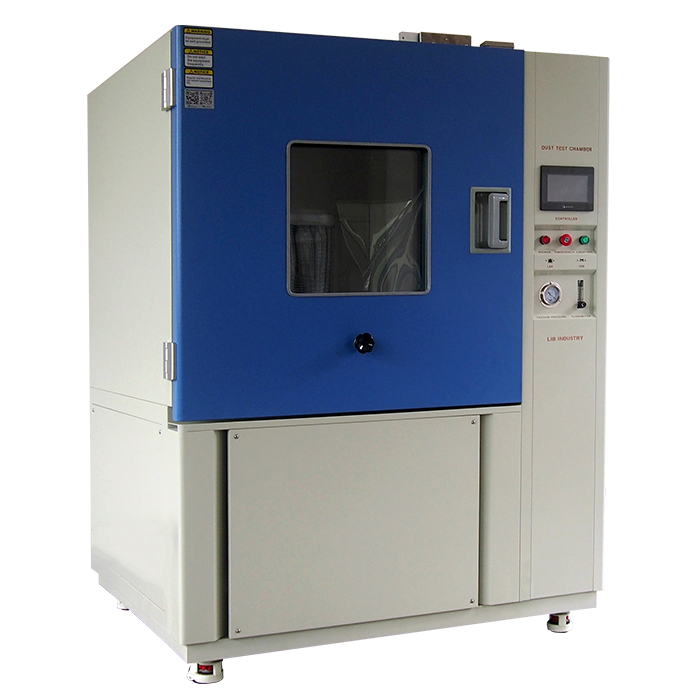

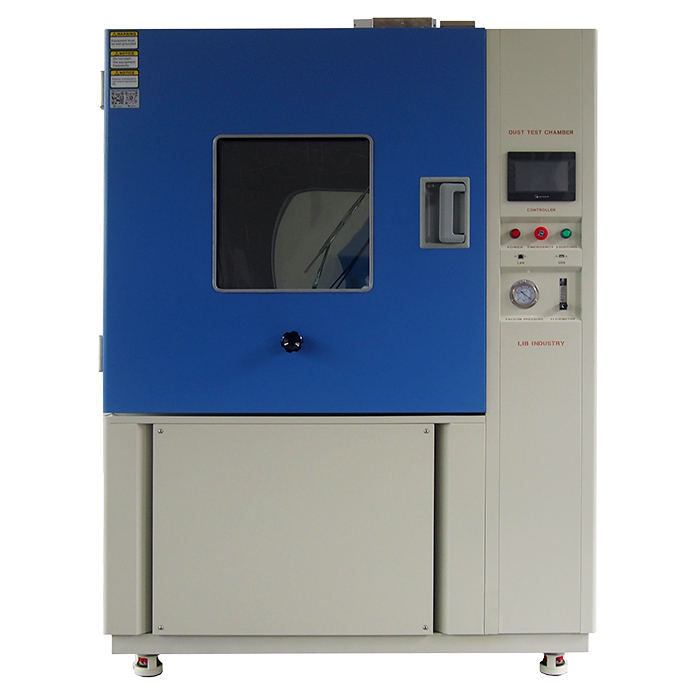

IP6X Dust Protection Advantages
1. Complete Dust Sealing: Protects against particles as small as 50 µm, simulating extreme dusty conditions like sandstorms or construction sites.
2. Uniform Dust Circulation: Vertical airflow ensures even exposure of all samples, preventing caking or uneven testing results.
3. Flexible Sample Mounting: Can test items on turntable (diameter 600 mm, max load 20 kg) or suspended for different product sizes.
4. Observation and Safety: Built-in LED lights and observation windows allow monitoring without interrupting the test.
5. Durable Construction: Stainless steel interior, insulated walls, and corrosion-resistant seals guarantee stability and long-term use.
6. Precise Environmental Control: Maintains ambient to +50 °C temperature, humidity <30 % RH, ensuring reproducible conditions.

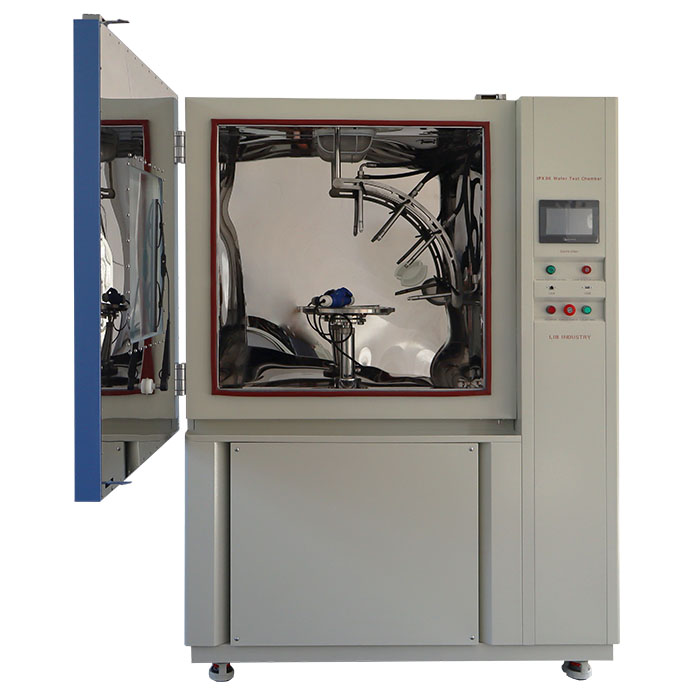

IPX9K High-Pressure, High-Temperature Water Spray Advantages
1. Extreme Water Ingress Protection:Tests at 8,000–10,000 KPa water pressure and up to +88 °C, simulating industrial cleaning or vehicle wash systems.
2. High Flow Accuracy: Water flow 14–16 L/min with ±0.01 KPa pressure deviation for consistent and repeatable results.

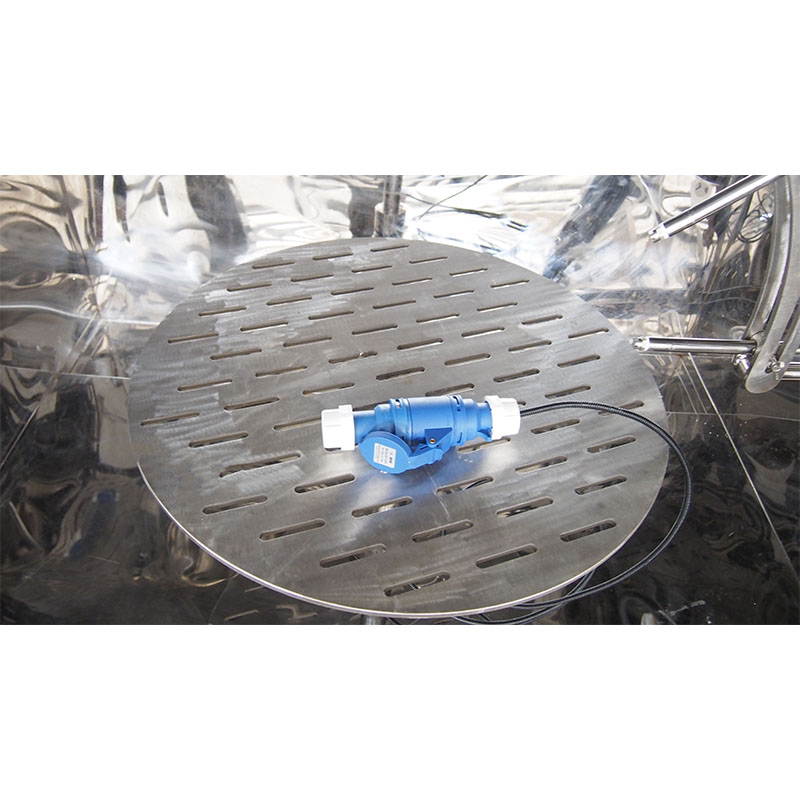

3. Adjustable Testing Platform: Turntable diameter 600 mm, height 200–400 mm, speed 5 ±1 r.p.m, tilt up to 15°, accommodating diverse products.

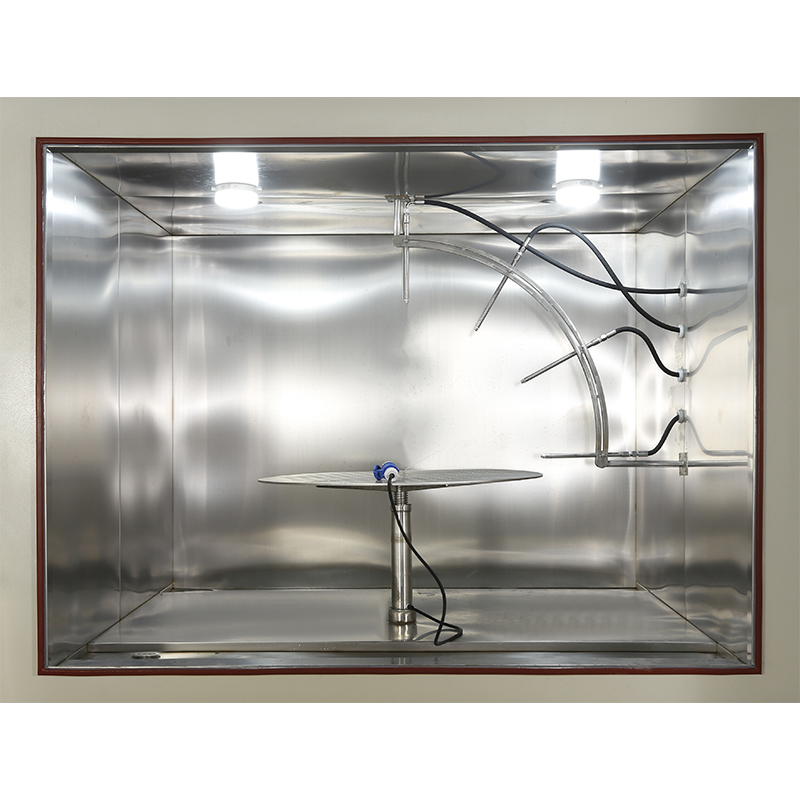

4. Flexible Spray Coverage: Four nozzles spray at 0°, 30°, 60°, and 90° angles, 30 seconds per position, ensuring full exposure.
5. Safe Operation: Observation windows, LED lighting, waterproof power outlets, and emergency stop system for uninterrupted and secure testing.
6. Durable and Precise Build: Insulated tanks, reinforced stainless steel, and PID-controlled water circulation maintain stability, reduce water usage by 80%, and prevent nozzle blockage.
Technical Parameters
| Feature | IP6X Sand Test Equipment (DI-800) | IPX9K Water Spray Test Equipment (R9K-1200) |
|---|---|---|
| Purpose | Provides maximum protection of the specimen against dust ingress | Provides maximum protection of the specimen against water ingress, including high-pressure and high-temperature water jets |
| Internal Dimensions (mm) | 800 × 1000 × 1000 | 1000 × 1200 × 1000 |
| Overall Dimensions (mm) | 1040 × 1450 × 1960 | 1250 × 1700 × 2050 |
| Interior Volume (L) | 800 | 1200 |
| Temperature Range | Ambient ~ +50 °C | Ambient ~ +88 °C (Adjustable) |
| Humidity Range | <30 % RH | Controlled by water spray temperature and flow (no separate humidity control) |
| Particle / Spray Details | Dust particles 50 µm diameter; nominal gap 75 µm; talcum powder 5 kg; sample shelf and dust wiper included | Water sprayed through four nozzles at angles 0°, 30°, 60°, 90°; 30 s per position; distance 10–15 cm |
| Water / Dust Circulation System | Equipped with vacuum pump, pressure gauge, air filter, and pressure regulator; ensures uniform dust distribution and prevents caking | High-power water pump with PID-controlled pressure; insulated tank maintains up to +88 °C; closed-loop circulation prevents nozzle blockage |
| Testing Platform Diameter | 600 mm | 600 mm |
| Testing Platform Height | Adjustable to suit different specimen sizes | Adjustable 200–400 mm; platform can tilt to ensure full spray coverage |
| Testing Platform Speed | Fixed for dust exposure simulation | 5 ±1 r.p.m turntable rotation during spraying |
| Specimen Power Outlet | Dust-proof socket 16A | Waterproof power outlet for live-function testing |
Typical Tests Performed by the Ingress Protection Dust and Water Resistance IP69K Test Equipment
The ingress protection dust and water resistance IP69K test equipment is widely used to evaluate the sealing performance of products such as automotive lighting, electrical enclosures, sensors, and outdoor electronic devices. For example, when testing automotive lamps, the procedure generally follows the requirements of ISO 20653 and DIN 40050-9. During the IP6X dust test, the lamp is exposed to circulating talcum powder with particle sizes below 75 μm for up to 8 hours, ensuring that no dust penetrates the enclosure and affects internal components. In the subsequent IP69K water resistance test, the sample is subjected to high-pressure hot water jets at approximately 8–10 MPa, with a water flow rate of 14–16 L/min and a temperature of around 80 °C. The spray nozzle is positioned 100–150 mm from the product while spraying at multiple angles to simulate intensive cleaning conditions commonly encountered in automotive and industrial environments.
Video of the Ingress Protection Dust and Water Resistance IP69K Test Equipment
FAQs on the Ingress Protection Dust and Water Resistance IP69K Test Equipment
Q1: What types of products can be tested with LIB's IP69K equipment?
A1: LIB's IP69K test equipment is suitable for a wide range of products that require extreme dust and water protection, including automotive lighting, sensors, outdoor electronic devices, and industrial enclosures. It ensures that enclosures maintain full functionality even under prolonged dust exposure or high-pressure, high-temperature water jets.
Q2: How does LIB ensure the accuracy of IP69K testing?
A2: LIB's equipment uses precise control over water pressure, flow rate, and temperature, as well as adjustable nozzle angles and distances. For dust testing, it circulates fine talcum powder uniformly around the sample. These features allow repeatable and standardized testing in accordance with ISO 20653 and DIN 40050-9, providing reliable results for product certification and quality control.
Q4: What kind of after-sales support does LIB provide for IP69K test equipment?
A4: LIB provides a 3-year warranty on all IP69K test equipment, covering parts and technical issues. In addition, LIB offers lifetime support, including installation guidance, user training, routine maintenance, technical troubleshooting, and remote assistance for calibration and performance checks. This ensures that the chambers remain accurate, reliable, and fully functional throughout their entire service life.
